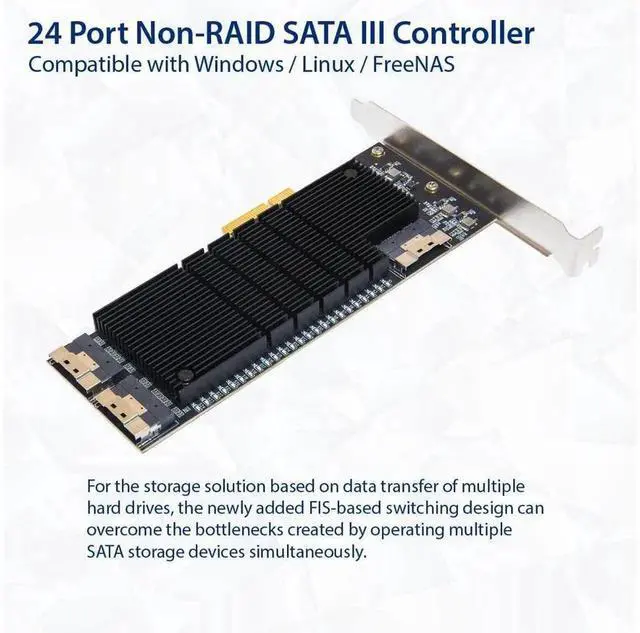

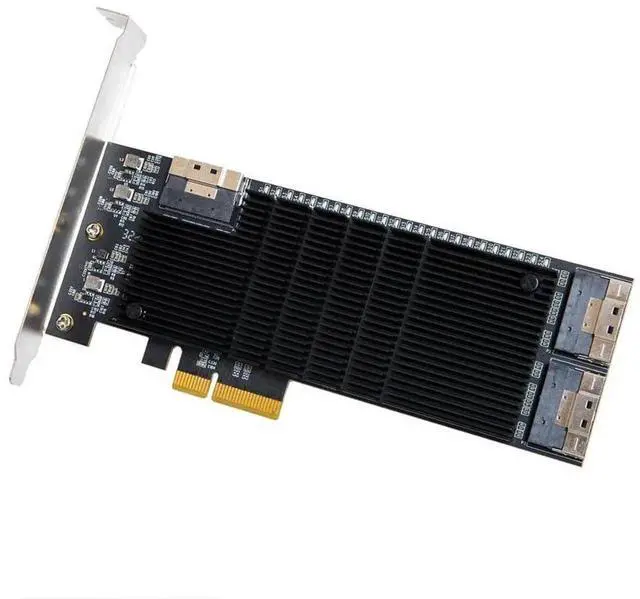

SI-PEX40169 24 Port SATA III PCIe 3.0 x4 Non-RAID Expansion Card, JMB575 JMB582 Chipset with Low Profile Bracket
- 24-port SATA III 6Gbps expansion design, non-RAID mode for independent hard disk passthrough access.

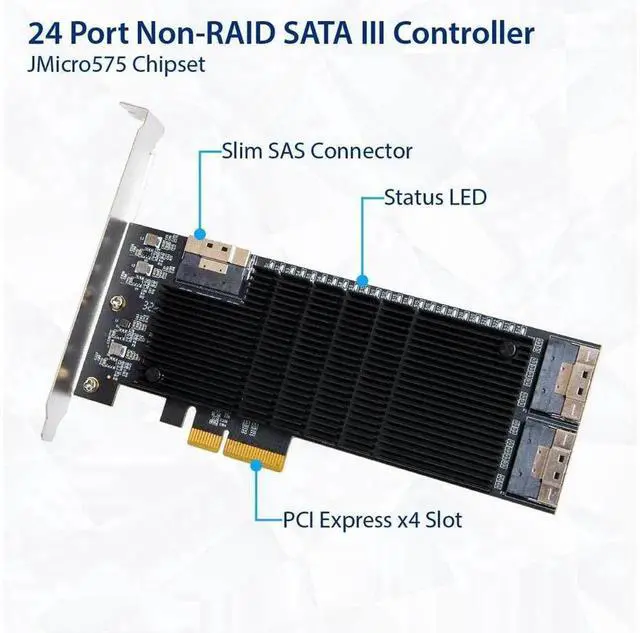

- Adopts JMB575 and JMB582 professional combination chipset, stable performance and strong compatibility.
- PCIe 3.0 x4 interface provides sufficient bandwidth, supports multi-disk simultaneous high-speed transmission.

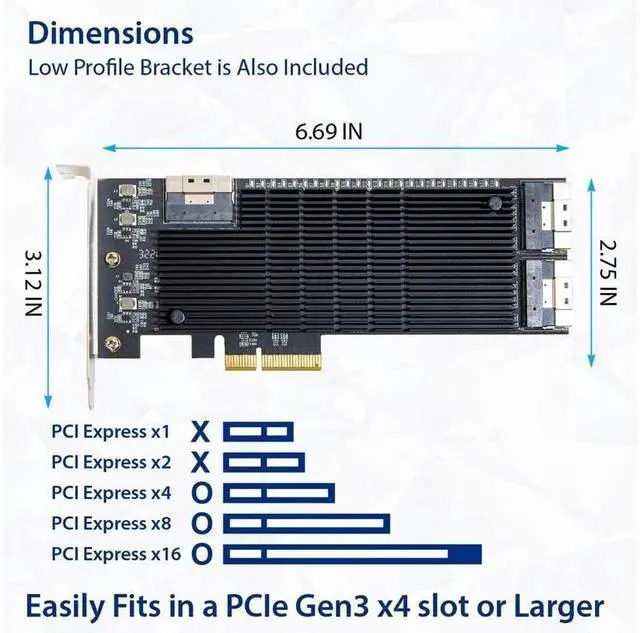

- Equipped with low profile bracket, fits standard chassis and 2U slim server small case installation.
- Perfectly compatible with ZFS, FreeNAS, unRAID, Windows and Linux systems for NAS and server storage expansion.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

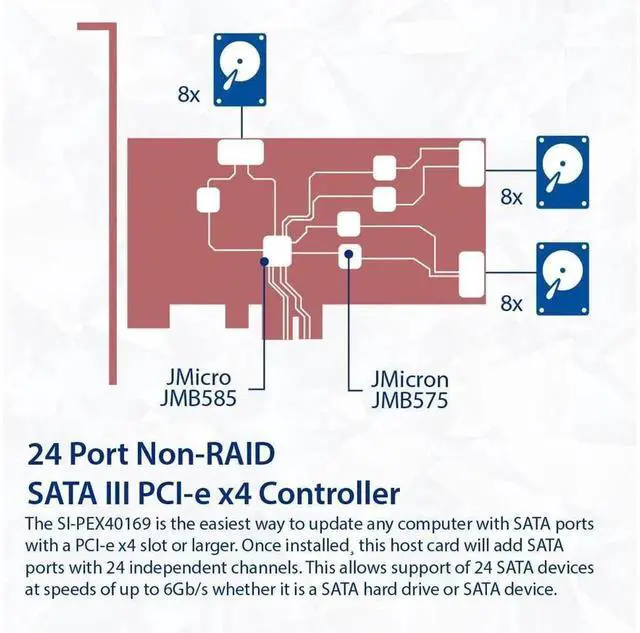

This SI-PEX40169 is a 24-port SATA III high-capacity expansion card with PCIe 3.0 x4 interface. Built with JMB575 and JMB582 main control chips, it expands one PCIe slot into 24 independent SATA 3.0 ports, each supporting 6Gbps high-speed transfer rate. It works in pure non-RAID mode, allowing each hard drive to be recognized independently, ideal for software RAID and NAS building.
Comes with low profile mounting bracket, easy to install in standard desktop chassis and 2U rack-mount slim servers. Optimized circuit design ensures anti-interference and stable 24/7 long-term operation. Widely applicable for large-capacity NAS, home server, monitoring storage and multi-disk expansion scenarios.
