Dual-Port Mini SAS HD SFF-8644 External to SFF-8643 Internal PCBA Adapter Card, Low Profile Bracket SAS 12Gbps Storage Converter for Server RAID HBA & Internal Disk Backplane

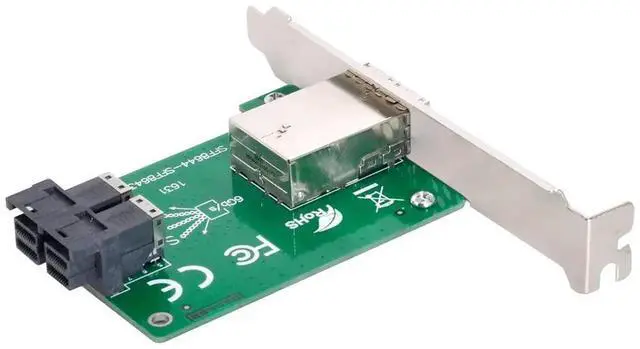

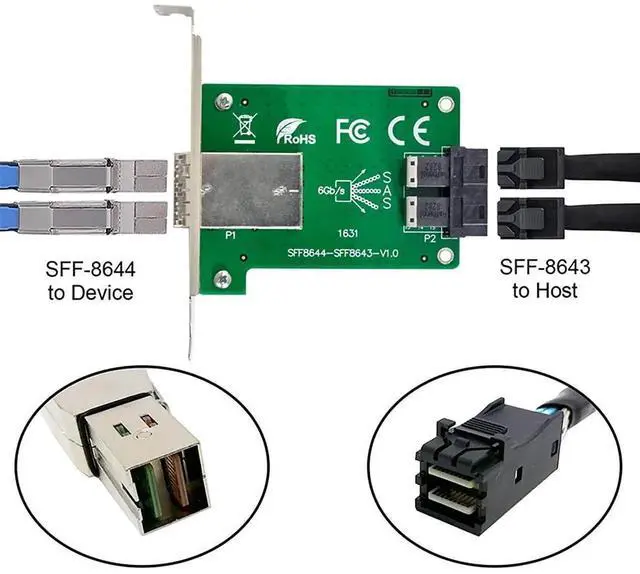

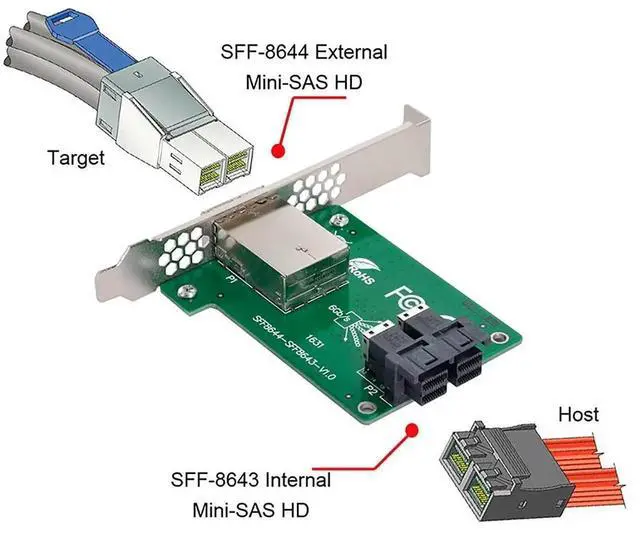

This dual-port Mini SAS HD signal conversion adapter adopts professional integrated PCBA circuit board design, equipped with two external SFF-8644 female connectors on the bracket side and two internal SFF-8643 female terminals on the rear for internal wiring connection. It realizes bidirectional signal conversion between external Mini SAS HD host cables and internal server hard disk backplanes, perfectly matching RAID HBA cards, DAS storage enclosures and workstation internal storage systems.

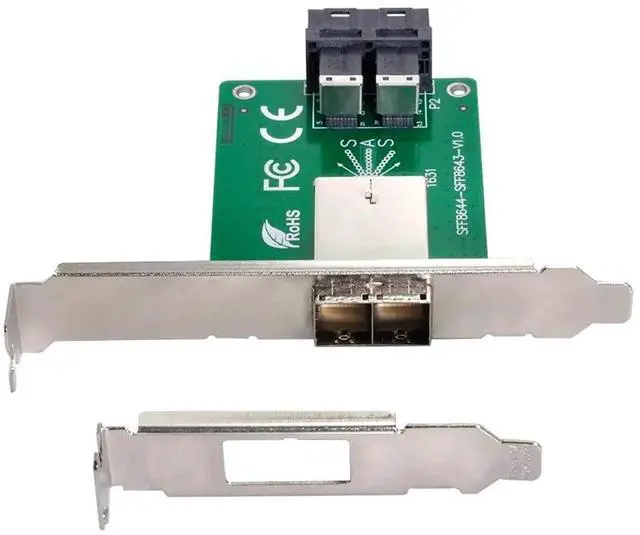

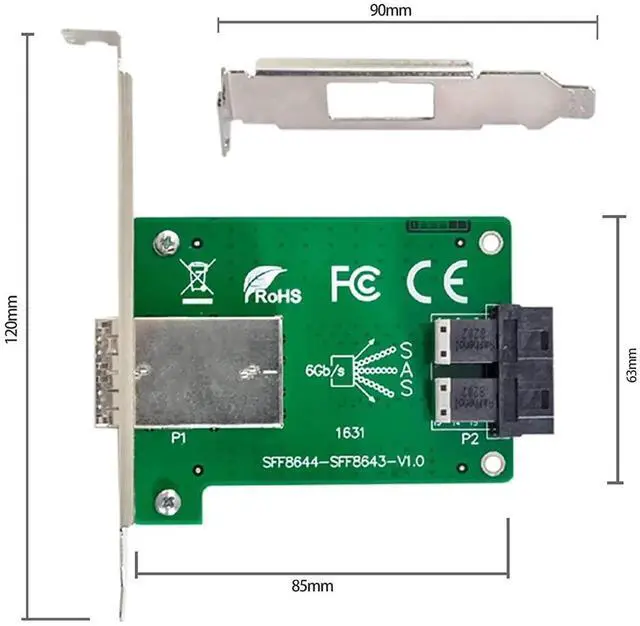

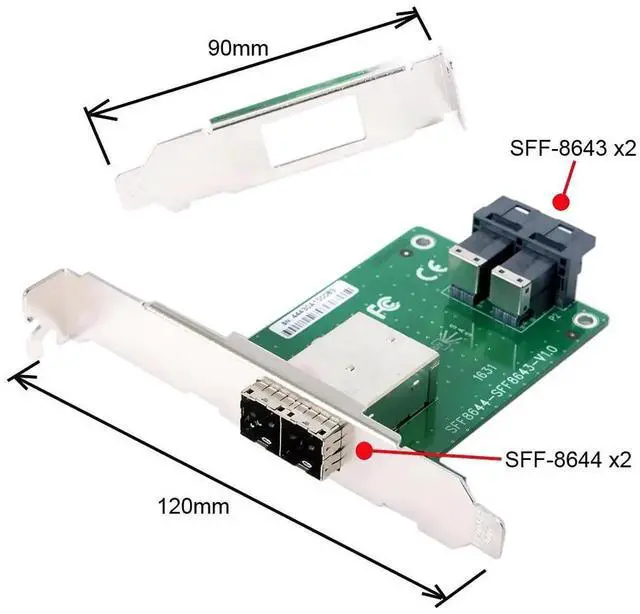

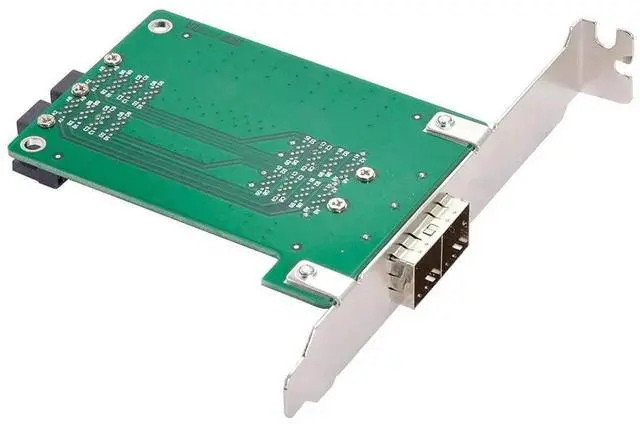

Equipped with a replaceable low-profile half-height bracket, the adapter can be installed in 1U rack servers, slim MATX/ITX industrial PCs and compact mini workstations with limited expansion space, unlike full-height adapters that cannot fit thin chassis. The PCB is manufactured with precise impedance control and built-in shielding circuits to suppress electromagnetic crosstalk, greatly reducing signal attenuation during high-speed long-distance transmission.

Compliant with SAS 3.0 industrial standard, it supports up to 12Gbps per-lane bandwidth and maintains full compatibility with SAS/SATA HDDs, SSDs and hot-swap drive trays of earlier SAS generations. All female contact pins of SFF-8644 and SFF-8643 ports are gold-plated to lower contact resistance and resist oxidation after years of round-the-clock operation; built-in locking latches ensure cables stay firmly connected without accidental disconnection from cabinet vibration.

No driver installation required, plug-and-play compatible with Windows Server, Linux and mainstream desktop operating systems. Widely used for enterprise rack server storage expansion, external disk array connection and small business compact workstation RAID setup, an ideal space-saving Mini SAS HD signal transfer conversion solution.
