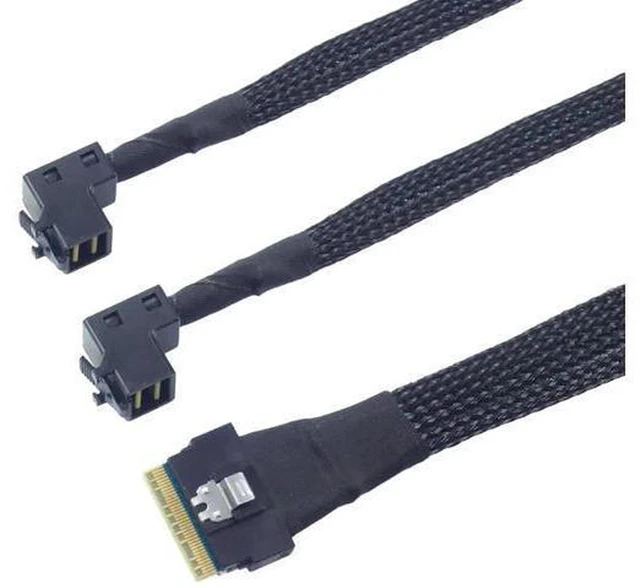

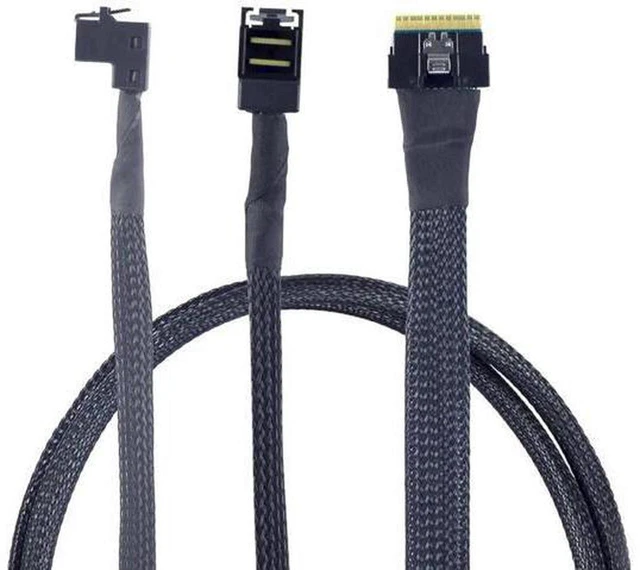

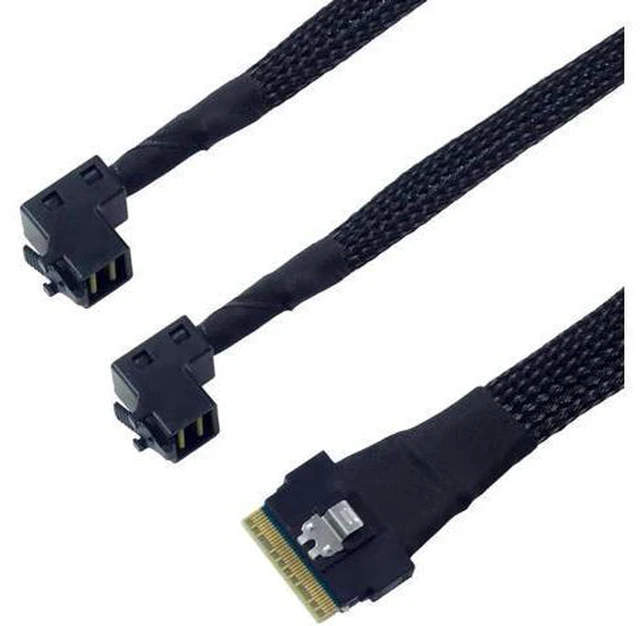

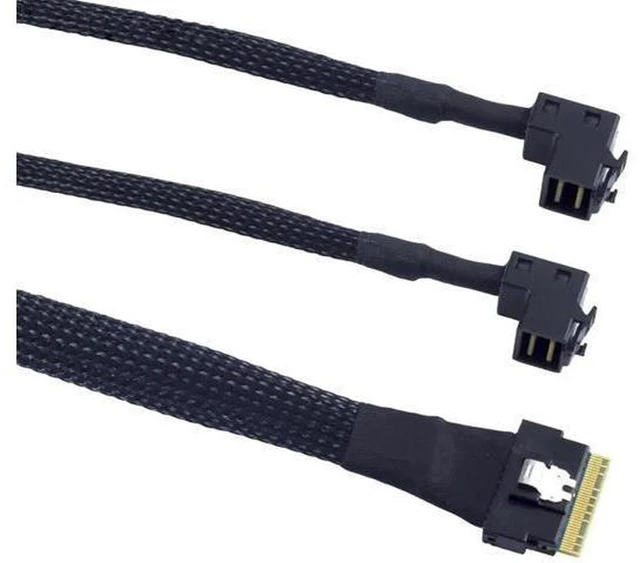

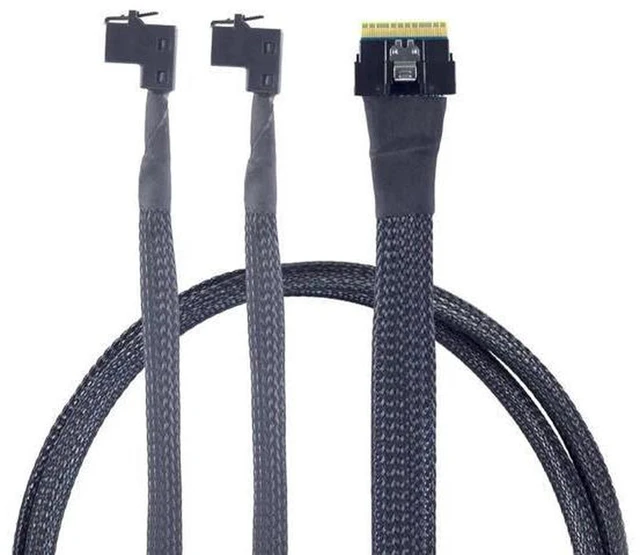

AJMRTC Slimline SAS SFF-8654 8i 74Pin to Dual Upward SFF-8643 Mini SAS HD 4i 36Pin Fanout Cable, PCIe Gen4 Tri-Mode Breakout Cable for Server HBA RAID NVMe HDD Backplane Storage Connection
- - SlimSAS SFF-8654 8i 74Pin host splits upward to two independent SFF-8643 4i Mini SAS HD ports
- - Supports PCIe Gen4, SAS4.0 tri-mode transmission for NVMe, SAS and SATA drives
- - Upward angled connector design saves vertical space and avoids blocking adjacent components
- - Controlled impedance differential pairs with full shielding for low crosstalk in rack chassis
- - Locking latch connectors with anti-misplug housing for secure vibration-resistant connection
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
AJMRTC SFF-8654 8i to dual upward SFF-8643 breakout cable converts one Slimline SAS 8i port into two Mini SAS HD 4i ports. It supports tri-mode signal for NVMe SSD, SAS HDD/SSD and SATA storage devices. The upward fanout orientation helps tidy routing inside tight server and NAS backplanes. You need to enable PCIe bifurcation on the HBA or motherboard host to utilize both channels separately. Storage drives are sold separately.
Specifications
- Brand: AJMRTC
- Connector A: SFF-8654 8i 74Pin Male
- Connector B: 2 × SFF-8643 4i 36Pin Male, Upward Angle
- Supported Standard: PCIe Gen4, SAS4.0, SATA; backward compatible with PCIe3.0, SAS3.0
- Signal Type: Tri-mode NVMe / SAS / SATA
- Bandwidth: PCIe Gen4 x4 up to 64Gbps per channel
- Construction: Multi-layer shielded, 30AWG tinned copper, black braided sleeve
- Contact: Gold-plated contacts
- Supported OS: Windows, Linux, FreeBSD, ESXi
- Application: Server, HBA, RAID Controller, JBOD, NVMe Backplane, Data Center Storage
- Working Temperature: -20 ~ 70
- Note: Host bifurcation required; internal fanout cable, not external
