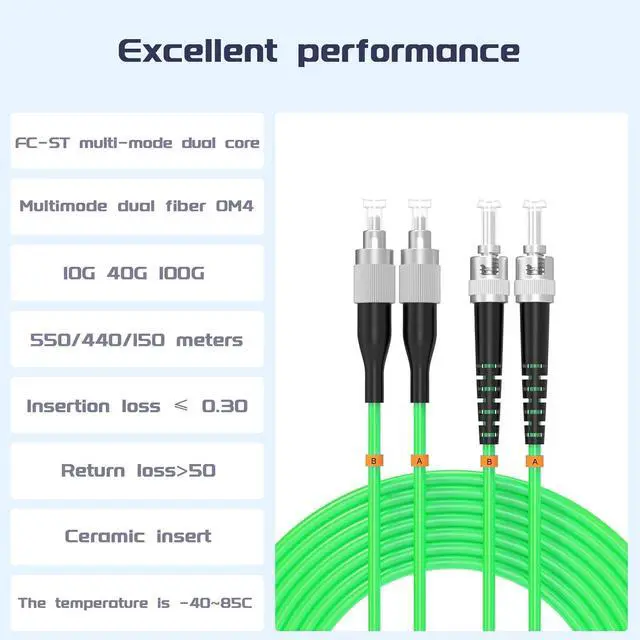

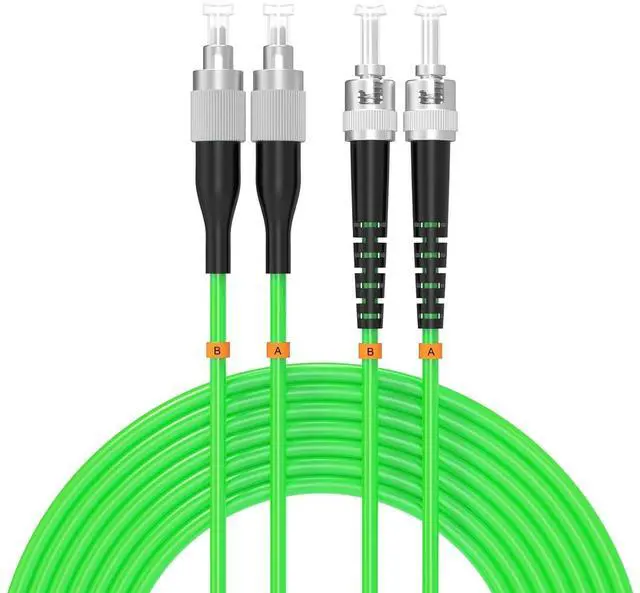

om5 fc to st Fiber Patch Cable,5Meters/16.5ft 10GB/40GB/100GB giga-bit Multimode Duplex Jumper 50/125?m LSZH Fiber Optic Cord

OM5 fiber optic, also known as ISO/IEC 11801; Fiber core diameter: 50 ?m; Wavelength: 850nm to 953nm; Bandwidth: 28000 MHz ? km;Transmission rate: 40 Gbit/s to 100 Gbit/s; And it is fully compatible and interoperable with OM3 and OM4 fibers.

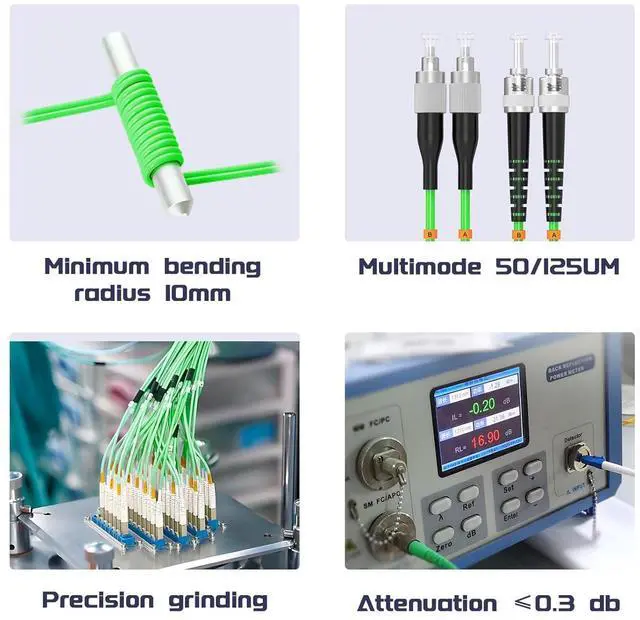

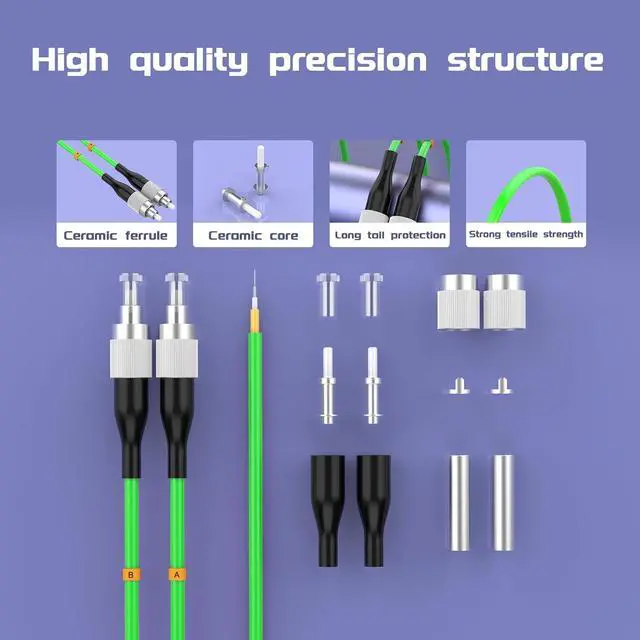

The OM5 fiber optic jumper adopts the material formula and forming process technology of nano zirconia powder injection molding, featuring a high return loss of e 50dB, low insertion loss of d" 0.3dB, and low attenuation characteristics to provide precise alignment for ensuring signal integrity.

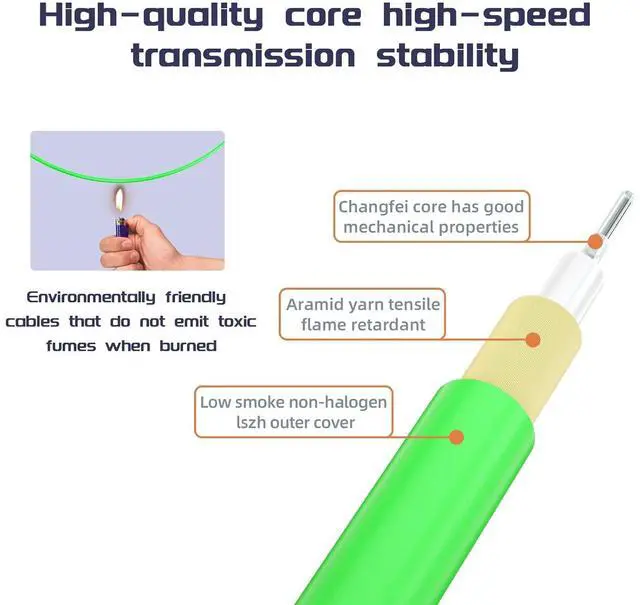

The OM5 multimode duplex fiber optic cable is equipped with an LSZH low smoke halogen-free protective sleeve, which is flame retardant, resistant to high temperatures and deformation. anti-pulling, and anti-breaking properties. The minimum bending radius is 7.5mm, making it insensitive to bending and easy to strip off for welding.
OM5 fiber is a laser-optimized multimode fiber. It specifies the bandwidth characteristics of Wavelength Division Multiplexing (WDM), enabling the transmission of multiple wavelengths on the same fiber. The purpose of this new fiber classification method is to support various ""short"" wavelengths ranging from 850nm to 950nm, which are suitable for high-bandwidth applications after aggregation.
Each cable is tested in the factory to meet quality control and insertion loss requirements, providing customers with high-quality products. We also have a professional customer service team. If you have any questions, please contact us promptly."
