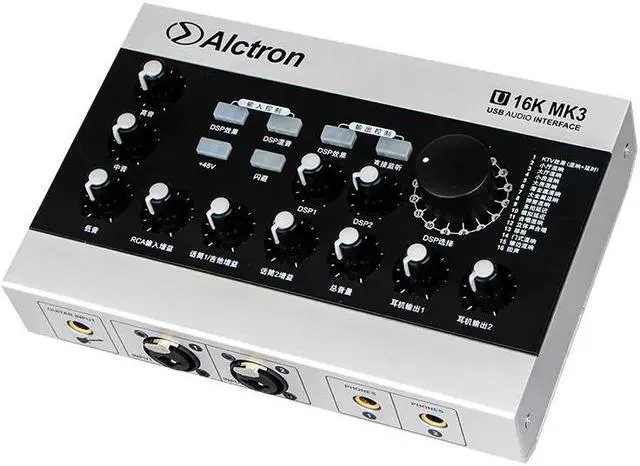

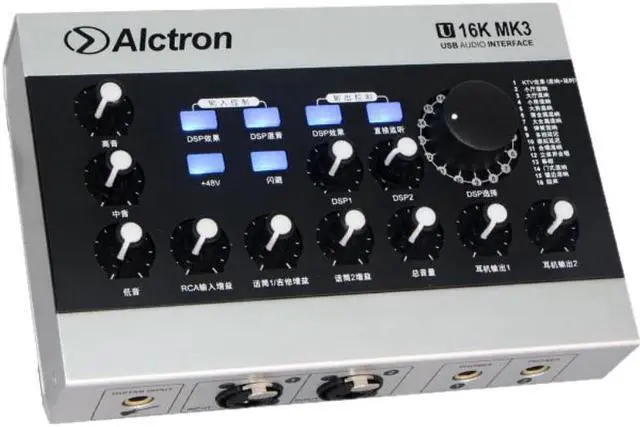

U16K MK3 External USB Audio Recording sound card with DSP effect mobile phone computer Versatile karaoke singing

Introduction:

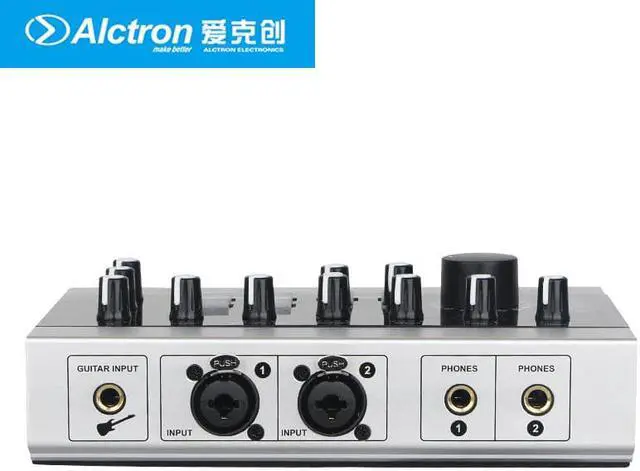

U16K MK3 USB interface transforms your computer into a recording studio. This complete recording solution gives you XLR inputs for microphones, TRS inputs for instruments. The durable aluminum housing is perfect for sessions on the go. And zero-latency audio monitoring and built-in 16-DSP effecst with control knob make recording your next big hit easier than ever. A perfect center for your home or portable studio, the U16K MK3 is a fully featured USB audio interface for all of your recording needs. Dual XLR / TRS combo inputs feature solid-state preamps and 48V phantom power for your condenser microphones. Each track sports a 1/4" TRS input that's switchable for line or instrument inputs.

Specifications:

MIC INPUT:

A/D Resolution : 24 bit/96kHz

Frequency response: 22Hz to 50kHz (+/-0.2db)

Dynamic Range: 90dB, A-weighted

Signal-to-Noise Range: -90dB, A-weighted

THD+N: <0.0061% (-86dB)

Crosstalk: -85dB @ 1kHz

Input Impedance: Mic in: 1.8K Ohms, typical

Adjustable Gain: +39dB

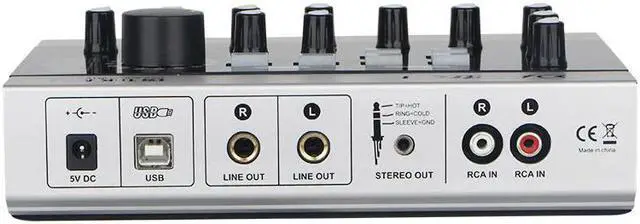

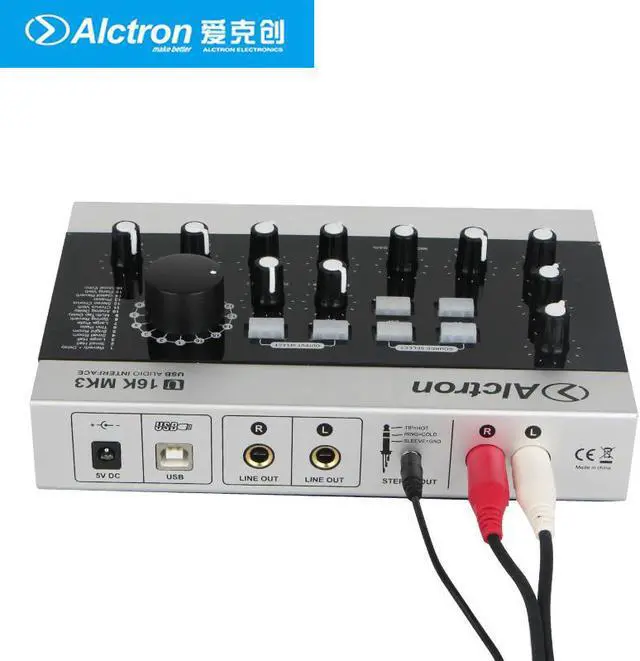

LINE INPUTS ( RCA in ,Unbalanced ):

Frequency Response: 22Hz to 20kHz (+/-0.2db)

Dynamic Range: 90dB, A-weighted

Signal-to-Noise Range: -90dB, A-weighted

THD+N: <0.003% (-86dB)

Crosstalk: -90dB @ 1kHz

Input Impedance: Mic in: 10K Ohms, typical

Adjustable Gain: +8dB

INST INPUT:

Frequency Response: 22Hz to 20kHz (+/-0.2db)

Dynamic Range: 90dB, A-weighted

Signal-to-Noise Range: -90dB, A-weighted

THD+N: <0.0061% (-86dB)

Crosstalk: -75dB @ 1kHz

Input Impedance: Mic in: 500K Ohms, typical

Adjustable Gain: +38dB

LINE OUTPUTS 1/2 ( stereoUnbalanced

Dynamic Range: 90dB, A-weighted
