US-4X4

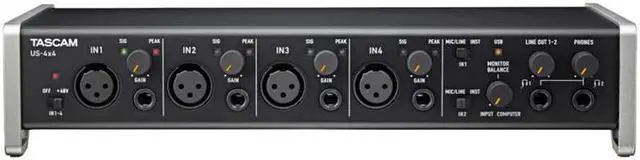

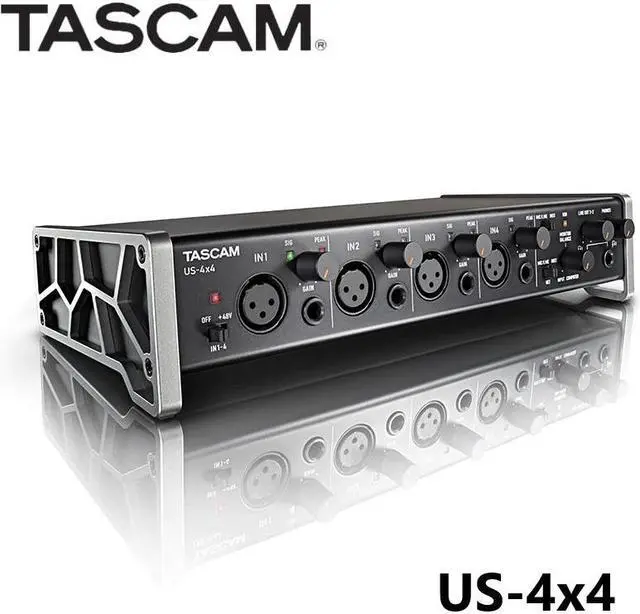

The US-4x4 is a 4-channel USB audio interface designed for audio capture and reproduction at up to 24-bit/96 kHz resolution for musicians, vocalists, and producers in home and project studios, and mobile recording rigs. It features four Ultra-HDDA low-noise mic preamps fed by XLR jacks, four 1/4" inputs, four 1/4" line outputs, and NE5532 op-amps in the input and output sections. Its angled aluminum design enables easy visibility when placed on a desk or table.

Separate level knobs are provided for the two 1/4" stereo headphone jacks and 1/4" balanced line outputs 1-2. The headphone jacks are driven by 45mW (per channel) amplifiers. Rear-panel MIDI ports allow simple hook-up of your MIDI controller, keyboard, or synthesizer. Power the US-4x4 via USB connection to your compatible Mac, Windows, or iOS device or via the supplied AC adapter. Use your favorite DAW or download the supplied copy of Cubase LE and explore it.

Features:

Mic/instrument/line inputs with up to 57 dB of gain

4-in/4-out USB 2.0 interface with up to 24-bit/96 kHz resolution

XLR input jacks with selectable phantom power

1/4" inputs accept unbalanced or balanced signals

Zero-latency monitoring

Separate volume controls for headphone jacks and line outputs 1-2

NE5532 op-amps

Two headphone output jacks with 45mW (per channel) amplifiers

USB Audio Compliant 2.0 drivers for iOS compatibility

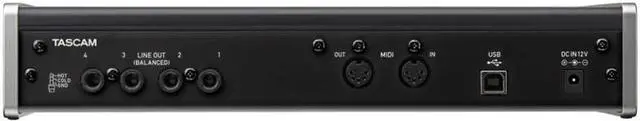

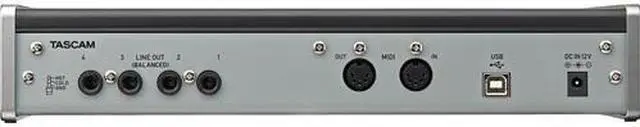

MIDI input and output jacks

Aluminum body with angled design for better desktop visibility

Includes power adapter

Includes Cubase LE cross-platform compatible DAW

Technical Specifications

Four Ultra-HDDA mic preamplifiers

Four TRS analog balanced outputs
