Audio HAT Module for Raspberry Pi 4B/3B+/3B/2B/B+/A+/Zero/Zero W/Pi Zero WH,WM8960 Hi-Fi Sound Card HAT Stereo CODEC, Play/Record

WM8960 Hi-Fi Sound Card HAT for Raspberry Pi, Stereo CODEC, Play/Record

Overview

This is a sound card HAT designed for Raspberry Pi, low power consumption, supports stereo encoding / decoding, features Hi-Fi playing / recording, what's more, it can directly drive speakers to play music.

Features

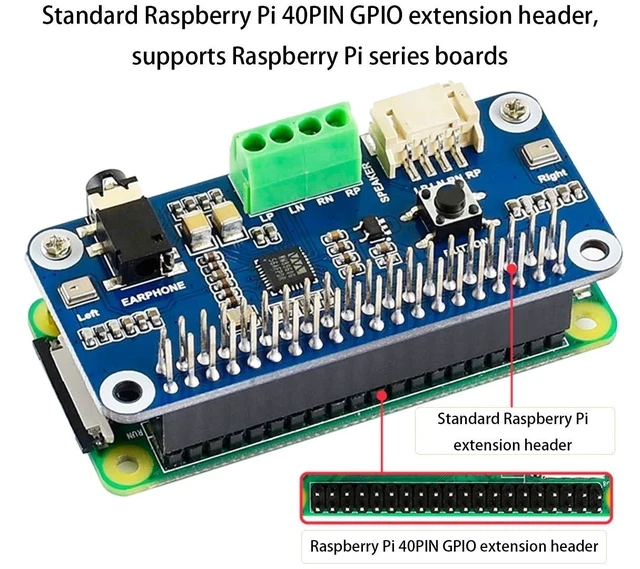

Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards

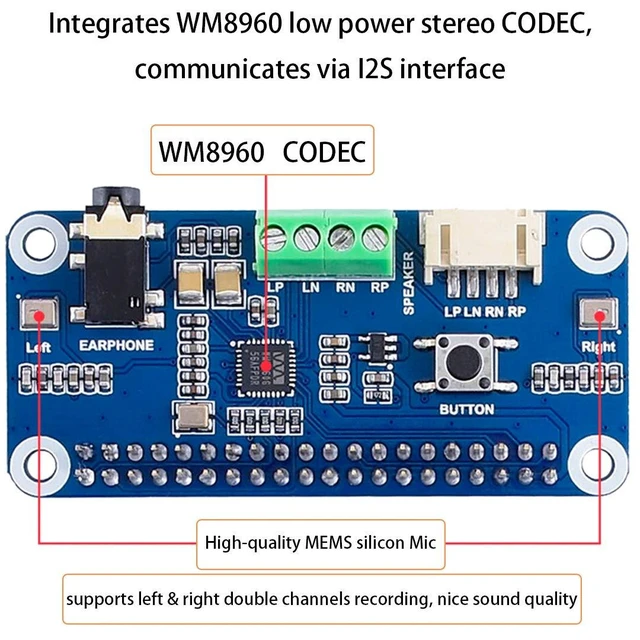

Integrates WM8960 low power stereo CODEC, communicates via I2S interface

Integrates dual high-quality MEMS silicon Mic, supports left/ right double channels recording, nice sound quality

Onboard standard 3.5 mm earphone jack, play music via external earphone

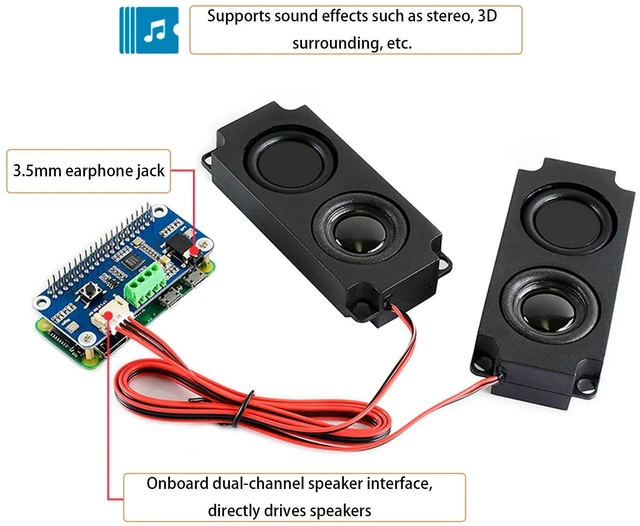

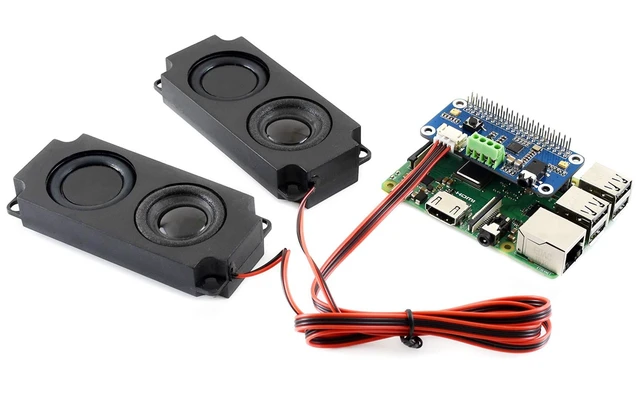

Onboard dual-channel speaker interface, directly drives speakers

Supports sound effects such as stereo, 3D surrounding, etc.

Comes with development resources and manual (python demo code for playing / recording)

Specifications

CODEC: WM8960

Power supply: 5V

Logic voltage: 3.3V

Control interface: I2C

Audio interface: I2S

DAC signal-noise ratio: 98dB

ADC signal-noise ratio: 94dB

Earphone driver: 40mW (16O@ 3.3V )

Speaker driver: 1W per channel (8O BTL)

Package Content

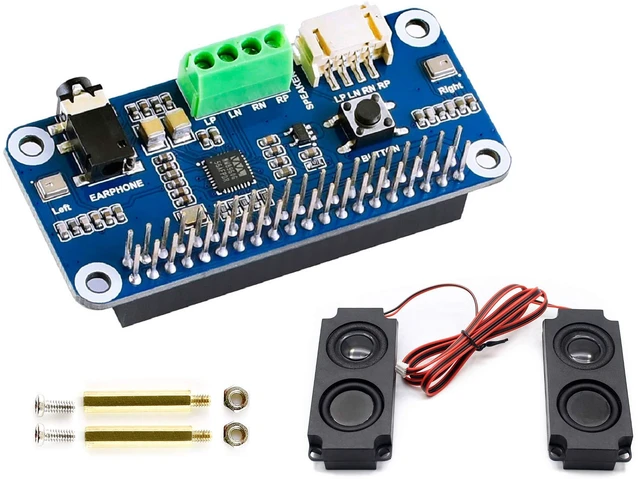

WM8960 Audio HAT x1

8O 5W Speaker x1

RPi screws pack (2pcs) x1

Note: Raspberry Pi in the photos is NOT included.
