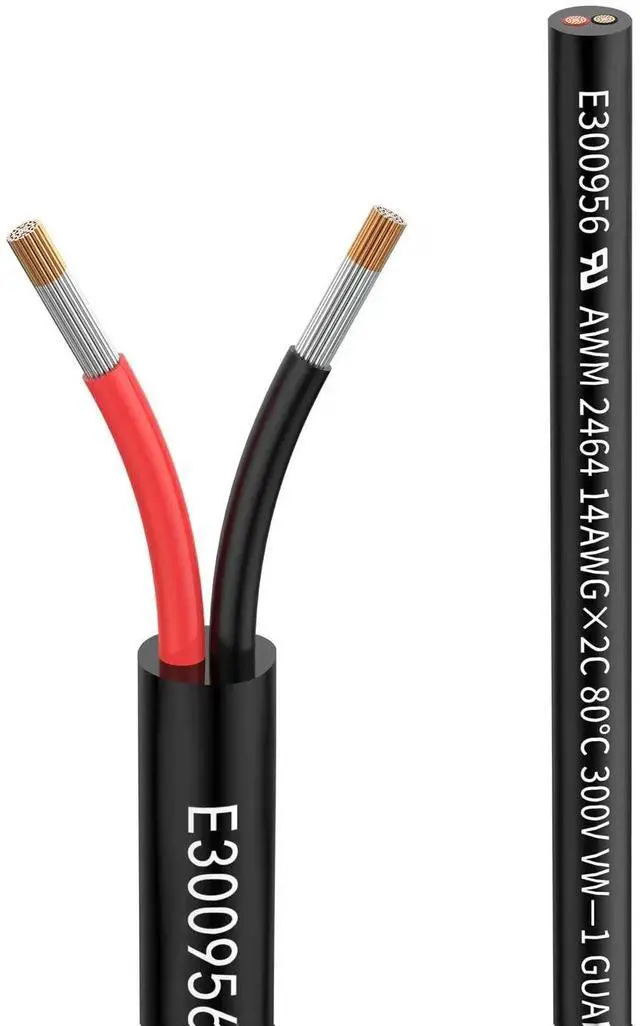

14 Gauge Wire 14/2 Electrical Wire 2 Conductor Extension Cable 20 Foot UL2464 DC 5V/12V/24V/300V 14 AWG Oxygen Free Stranded Tinned Copper Low Voltage Wire for LED Lamps Automotive
- Total 20ft/6.1meters, jacket color Black; 2 Core wire: Black&Red ;Flame retardant:VW-1 and FT1; Max Voltage: 300V(also can for 5V 12V DC 24V DC to 300V DC), Max Current: 20.8A; Temperature Range:-20 Deg C to 80 Deg C.
- 14awg 2.0mm² wire:High purity oxygen-free Stranded copper with tin-plated, Compared with CCA(copper clad aluminium) and Pure Copper materials,specification features high conductivity, low resistance , easy to welding, connect,cut and Separate.
- High quality PVC, features flame retardant, high compressive strength adopted, anti-aging, excellent performance in corrosiveness resistance,Waterproof, dust and dirt resistant, rated for direct burial, Withstanding prolonged sun exposure, Weather resistant.
- 41 strands of 0.254 mm Tinned copper wire are inside each cable - Highly efficient - Super low impedance for a highly efficient connection, the copper strands are tinned,protecting them from corrosion and making it easier to solder,suitable for low voltage outdoor uses such as accent lights, path lights, spotlights, garden accessories, outdoor speaker.
- Widely used for Car,batteries,lamps,household appliances,electric heating appliances,model planes,model cars,model ships,meters,instruments,motor lead wire,digital fields,led strip,Led lights and and inverter wiring etc.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

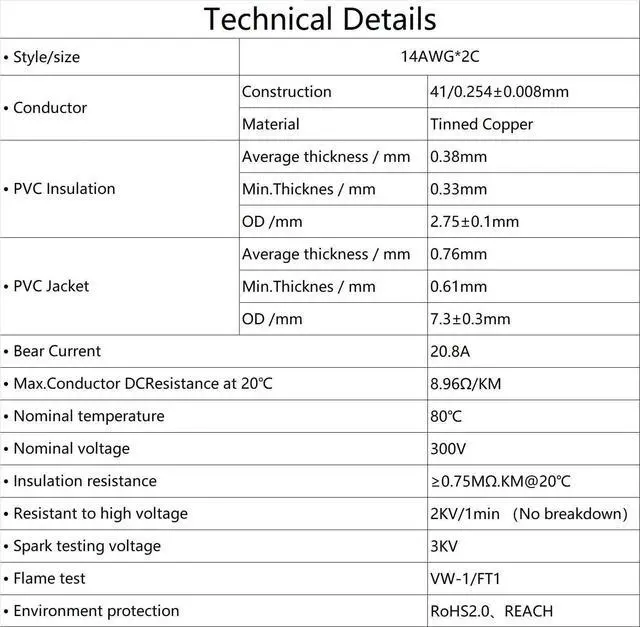

(1)Type:14AWG(2.0mm²) UL2464 Certification
(2)Total 20 feet2 Core wire,Black and Red
(3)Jacket Color: Black
(4)Nominal Voltage: 300V ;Testing Voltage:2KV
(5)Temperature Range:-20 Deg C to 80 Deg C
(6)Conductor: Tinned Copper
(7)Insulator: PVC
(8)Bear Current:20.8A
(9)Max.Conductor DCResistance at20 /KM:8.96

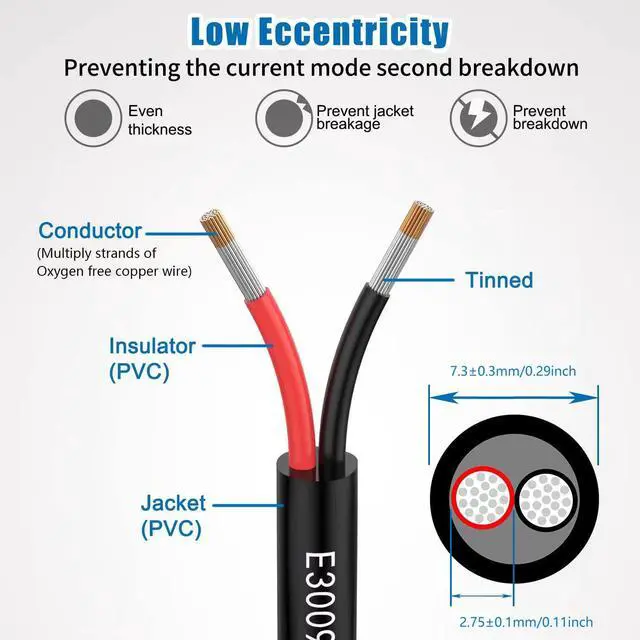

Conductor:
(1) Gauge:14AWG(2.0mm²)
(2) Copper Number/Wire Diameter:41/0.254±0.008mm
Insulator:
(1) Material: PVC
(2) Color: Black and Red
(3) Jacket Thick:0.38mm
(4) Over Diameter:2.75±0.1mm
Jacket:
(1) Material: PVC
(2) Color: Black
(3) AVG Thickness of Insu: 0.76mm
(4) Min Thickness of Insu: 0.61mm
(5) Over Diameter: 7.3±0.3mm
Marking: E300956 AWM 2464 14AWG×2C 80 300V VW-1 GUANGDONG HAERKN NEW ENERGY CO.,LTD c AWM 14AWG×2C 80 300V I A FT1 ROHS
