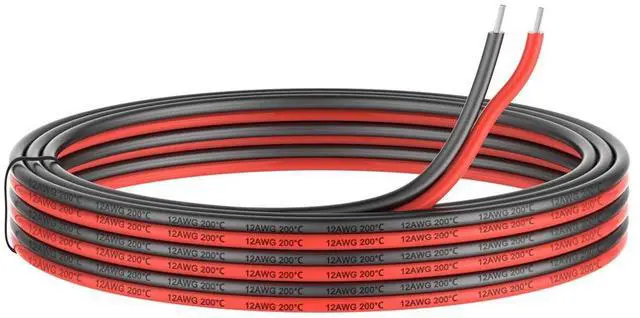

12awg Silicone Electrical Wire 2 Core Wire 20ft [Black 10ft Red 10ft] 12 Gauge Soft and Flexible Hook Up Oxygen Free Strands Tinned Copper Wire
- 2 Colors:Black,Red; Wire Length :10Ft / 3.1 Meters each color;Material : Silicone rubber+High-purity oxygen-free Tinned Copper wire; High Quality Ultra Flexible Soft Silicone Rubber Copper Wire!Super Low Impedance,Highly Efficient!
- They are constructed with premium silicone rubber insulation.High temperature resistance 200 degree C,Low temperature resistance,in extreme cold -60 degree C.Rated Voltage: 600 volts(can for 0 to 600 Volts); Bear Current:max 30A ;
- 3.3mm² 12 Gauge silicone wire - super flexible 680 strands of 0.08 mm Tinned copper wire - Highly efficient - Super low impedance for a highly efficient connection, the copper strands are tinned,protecting them from corrosion and making it easier to solder
- Conductor: High purity Stranded oxygen-free copper with tin-plated, specification features high conductivity, low resistance and soft, can be bent arbitrarily, easy to welding, stripping, crimping terminals,connect,cut.
- Widely used for Car,batteries,lamps,household appliances,electric heating appliances,model planes,model cars,model ships,meters,instruments,motor lead wire,digital fields,led strip and Led lights.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
2 Colors:Black,Red
Wire Length :10Ft/3.1Meters each color
Nominal Voltage: 600V
Testing Voltage:2000V
Temperature Range:-60 to 200
Conductor: Tinned Copper
OD Tolerance: ±0.1mm
Insulator: Silicone
Conductor
(1) Gauge:12AWG(3.3mm²)
(2) Copper Number/Wire Diameter:680/0.08mm
(3) Diameter: 2.48mm
Insulator:
(1) Jacket Thick:1.0mm
(2) Over Diameter:4.5mm
Bear Current:30A
