Hook-Up Silicone Wire Kit
- Due to the Silicone insulation and fine stranded core, The wire is very flexible easy to strip and solders . Well suited for applications where the wire will be flexed, like test cables. Could be terminated with pins and heat shrink sleeves for breadboard jumper wires.
- super flexible 150 strands of 0.08 mm Tinned copper wire - protecting them from corrosion and making it easier to solder.Highly efficient - Super low impedance .
- 14AWG:Outside Diameter: 3.5mm Wire Core Diameter: 400/0.08mm,withstand current20A
- 16AWG:Outside Diameter: 3.0mm Wire Core Diameter: 252/0.08mm,withstand current 12A
- 18AWG:Outside Diameter: 2.3mm Wire Core Diameter: 150/0.08mm,withstand current 7.5A
- 20AWG: Outside Diameter: 1.8mm Wire Core Diameter: 100/0.08mm,withstand current 5A
- 22AWG: Outside Diameter: 1.7mm Wire Core Diameter: 60/0.08mm,withstand current 3A
- 24AWG:Outside Diameter: 1.6mm Wire Core Diameter:40/ 0.08mm,withstand current 2A
- 26AWG: Outside Diameter: 1.5mm Wire Core Diameter: 30/0.08mm,withstand current 1.5A
- 28AWG: Outside Diameter: 1.2mm Wire Core Diameter: 16/0.08mm,withstand current 0.8A
- 30AWG:Outside Diameter: 0.8mm Wire Core Diameter: 11/0.08mm,withstand current 0.55A

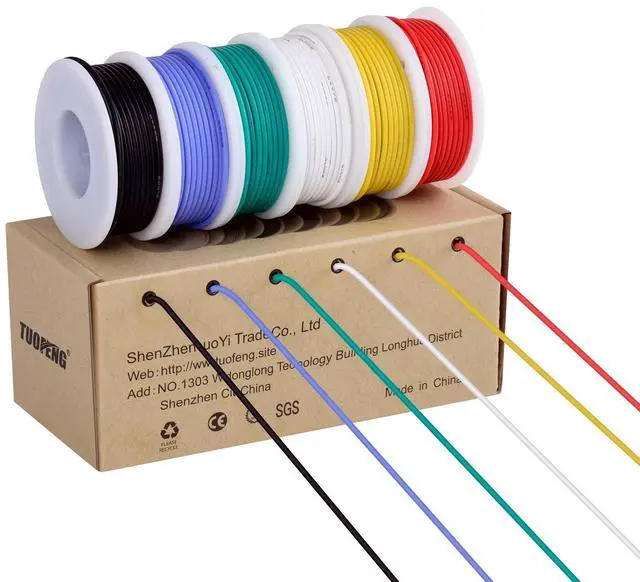

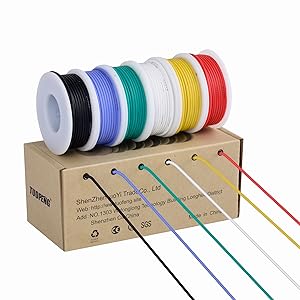

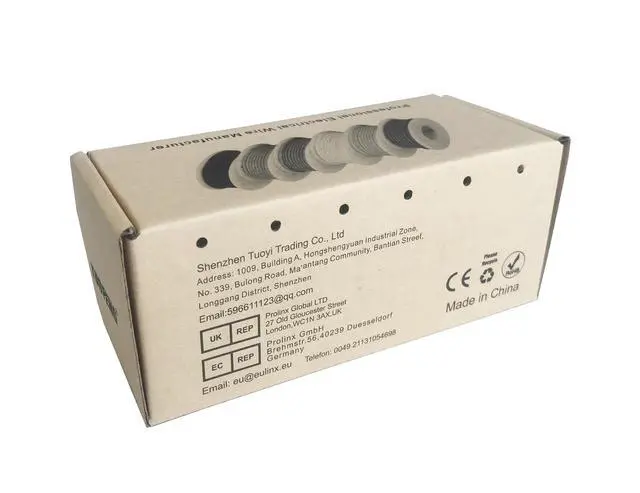

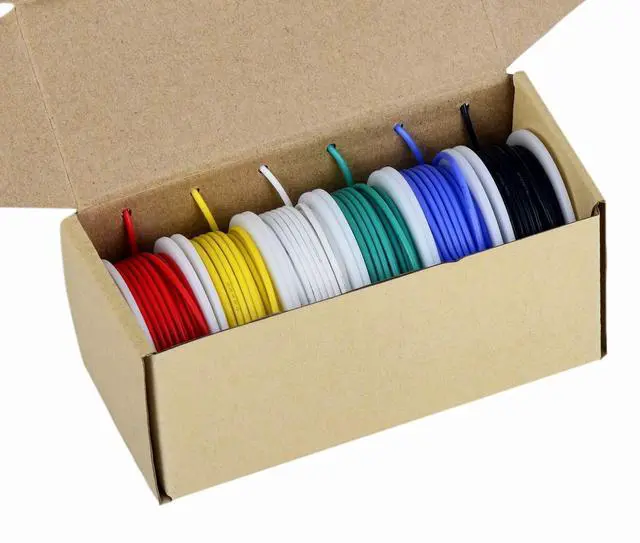

Easy to Store & Easy to Use
In order to make it more convenient for customers, we have created a effective spool kit box that the wire can be stored and distributed. The wire can pass through the small hole of the box directly when using, cut length as much as you need, it will not be messy, and save more time. When you don't use the electronic wire, you can put the wire in the tool box, saving more space.

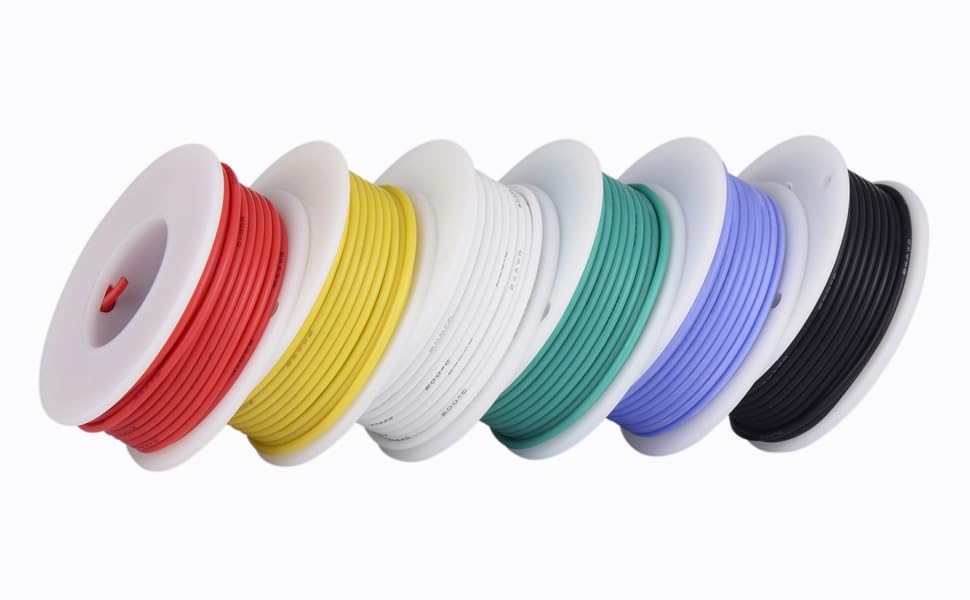

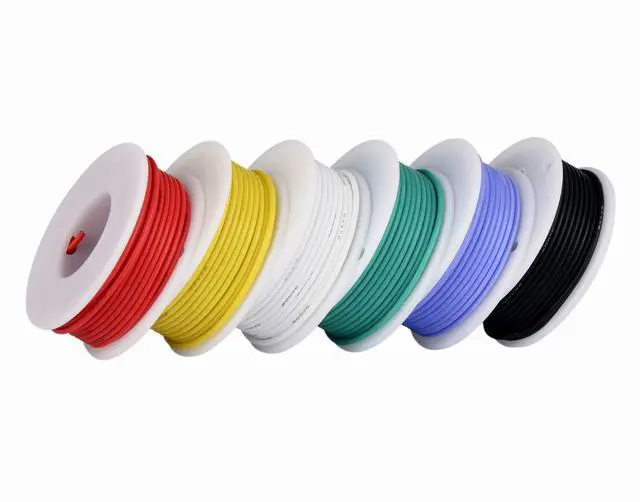

6 x hook-up wire rolls (black, white, red, blue, green, yellow)
6 Different Colored 15ft / 4.6m Each(16awg)
6 Different Colored 13.2ft / 4m Each(18awg)
6 Different Colored 23 ft / 7m Each(20awg)
6 Different Colored 26ft / 8m Each(22awg)
6 Different Colored 30ft / 9m Each(24awg)
6 Different Colored 33ft / 10m Each(26awg)
6 Different Colored 42.6ft / 13m Each(28awg)
6 Different Colored 66ft / 20m Each(30awg)
FEATURES:

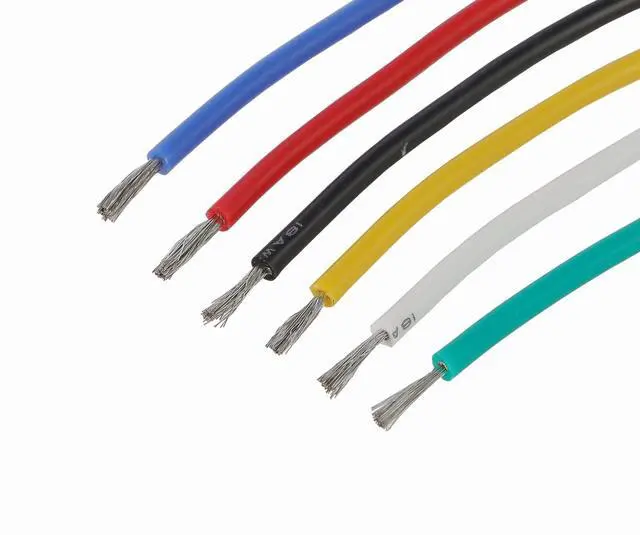

Tinned Copper Wire
Strictly choosing top-grade tinned copper wiring, it is so easy to solder and will not rust/tarnish even it sits in on your bench for years. The stranded wire life is well enhanced. The copper wire with uniform thickness will not be hit or miss and has better safety performance .
Tinned copper wires are tightly entangled with each other,the low resistance & better conductivity which can effectively reduce external signal interference and help you enjoy a smooth life.
Widly Range for High & Low Temperature Resistance
- High Temperature Resistant Silicone Wire.Temp: -60 degree celsius +200 degree celsius ,Low temperature resistance,in extreme cold -60 degree celsius
- Conductor: High-purity oxygen-free Tinned Copper,Nominal Voltage 600V
Super Flexible
Made of top premium silicone, strong toughness and not easy to break, suitable for various work. This Silicone wire is more flexible, easy to strip and crimp.
 14awg Flexible Silicone Wire | 16awg Flexible Silicone Wire | 18awg Flexible Silicone Wire | 20awg Flexible Silicone Wire | 22awg Flexible Silicone Wire | 24awg Flexible Silicone Wire | |
|---|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — | — |
| Price | — | — | — | — | — | — |
| OD: | 3.5mm | 3.0mm | 2.3mm | 1.8mm | 1.7mm | 1.6mm |
| Bear Current: | 20A | 12A | 7.5A | 5A | 3A | 2A |
| Wire Length | 6 Different Colored 13.2ft / 4m Each | 6 Different Colored 15ft / 4.6m Each | 6 Different Colored 13.2ft / 4m Each | 6 Different Colored 23 ft / 7m Each | 6 Different Colored 26ft / 8m Each | 6 Different Colored 30ft / 9m Each |
| Wire conductor | 400/0.08mm | 252/0.08mm | 150/0.08mm | 100/0.08mm | 60/0.08mm | 40/0.08mm |
 26awg Silicone Wire Kit | 28awg Silicone Wire Kit | 30awg Silicone Wire Kit |  16 awg Solid Wire Kit | 18 awg Solid Wire Kit | 20 awg Solid Wire Kit | |
|---|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — | — |
| Price | — | — | — | — | — | — |
| OD: | 1.5mm | 1.2mm | 0.8mm | 2.3mm | 1.9mm | 1.7mm |
| Bear Current: | 1.5A | 0.8A | 0.5A | 15A | 7.5A | 5A |
| Applicable temperature | -60? - + 200? | -60? - + 200? | --60? - + 200? | -40? - + 80? | -40? - + 80? | -40? - + 80? |
| Wire conductor | 30/0.08mm | 16/0.08mm | 11/0.08mm | 1/1.29mm | 1/1.02mm | 1/0.8mm |
TUOFENG Technology Hook Up Silicone Electrical Wire Kit
TUOFENG is a professional manufacturer of electrical wires & founded in 2014. We've been devoted to creating the better security products for consumers and business owners. Because the truly trust of customers, we have always maintained a high level of requirements for our own wires. Until now, TUOFENG has helped thousands of people from all around the world.
Our silicone wires have been widely used in various electronics projects in life or work, including building drones, RC planes, video transmitters, flight controllers, LED lighting, prototyping PCBs, Raspberry Pi, and many more projects.
