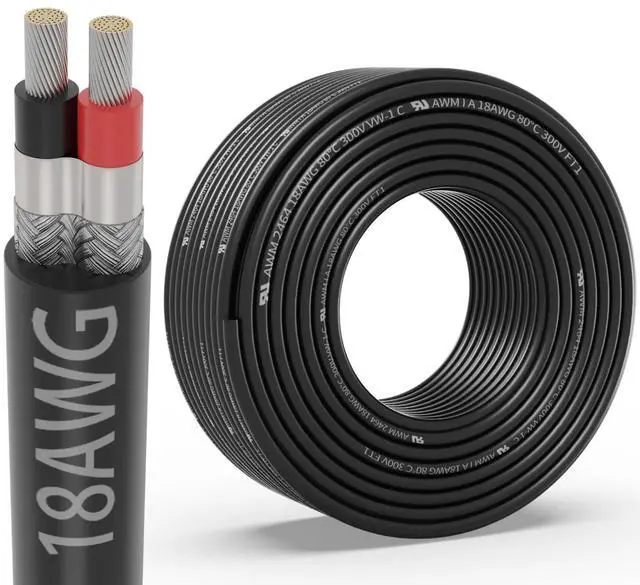

18 GAUGE SHIELDED WIRE

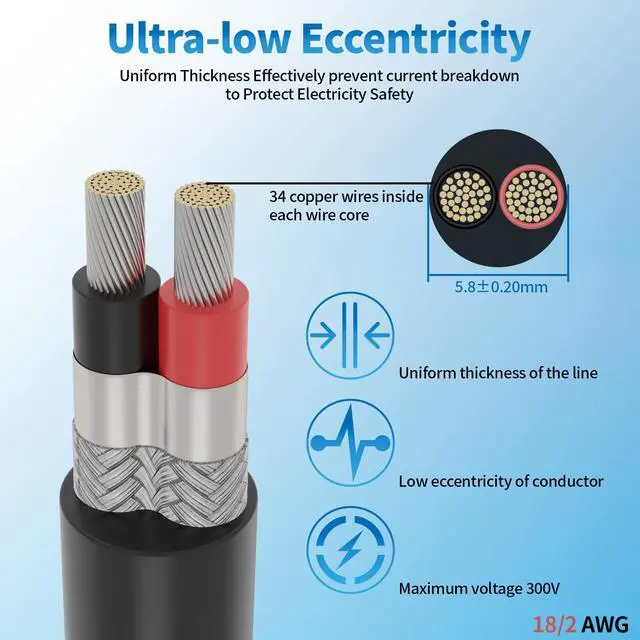

- UL2464 18 gauge shielded CNC cable, each cable consists of 34 strands of 0.18 mm tinned copper wire twisted together.

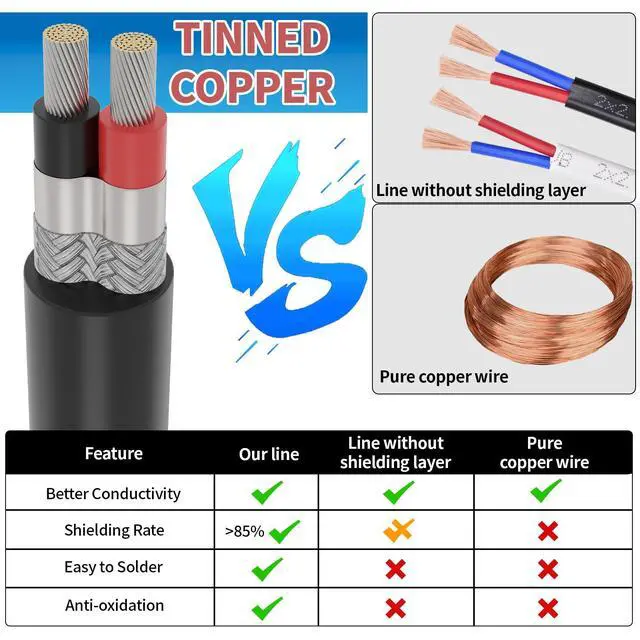

- The shielding layer of this high-precision shielded cable consists of tinned copper braid and aluminum foil double overlay shielding, with a high 85% shield ratio, which provides a more stable electrical signal output for your 3D printers, CNC machines or speaker equipment.

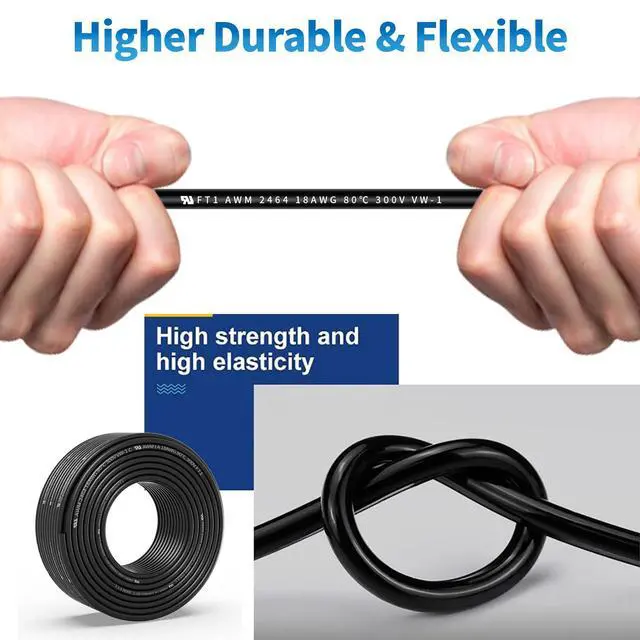

- The flexible uniform PVC sheath fully wraps to protect the conductor, which is easy to bend, flame retardant, anti-aging, acid and alkali resistant, humidity resistant, can be used in outdoor and humid conditions, can be exposed to the sun for a long time, or can be buried directly in the wall or underground.

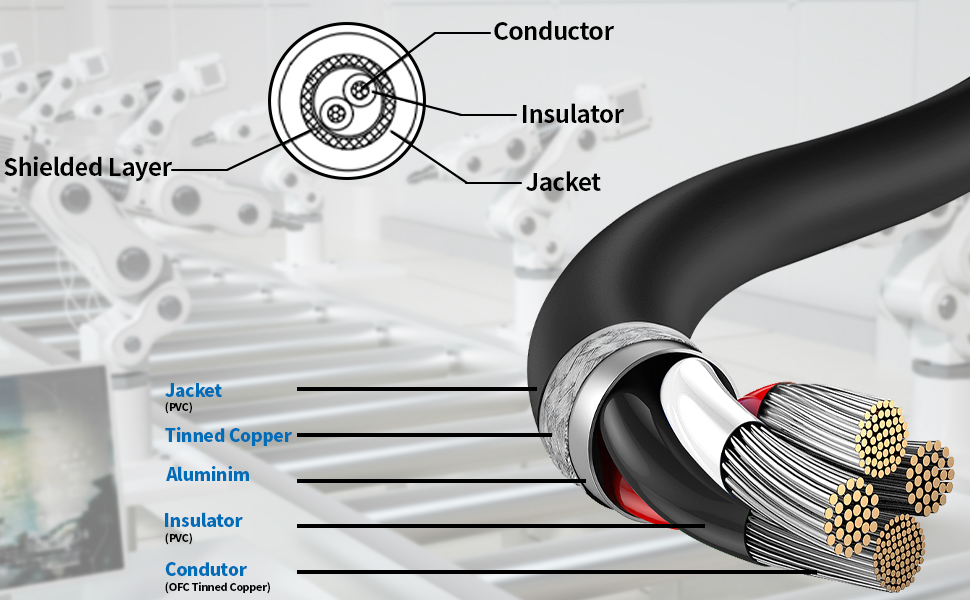

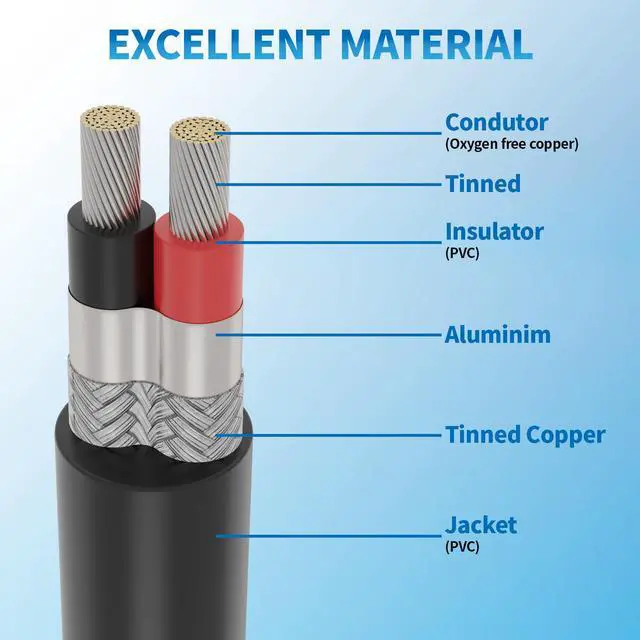

The structural composition of shielded cable
- Wire Guage: UL2464 18 Gauge Wire
- Insulation material: PVC
- Conductor Material: Tinned Oxygen-free Copper
- Shieded Layer: Tinned Copper+AL
- Conductor Number: 2 Conductor/3 Conductor/4 Conductor/5 Conductor/6 Conductor Wire. A variety of core wires are available for your choice.
- OD: 18/2 Wire(5.8±0.2mm), 18/3 Wire(6.2±0.25mm), 18/4 Wire(6.6±0.25mm), 18/5 Wire(7.2±0.3mm), 18/6 Wire(7.8±0.3mm)
- Voltage: 300V Max.
- Current: 8.6A Max.

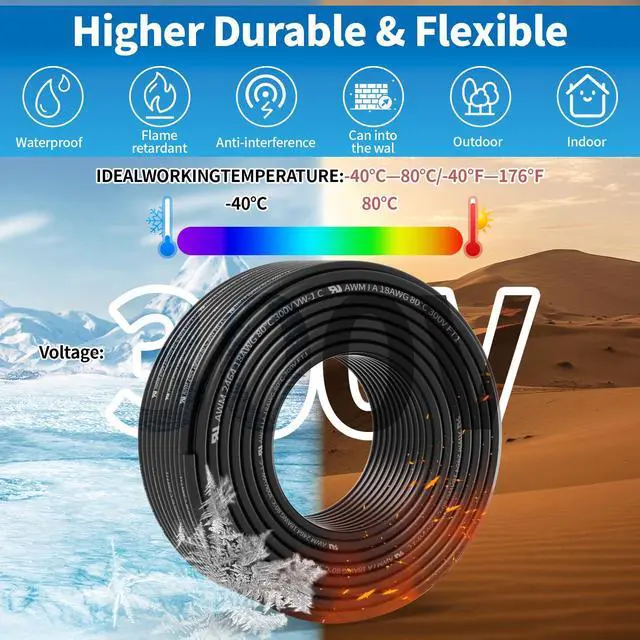

- Temperature range: -40? to + 176?
- Cable length: Optional

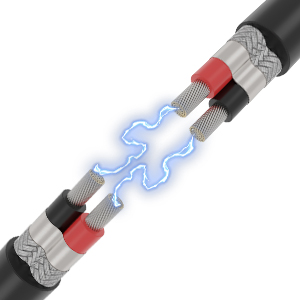

HIGH CONDUCTIVITY
18 gauge shielded wire conductor is made of multiple strands of high-precision oxygen-free copper, which has lower resistance and higher conductivity than pure copper wire.

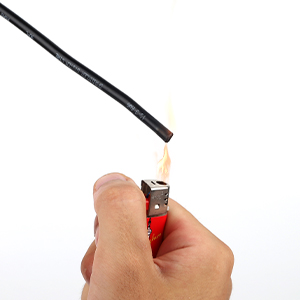

FLAME RETARDANT
Grade up to VW-1 and FT1, no open flame can be self-extinguishing, to ensure the safety of electricity.

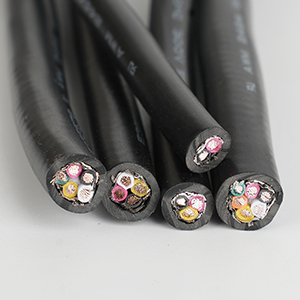

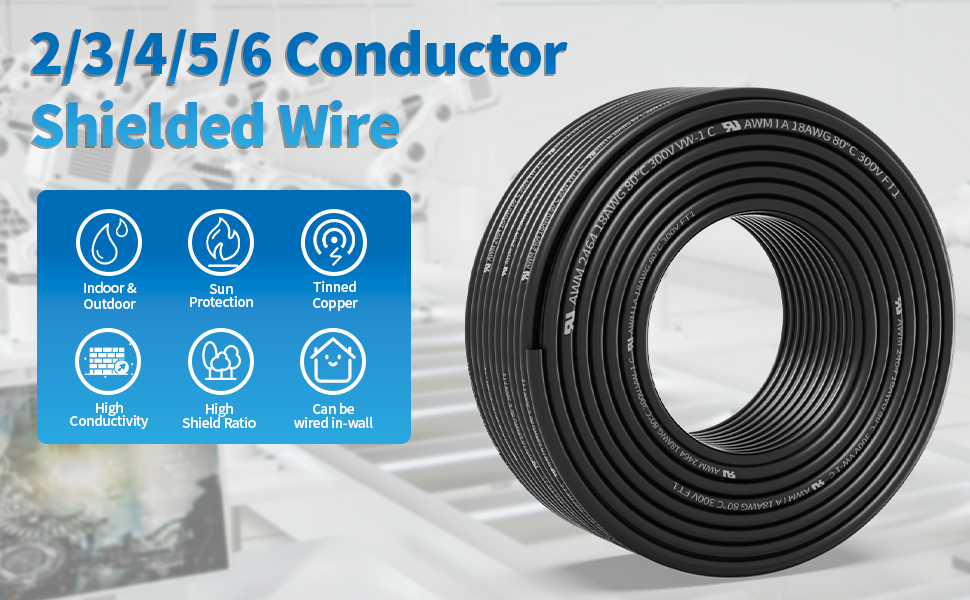

MULTIPLE CONDUCTOR COUNTS AVAILABLE
- 18/2 wire
- 18/3 wire
- 18/4 wire
- 18/5 wire
- 18/6 wire
6 conductor counts to meet your needs in different scenarios.

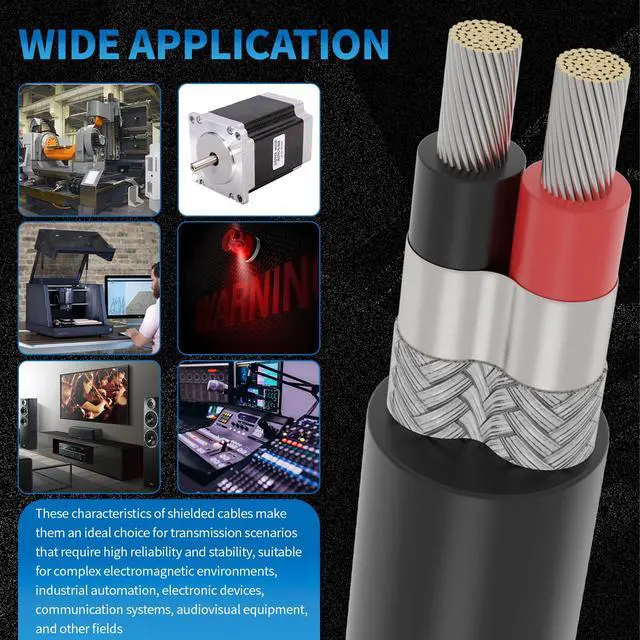

WIDELY APPLICATION
18AWG shielded cables have excellent data signal transmission capability and efficient conductivity, and are widely used in CNC devices, stepper motors, 3D printers, security and alarm systems, sound, speaker, and so on.
 22/2 Shielded Wire |  22/3 Shielded Wire |  22/4 Shielded Wire |  22/5 Shielded Wire |  22/6 Shielded Wire | |
|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — |
| Price | — | — | — | — | — |
| Gauge | 22 Gauge | 22 Gauge | 22 Gauge | 22 Gauge | 22 Gauge |
| Number of conductors | 2 Conductor Wire | 3 Conductor Wire | 4 Conductor Wire | 5 Conductor Wire | 6 Conductor Wire |
| Shield ratio | >85% | >85% | >85% | >85% | >85% |
| Shield layer | Tinned copper + AL | Tinned copper + AL | Tinned copper + AL | Tinned copper + AL | Tinned copper + AL |
| Conductor material | Tinned Copper | Tinned Copper | Tinned Copper | Tinned Copper | Tinned Copper |
| Max Voltage | 300V(also can for 5V 12V DC 24V DC) | 300V(also can for 5V 12V DC 24V DC) | 300V(also can for 5V 12V DC 24V DC) | 300V(also can for 5V 12V DC 24V DC) | 300V(also can for 5V 12V DC 24V DC) |
WJRZA
WJRZA wire was born out of necessity. Selection of materials is carefully researched. Starting from a small factory, WJRZA works together with scientific research institutions to innovate products that are resistant to cold, heat and interference.
WJRZA is committed to being the guardian of the home, penetrating into homes and projects, and continuing to weave a safe electric “net” for the world in the future, delivering light and power.
UL2464 White Flat Wire
WJRZA Shielded Wire
WJRZA Sprinkler Wire
Professional team
Anytime, anywhere, 7*24H support for you to solve any problems about the product.
