Wireless Garage Door Opener Remote WiFi Switch Universal Controlled by Smartphone for Automatic Gate Opener System (Without Door Sensor)
- APP controlEasy use, no hub needed, open or close your door by using smart phone anytime, anywhere. WIFI Smart Control App is always free and will never have subscription fees.
- Share with familiesYou could authorize multiple individuals to access your garage through APP. You can control both yours and their account as well. High security.

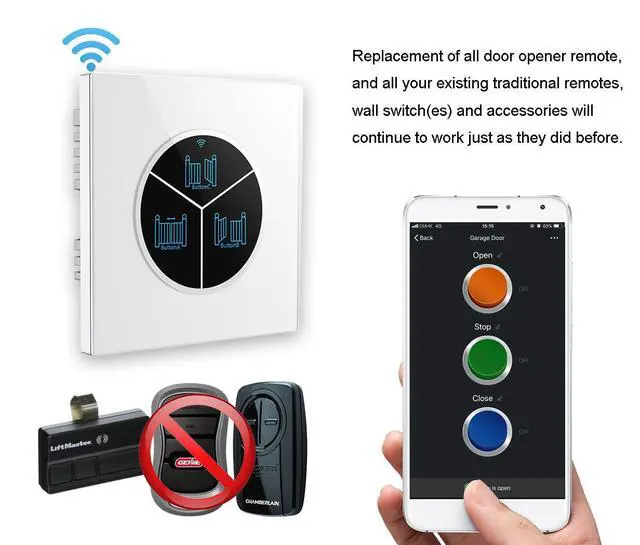

- Works with existing door openersGreat alternative to traditional door remotes and wall switch. It will not interfere with existing remotes or wall switch. Perfect for all gate types including AC/DC sliding door, swing door, rolling door, automatic door etc.
- Voice ControlWorks with Amazon Alexa and Google Assistant. Activate your door opener either through simply tapping on the APP, or by giving voice commands to your Alexa or Google Assistant enabled devices.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Manual(Important):https://images-na.ssl-images-amazon.com/images/I/91z-NpHMHAL.pdf
Foreword
1. Pls check the compatibility list first before buying, Some Chamberlain, LiftMaster, Genie models are not compatible.
https://images-na.ssl-images-amazon.com/images/I/81RSCxXgUhL.pdf.

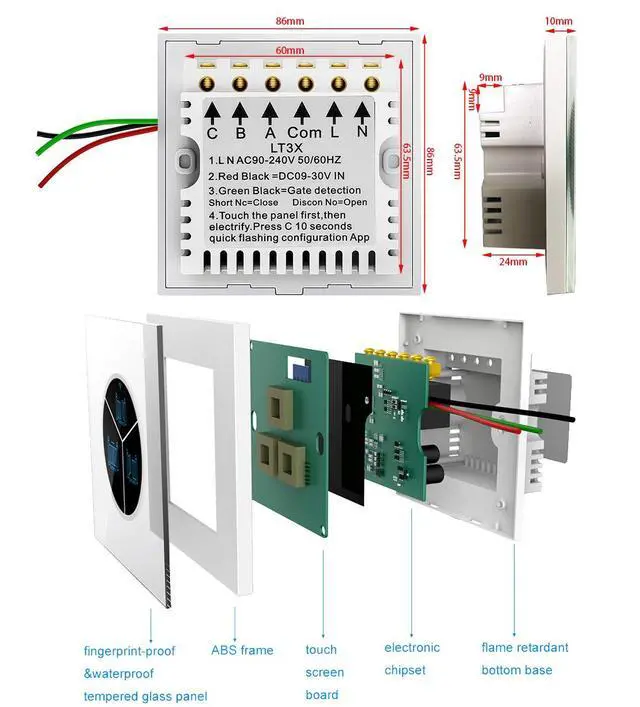

2.Pls double check the size of the switch(need 86 type mounting box)
3. Pls make sure there is a neutral wire in your mounting box, which is required for installation
4. Be sure the wiring is correct. Electric knowledge is required
5. Make sure that the power is OFF before making any electrical connections.
Specification
- Power supply: AC90V-240V/50-60Hz or DC 9-30V
- A/B/C output power: 10A/2000W/Way
- Wireless IEEE standards: WiFi 2.4GHz b/g/n
- Security type: WEP64/WEP128/CCMP(AES)
- Security mechanism: WEP/WPA-PSK/WPA2-PSK
Videos for reference:
https://youtu.be/ylAhhMtJpeA
https://youtu.be/R8BOqzkPAgU
https://youtu.be/n0_3wx3fR1g

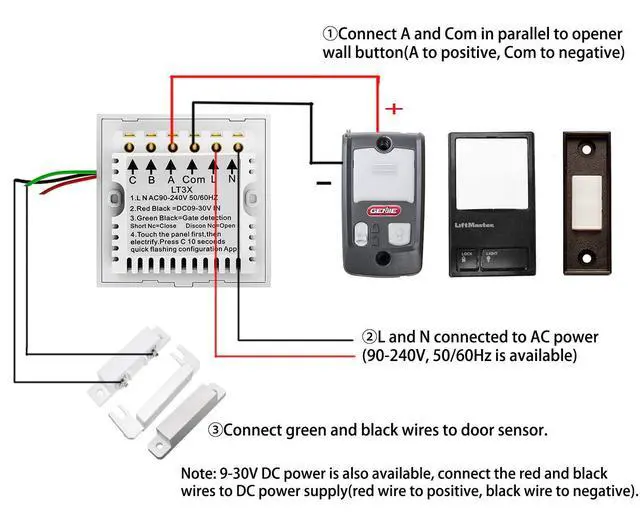

Installation
1. Power connection
-AC: connect the switch L/N terminal to your AC power.
-DC: connect the switch red&black wire to your DC power.
2. Signal terminal connection
-Have standard wall push button: connect the switch A(any one of A/B/C) and Com terminal to the your push button.
-Don't have standard push button: connect the switch A(any one of A/B/C) and Com terminal to the gate opener control board.
A/B/C connect to positive, Com connect to negative.
3. Gate detection
Connect the switch green and black wire to a magnetic door sensor, then you can see door open/close status on mobile APP.
Note
Switch and phone must be under the same 2.4Ghz WiFi channel when pairing. After successful pairing, switch can be controlled via mobile network and WIFI.
Free APP is WiFi Smart Control, Alexa skill name is Smart Life.
Wires, magnetic door sensor and mounting box are not included.
