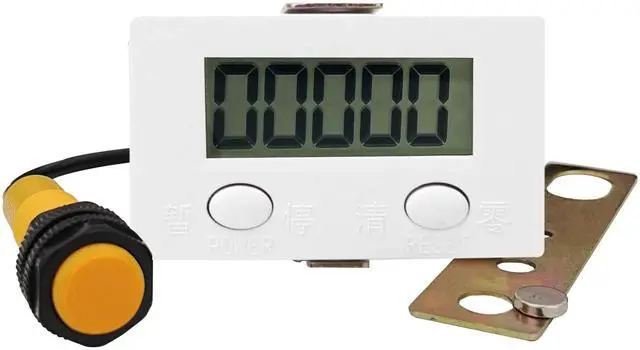

Digital Counter for Knitting Machine, LCD Digital 0-99999 Counter 5 Digit Plus UP Gauge, Electronic Counter Proximity Switch Sensor with Magnetic

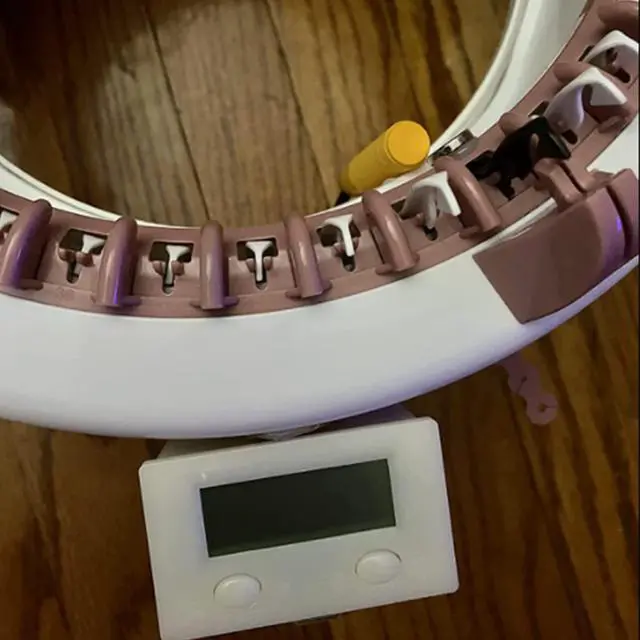

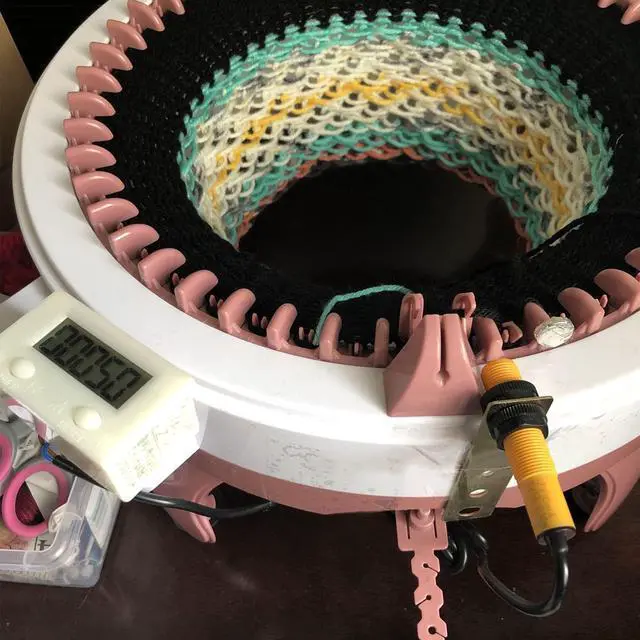

- Digital counter counts up to 99999. 5-digit tally counter with sensor for automatic counting, it is very suitable for knitting machine, record and improves work efficiency.
- Knitting machine row counter has a PAUSE key and RESET key on the panel, effectively preventing data loss, counting can be reset and paused. Pause and shutdown will preserve the original data.

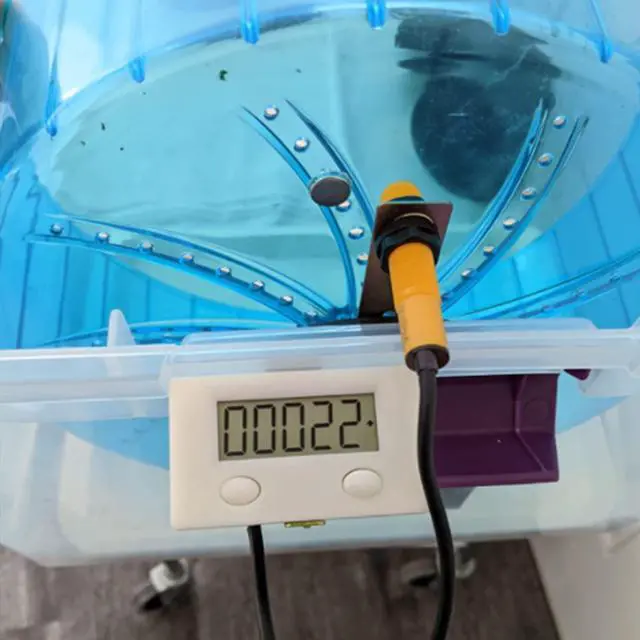

- Lap counter gauge: The magnet sheet is used on the object to be detected, which is convenient for the detection of the magnetic sensor. Sensing Distance 10-15mm. When an object passes by magnetic, the value on the display increases by 1.
- Number counter power supply: AA 1.5V battery, easy to install.
- Magnetic induction proximity switch sensor counter comes with electronic tally counter, magnetic induction switch, punch digital totalizer
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Specification:
Power: 1.5v AA cell
Count range: 0----99999
Reset minimum pulse width0.1s
Count the highest frequency: 20hz
Count the minimum pulse width: 10ms
Use environment temperature: - 5c--40 °c
Hole size: 61 x 36 mm
Size: 64 x 38 x 38 mm
Contact on maximum resistance: 10k
Open contact minimum resistance: 500k
Net Weight: 0.05kg
MagSwitch Operation:
The magnet close to the magnetic proximity switch about 0.5-1 cm, then the magnet away from the magnetic proximity switch for a certain distance (typically 3-5 cm or more). Then start counting.
Reset Operation:
When use the "RESET" button on panel, the back doesn't need to be connected. Press the "RESET" button, it will display "88888", then release it, back to 0.

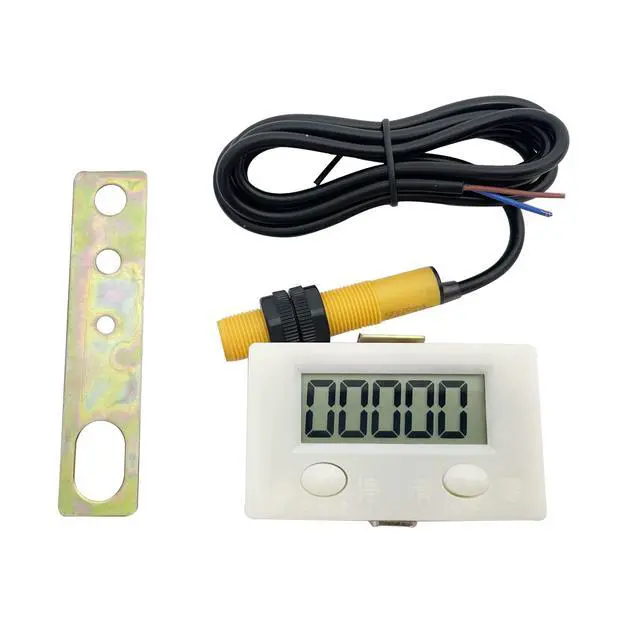

Package include:
1x Digital counter
1x MagSwitch
1x Magnet
