IR02A Infrared Thermometer Gun
Merchant VideoINSTRODOTS IR02A Infrared Thermometer Temperature Gun -58°F to 1472°F(-50~800°C), Non-Contact Laser Thermometer with Adjustable Emissivity

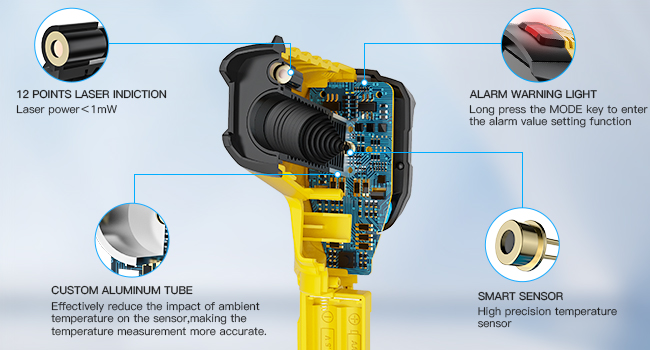

QUALITY IN DETAILS
INFRARED THERMOMETER ADJUSTABLE EMISSIVITY: 0.1~1.0

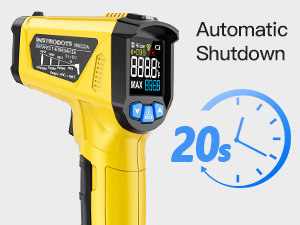

Auto Power-off Function

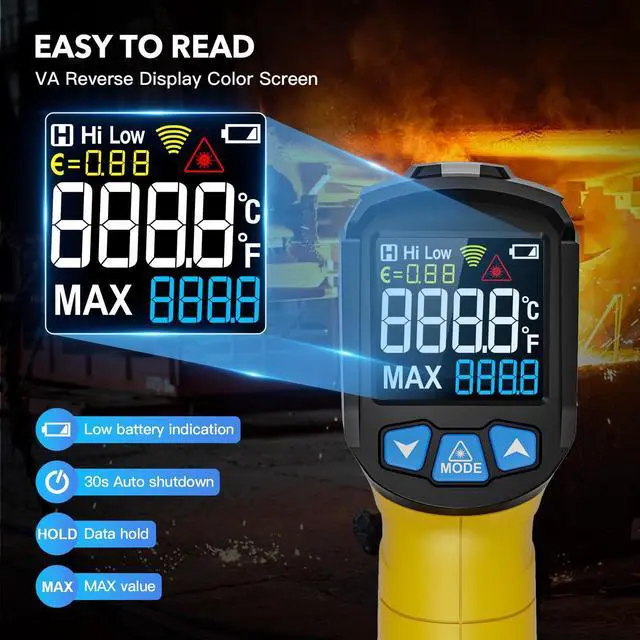

The temperature gun thermometer will turn off automatically if there is no operation in 20s, and comes with a backlit color screen for clear readings.
Thoughtful Designs

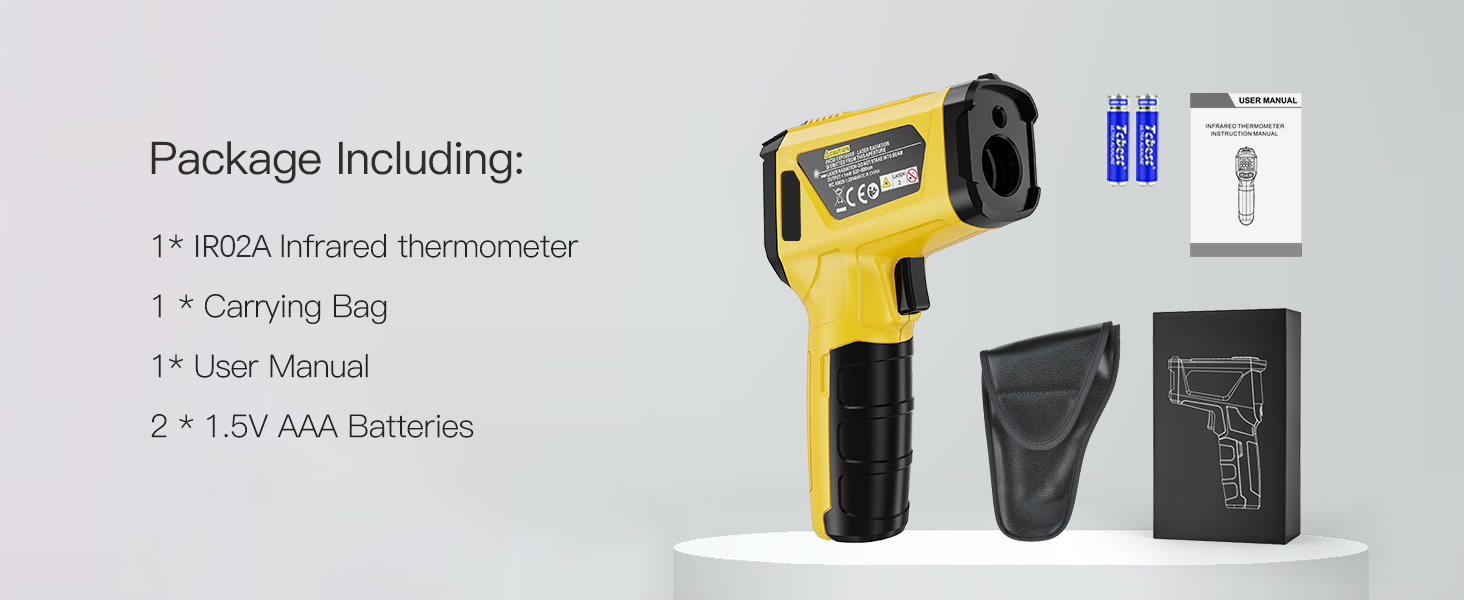

Come with 2 x 1.5V AAA batteries. Low power indication to extend the battery life, also supports Data Hold.
Max Modes

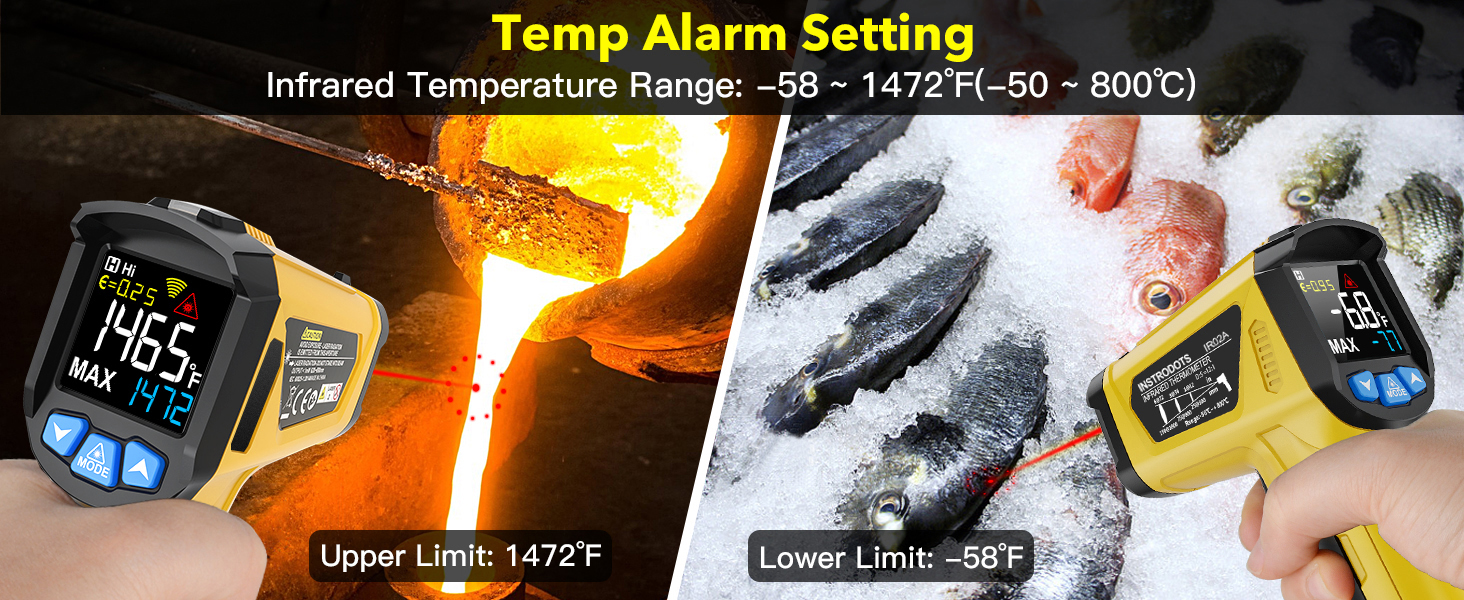

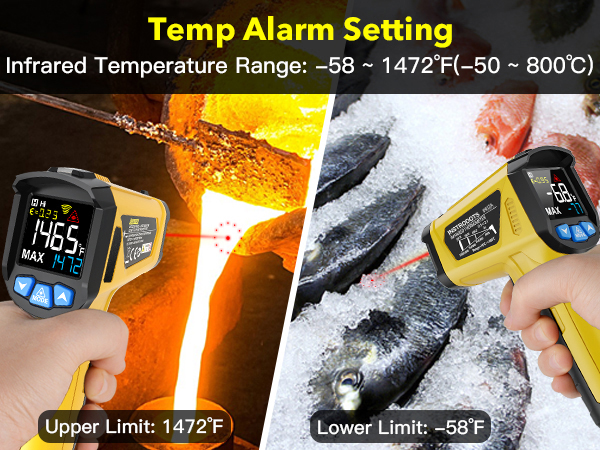

MAX data display and high/low alarm, the infrared thermometer temperature gun will alert when temp is above or below set temperature.

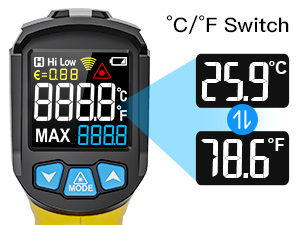

°C/°F Switching Mode
Press the MODE button for 2 seconds to enter the unit setting, press again and the Celsius degree will flash, enter °C/°F switching mode.
TECHNICAL PARAMETERS
OTHER PRODUCTS FROM INSTRODOTS
 12:1 Infrared Thermometer |  High-temp 50:1 Pyrometer |  Thermometer Hygrometer |  Thermometer Hygrometer |  Thermometer Hygrometer | |
|---|---|---|---|---|---|
Customer Reviews | — | — | — | — | — |
Price | — | — | — | — | — |
Model | IR02A | IR05 | TH11 | TH10 | TH11 |
Color | Yellow | Blue | Blue | Orange | Orange |

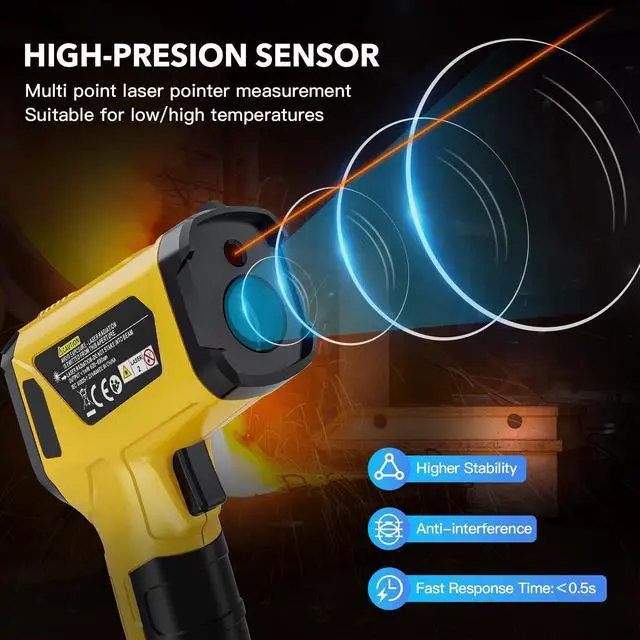

Sensor | High-presion13 Points Laser | High-presion Dual Point Laser | SHT30 | SHT30 | SHT30 |
Temperature Range | -58~1472°F(-50~800°C) | -40~2192°F (-40~1200?) | -20? ~ 60? (-4? ~ 140?) | -20? ~ 60? (-4? ~ 140?) | -20? ~ 60? (-4? ~ 140?) |
Power Supply | 2*AAA batteries | 2*AA batteries | 3*AAA batteries | 2*AAA batteries | 3*AAA batteries |
Low Battery Indication | ? | ? | ? | ? | ? |
Auto Power-off Function | 20s | 35s | 30 minutes | No | 30 minutes |
INSTRODOTS: Innovative & Next-gen & Safety-first & Testing & Reliable & Operational & Diagnostic & Optimization & Tools & Serve-focused
INSTRODOTS has been a trusted leader in developing, manufacturing, and distributing electrical testing solutions. Our expertise spans testing tools including Circuit Breaker Finder, Infrared Thermometer, Outlet Tester, Gas Detector, etc.
At our core, we live by 3 unwavering principles: Safety First, Precision Matters, and Innovation Always. Drive our commitment to delivering smarter solutions and exceptional service to electrical professionals.
Circuit Breaker Finder Tool
Electrical Testing Tools
Electrical Testing Tools
IR02A Infrared Thermometer Gun
Merchant VideoINSTRODOTS IR02A Infrared Thermometer Temperature Gun -58°F to 1472°F(-50~800°C), Non-Contact Laser Thermometer with Adjustable Emissivity

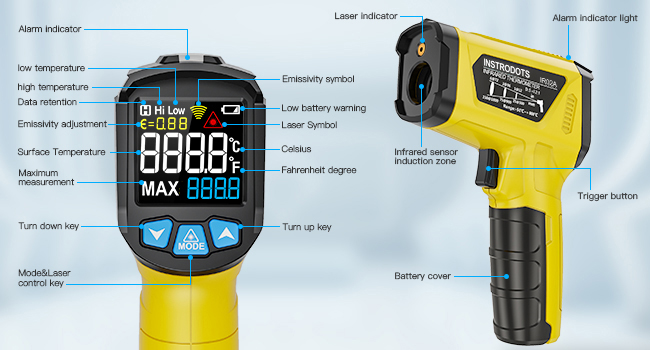

QUALITY IN DETAILS

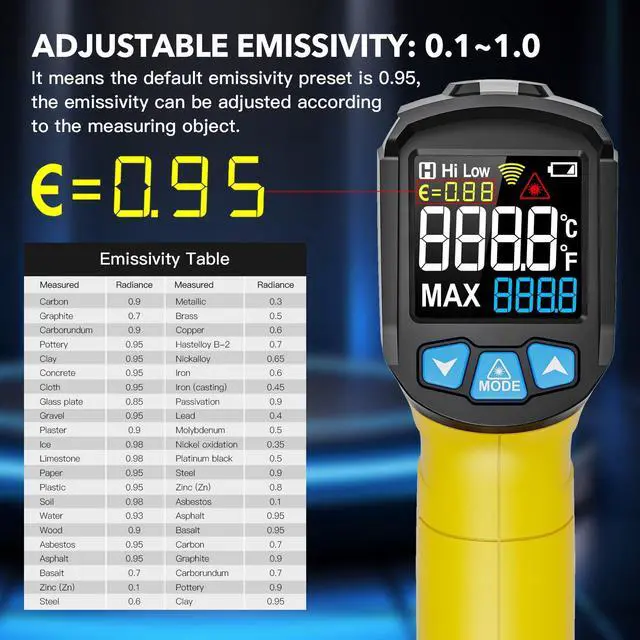

INFRARED THERMOMETER ADJUSTABLE EMISSIVITY: 0.1~1.0
Auto Power-off Function
The temperature gun thermometer will turn off automatically if there is no operation in 20s, and comes with a backlit color screen for clear readings.
Thoughtful Designs

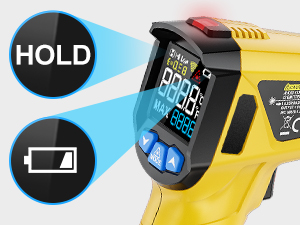

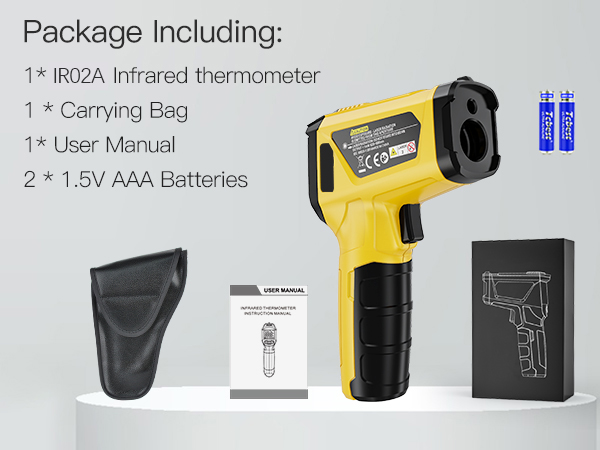

Come with 2 x 1.5V AAA batteries. Low power indication to extend the battery life, also supports Data Hold.

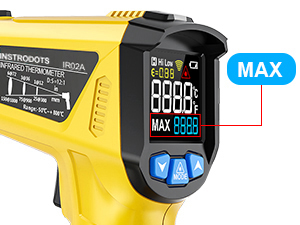

Max Modes
MAX data display and high/low alarm, the infrared thermometer temperature gun will alert when temp is above or below set temperature.
°C/°F Switching Mode
Press the MODE button for 2 seconds to enter the unit setting, press again and the Celsius degree will flash, enter °C/°F switching mode.
VERSATILE TOOL FOR VARIOUS APPLICATIONS

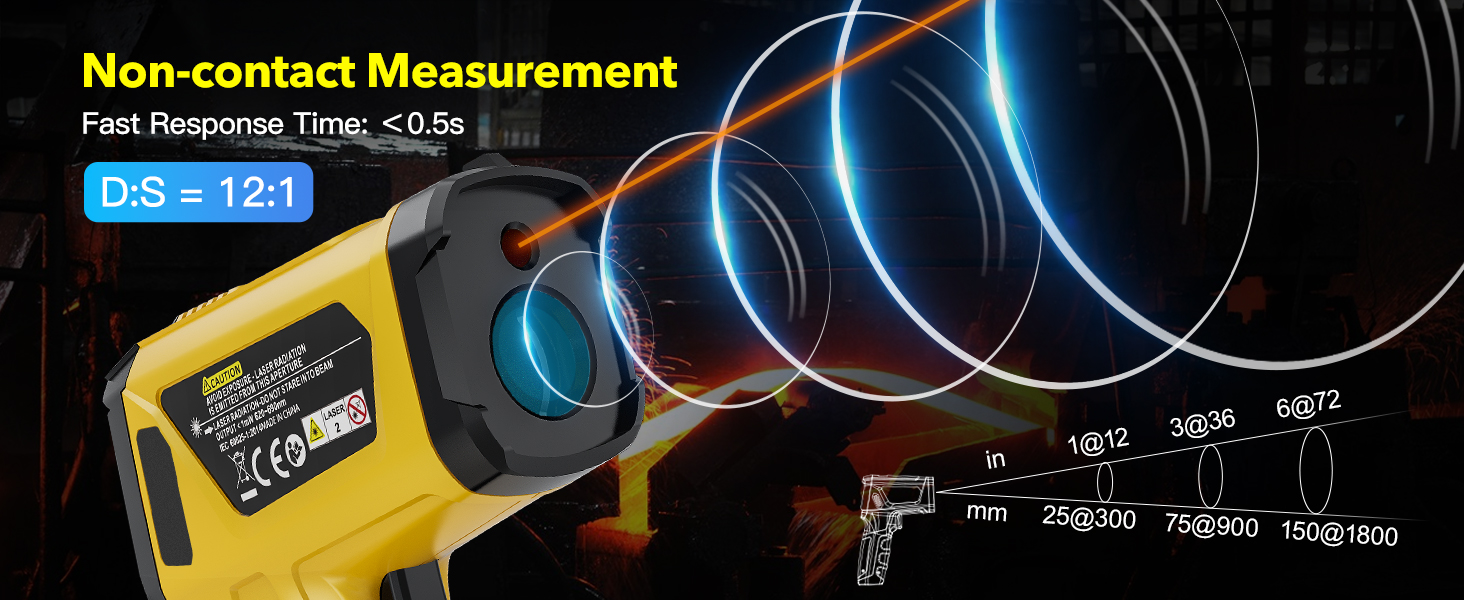

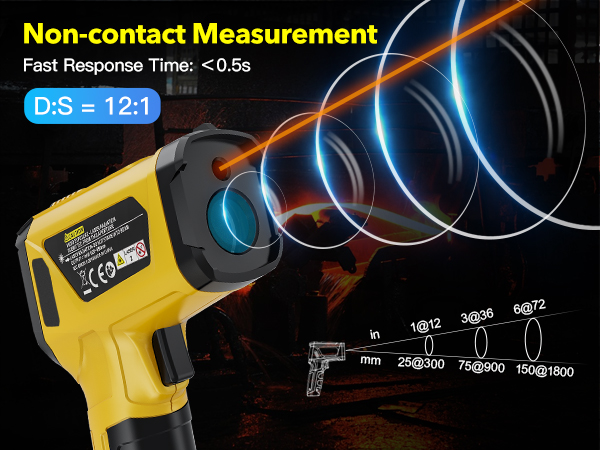

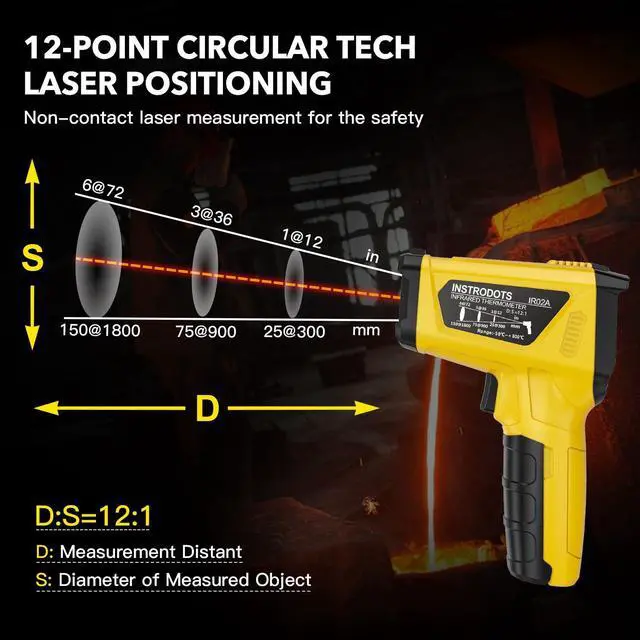

With a 12:1 large distance spot ratio, users can measure temperatures from a safe distance without getting too close to the heat source. Instant capture hot spot, just pull the trigger and release, and get an instant reading on LCD within 0.5 seconds.
TECHNICAL PARAMETERS

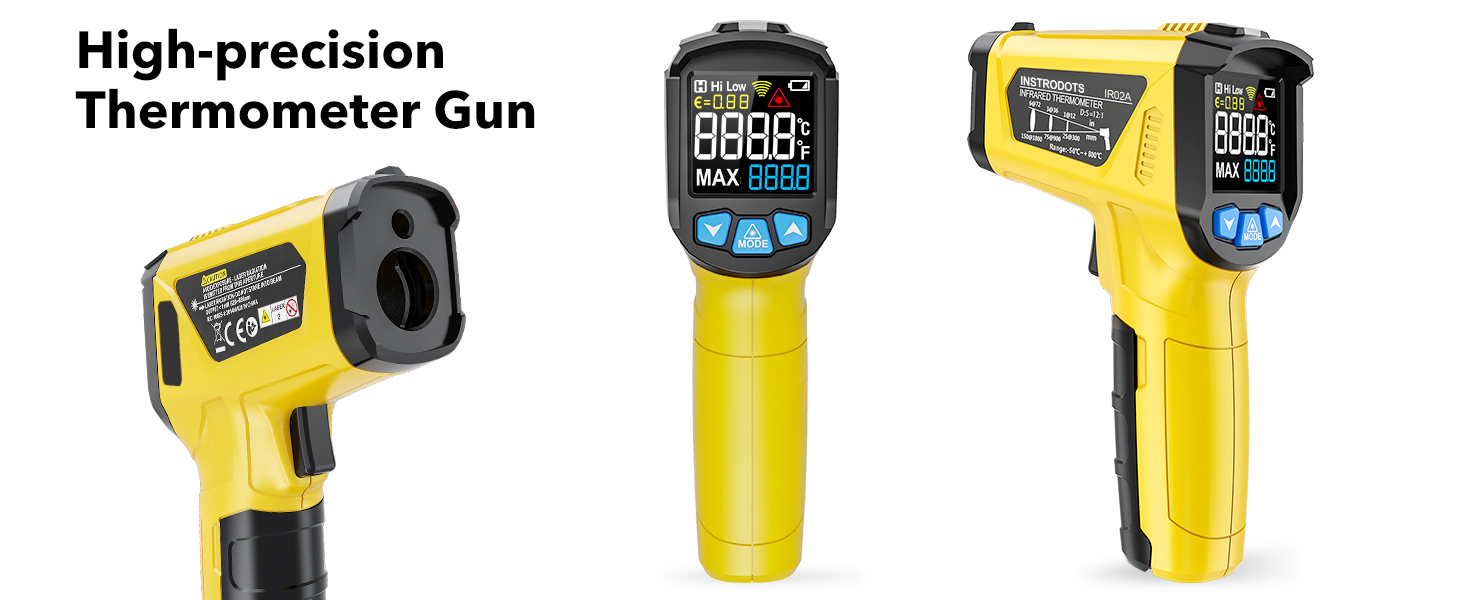

| Product Name | IR02A Infrared thermometer gun |
|---|---|
| Screen | VA reverse display color screen |
| D:S | 12:1 |
| Spectral Response | 8~14um |
| Resolution Ratio | 0.1°C/0.1°F |
| Emissivity | 0.10~1.00 |
| Laser | < 1mw/620~690 nm Grade 2 |
| Response Time | <0.5S |

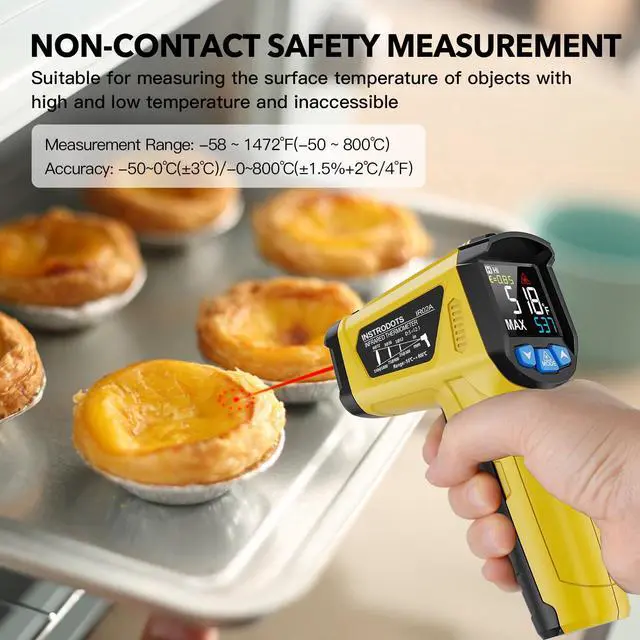

| Irradiation Temperature Range | -58°F to 1472°F(-50~800°C) |
| llumination Accuracy | -50?~0?±3? / 0?~800 ?±(1.5%+2C/4°F) |
| Power Supply | 2x1.5V AAA battery |
OTHER PRODUCTS FROM INSTRODOTS
12:1 Infrared Thermometer | High-temp 50:1 Pyrometer | Thermometer Hygrometer | Thermometer Hygrometer | Thermometer Hygrometer |
|---|---|---|---|---|
| Customer Reviews | ||||
| — | — | — | — | — |
| Price | ||||
| — | — | — | — | — |
| Model | ||||
| IR02A | IR05 | TH11 | TH10 | TH11 |
| Color | ||||
| Yellow | Blue | Blue | Orange | Orange |
| Sensor | ||||
| High-presion13 Points Laser | High-presion Dual Point Laser | SHT30 | SHT30 | SHT30 |
| Temperature Range | ||||
| -58~1472°F(-50~800°C) | -40~2192°F (-40~1200?) | -20? ~ 60? (-4? ~ 140?) | -20? ~ 60? (-4? ~ 140?) | -20? ~ 60? (-4? ~ 140?) |
| Power Supply | ||||
| 2*AAA batteries | 2*AA batteries | 3*AAA batteries | 2*AAA batteries | 3*AAA batteries |
| Low Battery Indication | ||||
| ? | ? | ? | ? | ? |
| Auto Power-off Function | ||||
| 20s | 35s | 30 minutes | No | 30 minutes |
