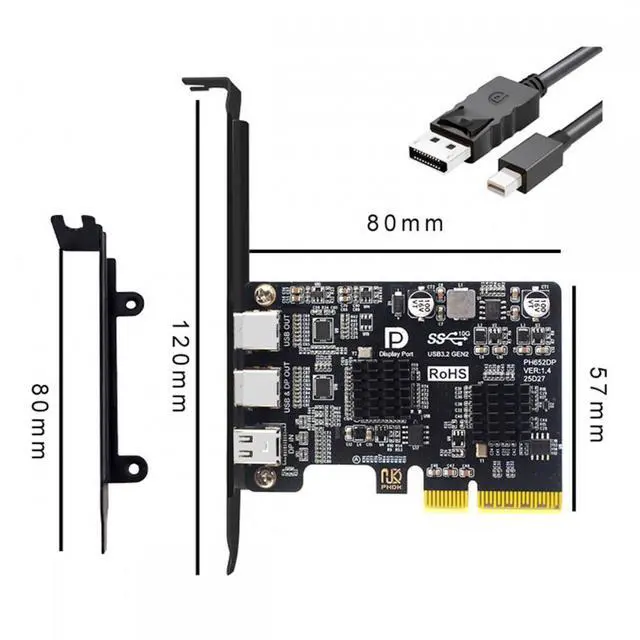

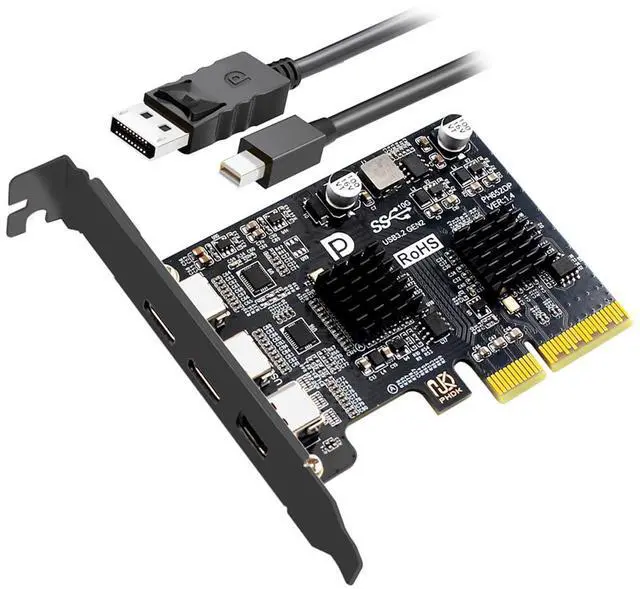

Cablecc PCI-E Express 4x & Mini Displayport 1.4 Input to Dual 10Gbps USB 3.1 Type-C USB-C & 4K 60hz Output Desktop Graphics Expansion Card Adapter ASM3142

PCI-E Express 4x Mini Displayport 1.4 Input to Dual 10Gbps USB 3.1 Type-C USB-C 4K 60hz Output Desktop Graphics Expansion Card Adapter ASM3142
Chipset: ASM3142 supports the new feature of USB 3.1 Gen2, named Multiple INs to achieve fully utilization rate of 10Gbps data rate, taking advantage of the available bandwidth of USB 3.1 Gen2 bus, offering a highly integrated, application-specific design.

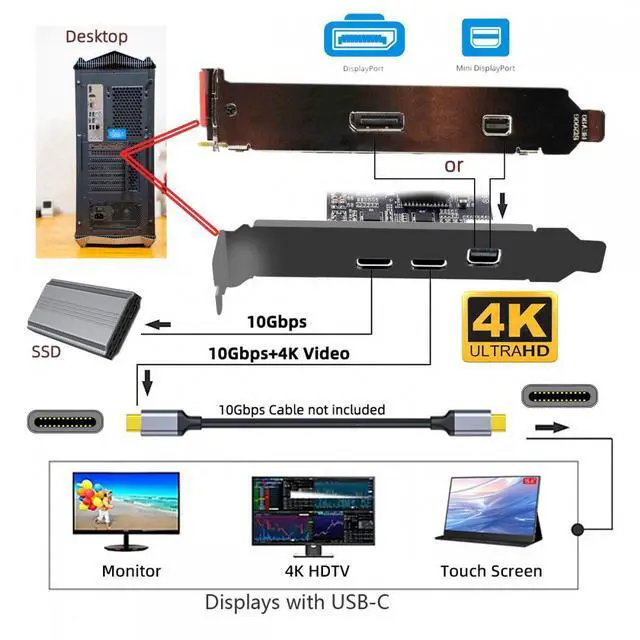

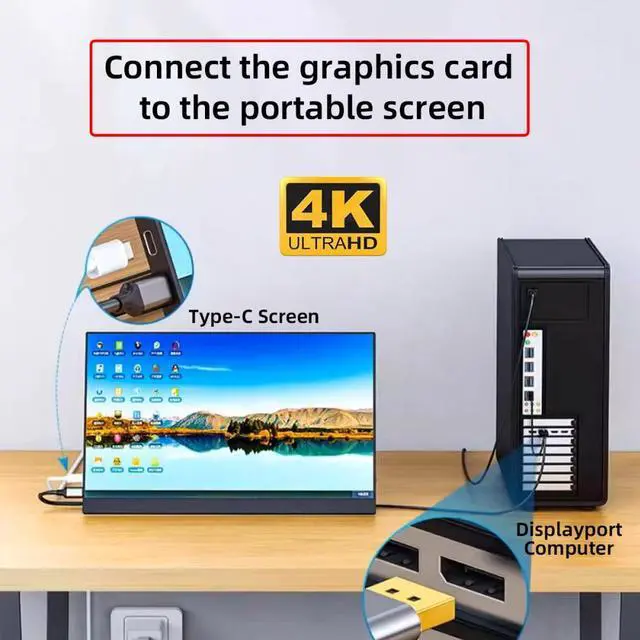

Need to connect Mini DisplayPort Mini-DP 4K input fromGraphics Card, Then you can get the 4K video from Type-C card output. Compatible with Displayport DP or Mini DP or Thunderbolt2 video source to Type-C USB-Csink output.
10Gbps Data transfer: Support 10Gbps data rating and 5V power. Compliant with USB Base Specification 3.1 / 3.0, Output USB 3.0 interface and Type-C/Type-E interface. Compliant with USB 3.0 Super-Speed (10/5Gbps), USB 2.0 Hi-Speed (480Mbps), USB 1.1 Low-Speed ( 1.5M bps).
No need any extra Power Supply, build in Self-Powered IC. Compatible with Windows 7, 8, 10, 11 and Mac OS 10.8. 2 and above. Win 10, 11, Mac OS, and Linux does not need any driver. It requires installing a driver when operating on Windows 7.
The connector can transfer the usb 3.1 / 3.0 data and power, Also can connect usb-c video device. Type C connector is the new design for USB 3.1, Reversible Design for Type C connector, Reversible plug orientation Cable direction, Support 5V/3A power charging.
Input 1: Compatible

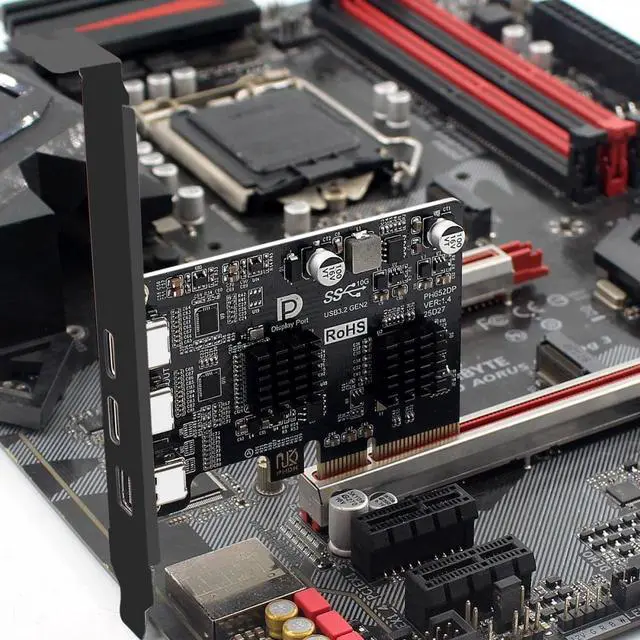

slot: PCIe x4, PCIe x8, PCIe x16
Input 2: Mini displayport 4K
Output 1: Type-c connector Female with 10Gbps
Output 2: Type-c connector Female with 10Gbps 4K 60hz Video
