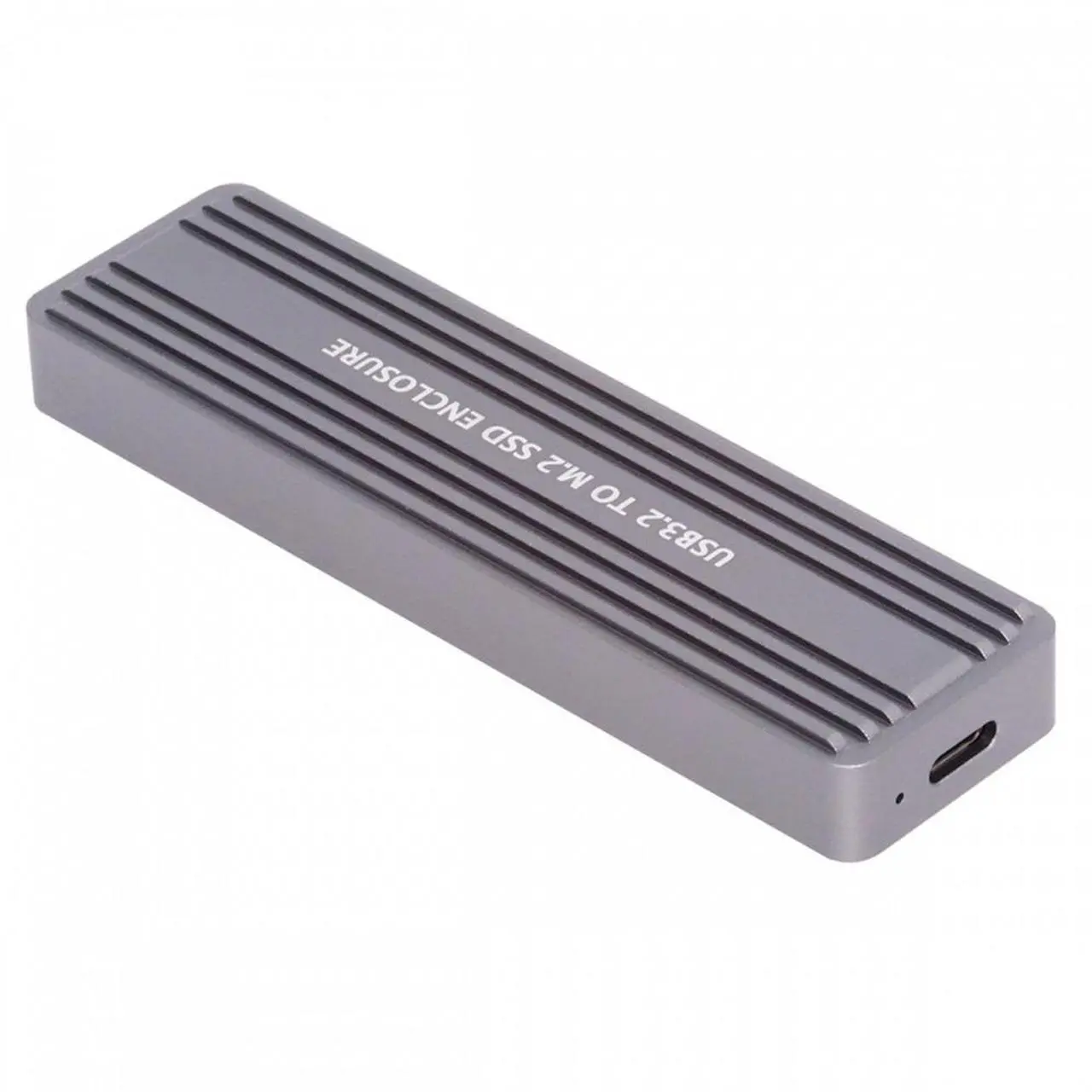

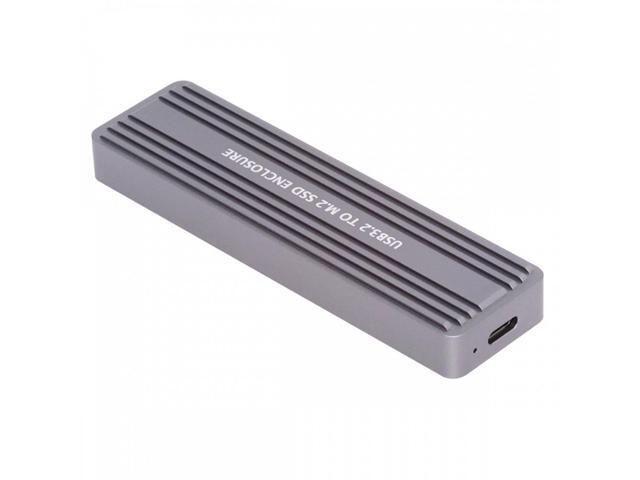

Chenyang 20Gbps Type-C USB3.2 USB4 to NVME M-key M.2 NGFF SATA SSD PCBA Enclosure 2280/2242/2230mm Adapter RTL9220 Chipset
- 20Gbps Type-C USB3.2 USB4 to NVME M-key M.2 NGFF SATA SSD PCBA Case 2280/2242/2230mm Adapter RTL9220 Chipset
- The item included one Enclosure,Cable,Screwdriver. (The SSD not include.)

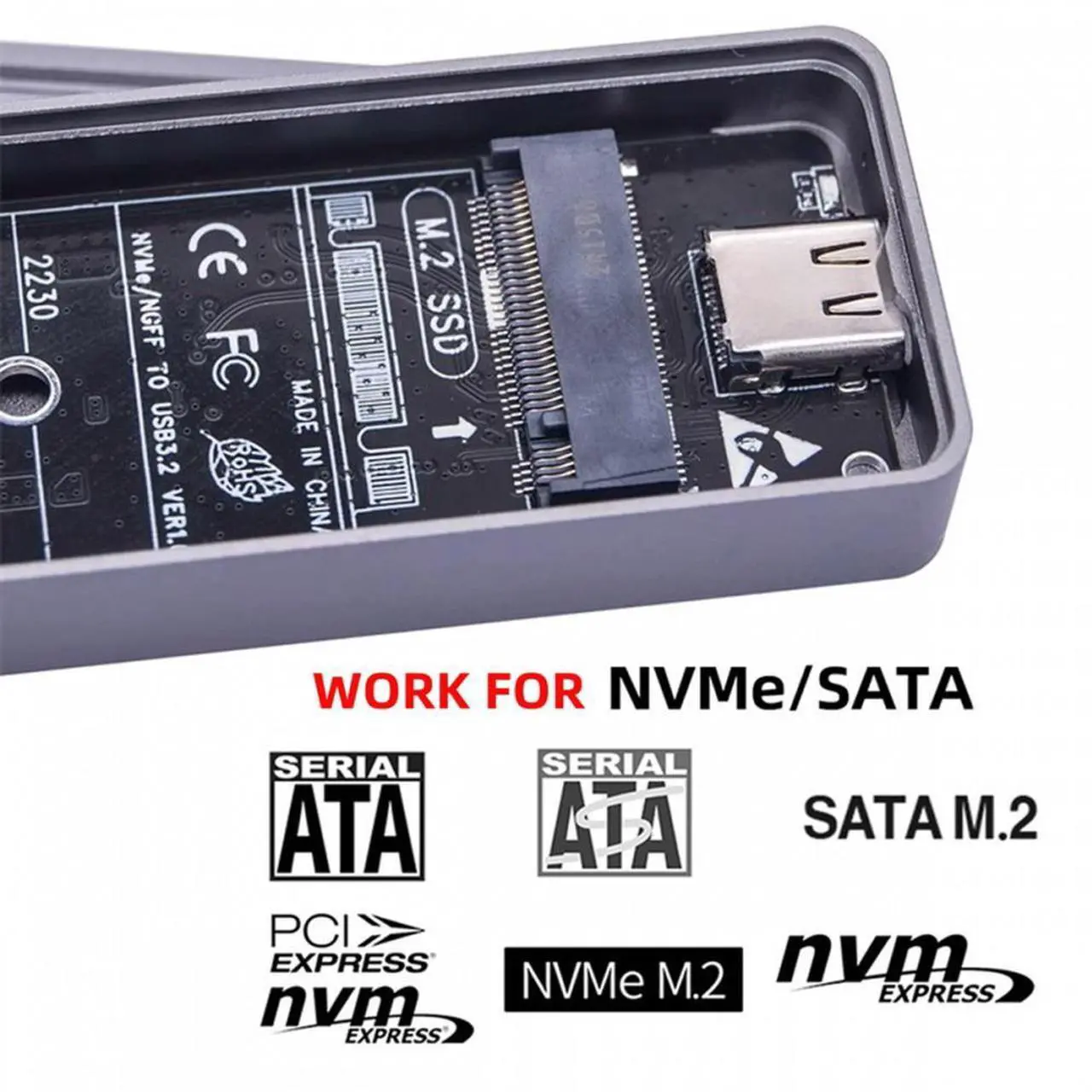

- The RTL9220 chipset is a USB bridge that combines a USB device with both a PCIe controller and a SATA controller. Via the PEDET interface of M.2 mechanical, it can auto switch USB-to-PCIe mode, or USB-to-SATA mode.

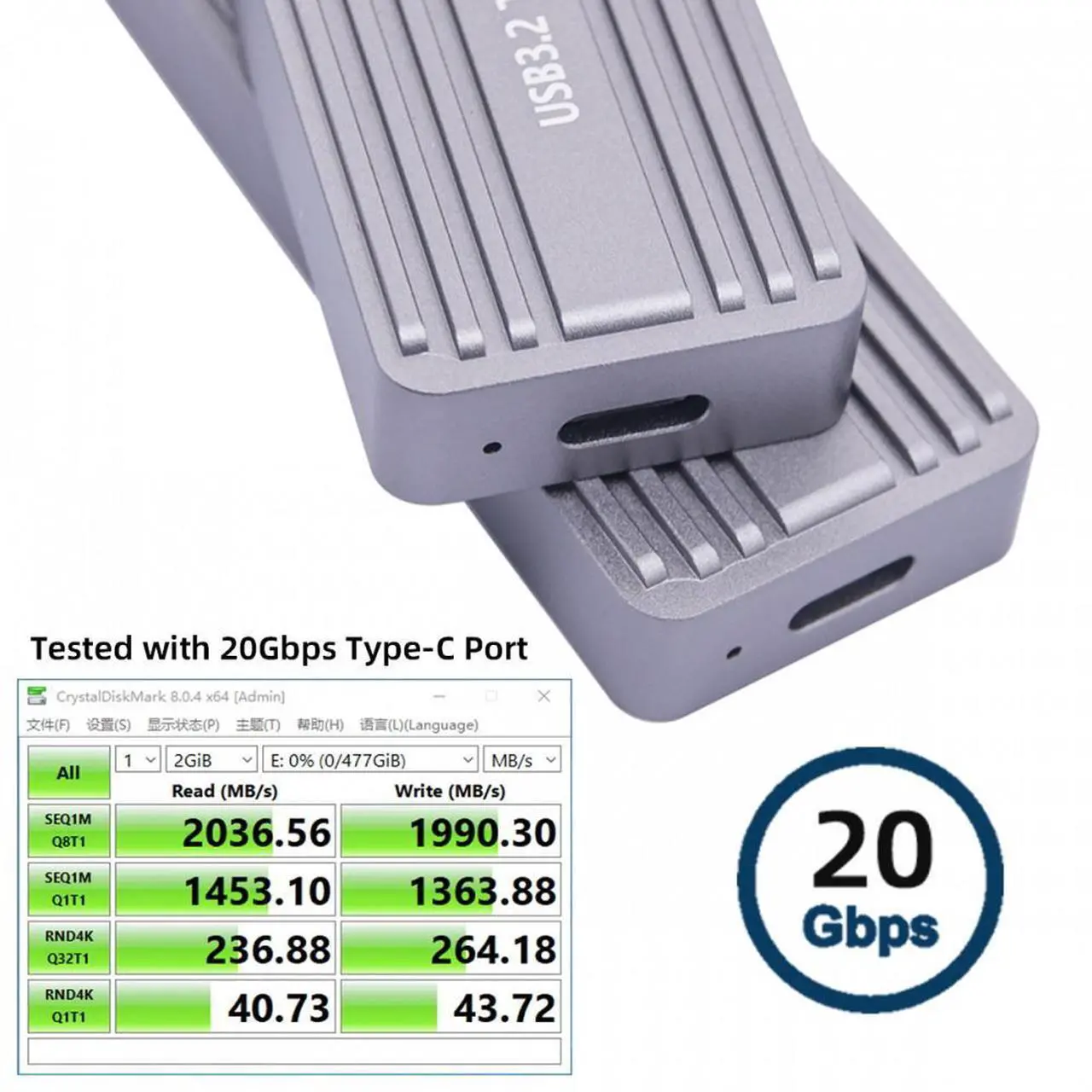

- In USB-to-PCIe mode, the RTL9220 supports PCIe Gen3 x2. For PCIe, it provides up to USB3.2 Gen2x2 (20Gbps) bandwidth.The PCIe host supports NVM Express.
- In USB-to-SATA mode, the RTL9220 supports SATA host in Gen3 speed. For SATA, it provides up to 6Gbps bandwidth.
- It supports a dynamically switching power state with NVMe/SATA/USB power management for power saving mode.

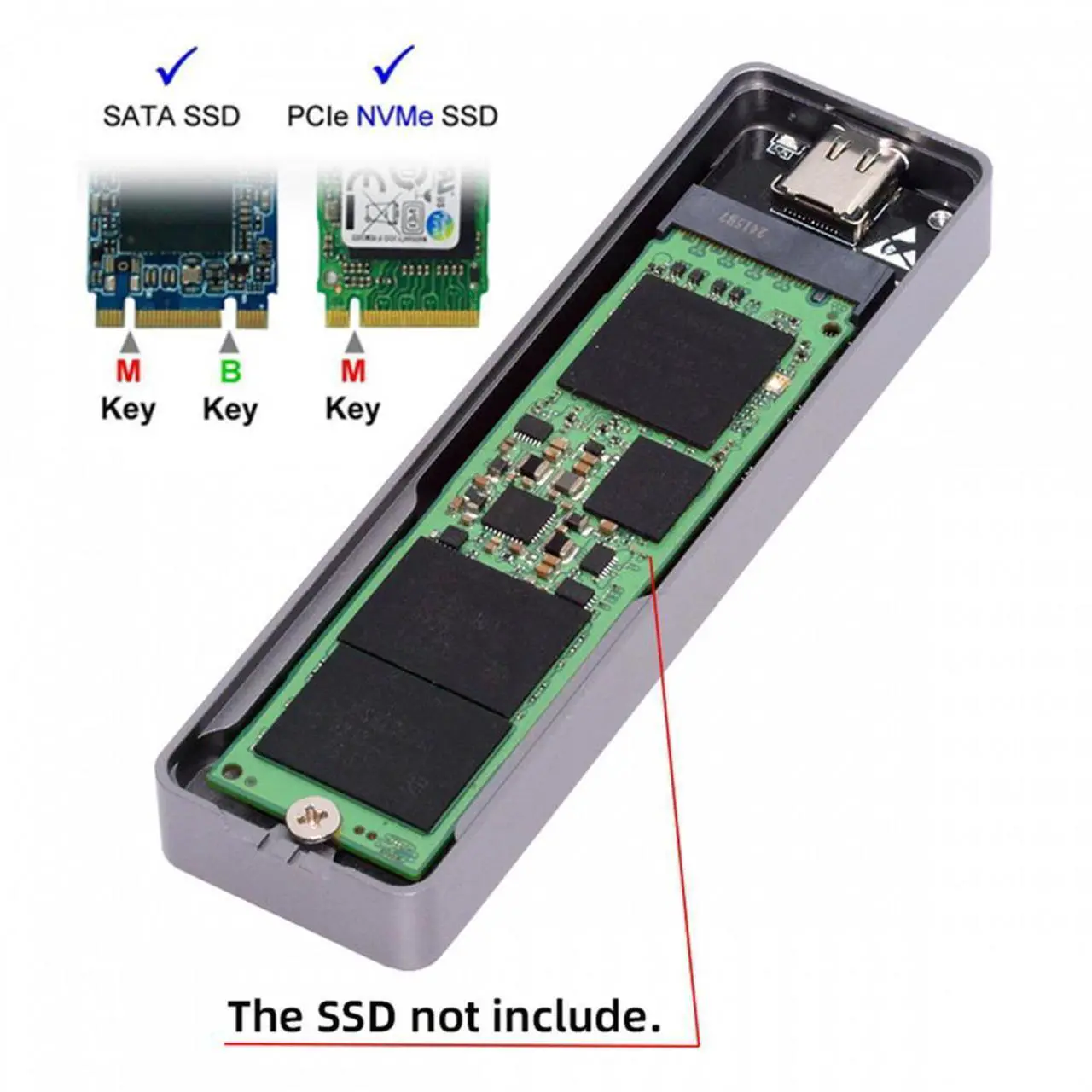

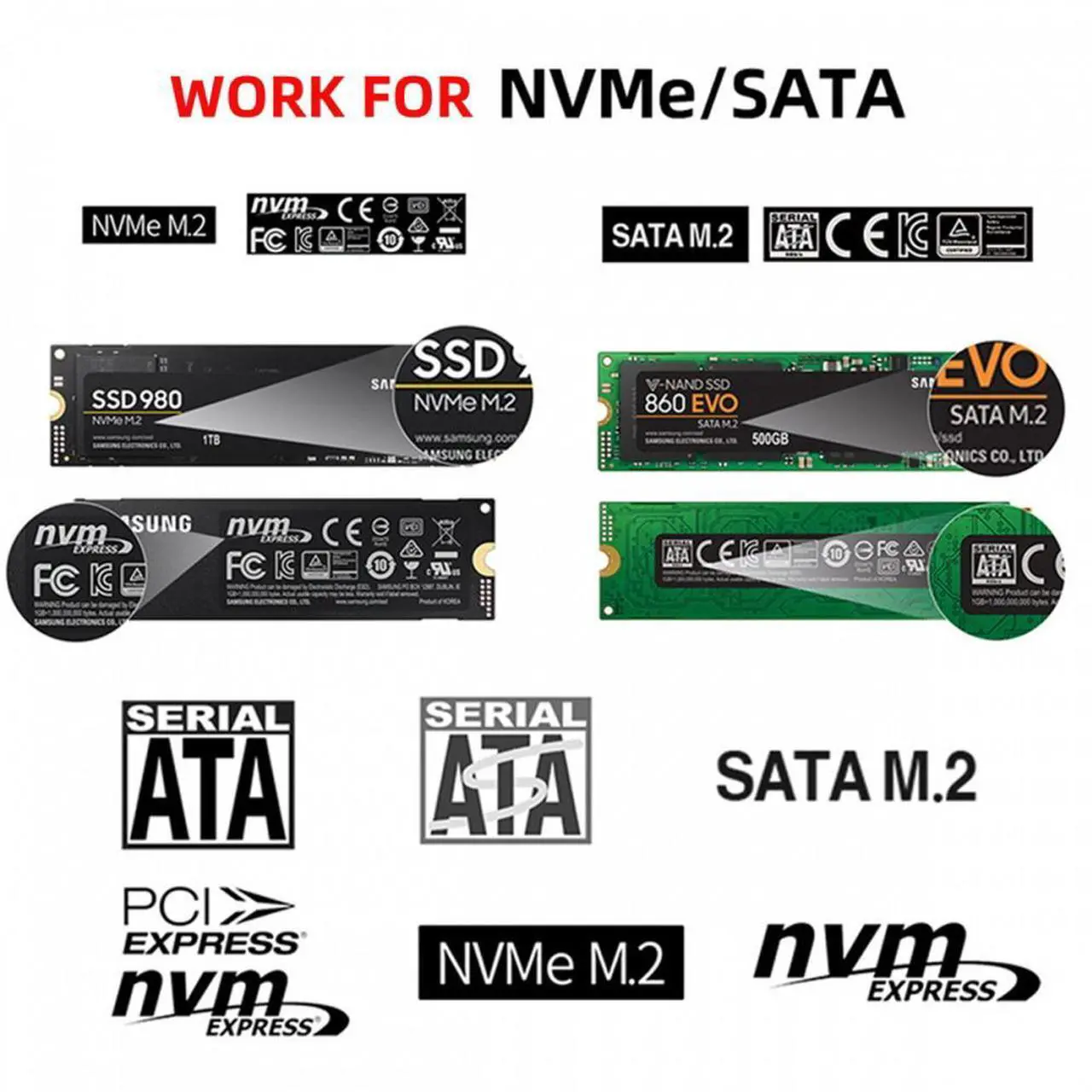

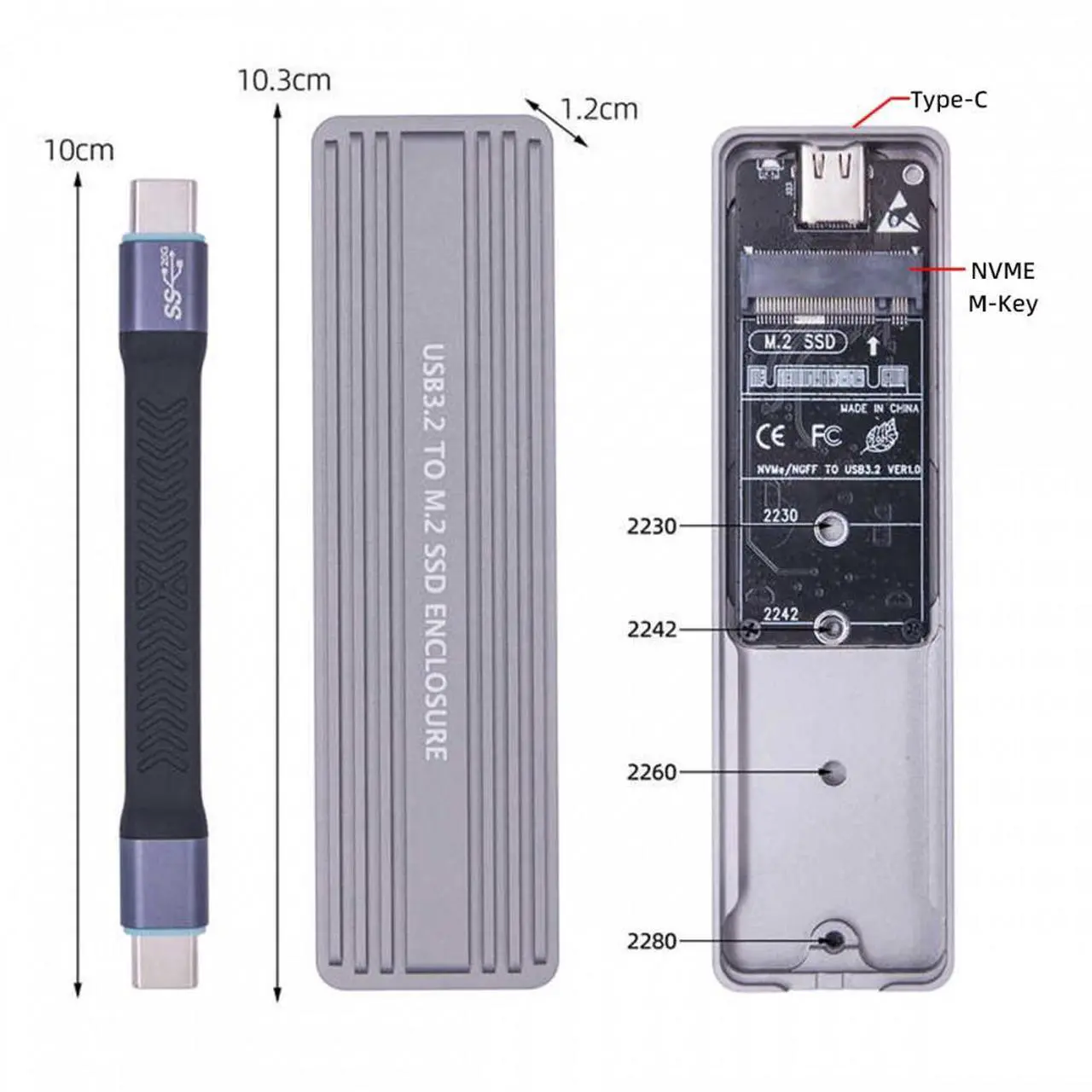

- Fit for 2230/2242/2260/2280mm NGFF/NVME M.2 SSD.(The NGFF SSD is not included)
+
+
Overview
Specs
Reviews
20Gbps Type-C USB 3.2 USB4 to NVME M-key M. 2 NGFF SATA SSD PCBA Case 2280/2242/2230mm Adapter RTL9220 ChipsetThe item included one Enclosure, Cable, Screwdriver. (The SSD not include. )The RTL9220 chipset is a USB bridge that combines a USB device with both a PCIe controller and a SATA controller. Via the PEDET interface of M. 2 mechanical, it can auto switch USB-to-PCIe mode, or USB-to-SATA mode. In USB-to-PCIe mode, the RTL9220 supports PCIe Gen3 x2. For PCIe, it provides up to USB 3.2 Gen2x2 (20Gbps) bandwidth.
The PCIe host supports NVM Express. In USB-to-SATA mode, the RTL9220 supports SATA host in Gen3 speed. For SATA, it provides up to 6Gbps bandwidth. It supports a dynamically switching power state with NVMe/SATA/USB power management for power saving mode. Fit for 2230/2242/2260/2280mm NGFF/NVME M. 2 SSD. (The NGFF SSD is not included)
The PCIe host supports NVM Express. In USB-to-SATA mode, the RTL9220 supports SATA host in Gen3 speed. For SATA, it provides up to 6Gbps bandwidth. It supports a dynamically switching power state with NVMe/SATA/USB power management for power saving mode. Fit for 2230/2242/2260/2280mm NGFF/NVME M. 2 SSD. (The NGFF SSD is not included)
