Chenyang 10Gbps Three Type-A USB3.0 Back Panel Socket & Dual USB3.1 Type-C USB-C to PCI-E Express Card Adapter ASM3142 VL822

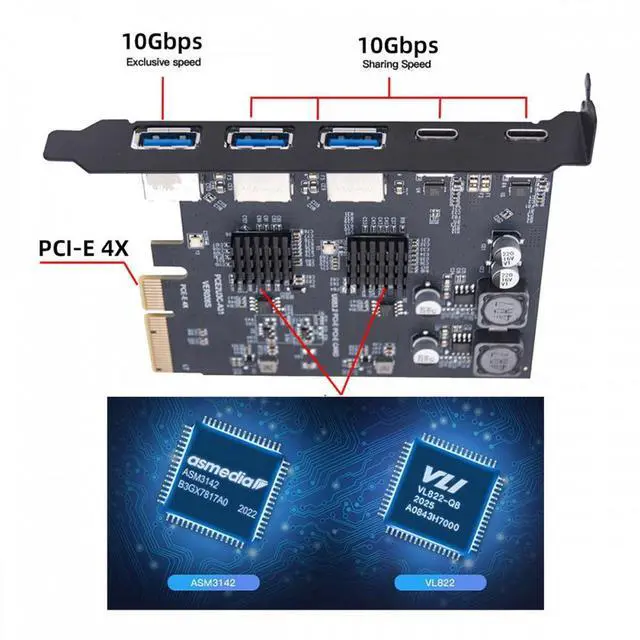

Three Type-A USB 3.0 Back Panel Socket & Dual USB 3.1 Type-C USB-C to PCI-E Express Card Adapter ASM3142 VL822Dual Chipset: ASM3142+VL822 chipset, ASM3142 supports the new feature of USB 3.1 Gen2, named Multiple INs to achieve fully utilization rate of 10Gbps data rate, taking advantage of the available bandwidth of USB 3.1 Gen2 bus. VL822 is a versatile USB 3.1 Gen 2 Hub Controller, offering a highly integrated, application-specific design.

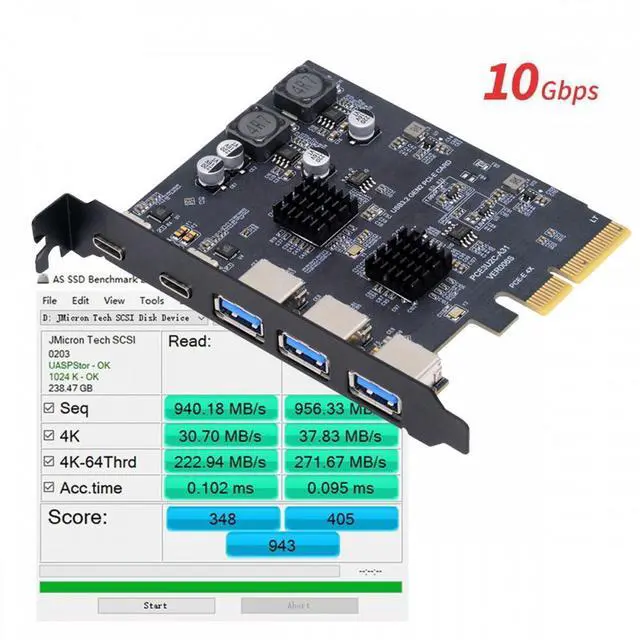

10Gbps Data transfer: Support 10Gbps data rating and 5V power. Compliant with USB Base Specification 3.1 / 3.0, Output USB 3.0 interface and Type-C interface. Compliant with USB 3.0 Super-Speed (10/5Gbps), USB 2.0 Hi-Speed (480Mbps), USB 1.1 Low-Speed ( 1.5M bps). No need any extra Power Supply, build in Self-Powered IC. Compatible with Windows 7, 8, 10, and Mac OS 10.8. 2 and above. Win 10, Mac OS, and Linux does not need any driver. It requires installing a driver when operating on Windows 7. The connector only transfer the usb 3.1 / 3.0 data and power, can't connect usb-c video/audio/thunderbolt device. Type C connector is the new design for USB 3.1, Reversible Design for Type C connector, Reversible plug orientation Cable direction, Support 5V/3A power charging.

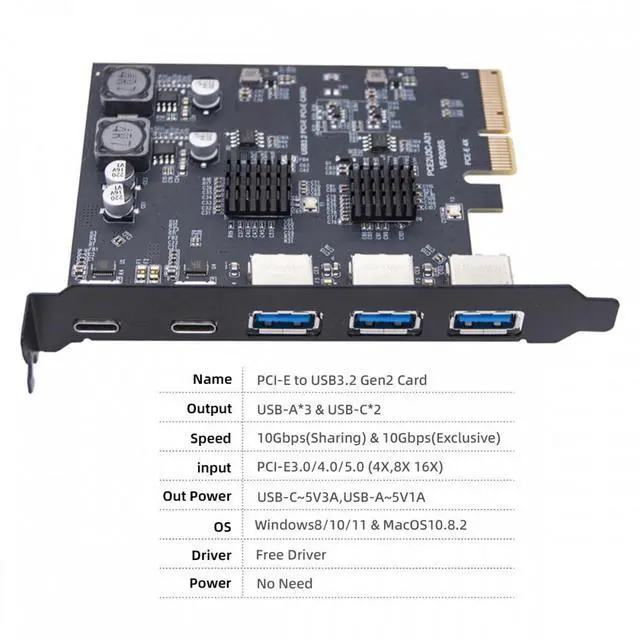

Input: Compatible

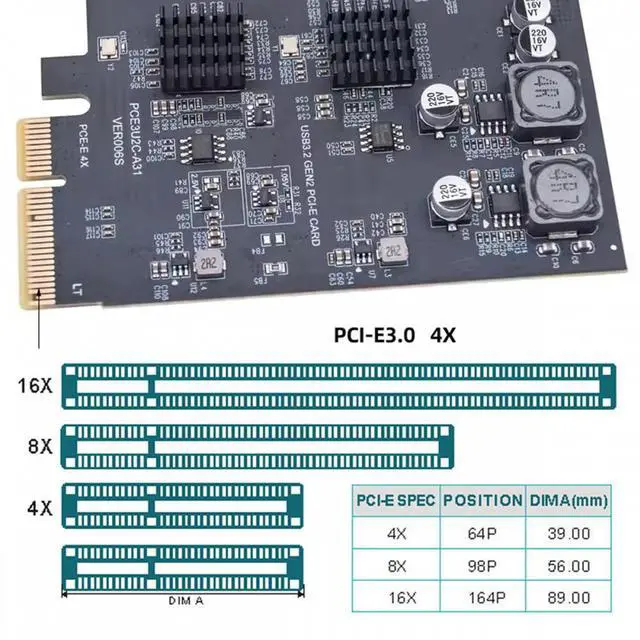

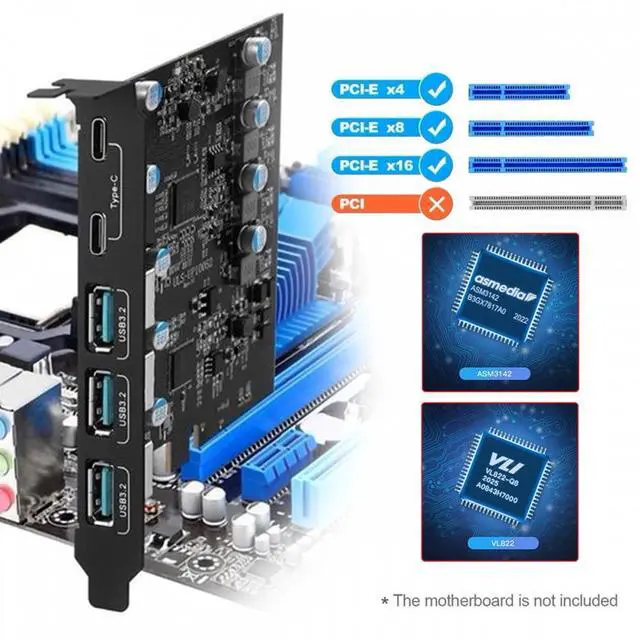

slot: PCIe x4, PCIe x8,

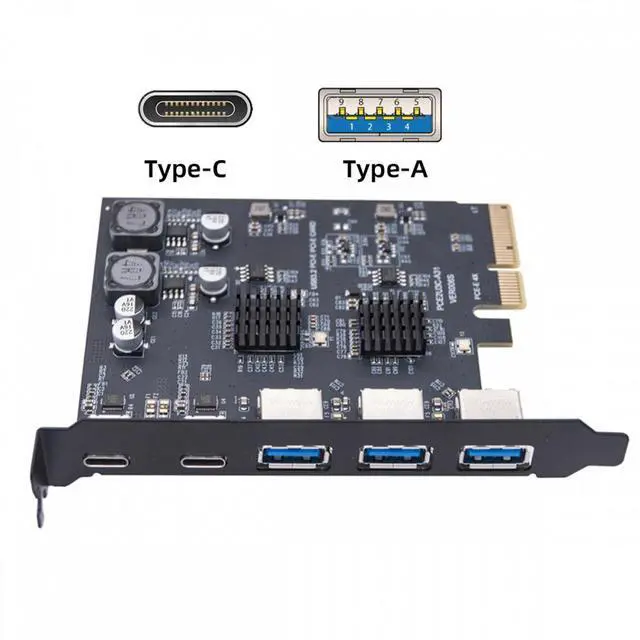

PCIe x16Output: Three Type-A Female, Dual Type-C Female
