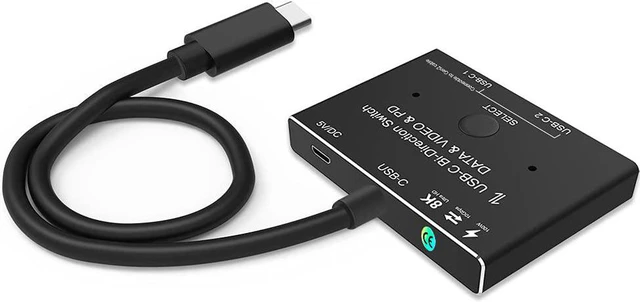

YIWENTEC USB-C USB3.1 Type-C 8K Switch Bi-Direction 8K@30Hz 4K@120Hz Power Delivery 100w 10Gbps Data Transfer Multi-Function Splitter Converter (8K)

Function 1: 2IN 1Out

1. Connect two sources to the port "USB-C 1" and port "USB-C 2"
2. Connect the display from the Supplied and Fixed USB-C Cable on the switch.
3. Power the switch with the supplied USB to DC cable
4:Press"Select"Button to switch between two Sources

Function 2: 1In 2Out

1.Connect the source from the supplied and Fixed USB-C cable on the switch.
2. Connect two displays to the port "USB-C 1" and port "USB-C 2"(Note: two displays cannot work at the same time).In this connection,you can also connect USB-C to HDMI or Displayport Cable from the Switch to relatively Monitor.
3. Power the switch with the supplied USB to DC cable
4:Press"Select"Button to switch between two Displays

Function 3:Power Delivery&Data

1:Data Transfer,using USB3.1 Gen 2 Cable for Max 10Gbps data Transmissions from your Host devices to your data storage devices.
2:Max 100w Power Delivery for your relatively devices.

Important Notes while using:

1:While using,you must power the switch with the Supplied USB to DC Cable,or your external monitor would not show anything.
2:In the market,There are various USB-C cables. If you want to realize the function of video transmission, then your own USB-C cable must support the relevant video transmission protocol. Similarly, if you want to realize data transmission, then your prepared USB-C cable must support the data transmission function.
3:If you connect to your USB-C Monitors,your Monitor's USB-C Ports should support Video Transmitting.

Warranty:18 Months worry-free Warranty.
