LASER TREE comes from a professional laser engraver and laser module manufacturer with an experienced R&D and support team. We are committed to providing you with high-quality products. We always put user requirements first and constantly pursue user satisfaction. Whether you’re looking for various power engraver modules or cutting modules, LASER TREE has you covered.

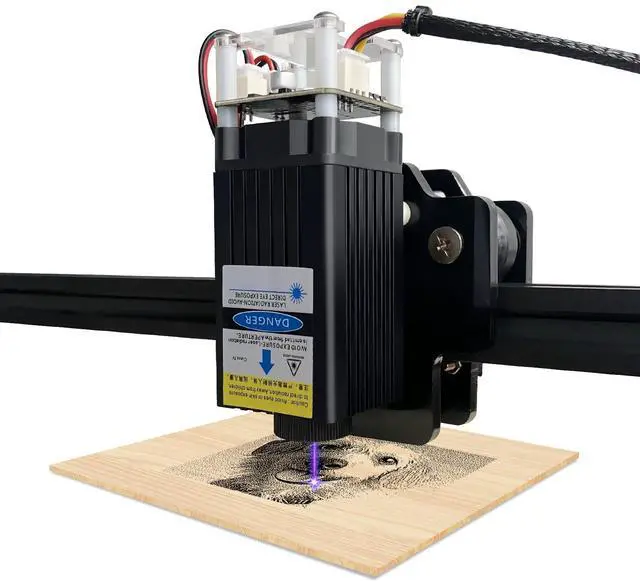

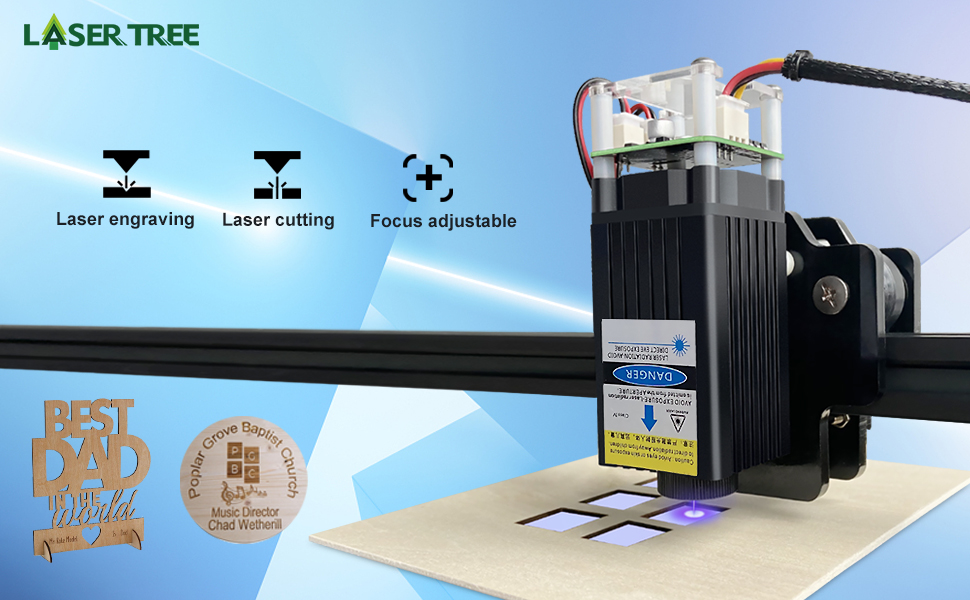

The Blue Laser Module is designed for Laser Engravers. They can engrave and cut a variety of materials.
LT-20W-A Laser Module Features:
Blue Laser Module --- Professional laser head with high speed and high stability. Bright blue-violet light, easy for locating when engraving.

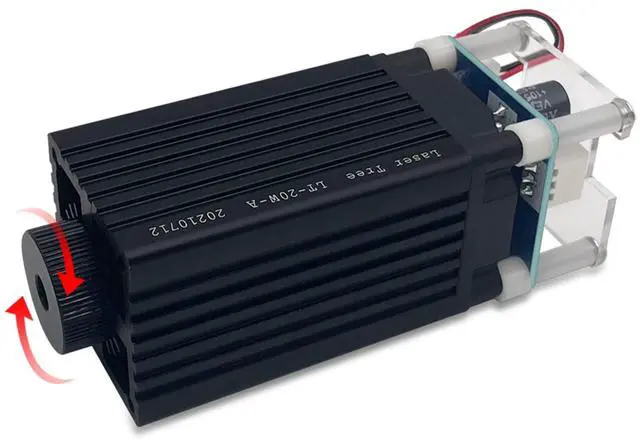

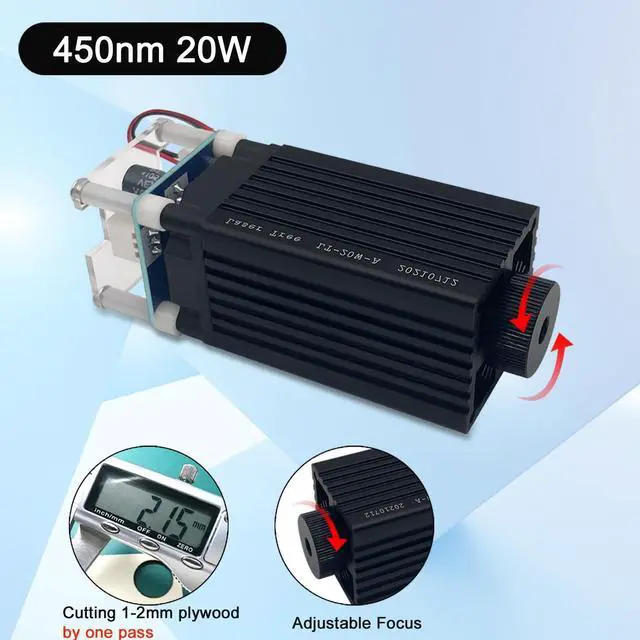

Adjustable Focus --- Adjustable laser head, easy to adjust, ensure engraving with good quality and high efficiency.
Easy to Assemble --- Small and compact, Carving Material ---Wood, paper, leather, bamboo, plastic, rubber, alumina, stainless steel, etc.
This laser module is suitable for all machines or control boards with PWM signal control. Please refer to the manual or contact LASER TREE if you have any questions about the connection.
Note: Regular cleaning and maintenance of the lenses will maintain good cutting results and obtain a longer service life.
LT-20W-A Specifications
FAQ:
Q: Input not matching our unit?

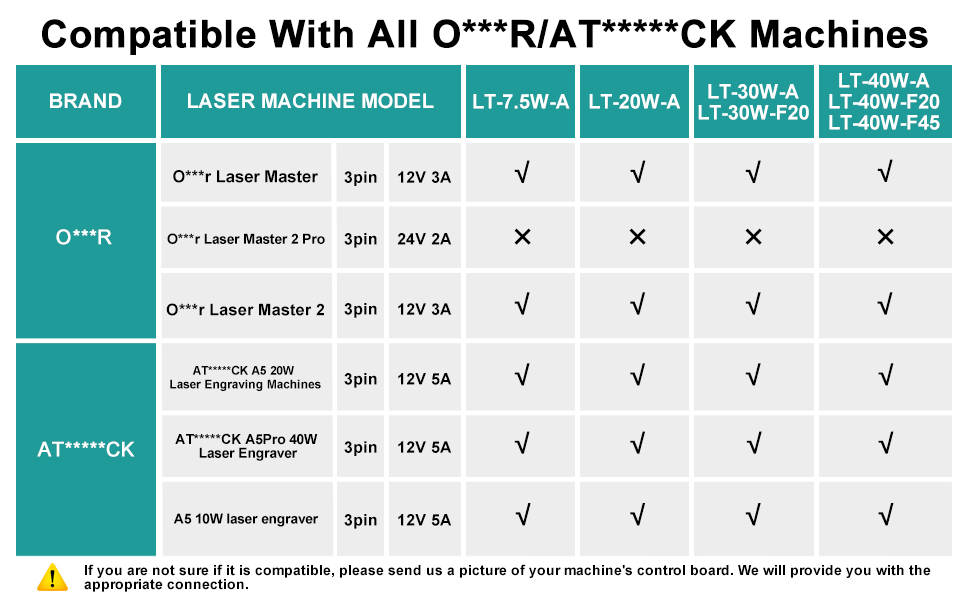

A: Our module interface is an XH 2.54 3-pin connector. Please refer to the product images for the specific layout before purchase.If you are unsure whether you can connect, please cont/act us for assistance.
Q: When the laser module is connected, the fan runs but the laser is not on.
Solution 1: Please check if the signal port (PWM) is well-matched. If you are not sure which port on the main board is "PWM", please check with the main board seller.
Solution 2: Power off the engraving machine; Disconnect the cable of our laser module from the main board; Reconnect the laser head to the main board and restart your engraving machine.
Q: Is this laser module compatible with CNC machines?
A: It can be used with a CNC machine attached. But the size does not fit the original bracket of the cnc machine, you need to make or buy the bracket.

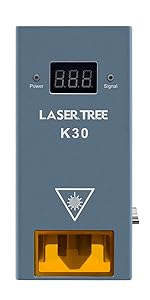

 3018 10W F45 |  LT-K30 |  LT-80W-AA Pro |  LT-40W-AA |  1064nm 1W |  LT-K60 | |
|---|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — | — |
| Price | — | — | — | — | — | — |
| Output optical power | 10W | 30W+ | 10W | 5W | 1W | 20/40/60W Adjustable |
| Electric power | 12V 3.2A(3-3.5A) | 24V 5A | 12V 3.2A(3-3.5A); 24V 1.7A(1.5-2A) | 12V, 1.8A (1.5-2A) | 24V 2.5A | 24V 10A |
| Focus Length | Fixed focus 45mm | Fixed focus 40mm | Fixed focus 45mm | Fixed focus 40mm | Fixed focus 24mm | Fixed focus 40mm |
| Modulation | 0/5-12V, 0-5kHz TTL/PWM | 0/5-12V, 0-5kHz TTL/PWM | 0/5-12V, 0-5kHz TTL/PWM | 0/5-12V, 0-5kHz TTL/PWM | 0/5-12V, 0-5kHz (TTL/PWM) & Analog | 0/5-12V, 0-5kHz TTL/PWM |
| Material | Aluminum+Alloy | Aluminum+Alloy | Aluminum+Alloy | Aluminum+Alloy | Aluminum+Alloy | Aluminum+Alloy |
| Interface | XH2.54-3P socket | MR 30 Port | XH2.54-3P socket | XH2.54-3P socket | XH2.54-3P socket | MR 30 Port |
| Application | Engraving & Cutting | Engraving & Cutting | Engraving & Cutting | Engraving & Cutting | Engraving | Engraving & Cutting |
| Cutting in One Pass | 8mm Bass Plywood | 15mm Bass Plywood | 8mm Bass Plywood | 4mm Bass Plywood | no data | 20mm Bass Plywood |
| Air Assist | ? | ? | ? | ? | No | ? |
| Wavelength | 450nm (±10nm) | 450nm (±10nm) | 450nm (±10nm) | 450nm (±10nm) | 1064nm (±1nm) | 450nm (±10nm) |
Laser engraver 10W 30W 40W 60W
New Release
Laser Modules 10W 20W 30W 40W
More Hot Modules
Laser Module Accessories
LASER TREE comes from a professional laser engraver and laser module manufacturer with an experienced R&D and support team. We are committed to providing you with high-quality products. We always put user requirements first and constantly pursue user satisfaction. Whether you’re looking for various power engraver modules or cutting modules, LASER TREE has you covered.
The Blue Laser Module is designed for Laser Engravers. They can engrave and cut a variety of materials.
LT-20W-A Laser Module Features:
Blue Laser Module --- Professional laser head with high speed and high stability. Bright blue-violet light, easy for locating when engraving.
Adjustable Focus --- Adjustable laser head, easy to adjust, ensure engraving with good quality and high efficiency.
Easy to Assemble --- Small and compact, Carving Material ---Wood, paper, leather, bamboo, plastic, rubber, alumina, stainless steel, etc.
This laser module is suitable for all machines or control boards with PWM signal control. Please refer to the manual or contact LASER TREE if you have any questions about the connection.
Note: Regular cleaning and maintenance of the lenses will maintain good cutting results and obtain a longer service life.

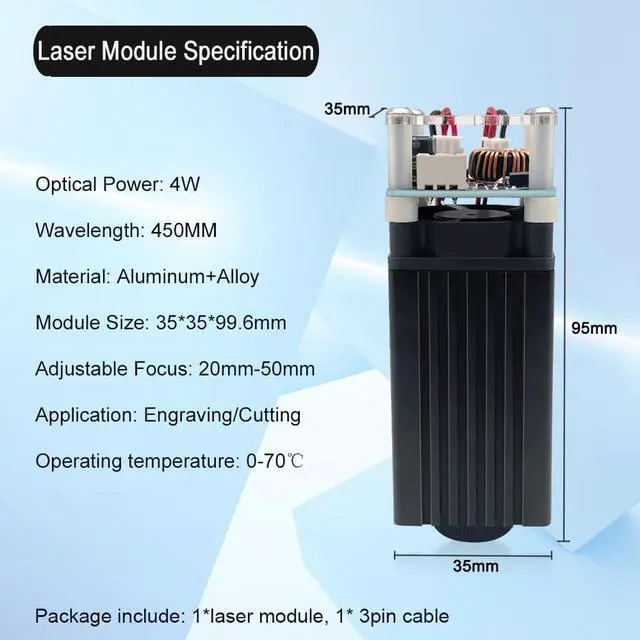

LT-20W-A Specifications
| Effect Laser Power | 20W |
| Optical Power | 4W |
| Electric Power | 12V, 1.6A(1.4A-1.8A) |
| Wavelength | 450MM |
| Material | Aluminum+Alloy |
| Laser color | Blue |
| Adjustable Power | Support 5V PWM modulation |
| Driver protection | Surge protection overvoltage protection |

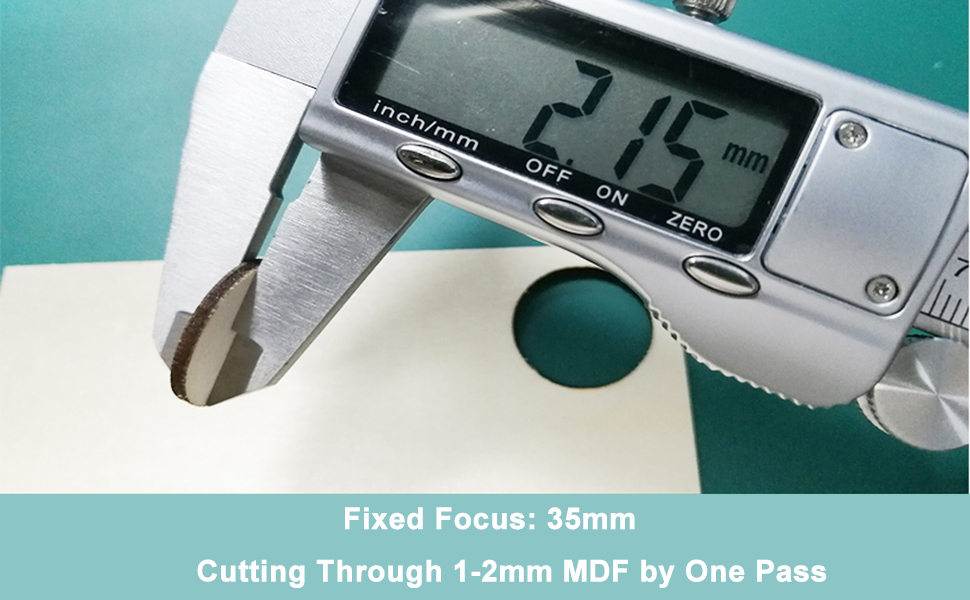

| Adjustable Focus | 20mm - 35mm |
| Interface | XH2.54-3P socket |
| Application | Engraving/Cutting |
| Control line installation | Pluggable |
| Operating temperature | 0-70? |
| Package List | 1 * Laser Head, 1* 80cm 3pin Cable |

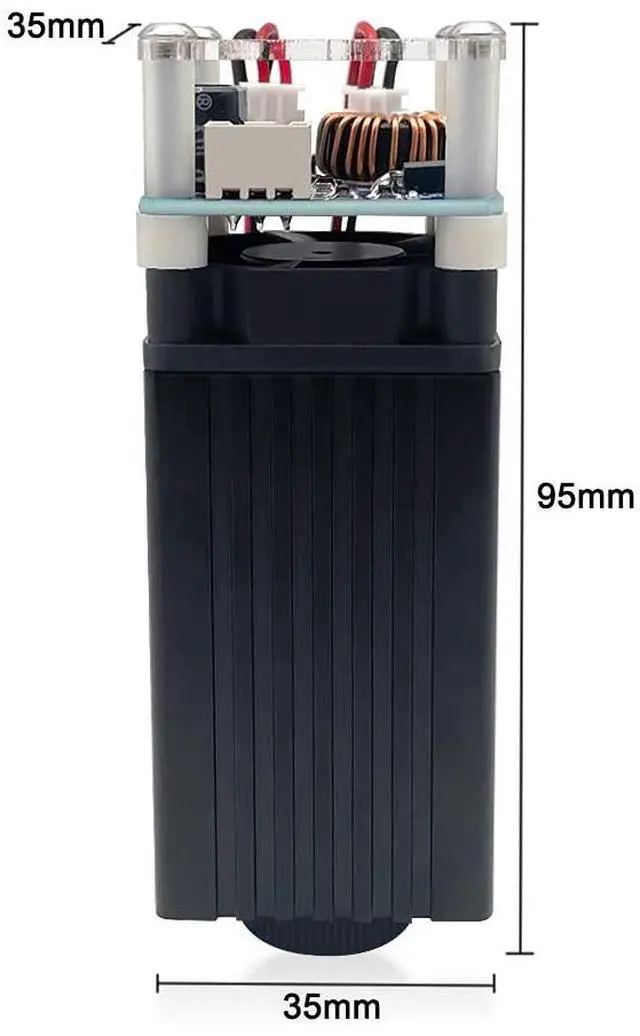

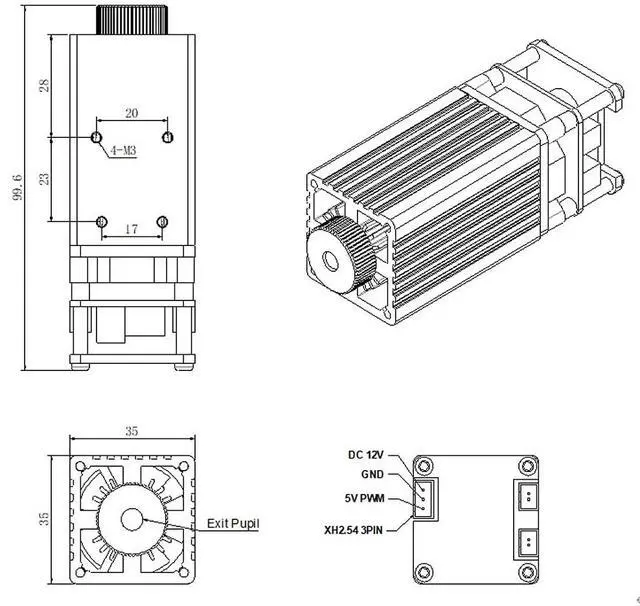

| Module Size | 35*35*99.6mm |
| Module Weight | 146g |
FAQ:
Q: Input not matching our unit?
A: Our module interface is an XH 2.54 3-pin connector. Please refer to the product images for the specific layout before purchase.If you are unsure whether you can connect, please cont/act us for assistance.
Q: When the laser module is connected, the fan runs but the laser is not on.
Solution 1: Please check if the signal port (PWM) is well-matched. If you are not sure which port on the main board is "PWM", please check with the main board seller.
Solution 2: Power off the engraving machine; Disconnect the cable of our laser module from the main board; Reconnect the laser head to the main board and restart your engraving machine.
Q: Is this laser module compatible with CNC machines?
A: It can be used with a CNC machine attached. But the size does not fit the original bracket of the cnc machine, you need to make or buy the bracket.

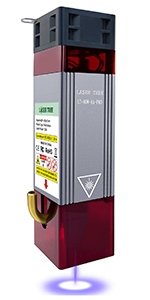

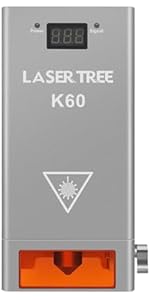

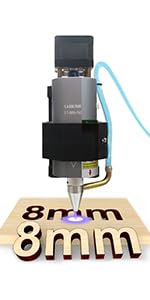

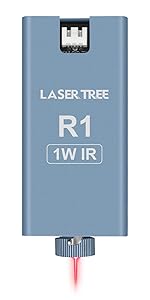

3018 10W F45 | LT-K30 | LT-80W-AA Pro | LT-40W-AA | 1064nm 1W | LT-K60 | |
|---|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — | — |
| Price | — | — | — | — | — | — |
| Output optical power | 10W | 30W+ | 10W | 5W | 1W | 20/40/60W Adjustable |
| Electric power | 12V 3.2A(3-3.5A) | 24V 5A | 12V 3.2A(3-3.5A); 24V 1.7A(1.5-2A) | 12V, 1.8A (1.5-2A) | 24V 2.5A | 24V 10A |
| Focus Length | Fixed focus 45mm | Fixed focus 40mm | Fixed focus 45mm | Fixed focus 40mm | Fixed focus 24mm | Fixed focus 40mm |
| Modulation | 0/5-12V, 0-5kHz TTL/PWM | 0/5-12V, 0-5kHz TTL/PWM | 0/5-12V, 0-5kHz TTL/PWM | 0/5-12V, 0-5kHz TTL/PWM | 0/5-12V, 0-5kHz (TTL/PWM) & Analog | 0/5-12V, 0-5kHz TTL/PWM |
| Material | Aluminum+Alloy | Aluminum+Alloy | Aluminum+Alloy | Aluminum+Alloy | Aluminum+Alloy | Aluminum+Alloy |
| Interface | XH2.54-3P socket | MR 30 Port | XH2.54-3P socket | XH2.54-3P socket | XH2.54-3P socket | MR 30 Port |
| Application | Engraving & Cutting | Engraving & Cutting | Engraving & Cutting | Engraving & Cutting | Engraving | Engraving & Cutting |
| Cutting in One Pass | 8mm Bass Plywood | 15mm Bass Plywood | 8mm Bass Plywood | 4mm Bass Plywood | no data | 20mm Bass Plywood |
| Air Assist | ? | ? | ? | ? | No | ? |
| Wavelength | 450nm (±10nm) | 450nm (±10nm) | 450nm (±10nm) | 450nm (±10nm) | 1064nm (±1nm) | 450nm (±10nm) |
