NGW-1pc Grove - PIR Motion Sensor-Low-cost&Easy-to -use motion detector-beginners friendly
Limited time offer, ends 07/18 By TERRA HAVEN
- Features; Easy to use: Grove compatible interface and supports both Arduino and Raspberry Pi platforms; Flexible detecting: Detecting angles up to 120 degrees, and adjustable detecting distance and holding time; Small-design: 20mm x 40mm; Wide application: it is commonly found in appliances and gadgets due to its low-cost, low-power,easy-to-use, and long-life cycle.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

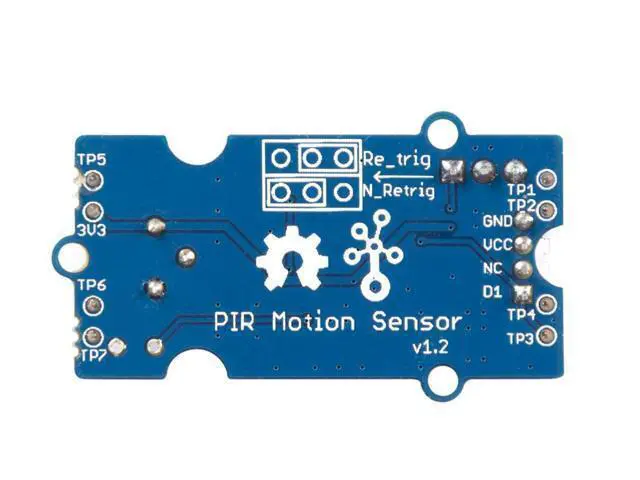

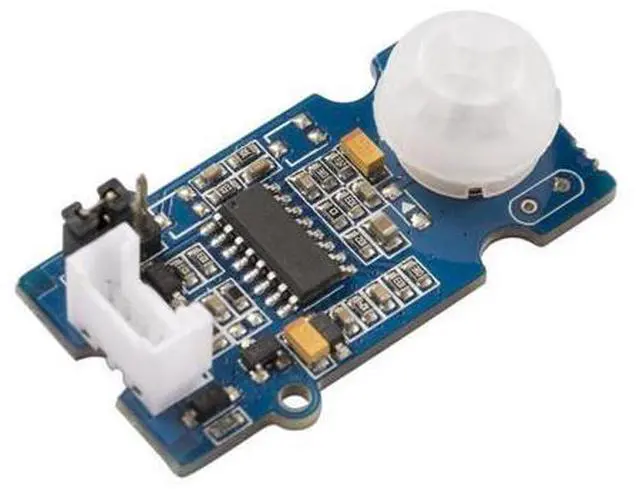

Description PIR Sensor is short for passive infrared sensor, which applies to projects that need to detect human or particle movement in a certain range. It is also known as PIR (motion) sensor or IR sensor. Technically, PIR is made of a pyroelectric sensor, which is able to detect different levels of infrared radiation. If the PIR sensor notices the infrared energy, the motion detector is triggered and the sensor outputs HIGH on its SIG pin. The detecting range and response speed can be adjusted by 2 potentiometers soldered on its circuit board, The response speed is from 0.3 s - 25s, and max 6 meters of detecting range.

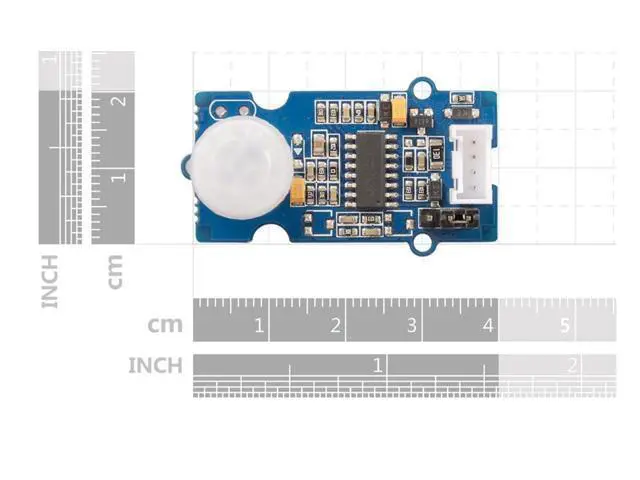

It is commonly found in appliances and gadgets used in homes or businesses because it is small, low-cost, low-power, easy to use, and won't wear out. Note Potentiometers are not included. Specification Dimensions 40mm x20mm x15mm Weight G. W 12g Battery Exclude Voltage range 3V5V Detecting angle 120 degree Detecting distance max 6m (3m by default) Part List Grove - PIR Motion Sensor *1
It is commonly found in appliances and gadgets used in homes or businesses because it is small, low-cost, low-power, easy to use, and won't wear out. Note Potentiometers are not included. Specification Dimensions 40mm x20mm x15mm Weight G. W 12g Battery Exclude Voltage range 3V5V Detecting angle 120 degree Detecting distance max 6m (3m by default) Part List Grove - PIR Motion Sensor *1
