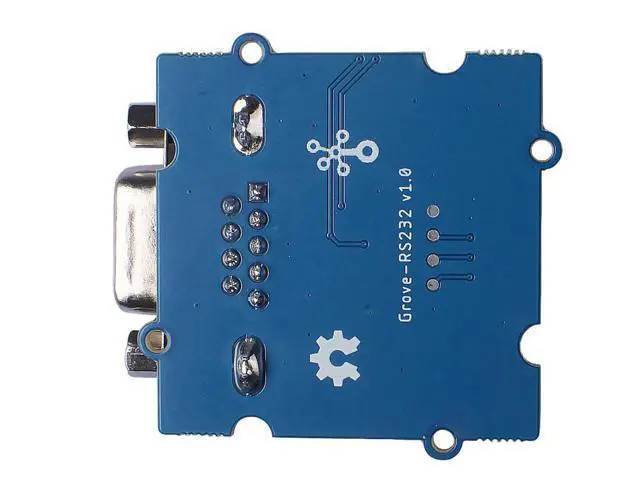

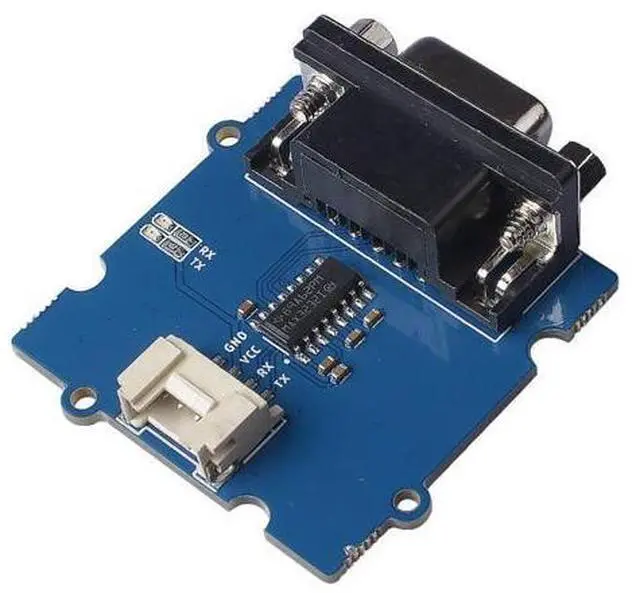

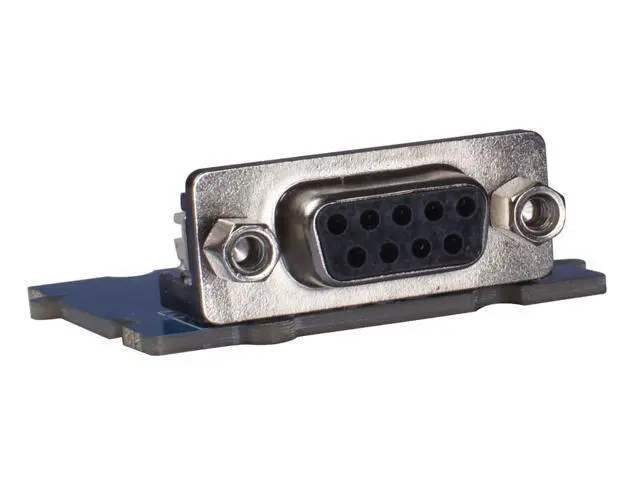

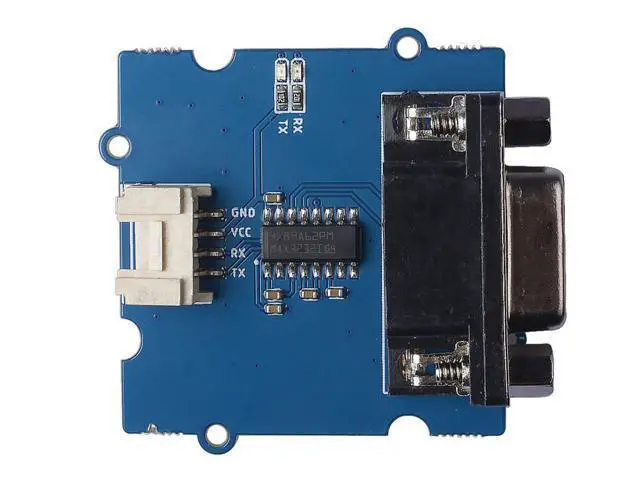

NGW-1pc Grove - RS232 for Communicate with The MCU
- Stable, high speed: Alternative High-Speed Terminal-CompatibleDevices (1 Mbit/s); High cost performance: Meets or Exceeds the Requirements of TIA/EIA-232-F and ITU V.28 Standards; ±15-kV ESD Protection: RS-232 Bus-Terminal ESD Protection Exceeds ±15 kV Using Human-Body Model (HBM); Low power consumption: Low Supply Current: 300 A Typical; Grove compatible interface: The product ensures "Plug and Play" and could be versatile for various applications of Grove
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
RS-232 has been a serial communication standard in the industry for years. Its still widely used and commonly heard in the industry though it dates back to
1969. However, with technological advancements, there are now faster data transmission methods. The RS232 is defined as the Interface between data terminal equipment and data communications equipment using serial binary data exchange. Most of the MCUs use TTL levels, and the computer serial port generally uses 232 levels. If we want the computer to communicate with the MCU, we need this Grove -

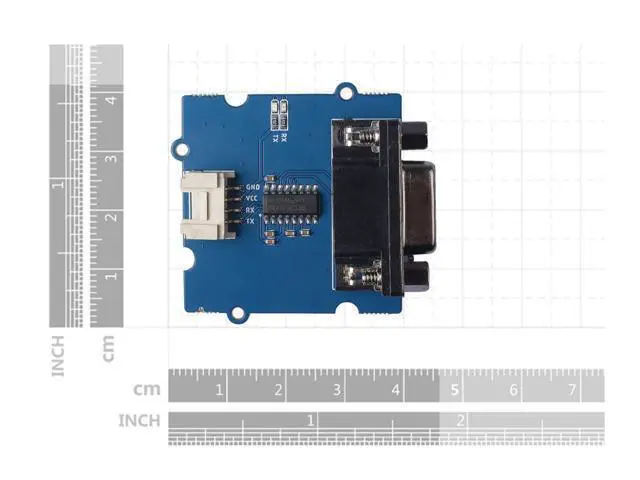

232. The communication between your Arduino boards and the computer will be exceptionally convenient with the integrated Grove interface This module is based on Max3232, it supports multiple baud rate communication and theoretically supports communication up to 230400bps baud. Applications Hand-Held Equipment Palmtop PCs Battery-Powered Systems PDAs Notebooks Laptops Specification Supply Voltage 3.3V / 5V Driver input voltage 0V ~ 5.5V Receiver input voltage -25V ~ +25V Supply current (No load) 0.3 mA Operating free-air temperature -40 ~ 85 Storage temperature range -65 ~ 150 Maximum data rate 250 Kbit/s Support baud rate 300bps ~ 230400bps Length 46mm Width 42mm Height 16.5 mm size
L: 40mm
W: 40mm
H: 15mm Weight 13.3 g
Package size L: 140mm
W: 90mm
H: 15mm Gross Weight 20g Hardware Overview Part List Grove - RS232 *1
1969. However, with technological advancements, there are now faster data transmission methods. The RS232 is defined as the Interface between data terminal equipment and data communications equipment using serial binary data exchange. Most of the MCUs use TTL levels, and the computer serial port generally uses 232 levels. If we want the computer to communicate with the MCU, we need this Grove -
232. The communication between your Arduino boards and the computer will be exceptionally convenient with the integrated Grove interface This module is based on Max3232, it supports multiple baud rate communication and theoretically supports communication up to 230400bps baud. Applications Hand-Held Equipment Palmtop PCs Battery-Powered Systems PDAs Notebooks Laptops Specification Supply Voltage 3.3V / 5V Driver input voltage 0V ~ 5.5V Receiver input voltage -25V ~ +25V Supply current (No load) 0.3 mA Operating free-air temperature -40 ~ 85 Storage temperature range -65 ~ 150 Maximum data rate 250 Kbit/s Support baud rate 300bps ~ 230400bps Length 46mm Width 42mm Height 16.5 mm size
L: 40mm
W: 40mm
H: 15mm Weight 13.3 g
Package size L: 140mm
W: 90mm
H: 15mm Gross Weight 20g Hardware Overview Part List Grove - RS232 *1
