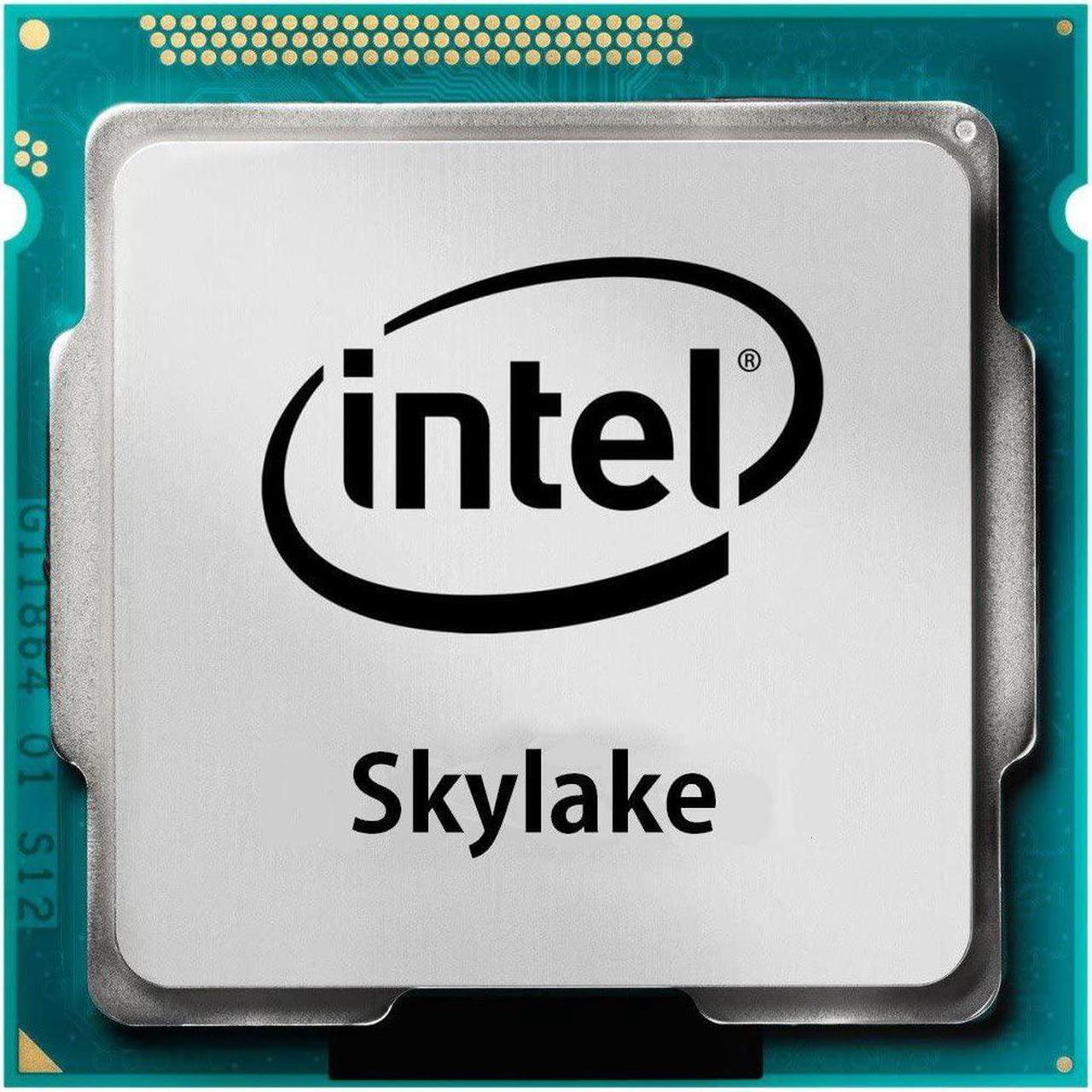

CPU SUPPORT 7th & 6th Gen Intel® Core™ i7 LGA 1151 Processor 7th & 6th Gen Intel® Core™ i5 LGA 1151 Processor 7th & 6th Gen Intel® Core™ i3 LGA 1151 Processor 7th & 6th Gen Intel® Pentium® LGA 1151 Processor 7th & 6th Gen Intel® Celeron® LGA 1151 Processor Maximum

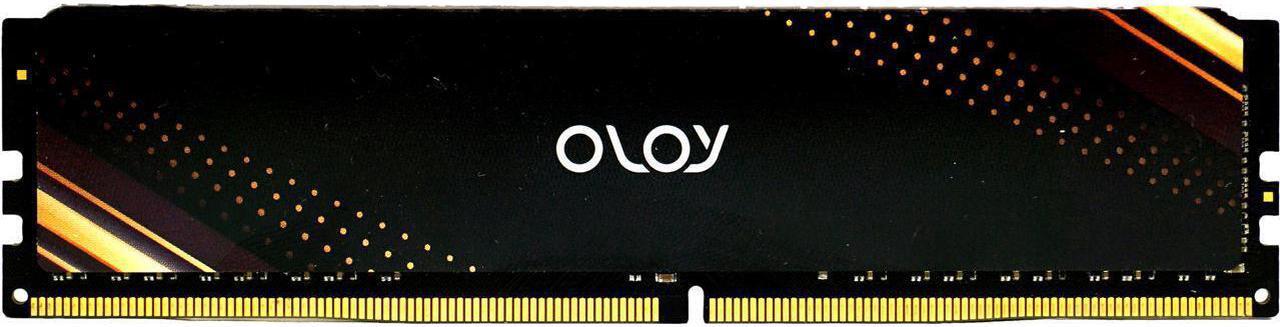

CPU TDP (Thermal Design Power): 95Watt MEMORY Support Dual Channel DDR4 2400/ 2133/ 1866 MHz 2 x DDR4 DIMM Memory Slot Max. Supports up to 32GB Memory * DDR4 2400 for 7th Generation Intel® Core™ Processor Family INTEGRATED VIDEO By CPU model Supports DX12 Supports HDCP STORAGE 6 x SATA III Connector LAN Realtek RTL8111H - 10/100/1000Mb/s Controller Support Super LAN Surge Protection AUDIO CODEC Realtek ALC887 8-Channel HD Audio Support HD Audio USB 4 x USB 3.0 Port 1 x USB 3.0 Header 2 x USB 2.0 Port 2 x USB 2.0 Port(only 5V power, up to 1.5A ) 2 x USB 2.0 Header EXPANSION SLOT 1 x PCI-E 3.0 x16 Slot 11 x PCI-E 3.0 x1
Slot(Note: PEX1_6/7/8/9/10/11 slot are not compatible w/ ATX standard, users need extra coonecting kit to install VGA card for crypto mining. ) REAR I/O 1 x PS/2 Mouse 1 x PS/2 Keyboard 4 x USB 3.0 Port 2 x USB 2.0 Port 2 x USB 2.0 Port(only 5V power, up to 1.5A ) 1 x DVI-D Connector, resolution up to 1920 x 1200 @60Hz 1 x LAN Port 3 x Audio Jacks INTERNAL I/O 1 x USB 3.0 Header 2 x USB 2.0 Header 6 x SATA III Connector (6Gb/s) 1 x SATA Power Connector (for rear USB power enhancement) 1 x Front Audio Header 1 x Front Panel Header 1 x CPU Fan Connector 2 x System Fan Connector 2 x PCI-E 12V 4Pin Connector(Must be installed when using for bitcoin mining. ) 1 x COM Port Header H/W MONITORING CPU / System Temperature Monitoring CPU / System Fan Monitoring Smart / Manual CPU Fan Control System Voltage Monitoring DIMENSION ATX
Form Factor Dimension: 29.5 cm x 21cm ( W x L ) OS SUPPORT Supports Windows 10 (x64) / 11 (x64) for Intel 7th Generation Processor ※Support Windows 7 / 8.1 (x64) / 10 (x64) / 11 (x64) for Intel 6th Generation Processor BUNDLE SOFTWARE BullGuard Smart Speed LAN(Windows 7/ 8.1 only) Intel Rapid Storage Technology ACCESSORIES 2 x SATA Cable 1 x I/O Shield 1 x DVD Driver 1 x User Manual FEATURES Supports 100% Solid capacitor Supports Charger Booster Supports BIOS Online Update
