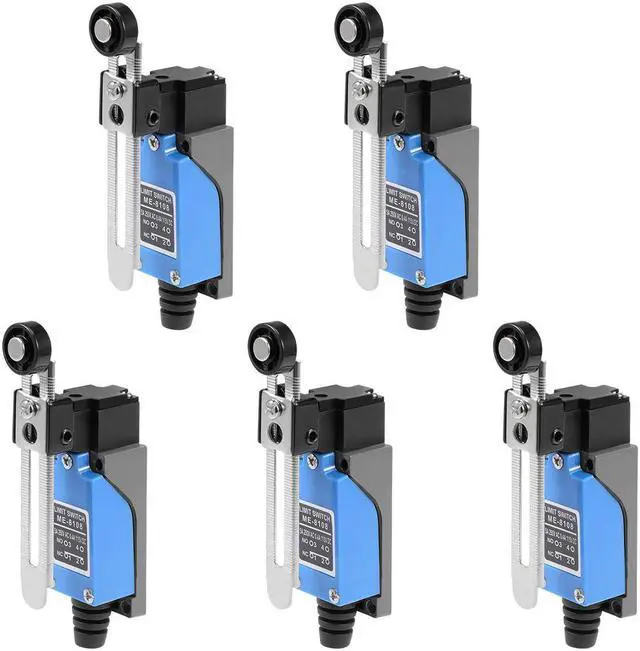

ME-8108 Adjustable Roller Lever Arm Momentary Limit Switch 1NC+1NO 5Pcs

Specification:

Product Name: Limit Switch

Model: ME-8108

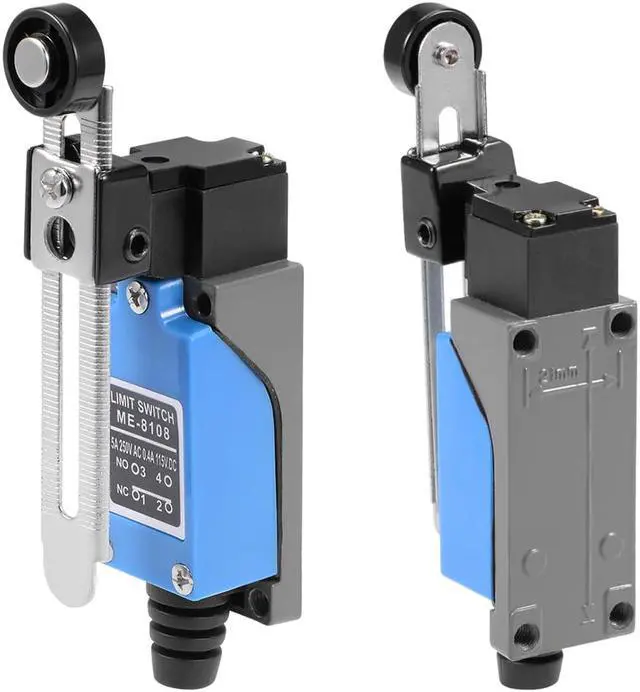

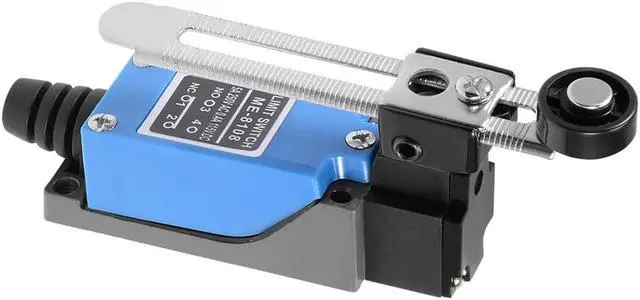

Actuator Type: Plastic Wheel Adjustable Roller Lever Type

Rated Voltage: 5A 250V AC / 0.4A 115V DC

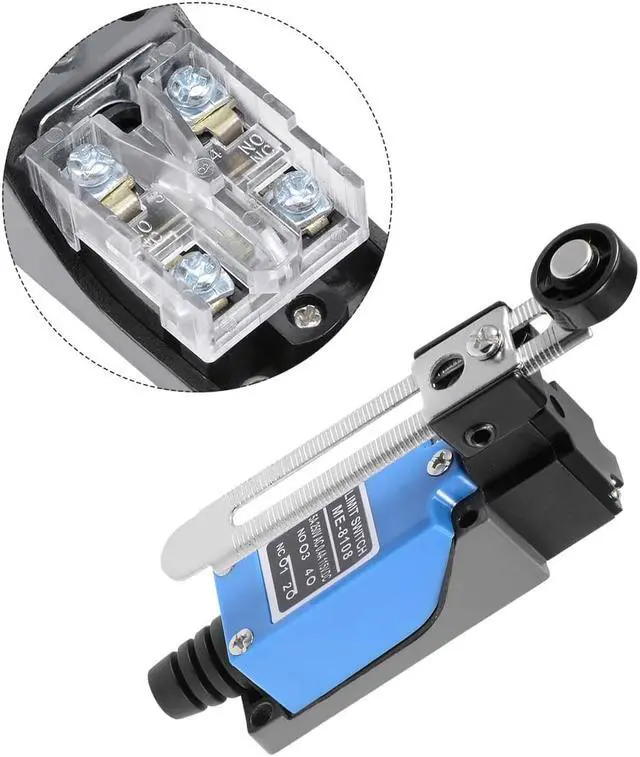

Contact Configuration: 1NC+1NO

Body Size: 64 x 28 x 25mm (L*W*T)

Mounting Hole Size: M5

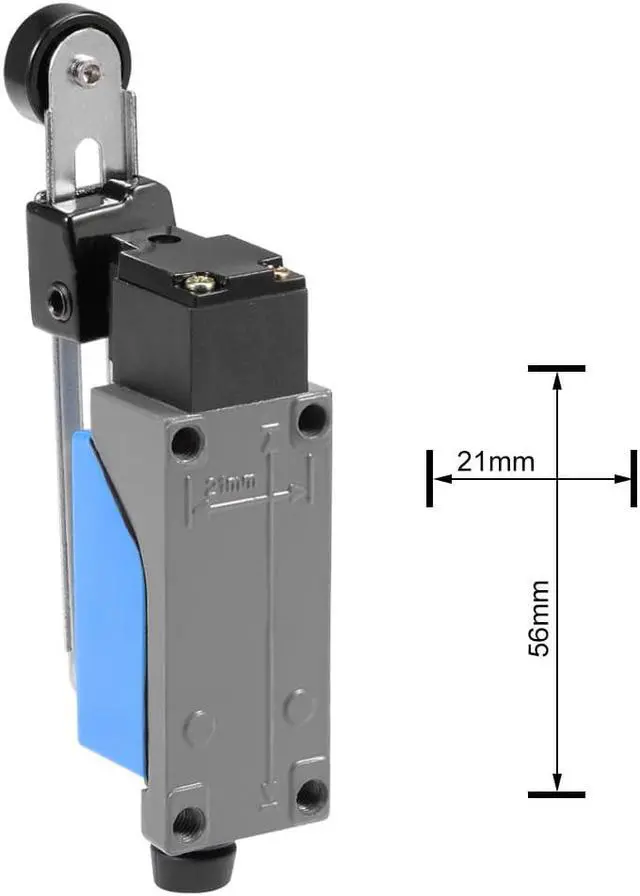

Mounting Hole Distance: 56 x 21mm / 2.2" x 0.83" (L*W)

The stroke in the operating direction is as large as 45° to 90°, the actual angle of which varies with the model.

These roller lever limit switches are applied to a wide range of applications including object positioning and detection.

The length of the lever is adjustable.

Operating Characteristics:

OF max.: 800g (7.84N)

RF min.: 60g (0.59N)

PT max.: 30°

OT min.: 60°

MD max.: 15°

TT: 90°

Description:

• Double circuit limit switch with build-in double reed mechanism.
• Zine alloy and intensive plastic shell, strong and hightly rigid construction.
• Smooth operation with highter OT.
• Brass contacts with 30% silver contained. Easy-to-wire design.
• This Limit Switch can be widely used in various mechanical to monitor the position of moving parts of machines and control circuit and auxiliary circuit for terminal limit protection.
