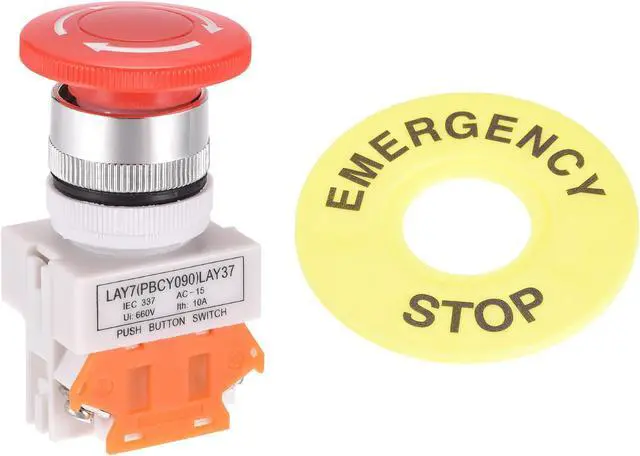

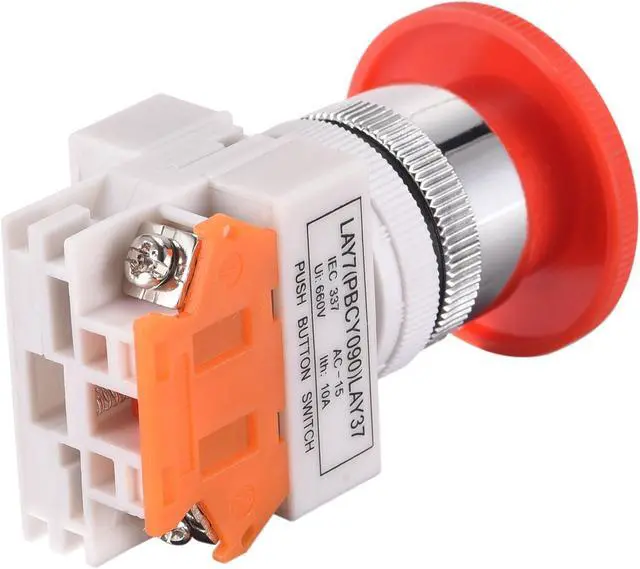

22mm Mounting Latching Emergency Stop Push Button Switch with 60mm Emergency Stop Sign 1NC

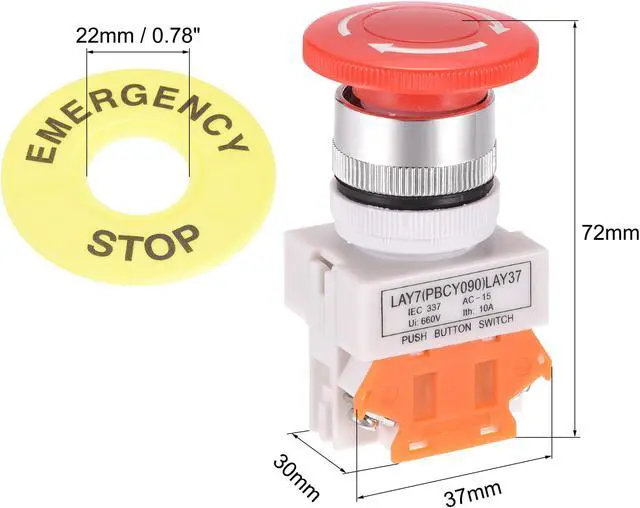

- Operation Type: Latching; Contact Type: 1 NC; Overall Size: 72*30*37(L*W*H)
- (Rated) Voltage : 250V; Ui: 660V; Ith: 10APush to stop and lock, twist to reset.
- Mounting Hole Dia: 22mm / 0.87";Terminals Quantity: 2; Main Color: red
- Button Sign: 3 Arrows; Package Content: 1 x Push button Switch & 60mm Emergency Stop Sign
- Widely used in lathe, CNC machine tool, laser cutting machine, elevator and other control circuit emergency stop, suitable for the design and replacement of control panel and electrical box
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Description:1NC contact type, red round head, Latching action, 22mm panel cutout diameter.Widely used in lathe, CNC machine tool, laser cutting machine, elevator and other control circuit emergency stop, suitable for the design and replacement of control panel and electrical box
Specification:
ModelLAY37-01ZSRated Voltage: AC250VAction Type: Latching (Self-Locking)Contacts Type: 1NCTerminals Quantity: 2Panel Mounting Diameter: 22mm / 0.78"Overall Size: 72*30*37(L*W*H)Ui: 660V; Ith: 10APackage Content:KEY_TAB
1 x Push button Switch & KEY_TAB 60mm Emergency Stop Sign
