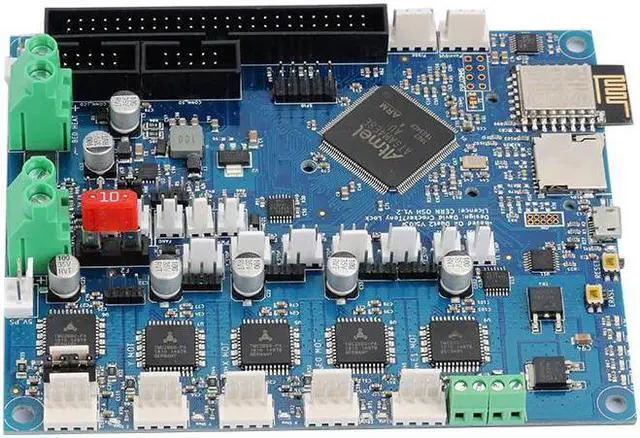

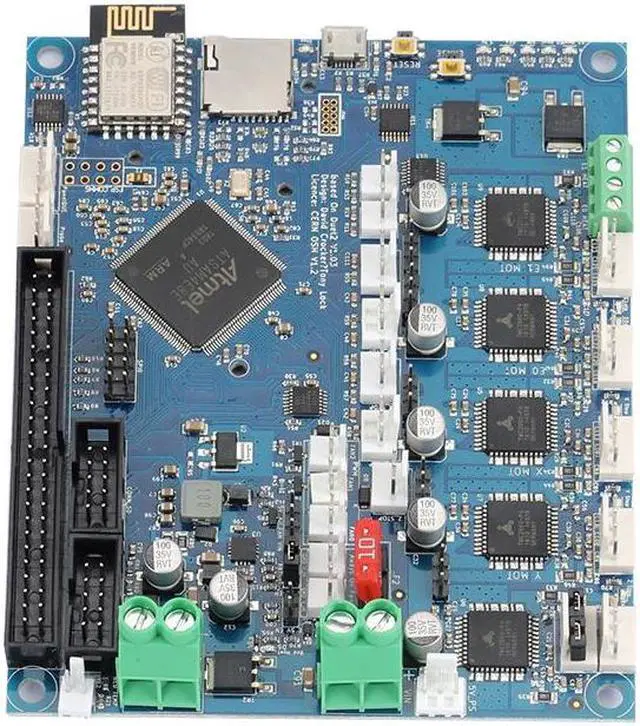

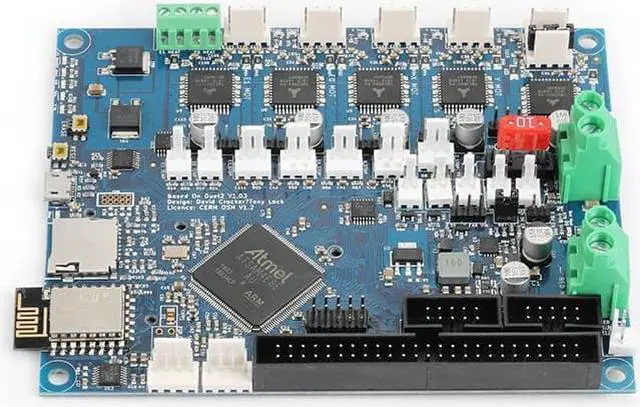

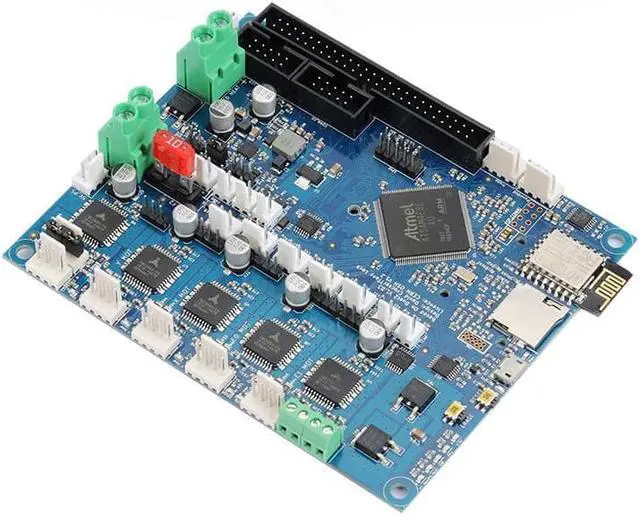

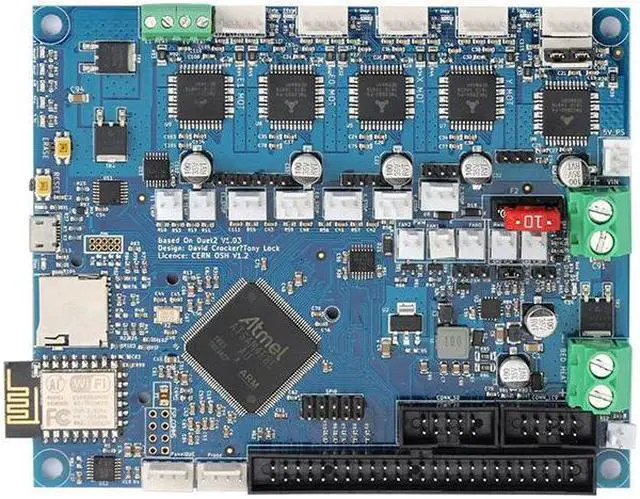

2 WiFi V1.03 Cloned DuetWifi Advanced 32Bit Mainboard for 3D Printer

Description:

The DuetWifi is an advanced 32 bit electronics for the control of 3D printers and other CNC machines. It has the same features as the Ethernet other than providing a WiFi connectivity rather than ethernet, full feature description is available on our wiki, in summary:

PCB revision v1.03



Compared to PCB revision v1.02 the following changes have been implemented



The Fan MOSFETS now have a miniblade fuse in the VIN supply (not 5V supply).



Each of the TMC2660s Stall Guard outputs is ORd together and fed to the MCU. This allows for quicker reaction to SG signals.



Minor routing changes

  Source files:



Features:



Powerful 32 Bit Processor



Dedicated Wifi module



Super quiet TMC2660 stepper drivers, up to 256 microstepping.



High speed card and support for a second external card if required.



Dual extruders on the main board, up to 5 more extruders on the expansion board.



High Power rating: Each stepper driver is capable of 2.8A motor current, currently limited in software to 2.4A. The bed heater channel is specifically designed for high current (18A).



Connect via PC, tablet or smartphone on the same network to the on board web interface.



Setup your printer and update the firmware through the web interface.



All common 3D printer geometries are supported



Expandable up to 7 extruders with Firmware support for mixing nozzles and remapping axes to use high power external drivers.



Support for the PanelDue: a full colour graphic touch screen



Provided with Molex compatible plugs and crimps as well as ferrules for power and heater terminals.
