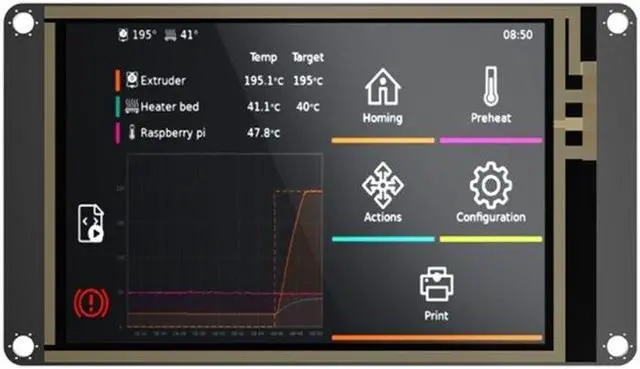

TFT35 V2.1 LCD Screen Display Controller For M4P+CB1/M8P Klipper Board(SPI)

Features:
LCD display adopts SPI, I2C communication-mode, and shares main control chip with the motherboards, which greatly reduces the cost of screen;
Each motor drive shall select power supply, motor power supply or main power supply (heating rod power supply) separately;
It is connected with main board through FPC cable, which is simple and convenient to operate;
Designed with XH 2.54 terminals, which can communicate with board through the terminals.

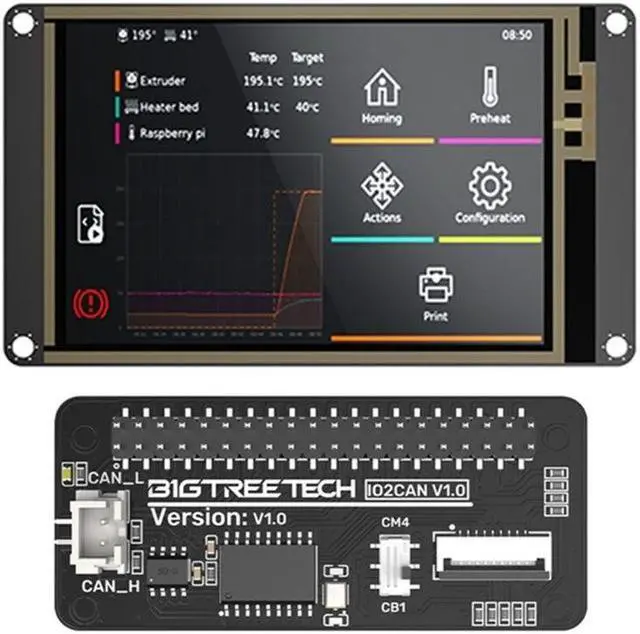

Currently, it only supports for CB1. If you use CB1 V 2.2, you only need to use with TFT35 SPI V 2.1; If you use CB1 V 2.1, you need to use with TFT35 SPI V 2.1 +IO2CAN.

Specifications

:
Material: Plastic+Metal
Type: SPI/Kit
Size: Approx. 98x56mm/ 3.86 x 2.2 inches
Input Voltage: DC5V
Screen Size: 3.5 inch
Resolution: 480x320
Driver IC-SPI Display: ILI9488
Driver IC-Touch: NS2009
Package Includes:
1x LCD Screen
Note:
1. Please allow 1-2cm errors due to manual measurement, make sure that you do not mind before you order.
2. Due to the difference between different monitors, the picture may not reflect the actual color of the item.
