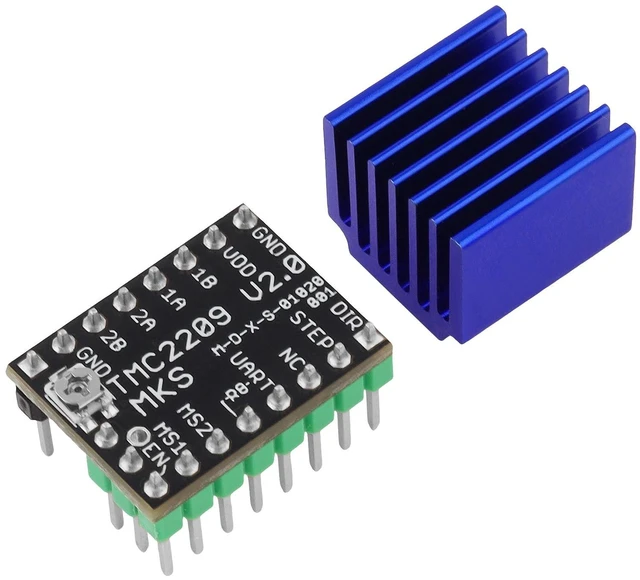

TMC2209 V2.0 Stepper Motor Driver,Support UART Mode | Fit for Ender 3 E3D V3 Control Board 3D Printer Parts Replace A4988
- TMC2209 is a perfect alternative to upgrade the stepper motor driver of 3D printer. It is compatible with existing 3D printer electronics and can easily replace the original TMC2208, A4988, and other stepper motor drivers. With its advanced functions such as silent operation, precise micro stepping, and sensorless homing, it can significantly improve the performance of your 3D printer.
- The driver default current is 1.25A, with a maximum current of 2.5A, continuous and stable printing current can reach 1.8A, logic voltage of 3.3V / 5V, and input voltage of 5.5V - 28V. The micro stepping capability can go up to 1/256, providing precise control over movement of the stepper motor.
- Adopting a noise free and high-precision chopping algorithm, the motor will not produce any sound during both motion and rest, making it very quiet during the printing process.
- The TMC2209 silent stepper driver is designed to have excellent heat dissipation and generate low heat. It has a large cooling area that helps to keep the temperature low even when working for extended periods of time. Compared to other stepper motor drivers, the TMC2209 can lower the heat generated by up to 30 percent.
- Perfect fit for MKS SGEN-L, supports UART mode, supports infinite bit return to zero, and is set through jumper caps.
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now

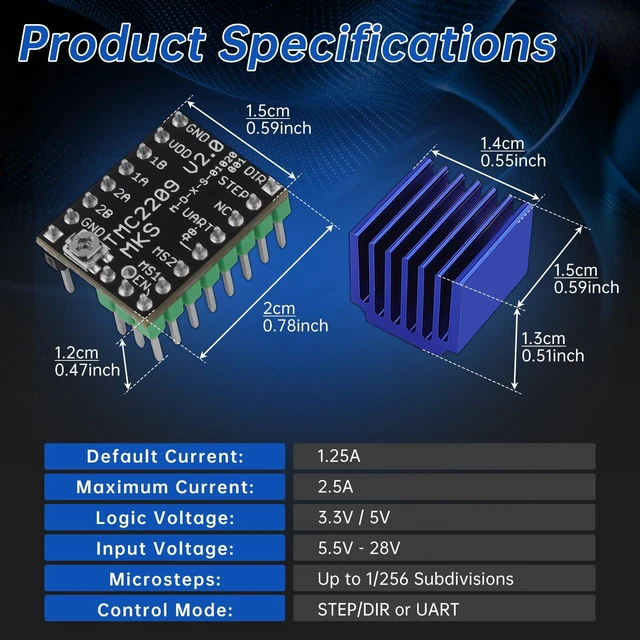

Parameter Information:
Default Current: 1.25A
Maximum Current: 2.5A
Logic Voltage: 3.3V / 5V
Input Voltage: 5.5V - 28V
Micro Steps: 256 Subdivisions
Drive Current: 2.8A

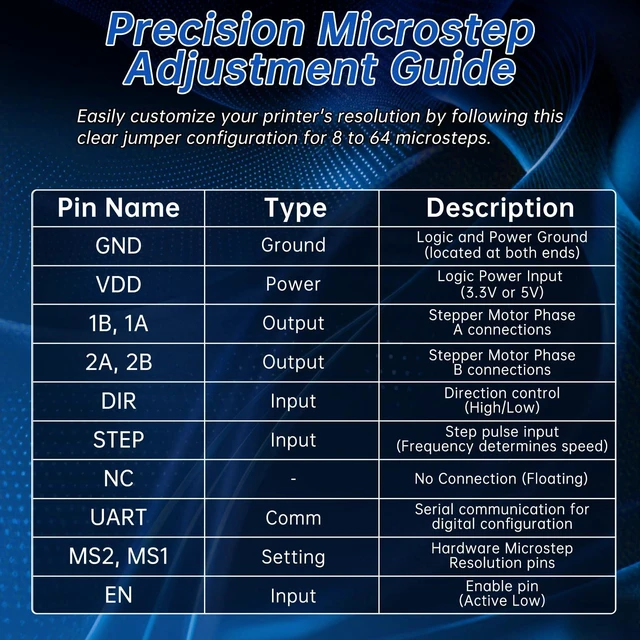

Configuration: STEP / DIR or UART
Place of Application:
- It can be used in conjunction with various MKS motherboards, support Creality Ender 3 / v2 / Pro.
- Support MKS DLK C32 MKS Monser 8 MKS Skipr, and MKS Gen-L laser engraving machine CNC cutting machine motherboard and other MKS control boards.
Note:
- Please pay special attention to the direction, do not insert the reverse.

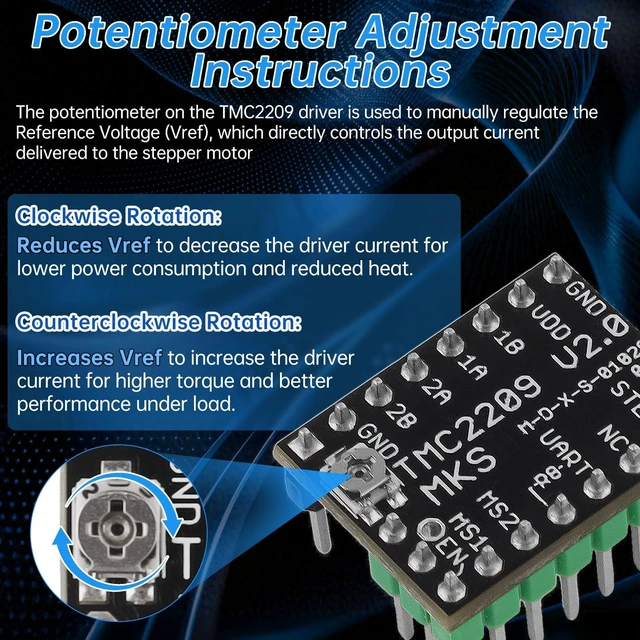

- Verification measures the voltage of GND and potentiometer.
- Please do not link the motor when measuring the voltage. Otherwise it is easy to burn the drive.
- Please connect the power supply when measuring voltage. Don't just connect to USB power.
Package Include:
1 x TMC2209 V2.0 Stepper Motor Driver with Heat Sink
Product information
| Item Weight | 4.54 g |
| Item Highlight | Fit for Ender 3 E3D V3 Control Board 3D Printer Parts Replace A4988 |
| Unit Count | 1 Count |
| Number of Packs | 1 |
| Number of Items | 1 |
| Part Number | DPA_50C |
