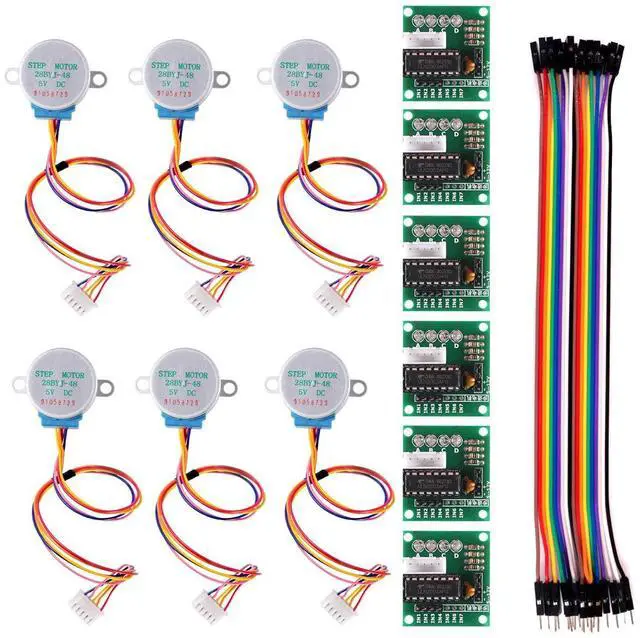

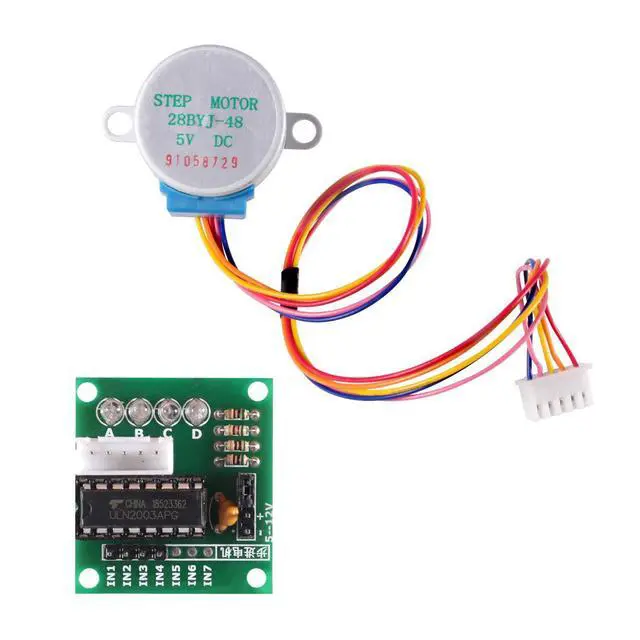

6 PCS 28BYJ-48 ULN2003 5V Stepper Motor + ULN2003 Driver Board
- The stepping motor is a kind of mechanical and electrical device that converts electrical pulses into angular displacement. Come with a standard interface, when used directly pluggable.; Drive Module Board Size(in): 1.37 * 1.18 * 0.6(in); Stepper Motor diameter: 1.06(in); Stepper Motor lines: 9.45(in).; A, B, C, D four-phase LED indicates the status of the stepper motor work.; 5 line 4 phase can be used for ordinary ULN2003 chip driver, Connect to the 2 phase, Support the development board, With convenient use, direct docking.; Great packing in a box : 6 PCS ULN2003 Stepper Motor + Driver Board (with a little gift).
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now

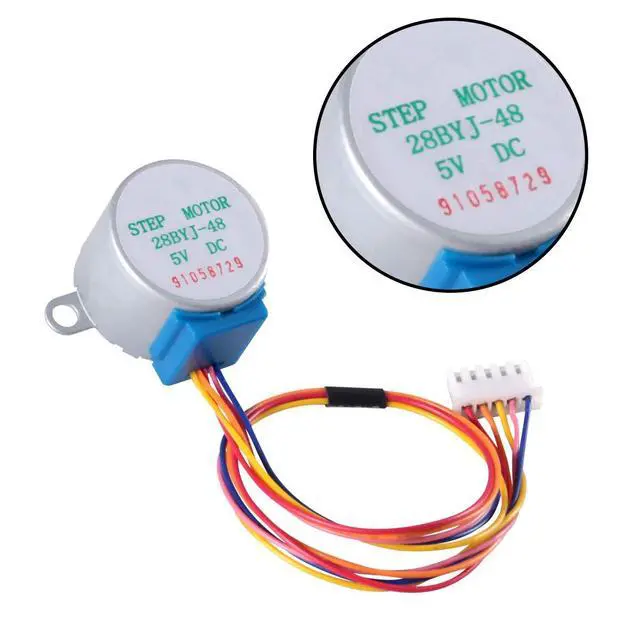

Product description 6 PCS 28BYJ-48 ULN2003 5V Stepper Motor + ULN2003 Driver Board Stepper Motor is a type of electromagnetic device which moves in discrete steps. This has several coils, the center shaft has a series of magnets mounted on it, and the coils surrounding the shaft are alternately given current or not, creating magnetic fields which repulse or attract the magnets on the shaft, causing the motor to rotate. This Unipolar Stepper Motor 28-BYJ48 is provided with five wires and four coils. The center connections of the coils are tied together and usually used as the power connection.
They are named unipolar steppers because power always comes in on this one pole.

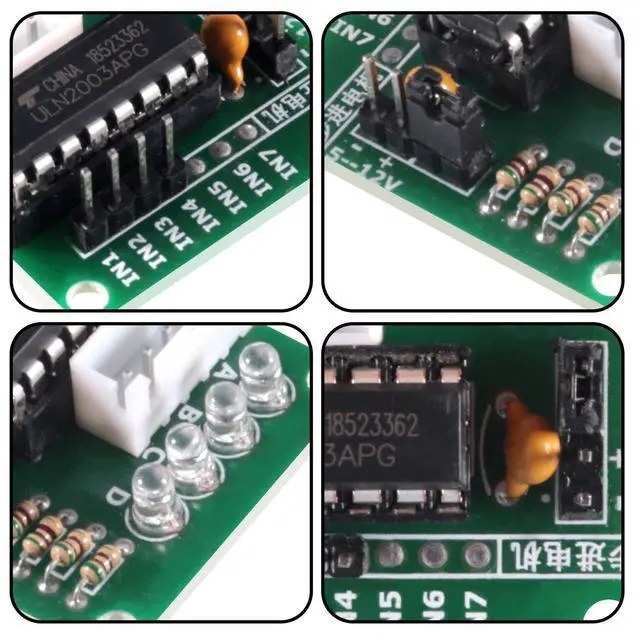

Features: A, B, C, D four-phase LED indicates the status of the stepper motor work. Stepper motor with a standard interface, when used directly pluggable. 5 line 4 phase can be used for ordinary ULN2003 chip driver, connect to the 2 phase, support the development boardWith convenient use, direct docking
Rated Voltage: DC5V 4-phase
Insulation Resistance: >10M (500V)
Dielectric Strength: 600V AC / 1mA / 1s
Step angle: 5.625 x 1/64
DC Resistance: 200±7% (25C)
Reduction ratio: 1/64
Insulation Grade: A No-load Pull in
Frequency: >600Hz No-load Pull out
Frequency: >1000Hz Pull in
Torque: > 34.3 mN. m (120Hz) Pull in
Torque: > 34.3 mN.
m (120Hz) Detent Torque: > 34.3 mN.
m Temperature Rise: 40K (120Hz)

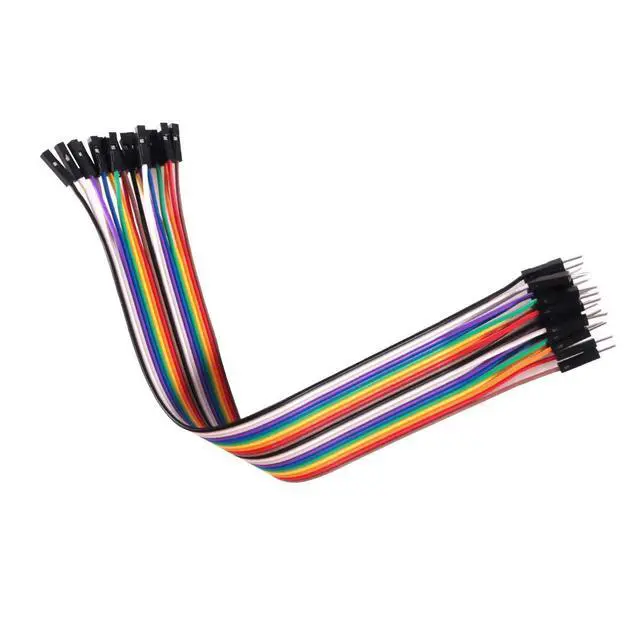

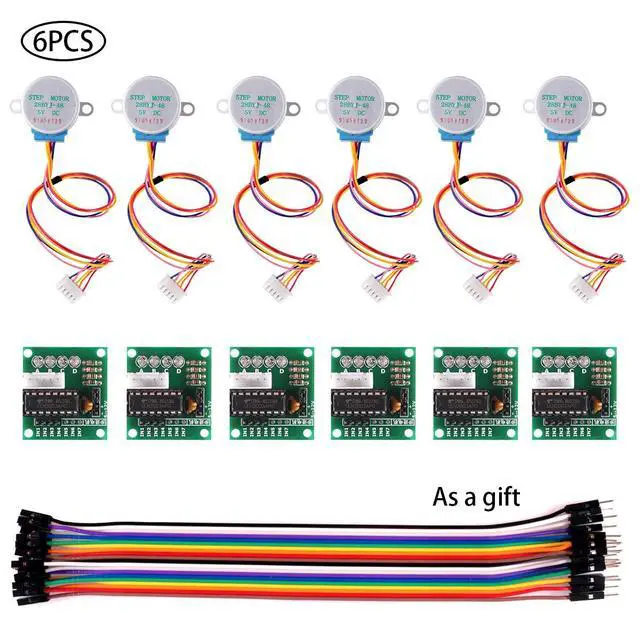

Package including: 6 PCS Uln2003 Stepper Motor + Driver Board Female to male cable See More
They are named unipolar steppers because power always comes in on this one pole.
Features: A, B, C, D four-phase LED indicates the status of the stepper motor work. Stepper motor with a standard interface, when used directly pluggable. 5 line 4 phase can be used for ordinary ULN2003 chip driver, connect to the 2 phase, support the development boardWith convenient use, direct docking
Rated Voltage: DC5V 4-phase
Insulation Resistance: >10M (500V)
Dielectric Strength: 600V AC / 1mA / 1s
Step angle: 5.625 x 1/64
DC Resistance: 200±7% (25C)
Reduction ratio: 1/64
Insulation Grade: A No-load Pull in
Frequency: >600Hz No-load Pull out
Frequency: >1000Hz Pull in
Torque: > 34.3 mN. m (120Hz) Pull in
Torque: > 34.3 mN.
m (120Hz) Detent Torque: > 34.3 mN.
m Temperature Rise: 40K (120Hz)
Package including: 6 PCS Uln2003 Stepper Motor + Driver Board Female to male cable See More
