6PCS L298N Motor Driver Board Module DC Stepper Motor Controller Dual H-Bridge for Smart Car Robot Power
- This module USES L298N as the main drive chip, with strong driving ability, low calorific value and strong anti-interference ability.; Easy to use, No assembly required, Just wire up motors and power. Double H bridge driver working mode make it more high efficient.; Voltage: 5V-35V, drive current: 2A (Max single bridge). This module USES a large capacity filter capacitance, a continuation protection diode, can improve reliability.; Note: Through this module can use the built-in 78 m05 drive power supply parts of their work, but in order to avoid the voltage regulator chip damage, when using the driving voltage is greater than 12V, please use the external power supply 5V logic.; Application: It is used for DIY projects, smart car robot Power and so on. Package Included:6* L298N Motor Driver controller Board Module
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Product description
Specification: Module
name: dual H bridge motor drive module
Work mode: H bridge drive (double road)
Main control chip: L298N
Logical voltage: 5V
Drive voltage: 5V-35V
Logical current: 0mA-36mA
Driving current: 2A (MAX single bridge)
Storage temperature: - 20 °C to + 135 °C
Maximum power: 25W

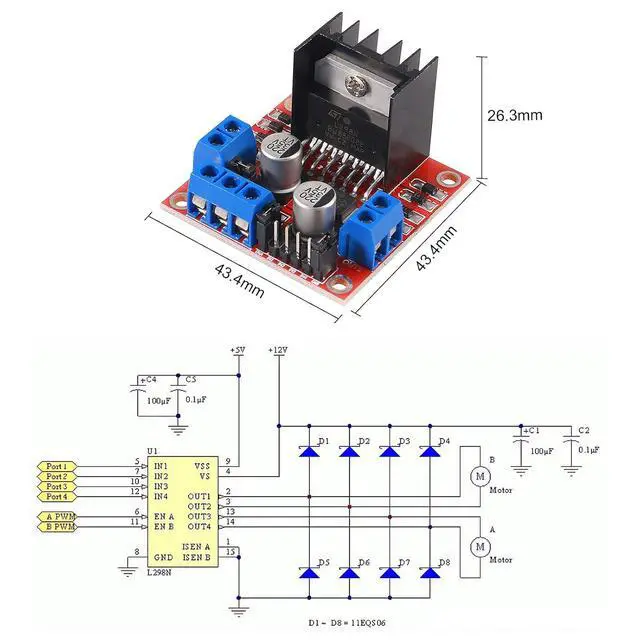

Peripheral dimensions: 43*43*27mm

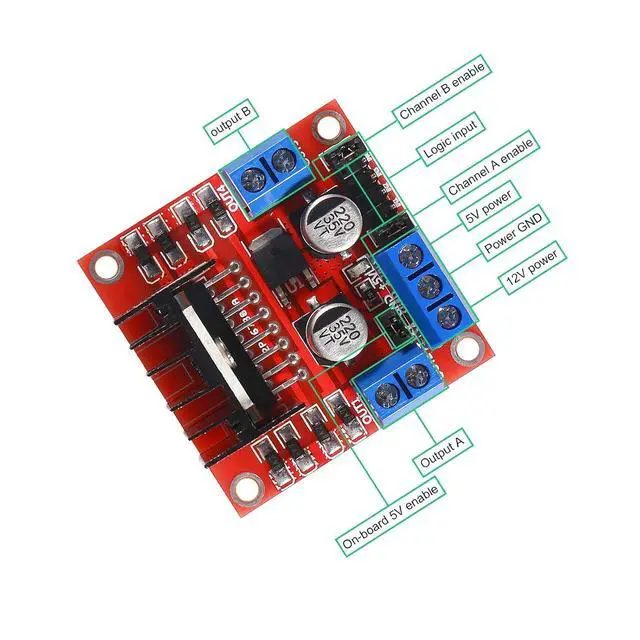

Notes: When you are driving voltage is 7V to 12V(above logo for the 12V input, which can actually accept input range is 7V -12V), you can enable the onboard 5V logic power supply, when using the on-board 5V power supply, The interface of + 5V power supply does not input voltage, but can draw 5V voltage for external use. When the driving voltage is higher than 12V, it is less than or equal to 24V. for example, to drive a motor with rated voltage of 18V, the jumper cap with 5V output enabled on-board voltage must be pulled out and then outside the 5V output port Connect 5V voltage to L298N internal logic voltage supply.

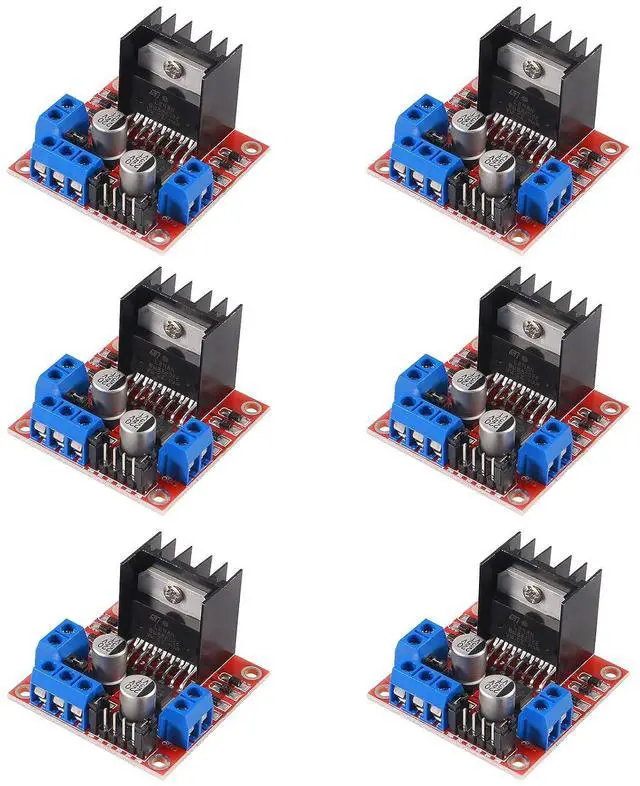

Package Included: 6* L298N Motor Driver controller Board Module See More
Specification: Module
name: dual H bridge motor drive module
Work mode: H bridge drive (double road)
Main control chip: L298N
Logical voltage: 5V
Drive voltage: 5V-35V
Logical current: 0mA-36mA
Driving current: 2A (MAX single bridge)
Storage temperature: - 20 °C to + 135 °C
Maximum power: 25W
Peripheral dimensions: 43*43*27mm
Notes: When you are driving voltage is 7V to 12V(above logo for the 12V input, which can actually accept input range is 7V -12V), you can enable the onboard 5V logic power supply, when using the on-board 5V power supply, The interface of + 5V power supply does not input voltage, but can draw 5V voltage for external use. When the driving voltage is higher than 12V, it is less than or equal to 24V. for example, to drive a motor with rated voltage of 18V, the jumper cap with 5V output enabled on-board voltage must be pulled out and then outside the 5V output port Connect 5V voltage to L298N internal logic voltage supply.
Package Included: 6* L298N Motor Driver controller Board Module See More
