DC12V 16inch Stroke Linear Actuator with Mounting Bracket 900N(225lbs) Maximum Lift 10mm/s for Recliner TV Table Lift Massage Bed Electric Sofa Linear Actuator

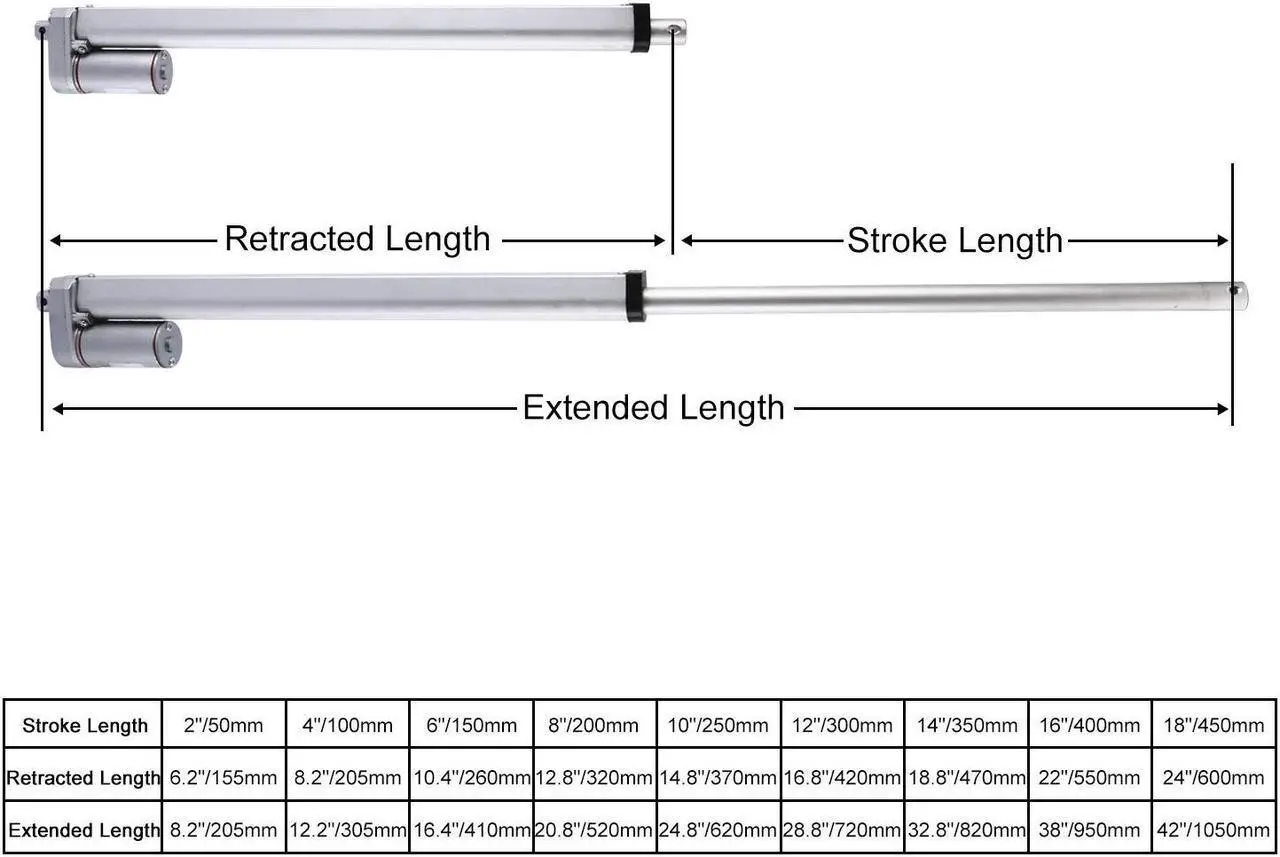

- Specification: Stroke length = 400mm(16"); Retracted length = 550mm(22"); Extended Length= 950mm(38); Travel speed = 0.39 inches/sec (10 mm/s);Maximum current draw = 3Amps; Maximum Load = 225lbs(900N). (After connecting the installation brackets at both ends, the actual length will increase by a few inches. If you have strict size requirements, please carefully consider the bracket size)

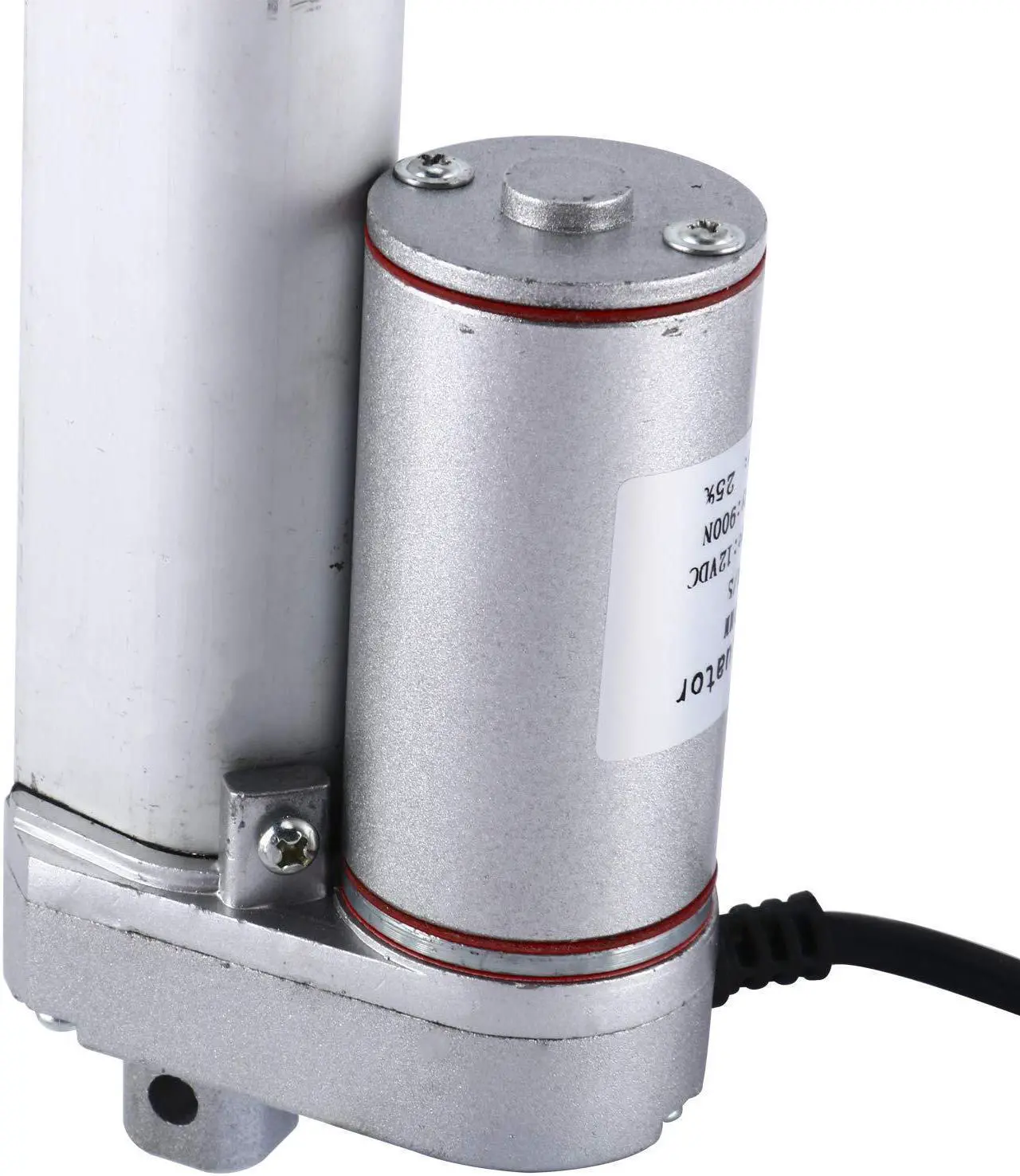

- Material: High quality aluminum alloy material, sturdy enough and with fashion look, High performance motor ,Built-in high quality limit switch
- Low noise: The low noise design, noise level below 50 dB
+
+
Overview
Specs
Reviews

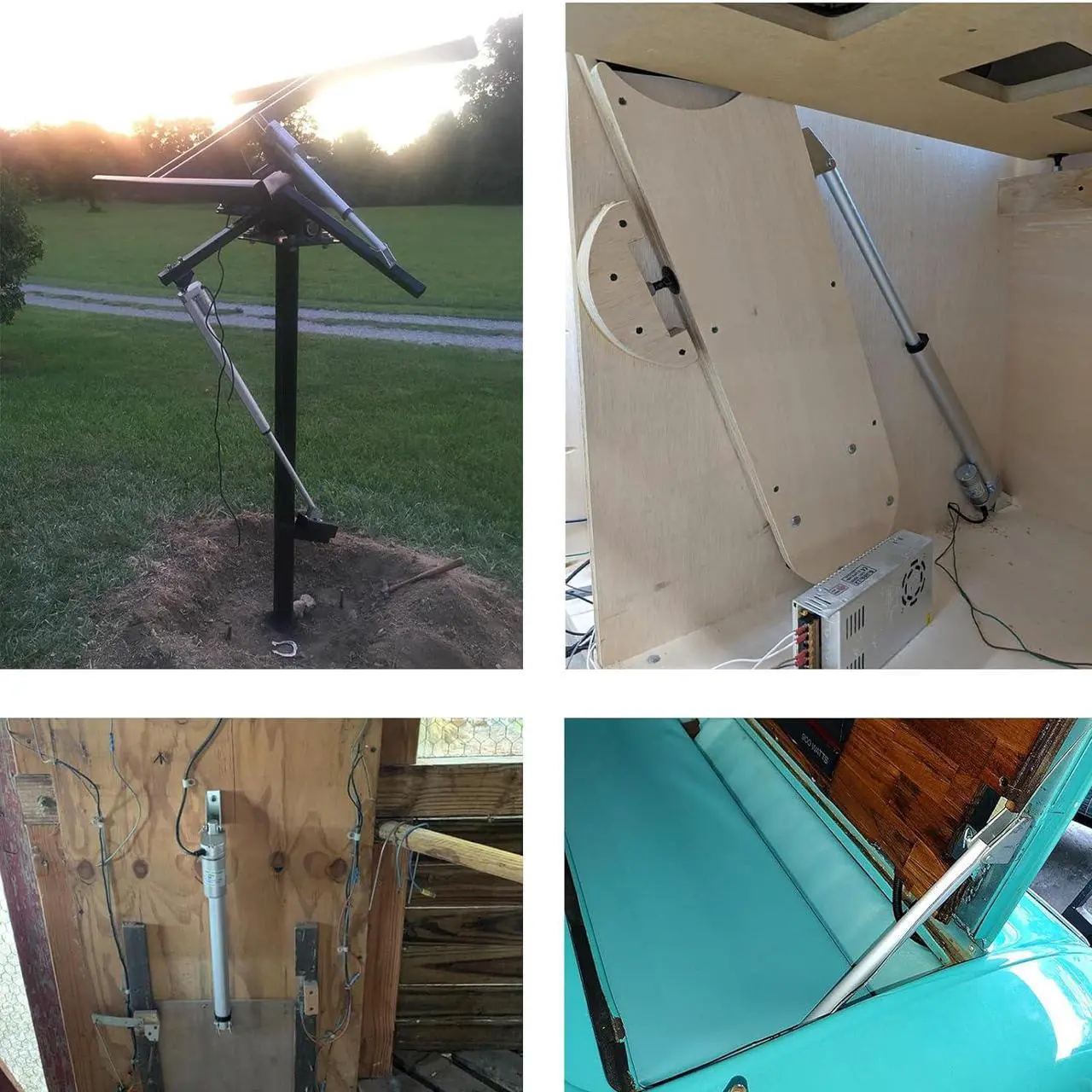

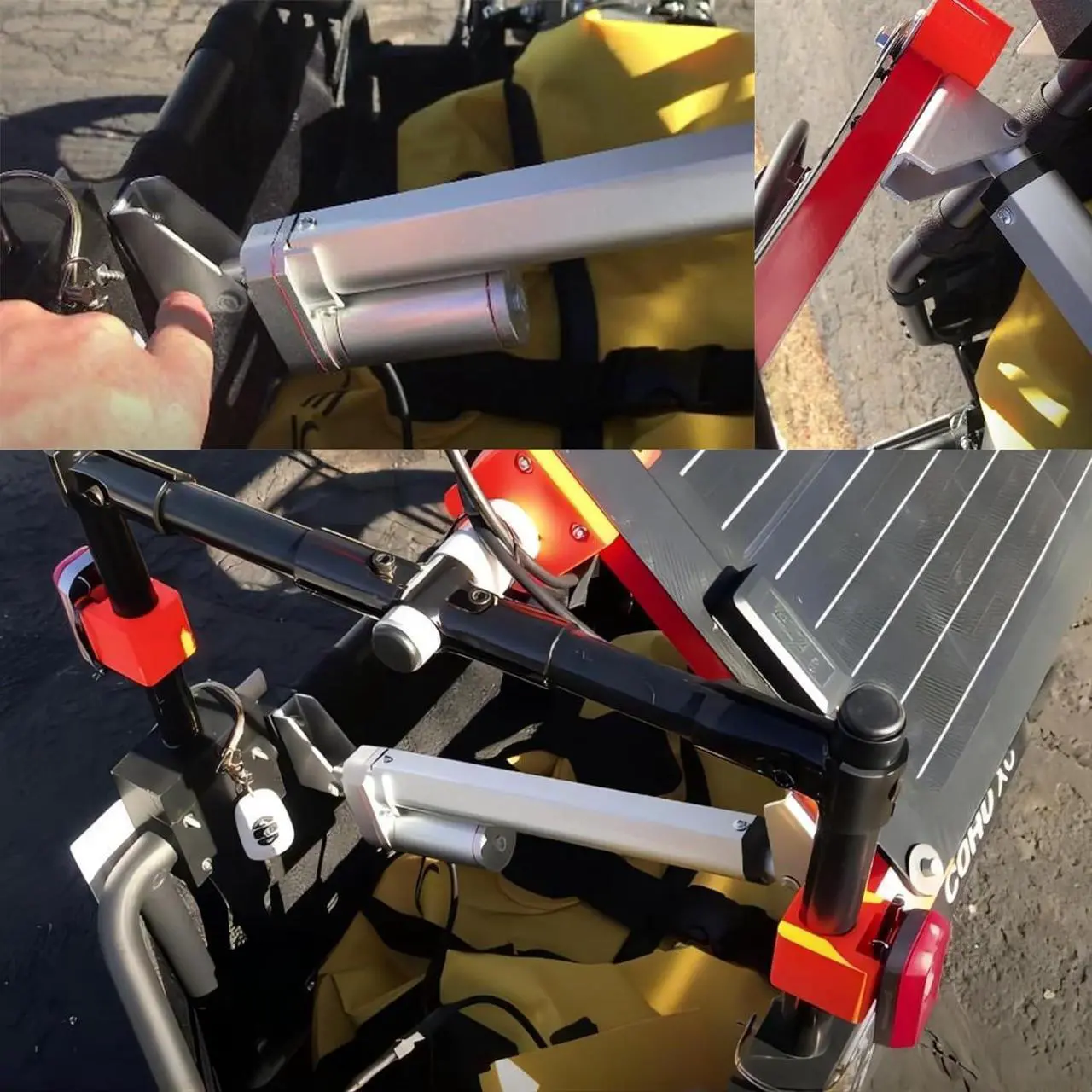

IP54 rated: (suitable for outdoor use). Commonly Used In Automotive, Medical Devices and Engineering Industry, massage sofa, recliner, TV lifter, lifting table, electric window opener etc.

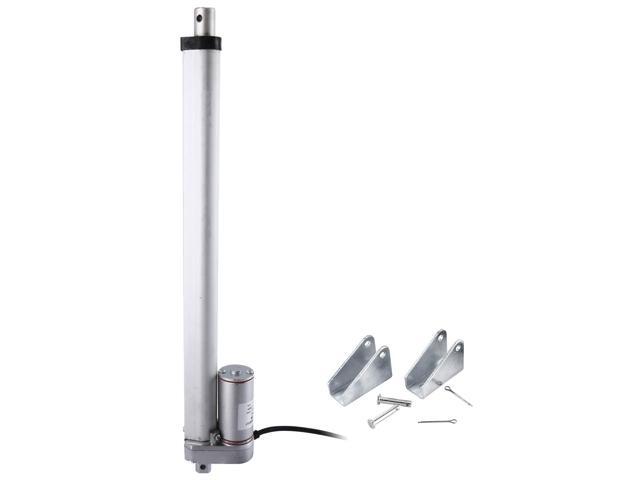

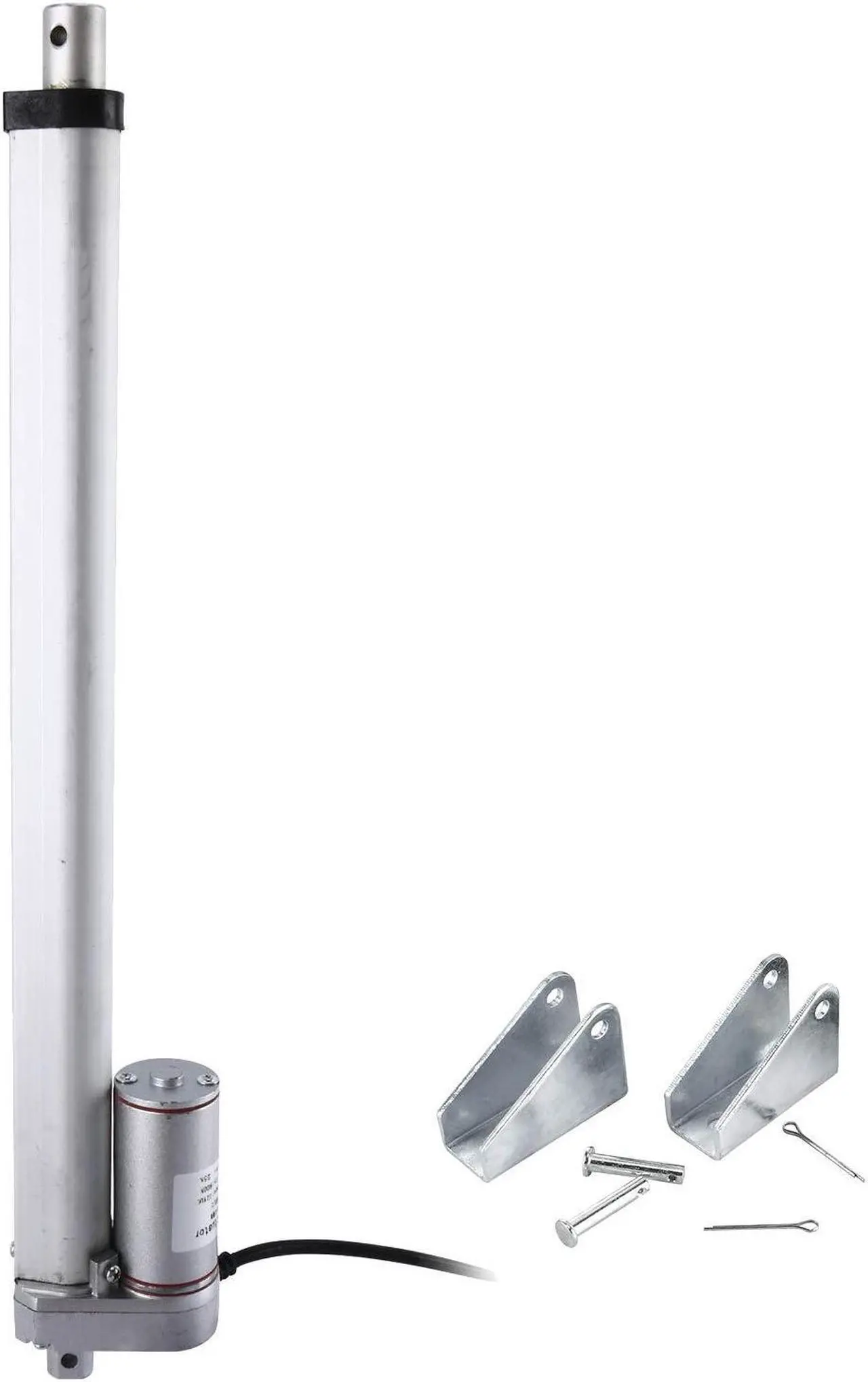

Package Included: 1pc 12V 16 Inch Linear Actuator with 2pcs mounting brackets.
Product Description
Crafted from high-quality aluminum alloy material, our linear actuator is not only sturdy but also exhibits a sleek and fashionable look. Its robust construction ensures reliability, while its modern design adds a touch of sophistication to your applications. Built with a high-performance motor and a high-quality limit switch, this actuator is engineered for longevity and consistent performance.
How To Install
1. Prepare to connect the two wires of the actuator to a 12 volt battery
2. Blue wire to the positive terminal and grey wire to negative terminal will make the actuator extend.
To make it retract, just reverse the terminal connections.
3. To simplify the last step, you can prepare a reverse polarity relay or switch (not included) for the actuator.
When you want the actuator to extend and retract, just press the switch
4. Your actuator will hold its position when the power is off. It will automatically stop when reaches the end.
5. The actuator has pre-installed inner limit switch, it cannot be adjustable.
6. It comes with mounting brackets.
How to protect your actuator:
1. Please use the 12V DC power adapter
2. Please do not exceed the rated load
3. All the actuators have duty cycle, they are unable to work all the time without stop.
The duty cycle of this actuator is 20%. it means that your actuator needs 4 minutes to rest for every 1 minute of work.
If the actuator keeps working for long time, the motor is easily burnt out.
4. Please be careful, the actuator not completely waterproof
Upgrade Your Mechanisms - High-Performance 12V Linear Actuator: Precision, Power, and Style Combined! Embrace the reliability and elegance of our linear actuator in your automotive, medical, and engineering projects. Experience smooth, silent, and efficient movements with this top-notch actuator. Unleash the power of precision today!
Package Included: 1pc 12V 16 Inch Linear Actuator with 2pcs mounting brackets.
Product Description
Crafted from high-quality aluminum alloy material, our linear actuator is not only sturdy but also exhibits a sleek and fashionable look. Its robust construction ensures reliability, while its modern design adds a touch of sophistication to your applications. Built with a high-performance motor and a high-quality limit switch, this actuator is engineered for longevity and consistent performance.
How To Install
1. Prepare to connect the two wires of the actuator to a 12 volt battery
2. Blue wire to the positive terminal and grey wire to negative terminal will make the actuator extend.
To make it retract, just reverse the terminal connections.
3. To simplify the last step, you can prepare a reverse polarity relay or switch (not included) for the actuator.
When you want the actuator to extend and retract, just press the switch
4. Your actuator will hold its position when the power is off. It will automatically stop when reaches the end.
5. The actuator has pre-installed inner limit switch, it cannot be adjustable.
6. It comes with mounting brackets.
How to protect your actuator:
1. Please use the 12V DC power adapter
2. Please do not exceed the rated load
3. All the actuators have duty cycle, they are unable to work all the time without stop.
The duty cycle of this actuator is 20%. it means that your actuator needs 4 minutes to rest for every 1 minute of work.
If the actuator keeps working for long time, the motor is easily burnt out.
4. Please be careful, the actuator not completely waterproof
Upgrade Your Mechanisms - High-Performance 12V Linear Actuator: Precision, Power, and Style Combined! Embrace the reliability and elegance of our linear actuator in your automotive, medical, and engineering projects. Experience smooth, silent, and efficient movements with this top-notch actuator. Unleash the power of precision today!
