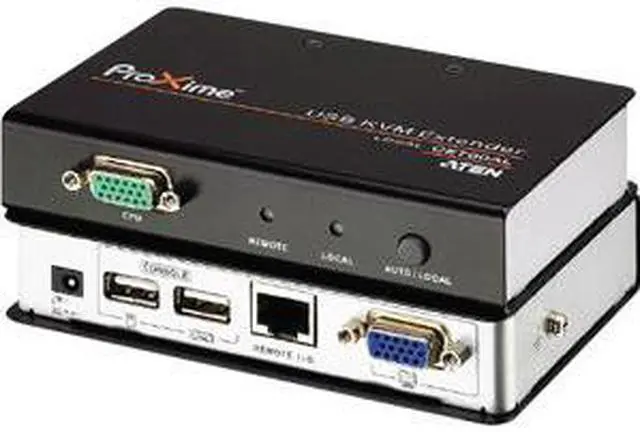

Proxime CE700A KVM Console/Extender

Product Name: Proxime CE700A KVM Console/Extender
Marketing Information: The Proxime CE700A KVM Console/Extender is a USB KVM Extender with superior video quality and built-in ESD and surge protection that allows access to a computer system up to 150 meters away from a remote USB console (USB keyboard, monitor, and USB mouse. The Proxime CE700A KVM Console/Extender improves on previous designs by incorporating 8KV/15KV ESD protection and 2KV surge protection and providing superior video quality up to 1920 x 1200 resolution.
Product Type: KVM Console/Extender
Connectivity Technology: Wired
KVM Technology: Analog
Number of Computers Supported: 1
Number of Local Users Supported: 1
Number of Remote Users Supported: 1
Maximum Operating Distance: 492.13 ft
Graphic Mode: WUXGA
Maximum Video Resolution: 1920 x 1200
Network (RJ-45): Yes
USB: Yes
VGA: Yes
Number of VGA Ports: 2
Number of Network (RJ-45) Ports: 2
Number of USB Ports: 4
Form Factor: Rack-mountable
Package Contents: Proxime CE700A KVM Console/Extender , 2 x Power Adapters , 1 x USB KVM Cable , 2 x Grounding Wires , 1 x Rack Mount Kit , 1 x User Manual , 1 x Quick Start Guide
Green Compliant: Yes
Green Compliance Certificate/Authority: WEEE, RoHS

Technical Information
Connectivity Technology:
Wired
KVM Technology:
Analog
Number of Computers Supported:
1
Number of Local Users Supported:
1
Number of Remote Users Supported:
1
Maximum Operating Distance:
492.13 ft
Video
Graphic Mode:
WUXGA
Maximum Video Resolution:
1920 x 1200
Interfaces/Ports
Network (RJ-45):
Yes
USB:
Yes
VGA:
Yes
Proprietary Interface:
Yes
Number of VGA Ports:
2
Number of Network (RJ-45) Ports:
2
Number of USB Ports:
4
Power Description
Input Voltage:
5.3 V DC
Physical Characteristics
Form Factor:
Rack-mountable
Transmitter Weight (Approximate):
11.29 oz
Receiver Weight (Approximate):
10.93 oz
Shipping Information
Shipping Dimensions :
4.0" Height x 7.0" Width x 11.2" Depth
Case Pack Qty :
5
Shipping Weight :
3.15 lb
Pallet Qty :
99995
Miscellaneous
Package Contents:
Proxime CE700A KVM Console/Extender
2 x Power Adapters
1 x USB KVM Cable
2 x Grounding Wires
1 x Rack Mount Kit
1 x User Manual
1 x Quick Start Guide
Green Compliant:
Yes
Green Compliance Certificate/Authority:
WEEE
RoHS
