This 12VHPWR GPU power cable is suitable for Full modular PSU only, not for semi-modular / non-modular power supplies.

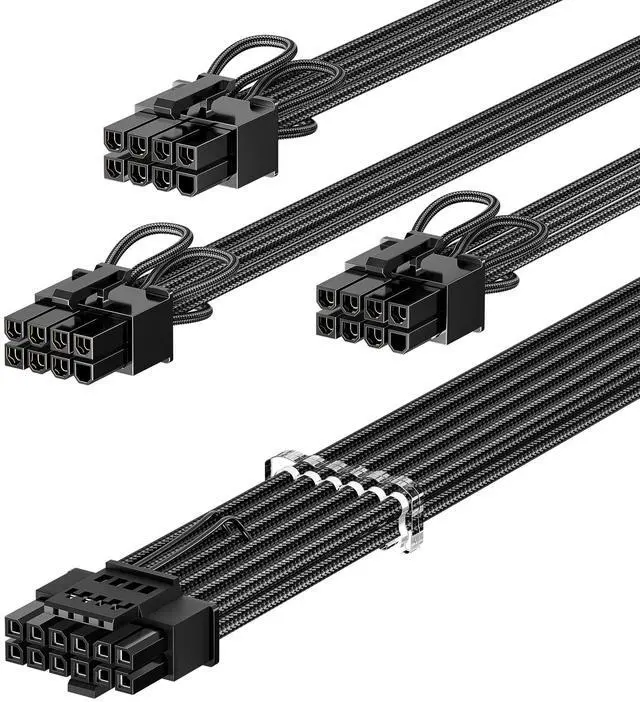

Fasgear PCIe 5.0 16pin GPU Cable

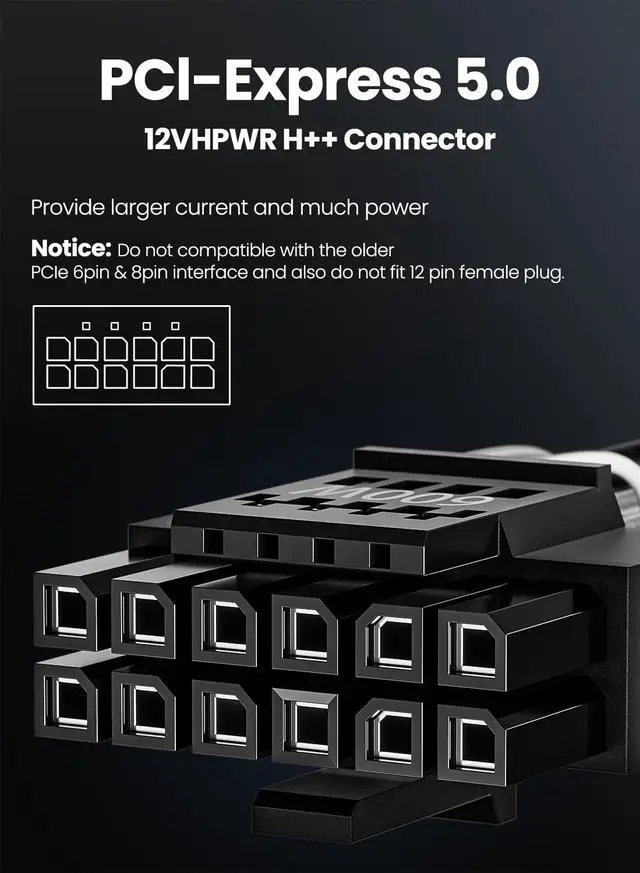

12v-2x6 16pin(12+4) male connector * 1
8pin(6+2) connector * 3
Cable length: 70cm
Cable combs * 4
Max Wattage: 600 watts
Wire Gauge: 16 AWG
Wire Material: Tinned Copper
Wire Jacket: Nylon Braided

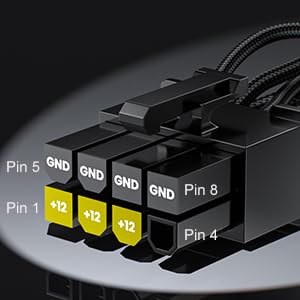

Pinout for the 8pin(6+2) PCle Power Connector as Follow:
Pin 1 to Pin 3: +12V
Pin 4 to Pin 8: GND

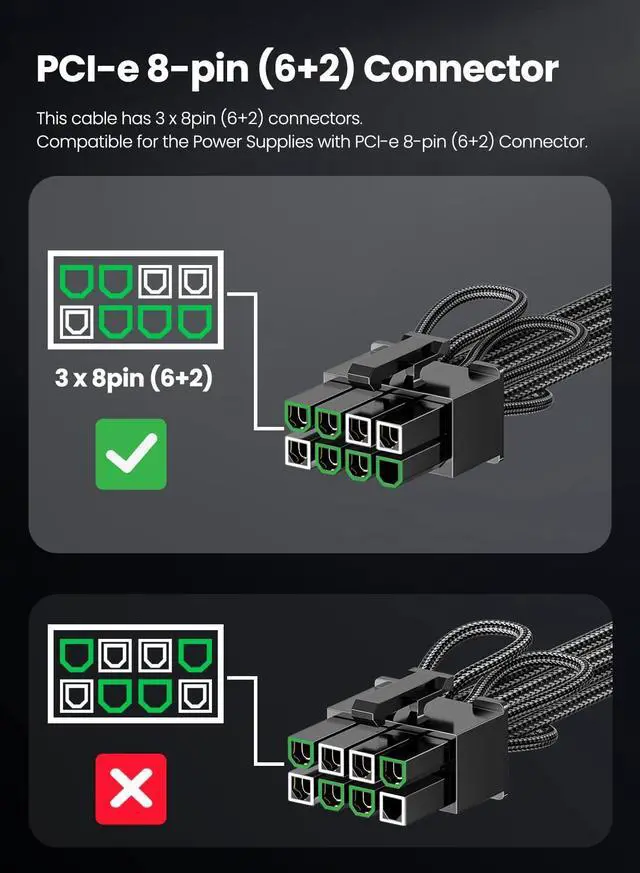

* Check the pinout diagram of this pcie power cable. Please confirm that your power supply connector matches this pinout diagram before purchasing.

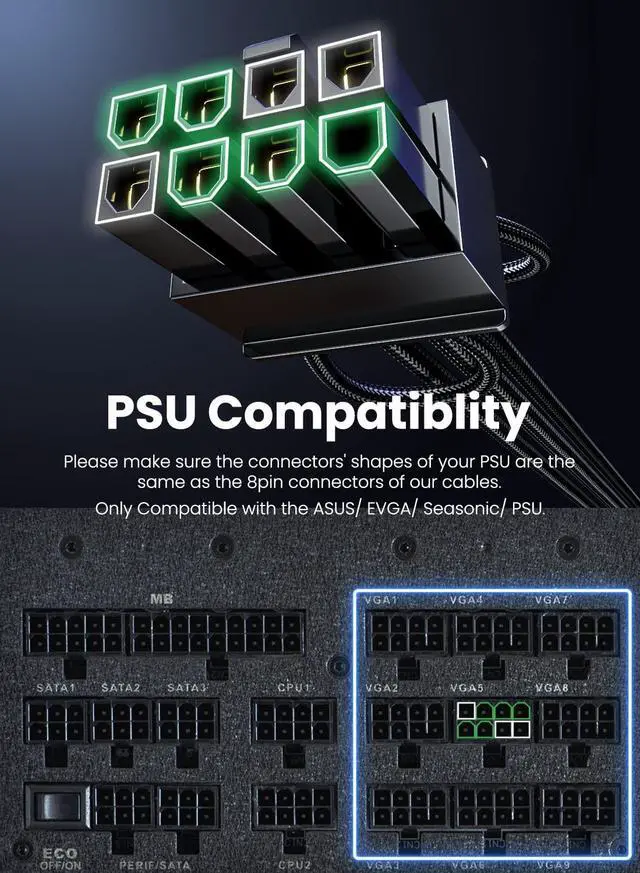

* For Full Modular PSU: ASUS/EVGA/Seasonic
* For 16pin (12+4) GPU: RTX 5080, 5070, 5070ti, 4090, 4080, 4070Ti, 3090Ti, 4070 Super
* For RTX 5090, recommend select the size option: For ATX 3.0 PSU (16pin 12VHPWR port)
1. Fasgear PCI-e Gen 5.0 12VHPWR to 3*8pin (6+2) Power Cable is mainly designed for RTX 5080 5070 5070ti 4090 4080 3090ti.

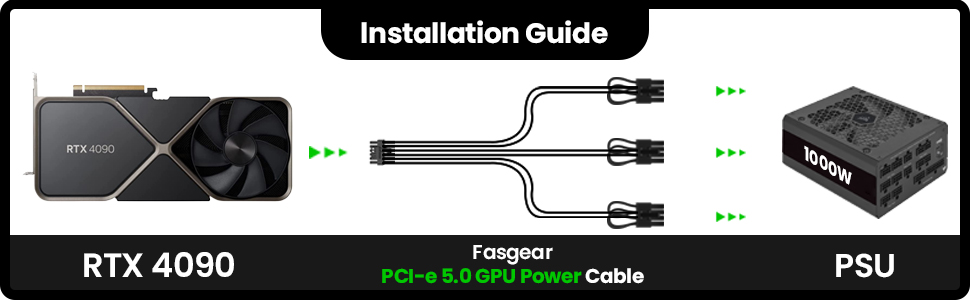

2. This GPU power cable CAN plug in the PSU port directly, and need 3 unoccupied 8-pin(6+2) PCI-e ports on your PSU. Please see our pictures for the correct connecting way.
3. Our cable is compatible with the models listed below. Please text us via Message if you have questions about the PSU compatibility before purchasing. Likewise, also mail us at any time after purchase.
Fasgear 16pin GPU (12+4) to 3x8pin (6+2) PCIe Cable Compatibility List (Partial)

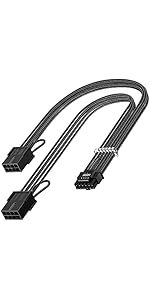

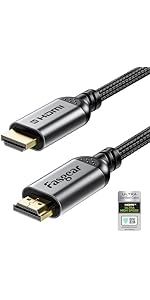

 Fasgear 12VHPWR 16Pin to 3X8pin (6+2) GPU Power Cable |  Fasgear 12VHPWR 16 Pin to 2x8 Pin Extension Cable |  Fasgear 12VHPWR 16 Pin to 3x8 Pin Extension Cable |  Fasgear 12VHPWR 16Pin to 3X8pin (4+4) GPU Power Cable |  Certified Ultra High Speed HDMI 2.1 Cable |  Fasgear 12v-2x6 Adapter 90 Degree 1 Pack Right Angle | |
|---|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — | — |
| Price | — | — | — | — | — | — |
| Compatible GPU | GeForce RTX 5080, 5070, 5070Ti, GeForce RTX 4090, 4080, 4070 ti, 3090 ti, 4070 (Only for 16Pin) | GeForce RTX 5070, 5070 Ti, 4090, 4080, 4070 ti, 3090 ti, 4070 (Only for 16Pin) | GeForce RTX 5080, 5070, 5070Ti, GeForce RTX 4090, 4080, 4070 ti, 3090 ti, 4070 (Only for 16Pin) | GeForce RTX 5080, 5070, 5070Ti, GeForce RTX 4090, 4080, 4070 ti, 3090 ti, 4070 (Only for 16Pin) | RTX 40/30 Series | GeForce RTX 5090, 5080, 5070, 5070Ti, GeForce RTX 4090, 4080, 4070 ti, 3090 ti, 4070 (Only for 16Pin) |
| Compatible PSU | Full Modular for ASUS/EVGA/Seasonic PSU | / | / | Full Modular for Corsair/Great Wall/Thermaltake PSU | / | 12v-2x6/12vhpwr |
| Cable Type | 16Pin(12+4) Male to 3x8Pin (6+2) Male | 16 Pin (12+4) Male to PCIE 2x8 Pin Female | 16 Pin (12+4) Male to PCIE 3x8 Pin Female | 16 Pin (12+4) Male to 3x8Pin (4+4) Male | HDMI 2.1 to HDMI 2.1 Cable | 16pin (12+4) 12VHPWR Connector |
| Cable Length | 70cm | 30cm | 30cm | 70cm | 6ft / 10ft | 1 Pack |
| Color | Black | Black / White | Black | Black | Black /Grey | Black |
| Specific Usage | PSU Power Supply Cable | Adapter Cable for GPU | Adapter Cable for GPU | PSU Power Supply Cable | 8K@60Hz / 4K@120Hz High-Definition Video and Audio Transmission | Expand Chassis Space |
This 12VHPWR GPU power cable is suitable for Full modular PSU only, not for semi-modular / non-modular power supplies.
Fasgear PCIe 5.0 16pin GPU Cable
12v-2x6 16pin(12+4) male connector * 1
8pin(6+2) connector * 3
Cable length: 70cm
Cable combs * 4
Max Wattage: 600 watts
Wire Gauge: 16 AWG
Wire Material: Tinned Copper
Wire Jacket: Nylon Braided
Pinout for the 8pin(6+2) PCle Power Connector as Follow:
Pin 1 to Pin 3: +12V
Pin 4 to Pin 8: GND
* Check the pinout diagram of this pcie power cable. Please confirm that your power supply connector matches this pinout diagram before purchasing.
* For Full Modular PSU: ASUS/EVGA/Seasonic
* For 16pin (12+4) GPU: RTX 5080, 5070, 5070ti, 4090, 4080, 4070Ti, 3090Ti, 4070 Super
* For RTX 5090, recommend select the size option: For ATX 3.0 PSU (16pin 12VHPWR port)
1. Fasgear PCI-e Gen 5.0 12VHPWR to 3*8pin (6+2) Power Cable is mainly designed for RTX 5080 5070 5070ti 4090 4080 3090ti.
2. This GPU power cable CAN plug in the PSU port directly, and need 3 unoccupied 8-pin(6+2) PCI-e ports on your PSU. Please see our pictures for the correct connecting way.
3. Our cable is compatible with the models listed below. Please text us via Message if you have questions about the PSU compatibility before purchasing. Likewise, also mail us at any time after purchase.
Fasgear 16pin GPU (12+4) to 3x8pin (6+2) PCIe Cable Compatibility List (Partial)
| EVGA SuperNOVA T2 | 1600, 1000, 850 |
| EVGA SuperNOVA | G2/G+ 1600, 1300, 1000; G3 1000 |
| EVGA SuperNOVA | P2 1600, 1200, 1000, 850; P3 1200, 1000; P+ 1600, 1300 |
| EVGA SuperNOVA | 1300 GT, 1000 G7, 1000 G5, 1000 G6, 1000 P6, 1000 P5, 850 P6, 850 P5 |
| EVGA | 1300 M1, 1000 GQ |
| ASUS TUF GAMING | 1200, 1000 |
| ASUS ROG STRIX | AURA 1000, 1000G, AURA 850, 850(WHITE EDITION), 850G |
| ASUS ROG LOKI | 1000 SFX-L, 850 SFX-L |
| ASUS ROG THOR | 1600, 1200P2, 1200P 1000P2 |
| Seasonic PRIME TX | 1600, 1300, 1000, 850 |
| Seasonic FOCUS GM | 1000 |
| Seasonic PRIME | GX 1300, GX 1000, PX 1600, PX 1300, PX 1000 |
| Super Flower LEADEX GOLD | 1600W; III 850W |
| Super Flower LEADEX PLATINUM | 1600W, 2000W; SE 850W, 1000W, 1000W V2, 1200W, 1200W V2 |
| Super Flower TITANIUM | 850W, 1000W, 1200W, 1600W |
| Super Flower SILVER | 850W |
