MR9270S+ HART Signal Generator Calibration Current Thermocouple 4-20mA

Specifications

1.Instrument Brief Introduction

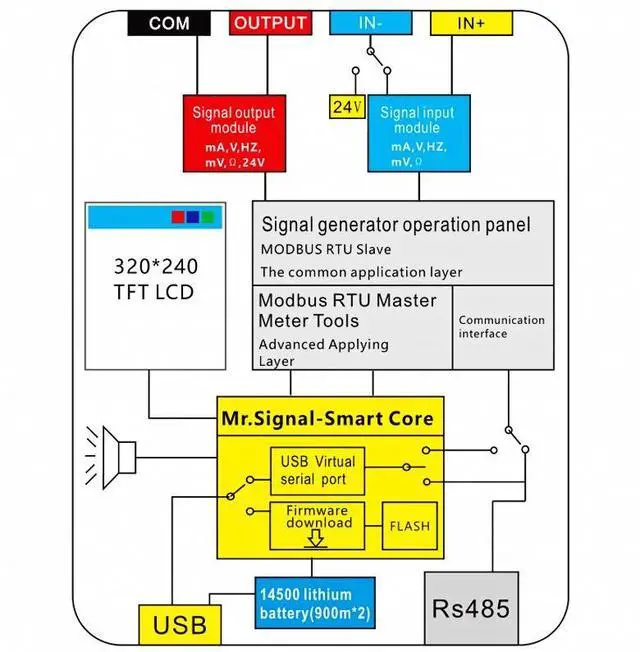

1.1Smart has powerful performance for it has a high-speed ARM

CPU and is easy to get start for it has friendly UI. The following

is the structure chart of Smart.

1.2 Introduction of Software functions

Programmed Output:

You can make Mr. Signal Smart to do auto increased/decreased

output. There has two modes.

Mode One:

Set a period and start/end value of output. The output will be

automatically linear increased from start value to end value and

linear decreased from end value to start value in a period. The

auto increased/decrease output will be repeated as many times

as you want.

Mode Two:

Advanced setting, the changing of output is determined by more

parameters.

Type One:

After setting the starting point, ending and cycles the equipment

can start working.

Preset Values:

You may need only several fixed value of output in your daily

work. The product allow you to customize 9 presetting value for

you to quick output.

Converting Signal: Input can be converted into another kind of

output. For example, Input Hz signal, then convert them into

current output.

Real-time Curve:

The input/output changing can be displayed as curves. You can

set the capture period and zoom in the curves according to the

max and min.

Display as Range/Actual Value:

Input and output value can be displayed as actual value or range

according to your wish. Actual value corresponds to range

linearly. For example, 4-20mA corresponds to 0-100, then 4mA

corresponds to 0, 12mA corresponds to 50, 20mA corresponds

to 100. You can vary correspondence between actual value and

range.
