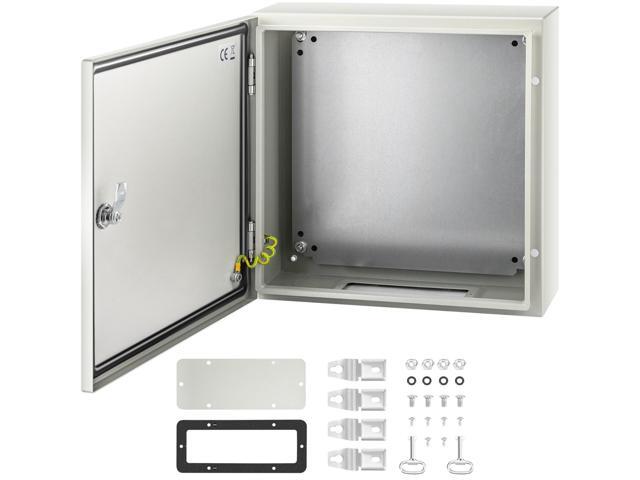

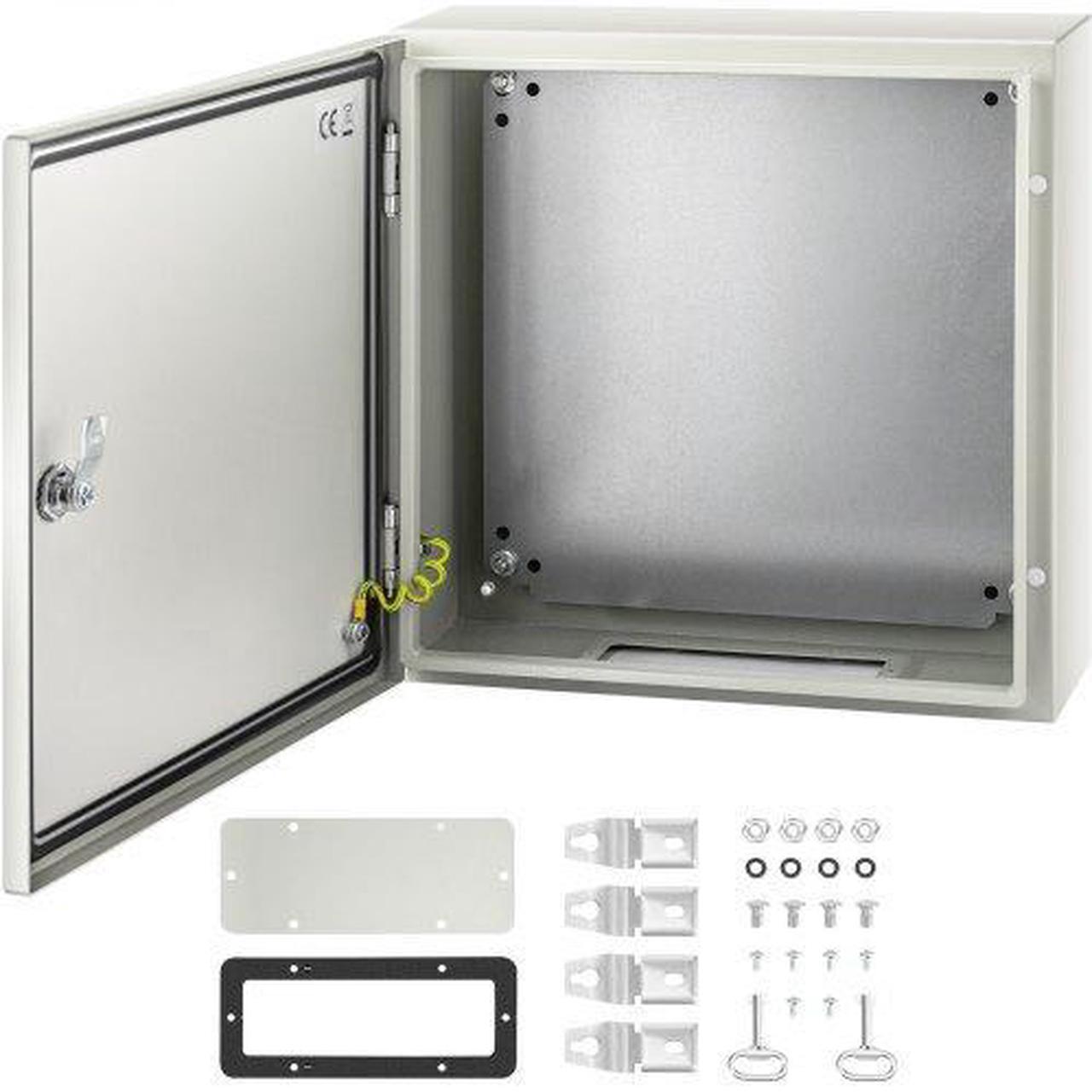

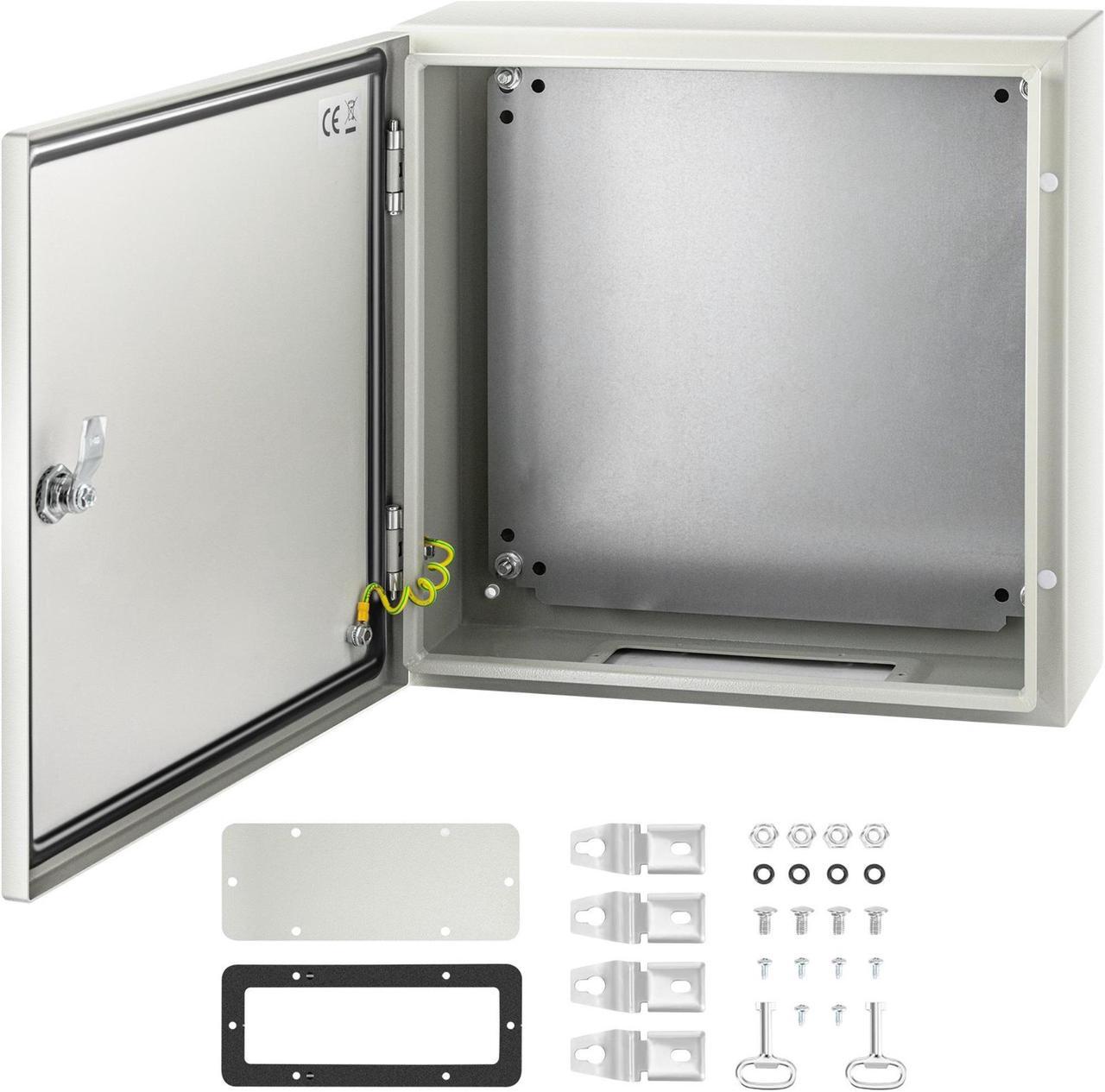

VEVOR 16x16x6'' Carbon Steel Electrical Enclosure Wall Mount Junction Box Ip65
- Vevor 16x16x6'' Carbon Steel Electrical Enclosure Wall Mount Junction Box Ip65
- Model: SPT
- Color: Gray (RAL7032)
- Material: 0.059'' / 1.5 mm Carbon Steel
- Coating: Epoxy Polyester Powder Coating
- Mounting Plate: 0.079'' / 2 mm Detachable Galvanized Backplate
- IP Rating: Designed to meet IP66 and NEMA 1, 2, 4, 4X, & 12 specifications
- Connection Type: Hinged
- Feature: Lockable, Waterproof
- Galvanized Backplate Dimensions: 13.8" x 13.8" / 35 x 35 cm
- Outer Dimensions (W x H x D): 16'' x 16'' x 6'' / 40 x 40 x 15 cm
- Inner Dimensions (W x H x D): 15.6'' x 15.6'' x 4.6'' / 39.7 x 39.7 x 11.65 cm
- Product Weight: 22.27 lbs / 10.1 kg
- Certification: CE / ROHS Certification
- Package Content:
- 1 x Electrical Box
- 2 x Keys
- 1 x Mounting Plate(The mounting plate has been assembled in the box)
- 1 x Set of Wall Mounting Pendants
- 1 x Bottom Sealing Plate
+
+
Overview
Specs
Reviews
Vevor 16x16x6'' Carbon Steel Electrical Enclosure Wall Mount Junction Box Ip65
Premium Steel Material
IP66 Protection Level
Hinge and Lock Security
Effortless to Install & Use
Thoughtful Design
Extensive Application
Color: Gray (RAL7032),Material: 0.059'' / 1.5 mm Carbon Steel,Outer Dimensions (W x H x D): 16'' x 16'' x 6'' / 40 x 40 x 15 cm,Feature: Lockable, Waterproof,Certification: CE / ROHS Certification,Inner Dimensions (W x H x D): 15.6'' x 15.6'' x 4.6'' / 39.7 x 39.7 x 11.65 cm,Mounting Plate: 0.079'' / 2 mm Detachable Galvanized Backplate,IP Rating: Designed to meet IP66 and NEMA 1, 2, 4, 4X, & 12 specifications,Galvanized Backplate Dimensions: 13.8" x 13.8" / 35 x 35 cm,Connection Type: Hinged,Model: SPT,Product Weight: 22.27 lbs / 10.1 kg,Coating: Epoxy Polyester Powder Coating
