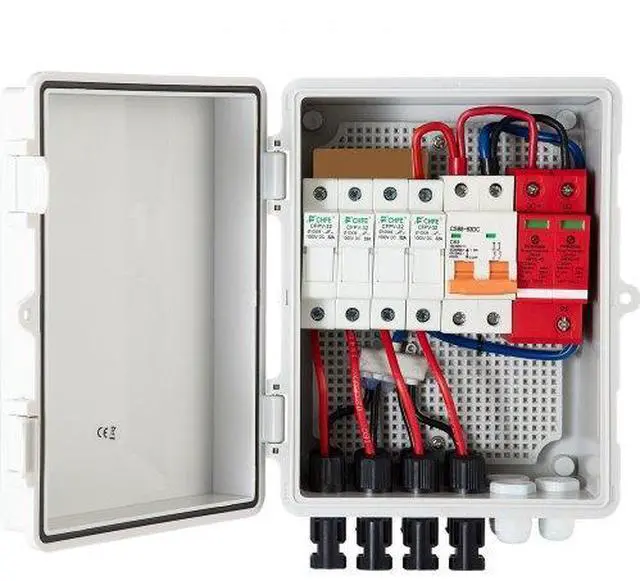

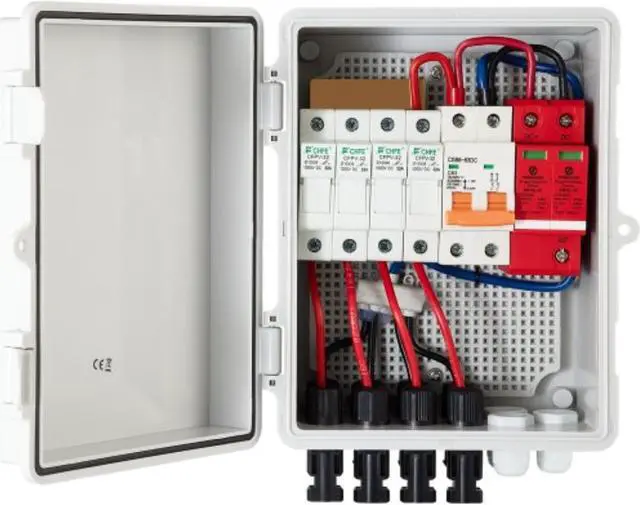

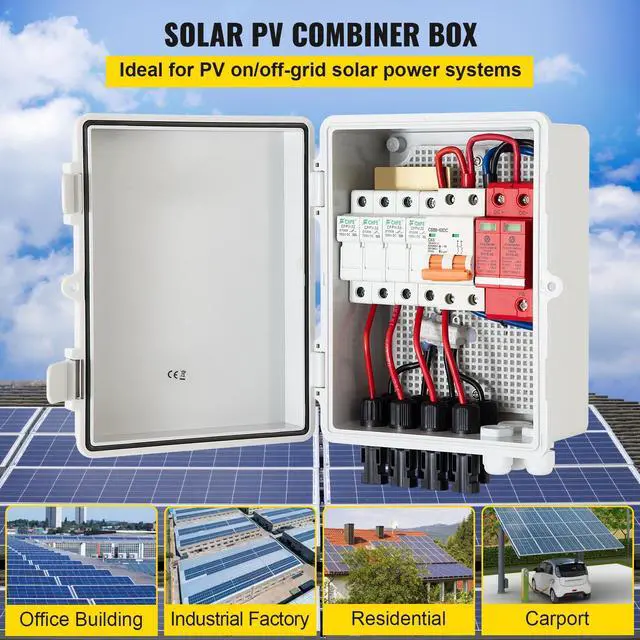

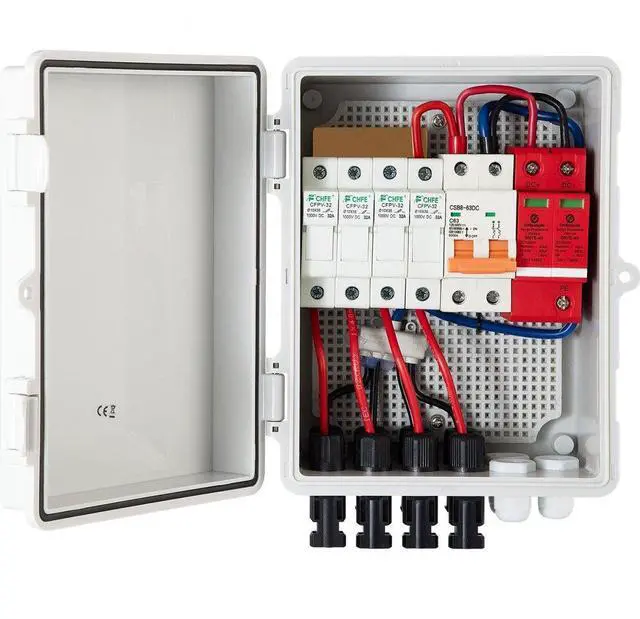

PV Combiner Box, 4 String, Solar Combiner Box with 15A Rated Current Fuse 63A Circuit Breaker Lightning Arrester and Solar Connector, ABS Plastic Case for On / Off Grid Solar Panel System, IP65
- Durability Meets Reliability: Engineered from ABS insulation material and tested to CE standard, our PV combiner box ensures impeccable insulation, moisture resistance, and drip-free performance. Plus, It is built to resist impacts and breakage, ensuring your equipment remains secure in even the most challenging environments. Elevate your solar setup with our solar combiner box!

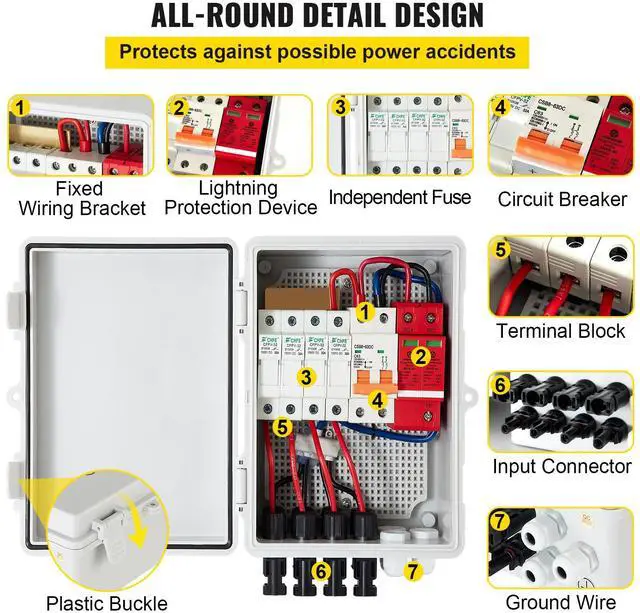

- Professional PV Combiner Box: Featuring 4 15A DC fuses and a 63A circuit breaker, our 4 string PV combiner box makes maintenance a breeze, and you can easily cut off circuits. Say goodbye to the large scope of power outages in case of PV system failures. Get ready to optimize your PV system's performance and boost output power to new heights.

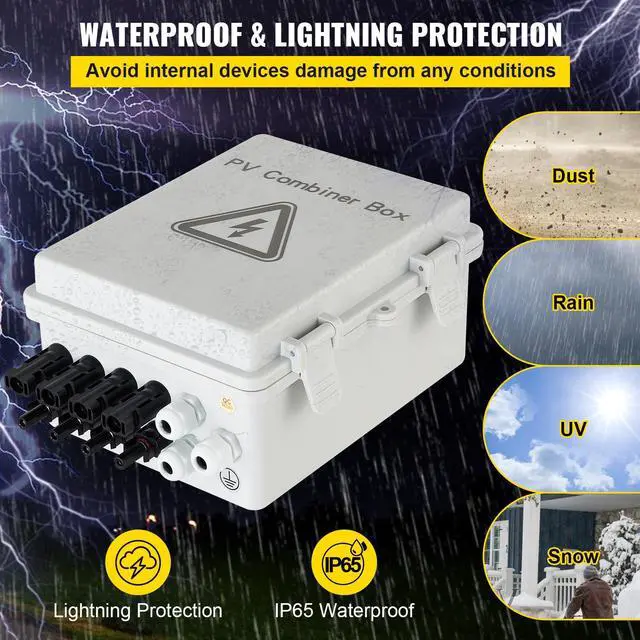

- IP65 Dust & Water Barrier: Our solar PV combiner box boasts an IP65 rating, ensuring waterproof and dustproof protection for long-lasting durability. No frequent replacements are requiredour combiner box is built to withstand the elements
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Specifications
Item Model Number: SP-HL-P202010-15A
Number of Inputs: 4
Number of Outputs: 1
Rated Operating Voltage: DC 500V
Fuse Holder Specification: DC 15A/500V
Rated Current of Fuse: DC 15A
Specification of Main Circuit Breaker: 63A 2P DC500V
Surge Protector: 40KA 2P DC500V
Protection Rating: IP65
Door Opening Method: Latch Opening
Mounting Plate: Detachable Mounting Plate(Material: ABS Mesh Plastic Base)
Sealing Strip: PU Polyurethane Foam Material (Black)
Main Material: ABS Plastic Material+RAL7035 Grey-White Finish
Net Weight (including all accessories): 4.1 lbs / 1.86 kg
Overall Product External Dimensions (L x W x H): 7.87 x 7.87 x 3.94 in / 200 x 200 x 100 mm
Package Content
4 x MCB Female Connectors with Red Wire ( 2.5 mm²)
4 x MCB Male Connectors with Blue Wire ( 2.5 mm²)
2 x PG 13.5 Plastic Waterproof Glands
1 x PG9 Plastic Waterproof Gland
1 x MC4 Tool
4 x Cold Rolled Steel Wall Mounting Brackets
4 x Screws
