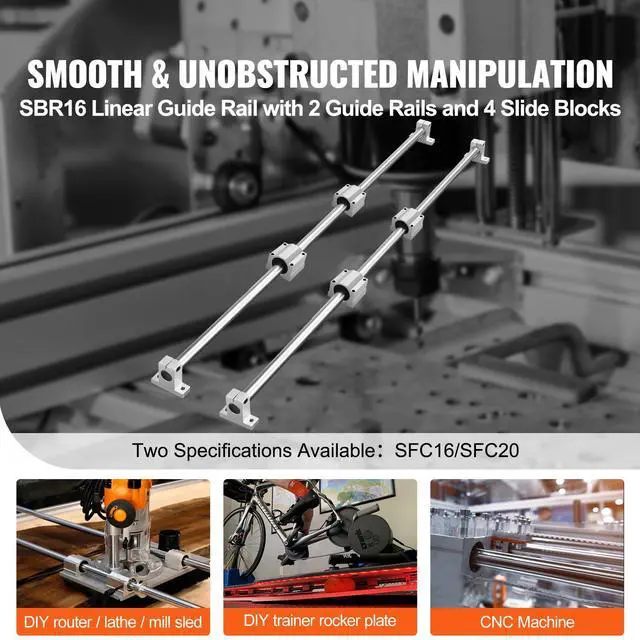

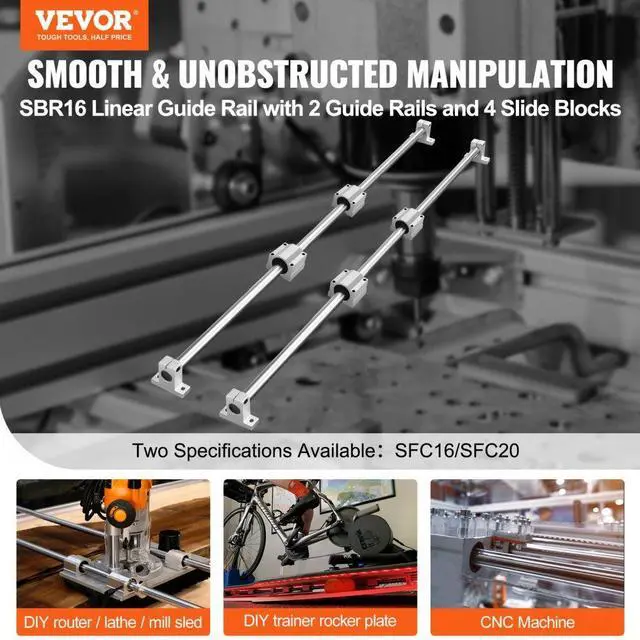

Linear Motion Kit, SFC16 1000mm, Includes 2 Rails of 39.4 inches, 4 SC16 Carriage Blocks, and 4 Support Brackets, Ideal for CNC and Automation Projects

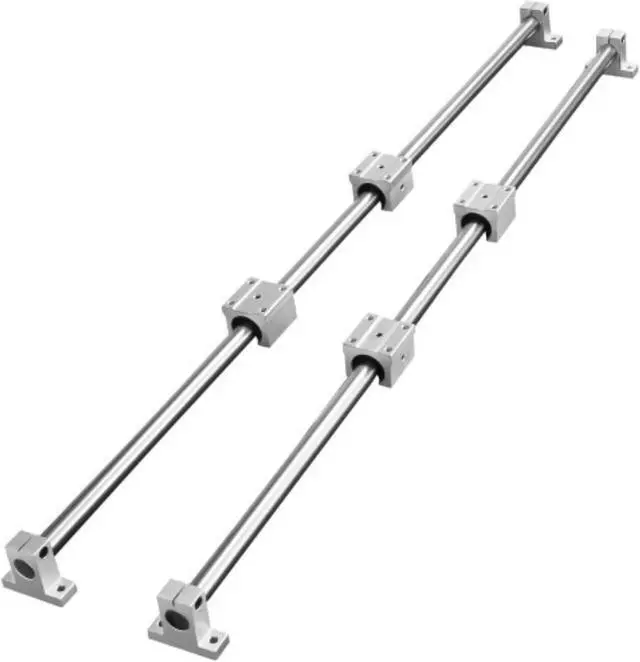

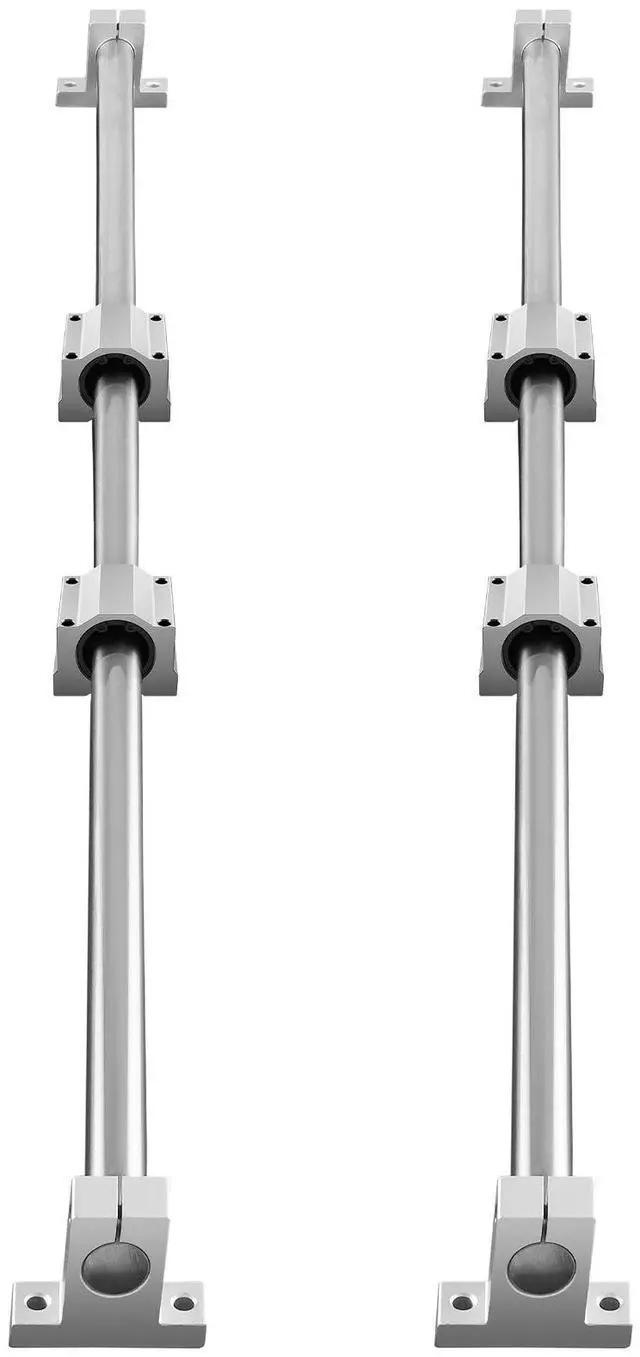

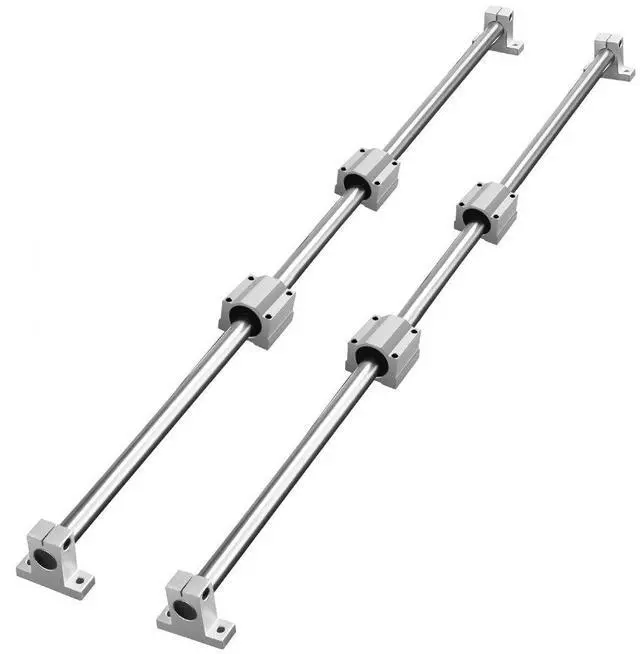

- SFC Linear Guide Rail Set: Linear motion guide rail includes 2 x 39.4" / 1000mm length SFC16 linear shafts, 4 x SC16 slide blocks and 4 x rail supports. Dynamic Load Per Block: 774N, Static Load Per Block: 1180N.

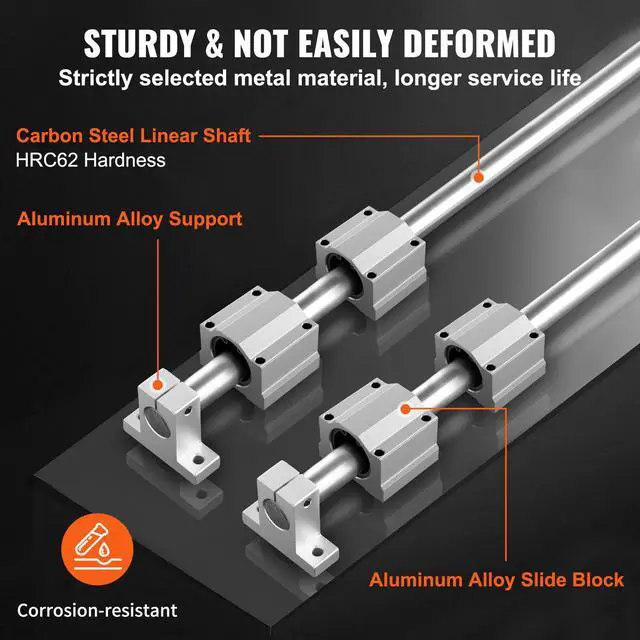

- Durable & Long-lasting: The linear rail is made of carbon steel and aluminum with a chrome-plated surface for rust resistance and high durability. Built-in 4 aluminum slide blocks and ball bearings for smooth and unobstructed sliding.

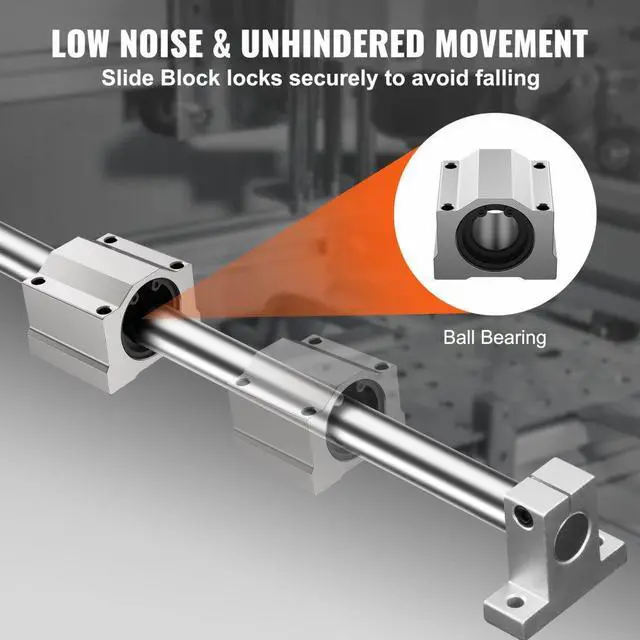

- Low Noise Sliding: Aluminum fully sealed SC slide blocks and carbon steel linear shaft are perfectly paired. The built-in ball bearing provides low friction movement and is smooth and not tilted, allowing you to control more labor-saving.
- High Precision: Precise circular shaft dimensions and straightness, ensuring high accuracy, repeatability, and stability in its motion. The sturdy aluminum base and slide block have accurate mounting holes, making it easy for users to perform reliable installation and connection
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

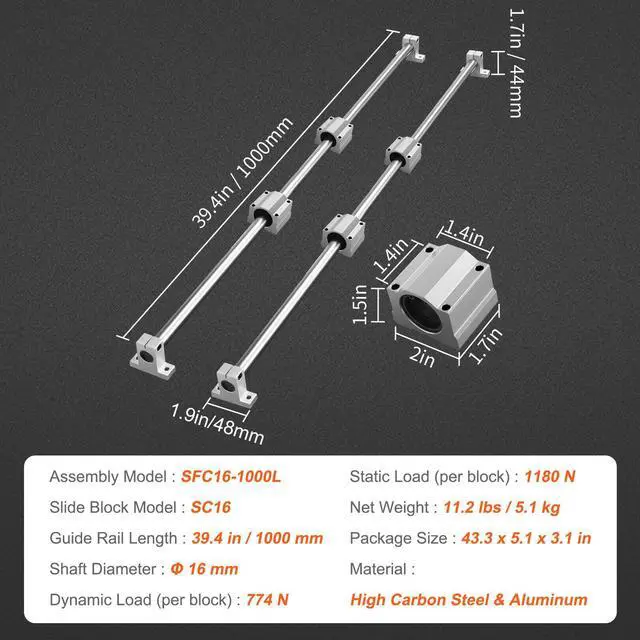

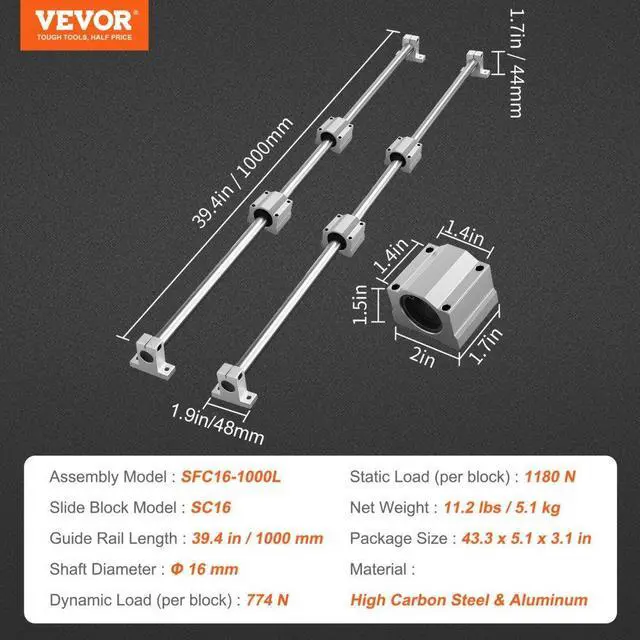

Specifications
Model Number: SFC16-1000L
Slide Block Model: SC16
Guide Rail Length: 39.4 in/1000 mm
Shaft Diameter: 16 mm
Dynamic Load (per block): 774 N
Static Load (per block): 1180 N
Material: High Carbon Steel & Aluminum
Mounting Hole Distance A: 1.4 in/36 mm
Mounting Hole Distance B: 1.4 in/36 mm
Slide Block Size (L x W x H): 1.7 x 2 x 1.5 in/44 x 50 x 38.5 mm
Product Dimensions (L x W x H): 39.4 x 3.8 x 1.7 in/1000 x 96 x 44 mm
Package Size (L x W x H): 43.3 x 5.1 x 3.1 in/1100 x 130 x 80 mm
Net Weight: 11.2 lbs/ 5.1 kg
Package Content
2 x SFC16 1000mm Linear Shaft
4 x SC16 Sliding Blocks
4 x Rail Supports
