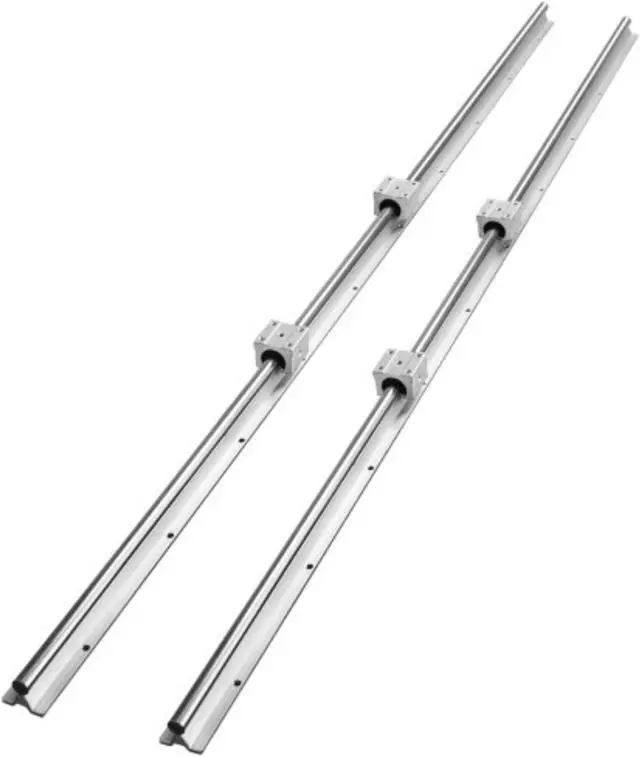

Linear Motion Set, SBR20 1500mm, Comes with Two 59 in/1500 mm SBR20 Rails & Four SBR20UU Blocks, Ideal for DIY CNC and Automation Tasks
- SBR Linear Guide Rail Set: SBR20-1500 mm Linear motion guide rail includes 2 x 59 in/1500 mm length SBR20 guide rails and 4 x SBR20UU slide blocks. Dynamic Load Per Block: 882 N, Static Load Per Block: 1370 N.
- Durable & Long-lasting: The linear rail is made of carbon steel and aluminum with a chrome-plated surface for rust resistance and high durability. Built-in 4 aluminum slide blocks and ball bearings for smooth and unobstructed sliding.
- Low Noise Sliding: Aluminum SBR slide blocks and carbon steel linear shaft are perfectly paired. The built-in ball bearing provides low friction movement and is smooth and not tilted, allowing you to control more labor-saving.
- High Precision: Precise circular shaft dimensions and straightness, ensuring high accuracy, repeatability, and stability in its motion. The sturdy aluminum base and slide block have accurate mounting holes, making it easy for users to perform reliable installation and connection
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Specifications
Model Number: SBR20-C 1500L
Slide Block Model: SBR20UU
Guide Rail Length: 59 in/1500 mm
Shaft Diameter: 20 mm
Dynamic Load (per block): 882 N
Static Load (per block): 1370 N
Material: High Carbon Steel & Aluminum
Mounting Hole Distance A: 1.4 in/35 mm
Mounting Hole Distance B: 1.4 in/35 mm
Slide Block Size (L x W x H): 2 x 1.9 x 1.5 in/50 x 48 x 39 mm
Product Dimensions (L x W x H): 59 x 3.5 x 1.4 in/1500 x 90 x 36.3 mm
Package Size (L x W x H): 62.2 x 5.7 x 3.1 in/1580 x 145 x 80 mm
Net Weight: 22 lbs/10 kg
Package Content
2 x SBR20 1500mm Linear Guide Rails with Supports
4 x SBR20UU Sliding Blocks
