Main image of 3/4HP Furnace Blower Motor, 208/230V 3.85Amps, 1075RPM 5 Speeds, CW/CCW Rotation, 48 Frame 4.8" Shaft Length, 10F/450V Capacitor + 11" Hold Hoop

Alt view image 2 of 8 - 3/4HP Furnace Blower Motor, 208/230V 3.85Amps, 1075RPM 5 Speeds, CW/CCW Rotation, 48 Frame 4.8" Shaft Length, 10F/450V Capacitor + 11" Hold Hoop

Alt view image 3 of 8 - 3/4HP Furnace Blower Motor, 208/230V 3.85Amps, 1075RPM 5 Speeds, CW/CCW Rotation, 48 Frame 4.8" Shaft Length, 10F/450V Capacitor + 11" Hold Hoop

Alt view image 4 of 8 - 3/4HP Furnace Blower Motor, 208/230V 3.85Amps, 1075RPM 5 Speeds, CW/CCW Rotation, 48 Frame 4.8" Shaft Length, 10F/450V Capacitor + 11" Hold Hoop

Alt view image 5 of 8 - 3/4HP Furnace Blower Motor, 208/230V 3.85Amps, 1075RPM 5 Speeds, CW/CCW Rotation, 48 Frame 4.8" Shaft Length, 10F/450V Capacitor + 11" Hold Hoop

Alt view image 6 of 8 - 3/4HP Furnace Blower Motor, 208/230V 3.85Amps, 1075RPM 5 Speeds, CW/CCW Rotation, 48 Frame 4.8" Shaft Length, 10F/450V Capacitor + 11" Hold Hoop

Alt view image 7 of 8 - 3/4HP Furnace Blower Motor, 208/230V 3.85Amps, 1075RPM 5 Speeds, CW/CCW Rotation, 48 Frame 4.8" Shaft Length, 10F/450V Capacitor + 11" Hold Hoop

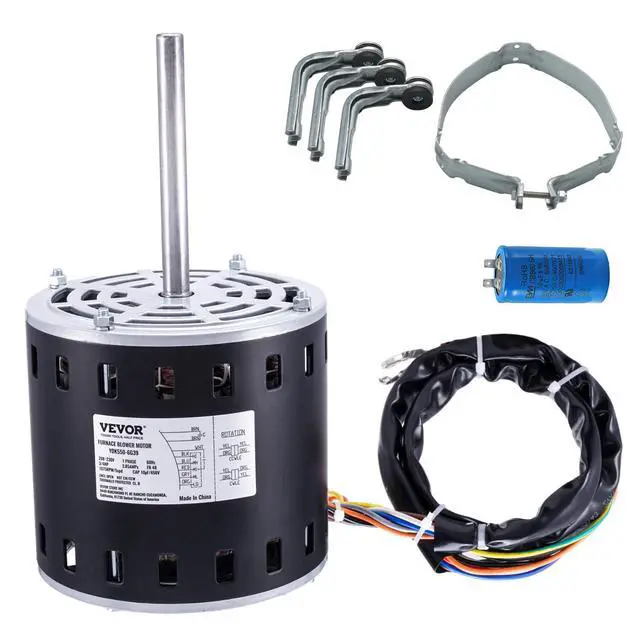

Alt view image 8 of 8 - 3/4HP Furnace Blower Motor, 208/230V 3.85Amps, 1075RPM 5 Speeds, CW/CCW Rotation, 48 Frame 4.8" Shaft Length, 10F/450V Capacitor + 11" Hold Hoop

Shop All VEVOR Products | Visit FastMedia Store

3/4HP Furnace Blower Motor, 208/230V 3.85Amps, 1075RPM 5 Speeds, CW/CCW Rotation, 48 Frame 4.8" Shaft Length, 10F/450V Capacitor + 11" Hold Hoop

Be the first to review this product...

Ensure the horsepower(HP) and the specifications on the nameplate for a precise match. It is important to match the required horsepower and specifications for your motor. Installing a lower horsepower motor can result in overheating and improper functioning. While the replacement parts are compatible with major brands, always verify the fitment with your specific application.
3/4HP Furnace Blower Motor: This motor has a power rating of 3/4 HP and operates at 1075 RPM with 5 different speeds. It requires a Full Load Amps of 3.85A and operates on a power supply of 208-230V. It is designed for direct-drive blower motors used in residential and light commercial indoor furnaces, air handlers, and packaging systems.
Frame Type: The motor belongs to the 48 Frame Size category and features a 0.5" shaft diameter with a shaft length of 4.8". It operates with strong and powerful performance, running at high speed while maintaining low noise levels

Overview

Specs

Reviews

Any questions? Our AI mode will help you find out quickly.

Try me now

Specifications

Voltage: 208-230V
Horsepower: 3/4HP
Rotation Speed: 1075RPM
Number of Speeds: 5
Frequency: 60Hz
Frame Size: 48
Rated Current: 3.85A
Shaft Length: 4.8"
Shaft Diameter: 0.5"
Rotation: CW / CCW

Package Content
1 x 3/4HP Furnace Blower Motor
1 x 10F/450V Capacitor
1 x 11-inch Hold Hoop
1 x Instruction Manual

General
Type	Other Appliances

Dimension
Width	8.07
