KP96 Lathe Chuck, 4-Jaw 3.75" Diameter, Metal Lathe Chuck Turning Machine Accessories, Self-centering Tool, for Lathe, Precision Machining, Grinding Machines, Milling Machines

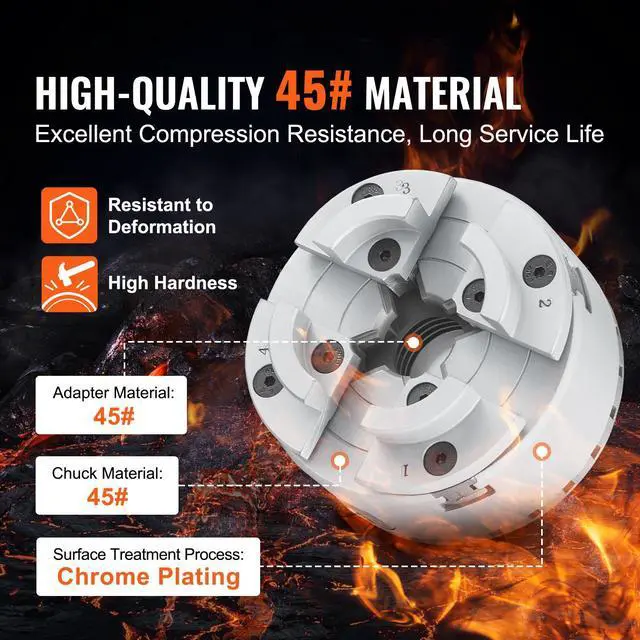

- High-Strength #45 Material: To meet the demanding requirements of production environments, we utilize #45 material that has undergone quenching and hardening techniques. This imparts exceptional hardness and rust-resistant properties, ensuring outstanding performance and reliability for both small and large workpieces held by the chuck.

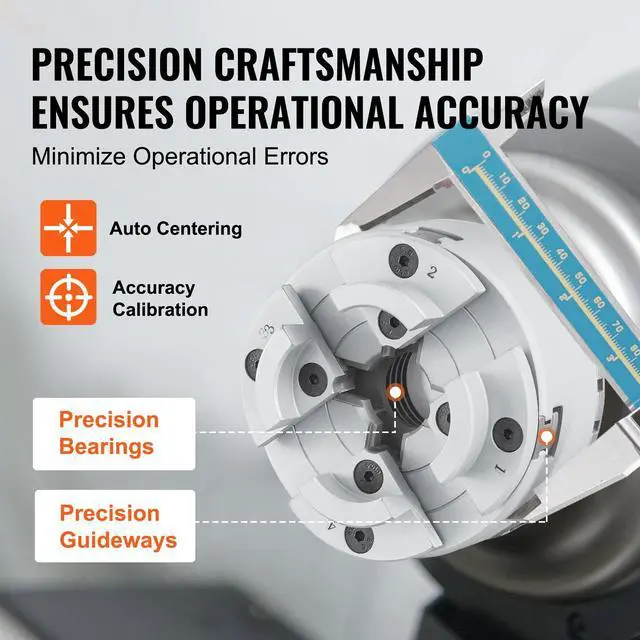

- High Precision:In the manufacturing of our chucks, we employ high-precision machining processes to ensure structural stability and machining accuracy. The lathe components feature a refined bevel gear and three small gears, aiding in precise machining progress. Bearing tolerance is 0.3 mm / 0.01 inch, guaranteeing excellent machining results.

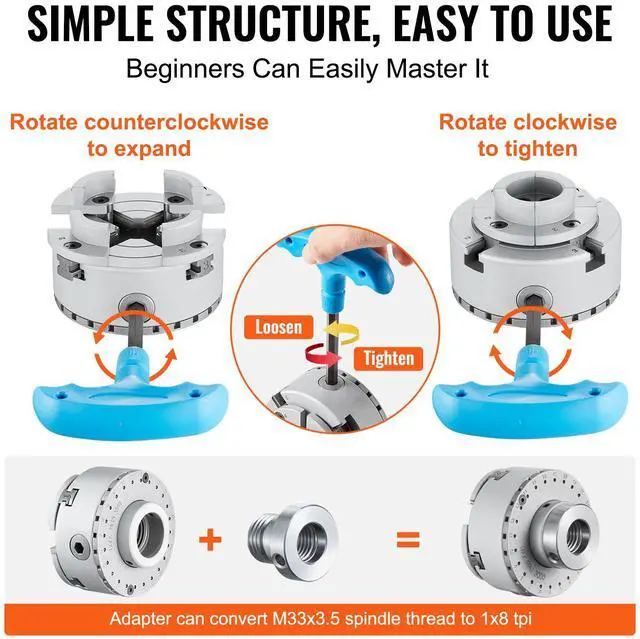

- Versatile Single Jaw: Our chuck features an adjustable jaw design, providing enhanced flexibility. Operators can easily adjust the clamping range using a T-handle wrench, accommodating workpiece sizes and shapes such as bowls, plates, vases, cups, and more with precise gripping and securing
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

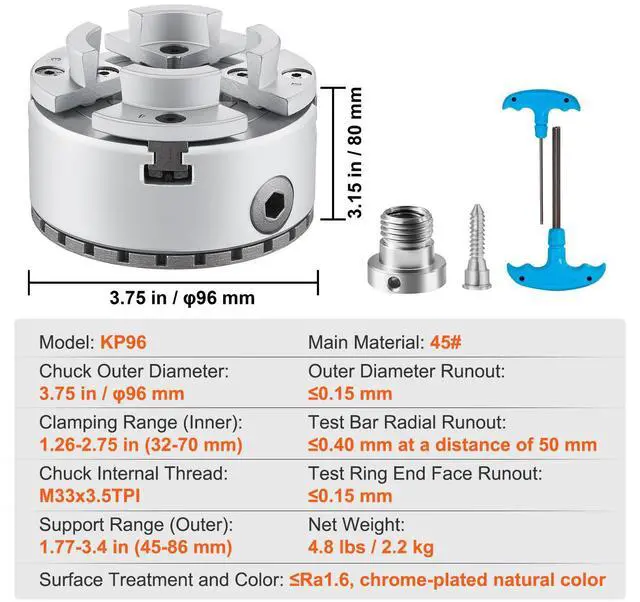

Specifications
Item Model Number: KP96
Chuck Outer Diameter: 3.75"" / 96 mm

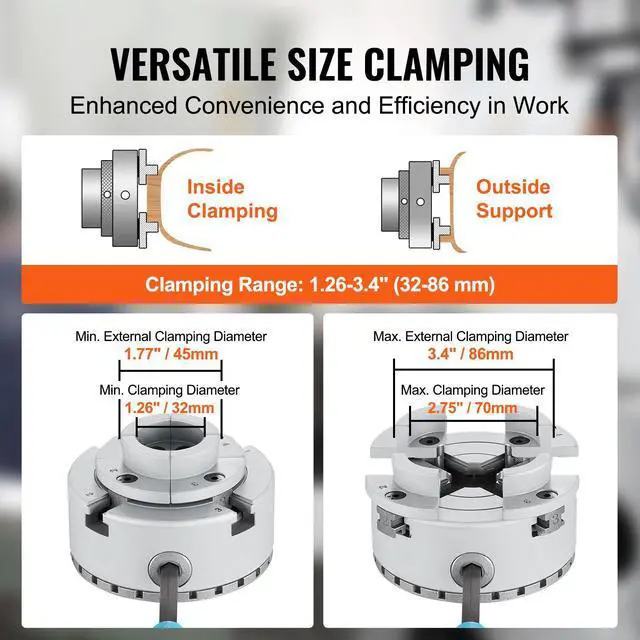

Clamping Range (Inner): 1.26 - 2.75"" (32-70 mm)
Chuck Internal Thread: M33* 3.5TPI
Support Range (Outer): 1.77 - 3.4"" (45-86 mm)
Outer Diameter Runout: 0.15 mm
Test Bar Radial Runout: 0.40 mm at a distance of 50 mm
Test Ring End Face Runout: 0.15 mm
Surface Treatment and Color: Ra 1.6, chrome-plated natural color
Main Material: 45#
Net Weight: 4.8 lb / 2.2 kg
Product Dimensions: 96 x 80 mm

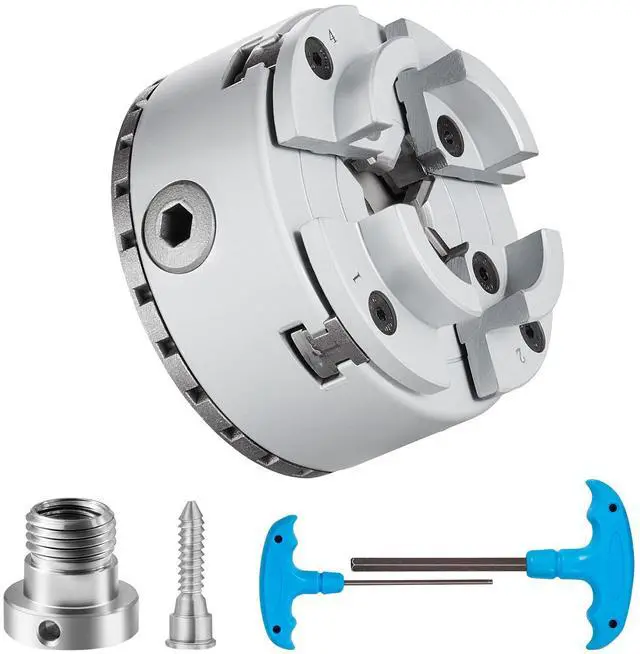

Package Content
1 x T-Wrench
1 x Cone Screw
1 x T-Handle Wrench
1 x 1*8TPI Adapter
1 x Instruction Manual
