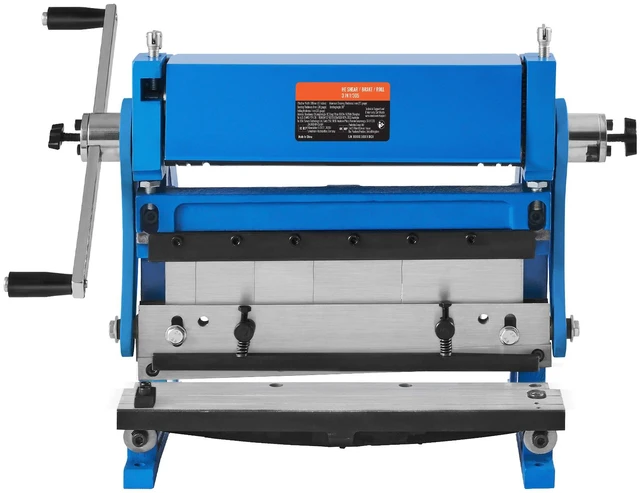

VEVOR Sheet Metal Brake, 12-inch, 3-In-1 Combination Shear Brake Roll Machine, 20-Gauge Capacity Shear Press Brake with 90° Max Bending Angle, Shears and Slip Roll Machine for Shear Bending Rolling
- All-in-One Functionality: Our 3-in-1 combination sheet metal machine offers the functions of a bending machine, shearing machine, and rolling machine all in a single unit. It is a must-have for your factory and workshop, enhancing overall work efficiency.
- Exceptional Compatibility: Our sheet metal brake supports sheet materials with a 12 in/ 305 mm Max. Width and 20 GA / 1 mm Max. Thickness. With 90° Max. Bending angle and a blade clearance of less than 0.0027 in/0.07 mm provides various options for your processing tasks.
- Robust Construction: This shear press brake features HT200 material casting built to last. The shearing blade is made of T10 material, cutting without burrs. It easily processes low-carbon steel, aluminum, brass, copper, lead, plastic, zinc sheet metal, etc.
- Segmented Bending Versatility: The central bending module of our sheet metal brake press includes five blades with sizes of 1", 2 x 2", 3", and 4".You can customize blade combinations based on your requirements to carry out various complex sheet metal processing tasks, such as manufacturing exterior wall panels for houses, doors, and window materials. It is widely used in homes, factories, and small workshops.
- Precision Processing: Utilizing advanced external cylindrical grinding technology, our 3 in 1 combination sheet metal machine reduces friction between the sheet metal and rollers, enhancing machine stability during operation.
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
Specifications
Item Model Number: 3-in-1/305
Max Shearing Length: 12 in / 305 mm
Max Shearing Thickness: 20 GA / 1 mm
Blade Clearance: <0.07 mm
Shearing Tensile Strength: 235 MPa
Max Bending Thickness: 20 GA / 1 mm
Max Bending Width: 12 in / 305 mm
Max Bending Length: 28 in / 710 mm (±10mm)
Max Bending Angle: 90° ± 1°
Max Sheet Rolling Width: 12 in / 305 mm (±3mm)
Roller Working Length: 12 in / 305 mm (±3mm)
Sheet Rolling Thickness: 20 GA / 1 mm
Min Sheet Rolling Diameter: 1.8 in / 45 mm
Surface Treatment and Color: Painted
Primary Materials: Q235, 45#, HT200
Net Weight: 90 pounds / 41 kg
Product Dimensions: 20.9 x 14.8 x 15 in / 530 x 375 x 380 mm
Shearing Blade:
Thickness: 0.4 in / 10 mm, Length: 14 in / 354 mm, Width: 0.8 in / 20 mm, Hardness: 52 HRC; Material: T10
Upper Bending Tool: Straight Blade, Thickness: 0.2 in / 5 mm, Length: 12 in / 307 mm, Width: 2.3 in / 58 mm, Hardness: 21 HRC; Material: 45#
Lower Bending Die: V-shaped Die, Thickness: 0.8 in / 20 mm, Length: 13.8 in / 350 mm, Width: 2.5 in / 63 mm, Hardness: 21 HRC; Material: 45#
Sheet Rolling Drum:
Diameter: 1.5 in / 38 mm, Length: 12 in / 305 mm, Hardness: 21 HRC; Material: 45#
Package Content
1 x Sheet Metal Brake
1 x User Manual
