KP965 Lathe Chuck, 4-Jaw 3.75" Diameter, Metal Lathe Chuck Turning Machine Accessories with 5 Sets of Jaws, Self-centering Tool, for Precision Machining, Grinding Machines, Milling Machines

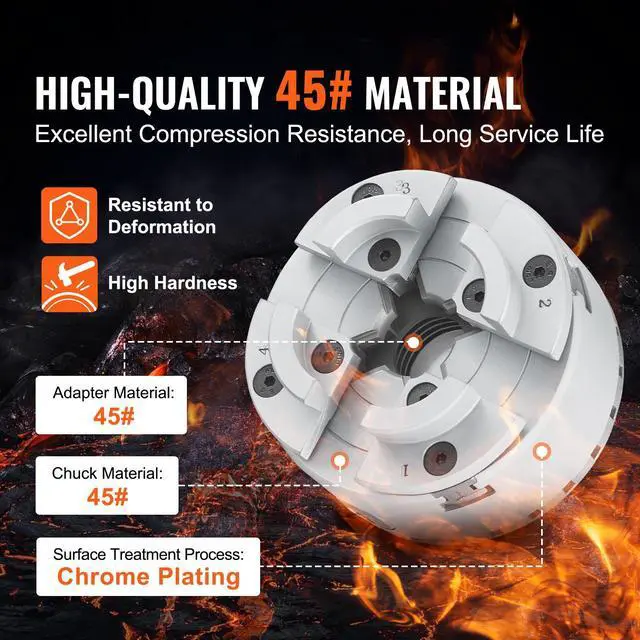

- High-Strength #45 Material: To meet the demanding requirements of production environments, we have utilized #45 material that has undergone quenching and tempering techniques. This process imparts exceptional hardness and rust-resistant properties. Whether it's for small-scale or large-scale workpieces, this lathe chuck delivers outstanding performance and reliability.

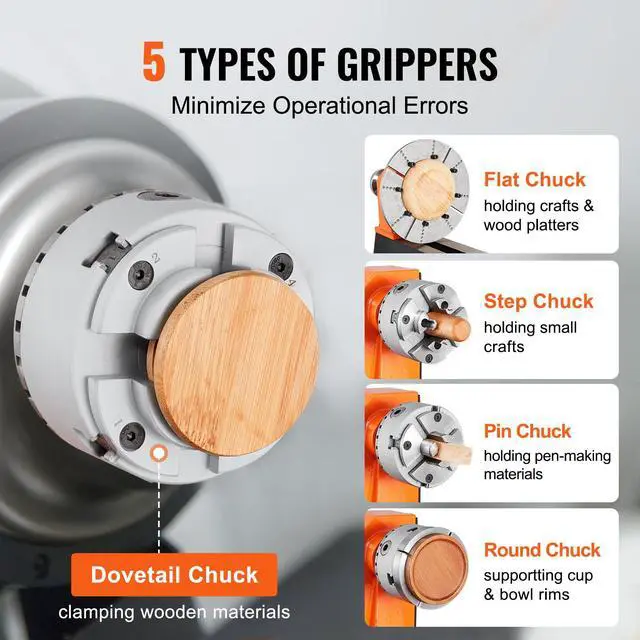

- 5-Piece Jaw Set: This comprehensive lathe chuck set includes dovetail jaws, round jaws, flat jaws, step jaws, and taper jaws a total of 5 different types of jaws along with the necessary installation tools. From slender items like pen blanks to larger items such as plates and bowls, this assortment of jaws enables a variety of clamping options, providing you with greater flexibility.

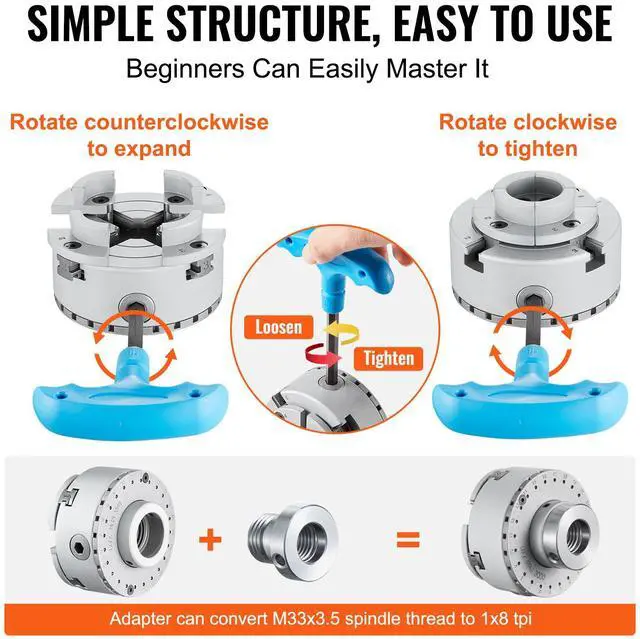

- Wide Clamping Range: Each jaw of our lathe chuck can be adjusted to accommodate a broader range of clamping sizes, enhancing its versatility. Operators can easily rotate the jaws for clamping or expanding using a T-handle wrench
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Specifications
Model: KP965
Chuck Outer Diameter: 3.75 inch / 96 mm

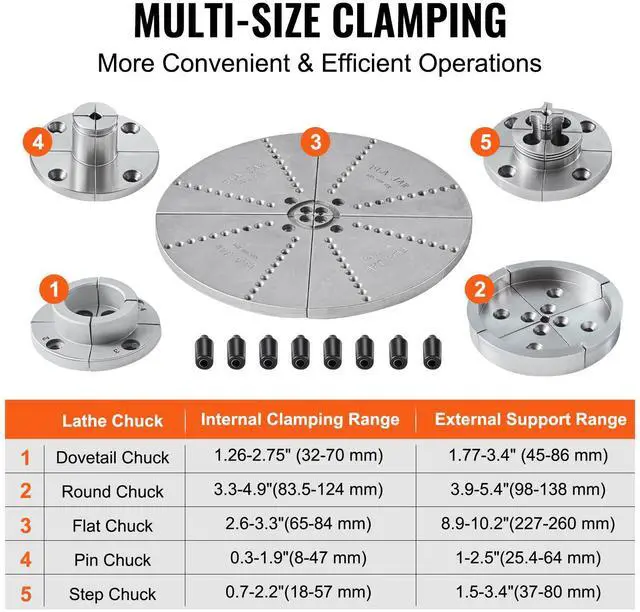

Clamping Range (Inner): 1.26 - 2.75" (32-70 mm)
Chuck Internal Thread: M33* 3.5TPI
Support Range (Outer): 1.77 - 3.4" (45-86 mm)
Outer Diameter Runout: 0.15 mm
Test Bar Radial Runout: 0.40 mm at a distance of 50 mm
Test Ring End Face Runout: 0.15 mm
Surface Treatment and Color: Ra 1.6, chrome-plated natural color
Main Material: 45#
Net Weight: 10.3 lb / 4.7 kg
Product Dimensions: 96 x 80 mm

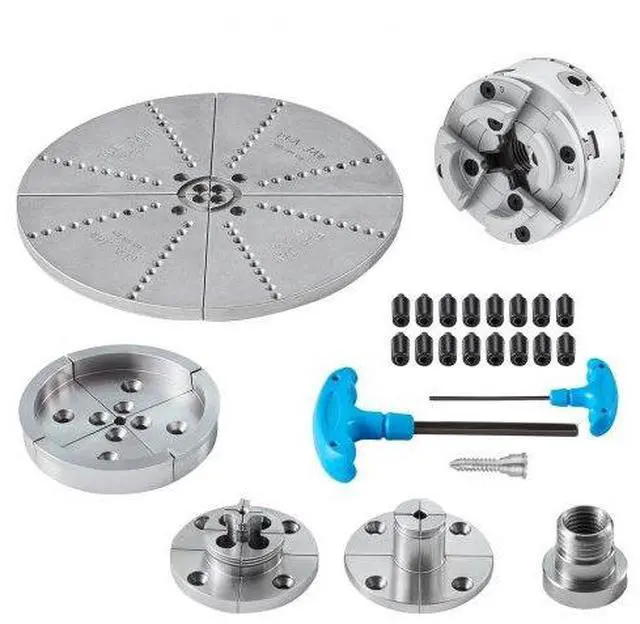

Package Content
1 x T-shaped key
1 x Conical screw
1 x T-wrench
1 x Tool case
1 x 1*8tpi adapter
1 x Hex wrench
16 x Screws
4 x Round jaws
4 x Pin jaws
4 x Flat jaws
4 x Step jaws
1 x Instruction manual
