Milling Machine Rotary Table, 4''/100 mm, Versatile Horizontal & Vertical Design, Precision Crafted, Includes 3.1''/80 mm 3-Jaw Chuck, M10 T-Bolts & Nuts, Ideal for Engineering & Indexing

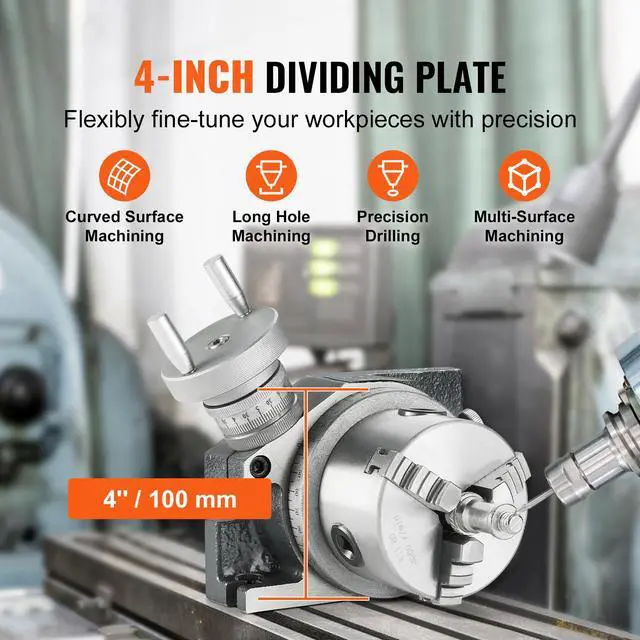

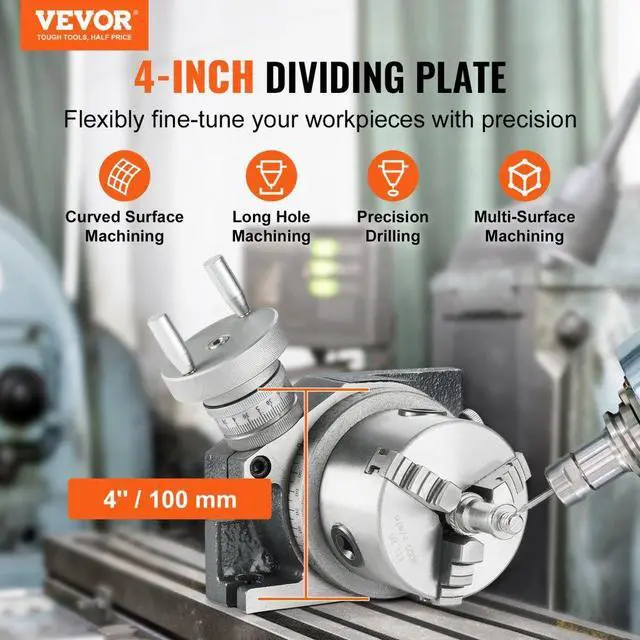

- 4-Inch Milling Machine Rotary Table: Elevate your milling capabilities with our 4'' / 100 mm rotary table, which is ideal for small milling machines. It is designed for precise positioning, rotation, indexing, and clamping of wood and metal workpieces for curved surface machining, elongated hole processing, and precision drilling. Widely used in automotive, mold-making, and general machinery, underscores its essential role in mechanical processing.

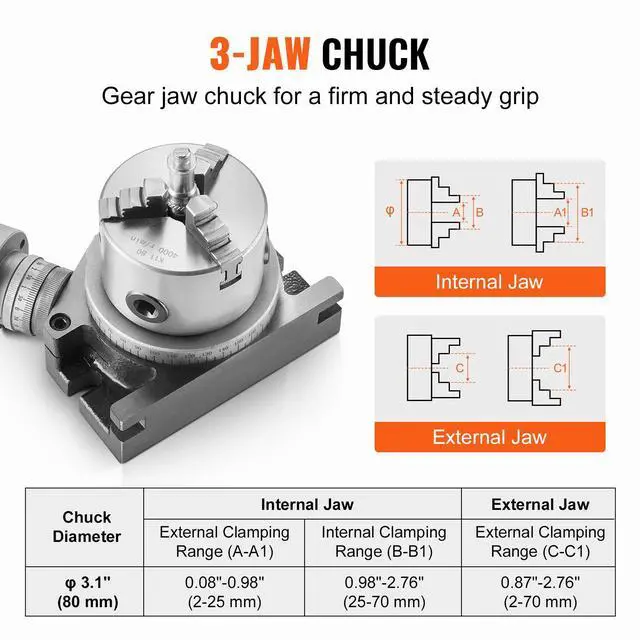

- Secure Small Workpieces with Ease: Our rotary table comes with a 3-jaw chuck, and the serrated jaw ensures a firm grip on even the small workpieces. Chuck Diameter: 3.1'' / 80 mm. The internal jaw can be used for internal & external clamping. External Clamping Range: 0.08''-0.9'' / 2-22 mm, Internal Clamping Range: 1.0''-2.8'' / 25-70 mm. It includes an external jaw and external clamping range of 0.9''-2.5'' / 22-63 mm
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

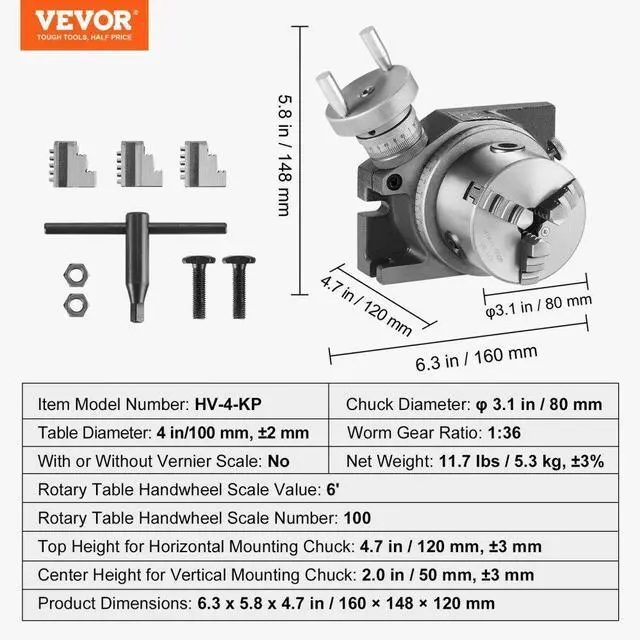

Specifications
Item Model Number: HV-4-KP
Table Diameter: 4 in / 100 mm, ±2 mm
Top Height for Horizontal Mounting Chuck: 4.7 in / 120 mm, ±3 mm
Center Height for Vertical Mounting Chuck: 2 in / 50 mm

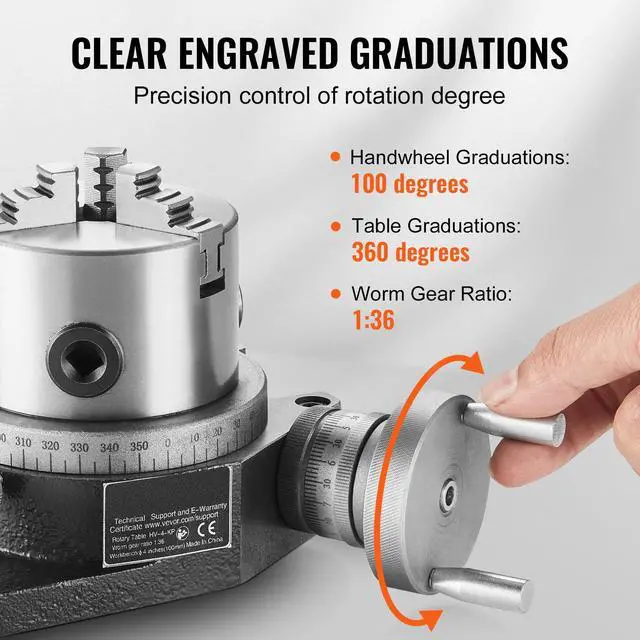

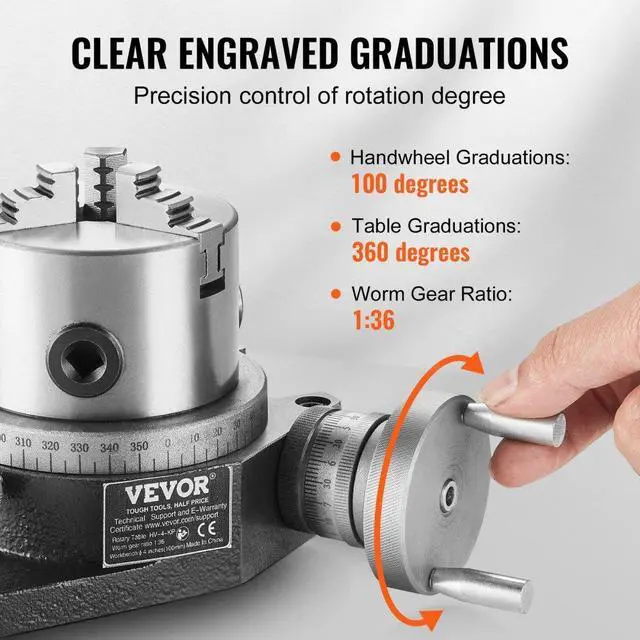

Rotary Table Handwheel Scale Value: 6'
Rotary Table Handwheel Scale Number: 100
With or Without Vernier Scale: No
Worm Gear Ratio: 1:36
Chuck Diameter: 3.1 in / 80 mm
Net Weight: 11.7 lbs / 5.3 kg ± 3%
Product Dimensions: 6.3 x 5.8 x 4.7 in / 160 × 148 × 120 mm

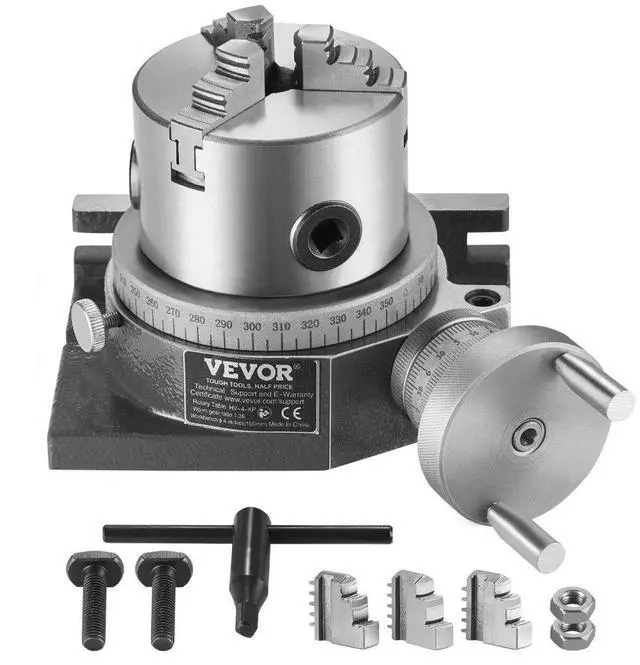

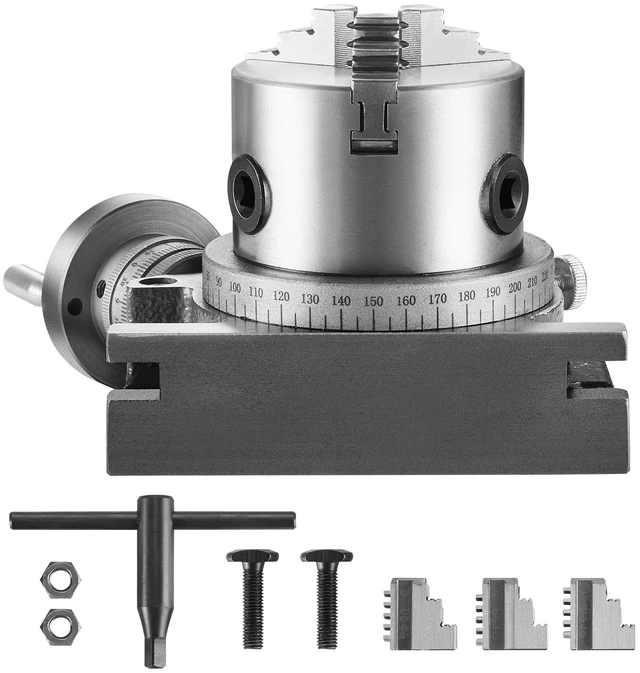

Package Content
2 x Handle
1 x Chuck Wrench
3 x External Jaw
2 x M10*40 T-Bolt
2 x M10 Nuts
1 x User Manual
