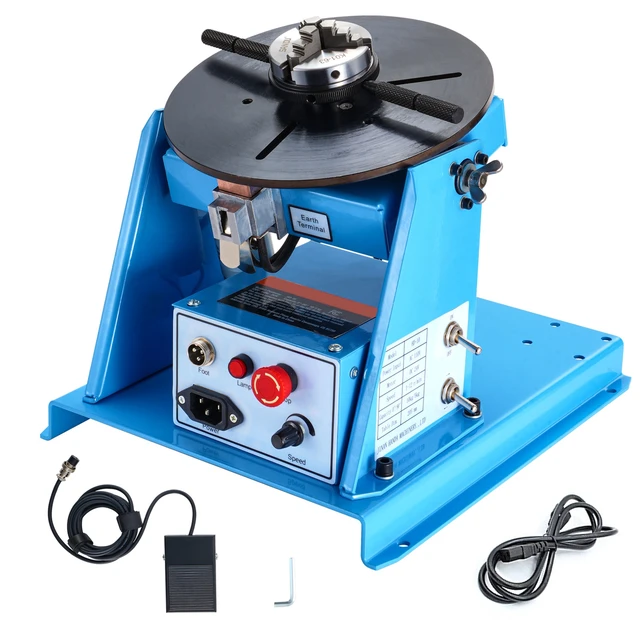

Rotary Welding Positioner 10KG, 0-90° Welding Positioning Turntable Table with 8.1 Inch 3-Jaw Lathe Chuck, 1-12 RPM 20W Portable Welder Positioning Machine for Cutting Grinding Assembly Testing
- Smooth Rotation: rotary welding positioner boasts 20W high quality motor that runs at 1-12 rpm low speed for stable operation. With a load capacity of up to 11lbs/5 Kg (vertical) or 22lbs/10 Kg (horizontal), it offers excellent stability and supports efficient, precise welding.
- 0-90° Tiltable Worktable: Our welding positioner turntable table can be tilted from 0-90° and securely fixed at desired angle with the butterfly bolt. The worm gear turning structure with self-locking function can accurately position and maintain the correct location of welding workpiece.
- Precise & Stable Positioning: Equipped with a 205mm K01-63 three-jaw chuck, featuring a clamping range of 2-58mm and a supporting range of 22-50mm, it effectively prevents the weldment pieces from moving and falling, thus significantly enhancing welding accuracy
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Specifications
Item Model Number: HD-10
Motor Power: 20W
Speed: 1-12 RPM
Horizontal/Vertical Load Capacity: 22lbs/10 kg; 11lbs / 5kg
Working Table Tilting Angle: 0-90°
Chuck Diameter: Clamping Range 2-58mm, Holding Range 22-50mm
Turntable Diameter: 8.1 '' / 205mm
Net Weight: 23.4 lbs / 10.6 kg
Product Dimensions: 12.6 '' x 10.6 '' x 11.1 '' / 319 x 270 x 282 mm
Package Content
1 x Power Cord
1 x Foot Pedal
2 x Chuck Wrench
1 x User Manual
