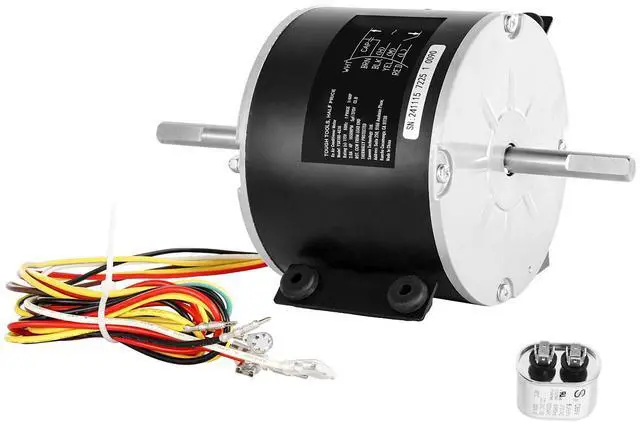

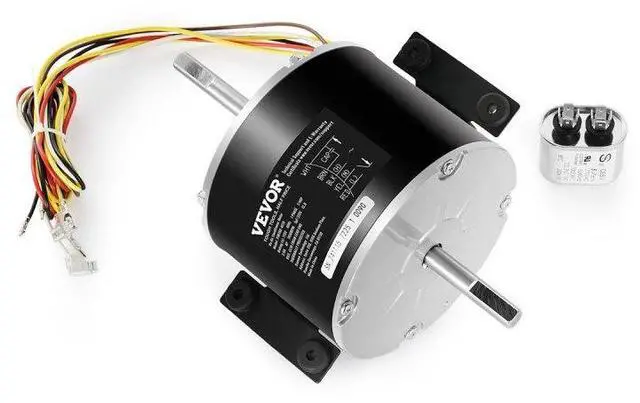

3315332.005 RV AC Fan Motor Replacement Genteq F48AF70A61, Dometic Brisk Air II Fan Motor, Compatible with Dometic Brisk Air II B57915 B59516 B59146 B59186 - 1/4HP AC115V 3A 1650RPM (3 Speeds)
- Key Features: 1/4 HP, Single Phase, Full Load Amp: 3.0A, Voltage: AC115V 60Hz, 3 Speeds - 1650/1500/1350 rpm, 0.5-inch Shaft Diameter.

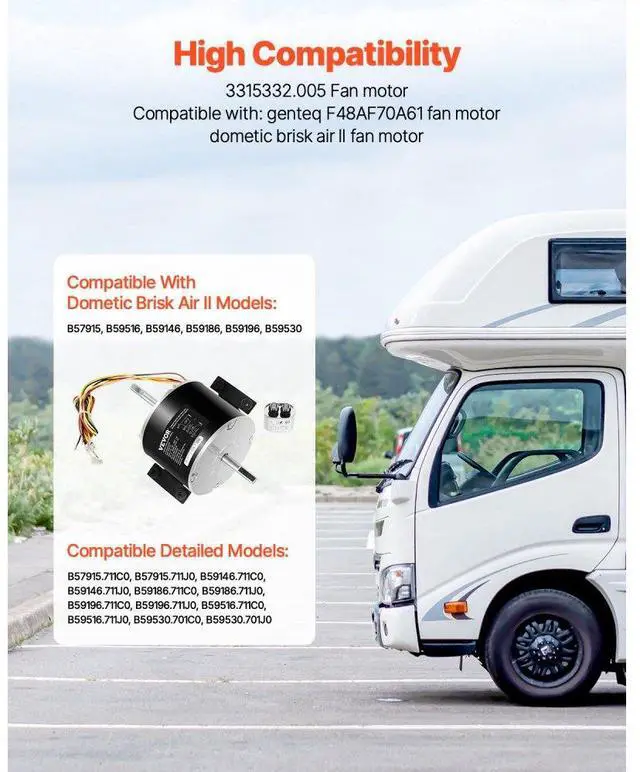

- Replacement and Compatible Models: This 3315332.005 fan motor is a direct replacement for the Genteq F48AF70A61 fan motor and the Dometic Brisk Air 2 fan motor. Compatible with dometic brisk air II models: B57915, B59516, B59146, B59186, B59196, B59530.
- Compatible Detailed Models: B57915.711C0, B57915.711J0, B59146.711C0, B59146.711J0, B59186.711C0, B59186.711J0, B59196.711C0, B59196.711J0, B59516.711C0, B59516.711J0, B59530.701C0, B59530.701J0

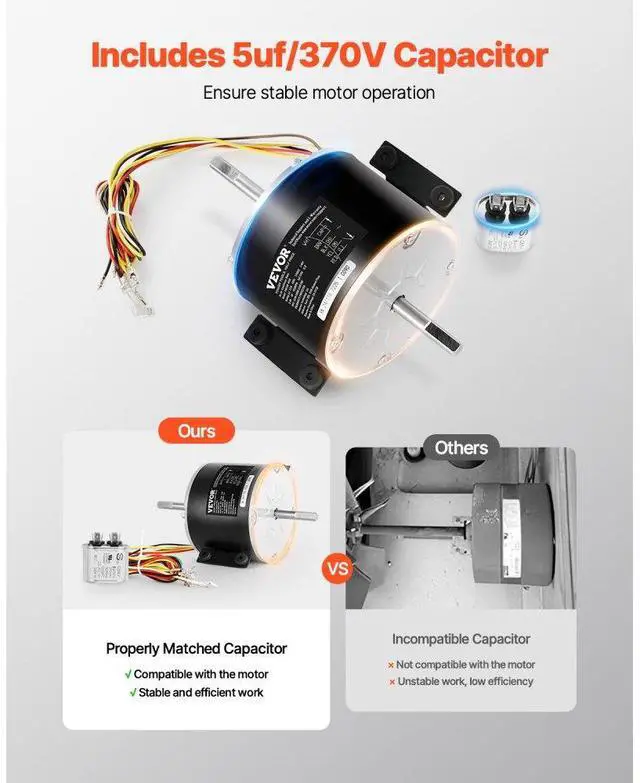

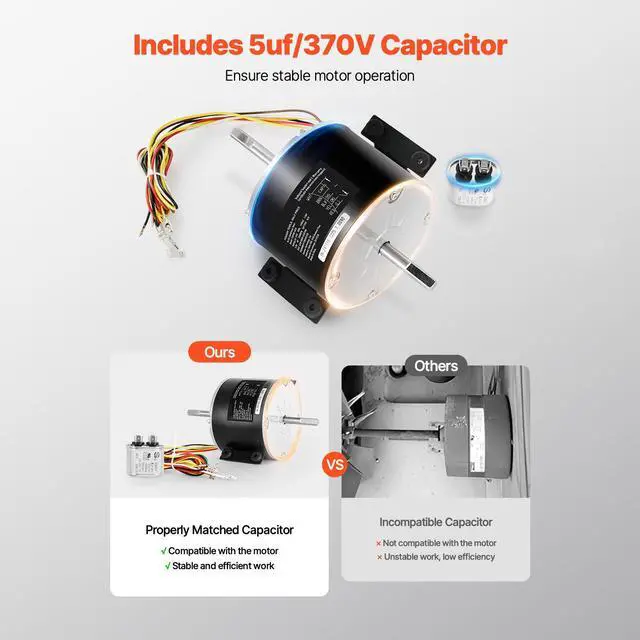

- Convenient Accessory: This RV rooftop air conditioner motor comes with a CBB65 5uf/370V capacitor, eliminating the need to purchase a compatible unit separately, ensuring stable and efficient operation of the motor.
- Safe and Durable: RV AC fan motor is housed in a sturdy metal casing that exhibits high strength and corrosion resistance, providing reliable protection and extending its service life.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

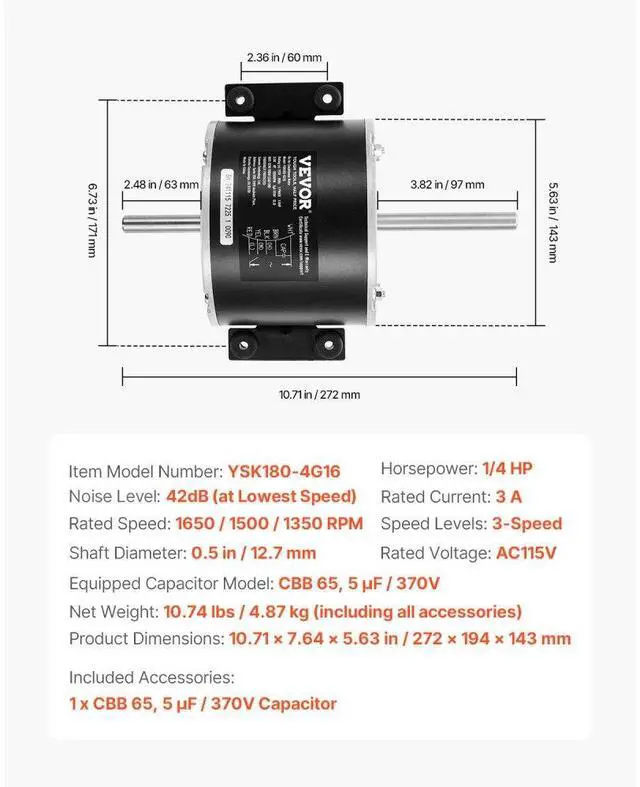

Specifications
Item Model Number: YDK180-4G16
Horsepower: 1/4 HP
Rated Voltage: AC115V
Rated Current: 3 A
Rated Speed: 1650 / 1500 / 1350 RPM
Speed Levels: 3-Speed
Shaft Diameter: 0.5 in / 12.7 mm
Equipped Capacitor Model: CBB 65, 5 µF / 370V
Net Weight: 10.74 lbs / 4.87 kg (including all accessories)

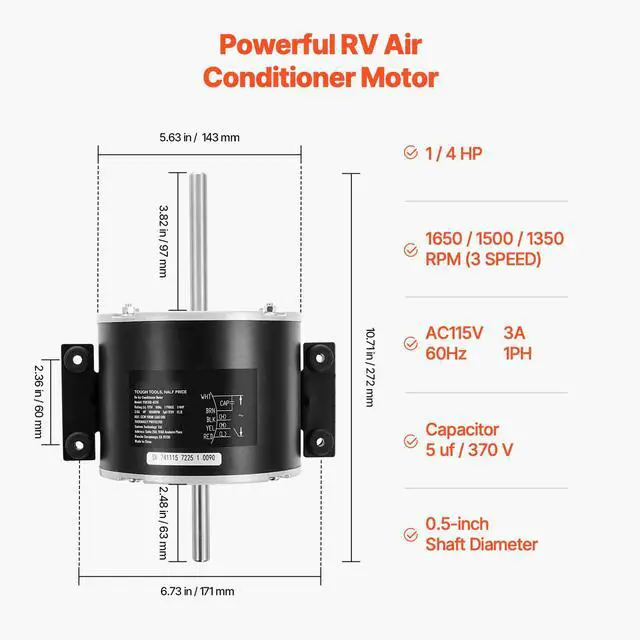

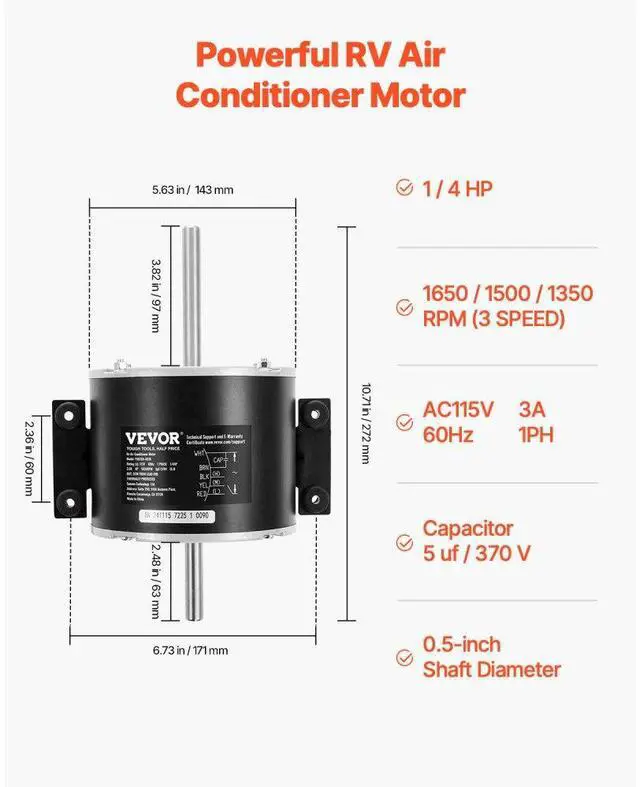

Product Dimensions: 10.71 x 7.64 x 5.63 in / 272 x 194 x 143 mm
Package Content
1 x CBB 65, 5 uf / 370V Capacitor
