$245.32
Meet Your Seller

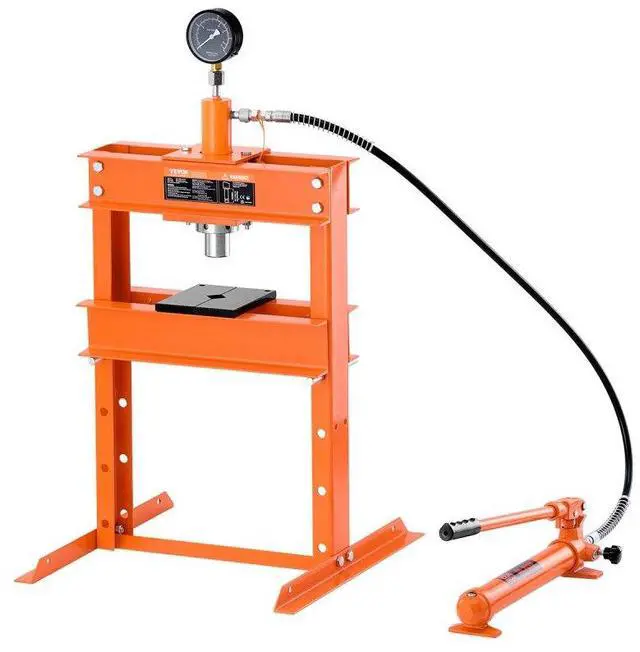

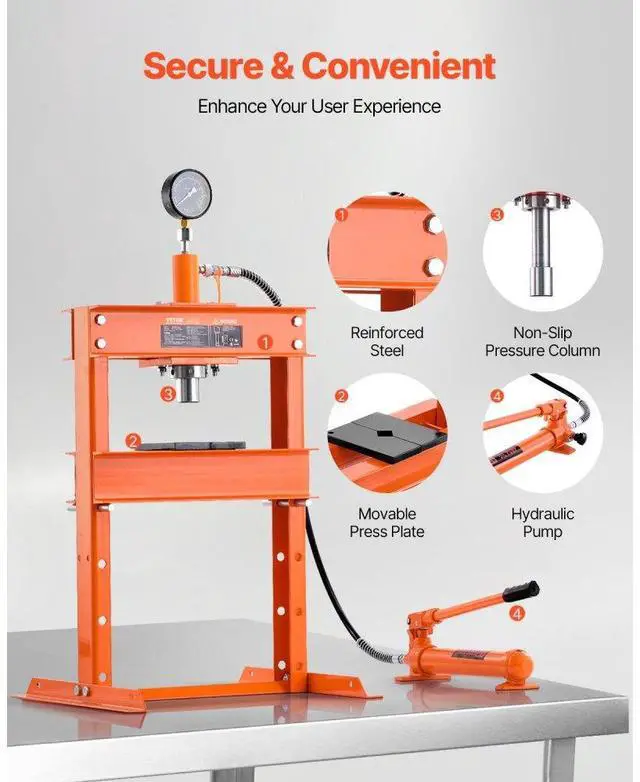

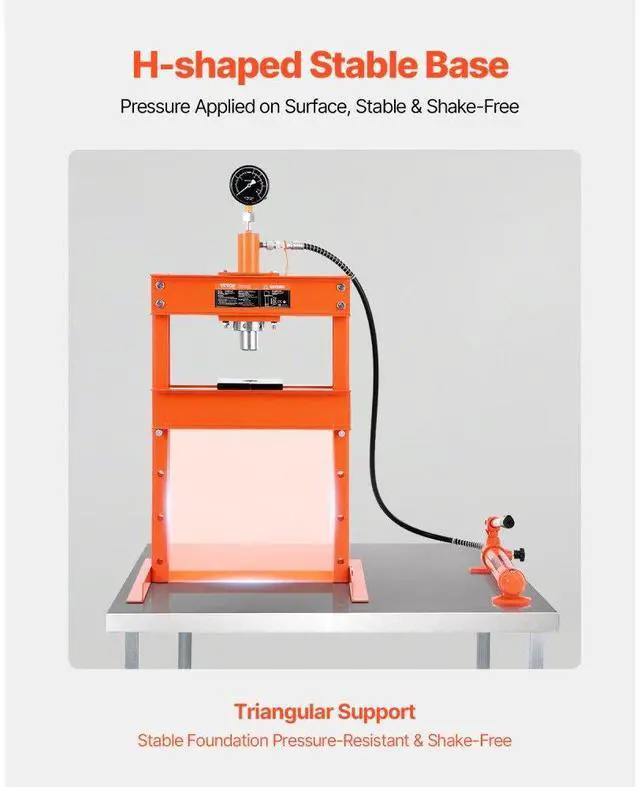

Hydraulic Shop Press, 10 T H-Frame Shop Press with Press Plate & H-shaped Base, Stable Garage Floor Adjustable Hydraulic Press with Relief Valve, Fit for Bending, Straightening & Stamping

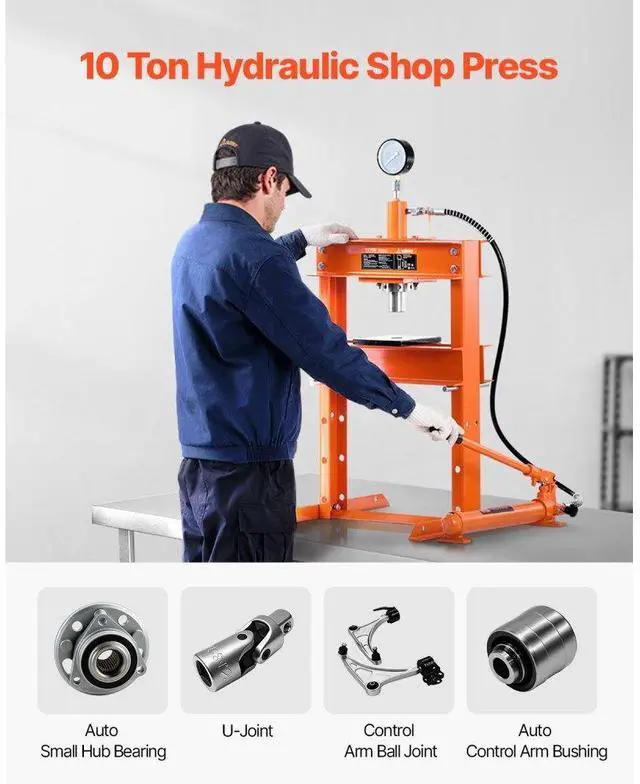

- 10 Ton Strong Load Capacity: Our hydraulic press helps you easily disassemble and install automotive bushings, ball joints, U-joints, and more, as well as straighten, bend, and stamp metal parts. Whether you're a professional or a DIY car repair enthusiast, it allows for quick and simple operation.

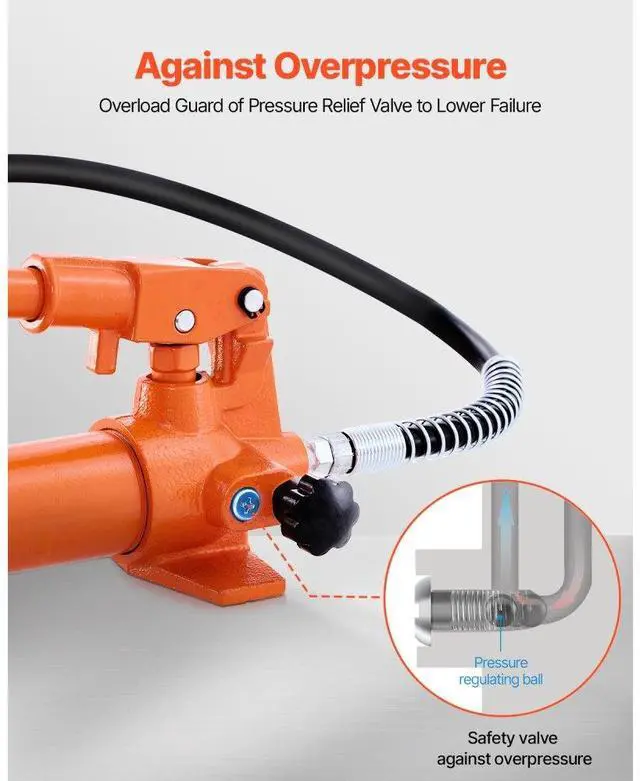

- Security Regulator Valve: For safer operation, the hydraulic shop presss hydraulic jack is equipped with a security regulator valve. When the load pressure exceeds the rated capacity, it avoids further lowering, lowering the risk of bending or damage due to over pressure.

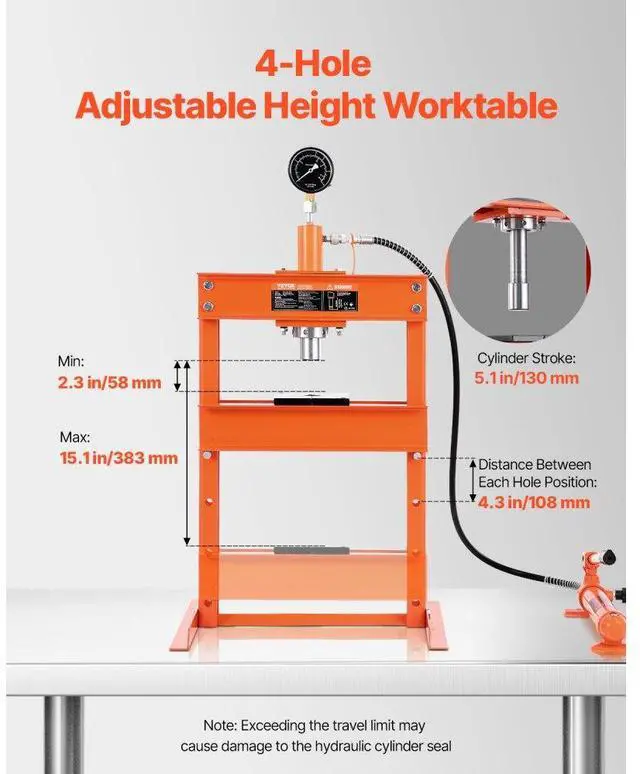

- Adjustable Height: The hydraulic shop presss worktable features a quick-adjust pin system with 4 height settings, ranging from 2.3 to 15.1 inches (58-383 mm), providing flexible working positions. The cylinder stroke is 5.1 inches (130 mm). Note: Exceeding the cylinder stroke range may cause damage to the cylinder seals
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Specifications
Item Model Number: ZX0901 item 10T
Product Dimensions: 30.2 x 23.6 x 69.8 in/770 x 596 x 1770 mm
Cylinder Stroke: 5.1 in/130 mm
Rated Load: 10T
Hydraulic Oil Model: 15#
Net Weight: 87.4 lbs/ 39.7 kg (Include all accessories)
Package Content
1 x Outer Hex Bolt M12 x 30
12 x Spring Washer 12
12 x Flat Washer 12
12 x Outer Hex Nut M12
2 x Upper Beam
2 x Vertical Column
1 x Oil Cylinder Mounting Plate 2
2 x Flat Washer 10
2 x Outer Hex Nut M10
1 x Lower Cap (pre-installed on oil cylinder component)
2 x Pressure Block
1 x Workbench Welded Assembly
2 x Cotter Pin
2 x Base Foot
1 x Foot Crossbar
1 x Handle Grip (pre-installed on handle pipe)
1 x Handle Pipe
1 x Oil Pump Component
1 x Oil Cylinder Mounting Plate 1
1 x Upper Cap (pre-installed on oil cylinder component)
1 x Piston (pre-installed on oil cylinder component)
2 x Outer Hex Bolt M10×140
1 x Wire Ring (pre-installed on oil cylinder component)
1 x Oil Cylinder Component
1 x Nylon Washer
1 x 10T Pressure Gauge
2 x Spring Washer 10
1 x User Manual
