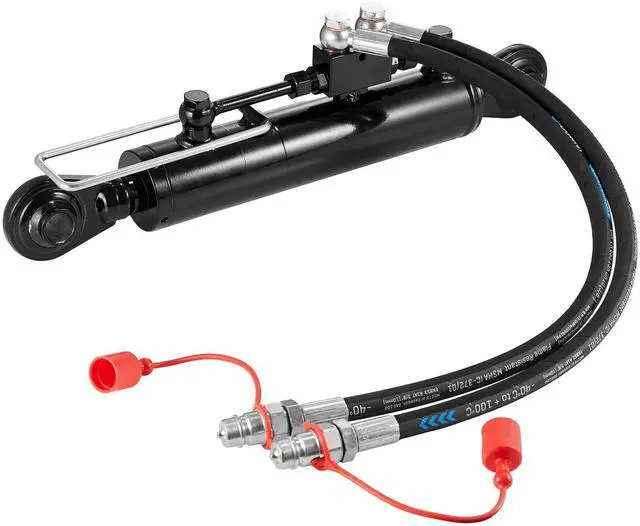

Hydraulic Top Link Cat. 2-28-5/16 in, 19-11/16~28 in), Hydraulic Cylinder with 2 Hoses & G3/8" Check Valve

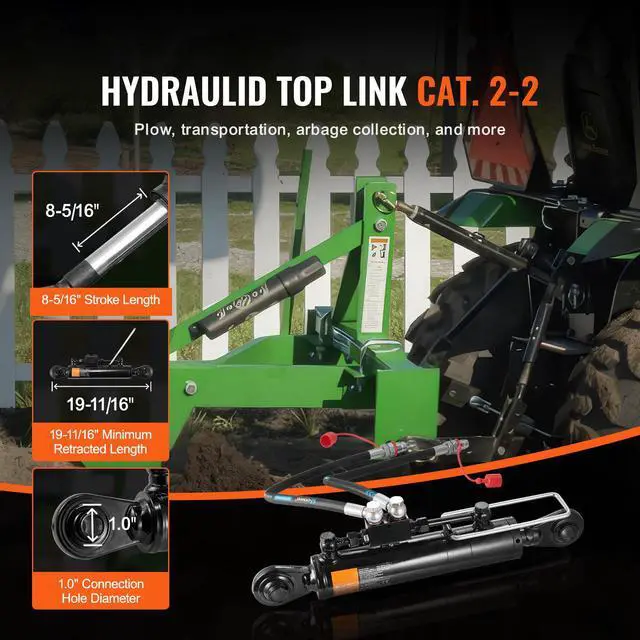

- Adaptation for Cat. 2-2 Tractors: The hydraulic top link cat. 1-1's rod inlet/outlet diameter: 3/8 in; Min retracted length:19-11/16 in(500 mm); Stroke length: 8-5/16 in (211 mm; Hydraulic hose length: 30.1 in (765 mm). It can be directly installed on Cat. 1-1 tractors and is widely used in heavy-duty agricultural plowing, waste recycling, transportation, and other tasks.

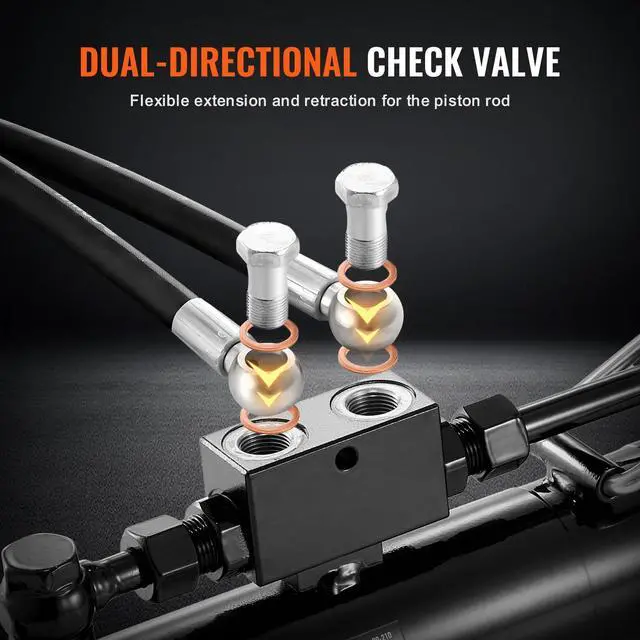

- High-Sealing Check Valve: The hydraulic cylinder is upgraded with a high-sealing bidirectional check valve structure, ensuring minimal hydraulic oil leakage and precise control of pushing and pulling operations. Even after the pump stops working, the position of the hydraulic cylinder piston rod remains stable under force. The hydraulic cylinder can only perform pushing and pulling actions when there is a certain oil pressure.

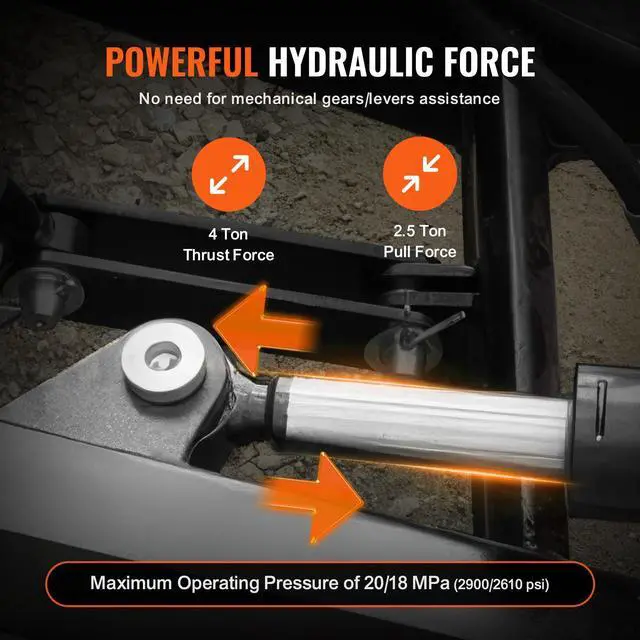

- Enhanced Hydraulic Power: The hydraulic top link is capable of providing 4 tons of pushing force and 2
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Specifications
Item Model Number: WCVC-63-35-210
Minimum Retracted Length: 19-11/16 inch (500 mm)
Stroke: 8-5/16 inch/211 mm
Cylinder Diameter (I. D. ): 2.5 inch/63 mm
Outer Diameter: 2-7/8 inch73 mm
Piston Rod Diameter: 1.4 inch/35 mm
Connection Hole Diameter: 1.0 inch/ 25.5 mm
Connection Hole Width: 2.0 inch/51 mm
Thrust Force: 4 Tons
Pull Force: 2.5 Tons
Check Valve Inlet/Outlet Port: G3/8"
Maximum/Rated Working Pressure: 20/16 Mpa2900/2320psi
Compatible Equipment: Class Tractors
Hydraulic Hose: (I. D. &L. ): 0.4 × 30.1 inch/10×765mm
Fitting Type: G1/2
Color and Surface Treatment: Black Paint

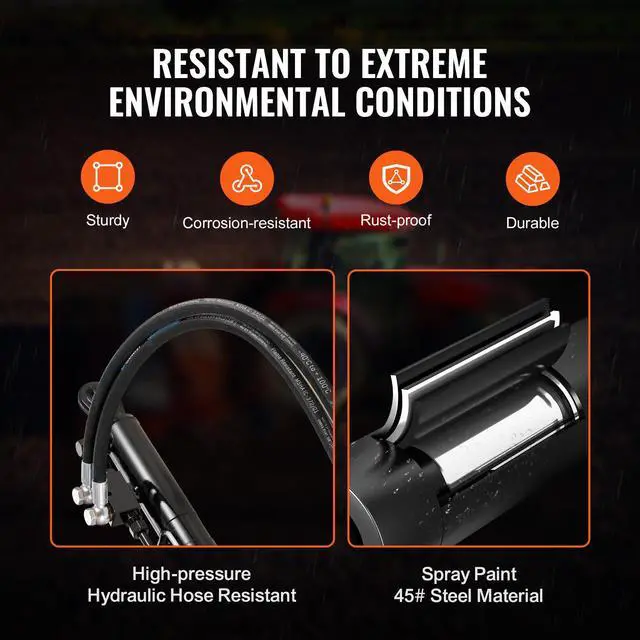

Main Material: 45#Steel
Service Life: 1-year Warranty
Net Weight: 25.1 lbs/ 11.4 kg
Product Dimensions: 22.6 × 5.2 × 2.9 inch/575×132×73 mm
Package Content
2× 30.1 inch/765 mm 180 Bar Hydraulic Hoses
2×Installation Articulated 3/8 Screws
4×Copper Washers
1×Instruction Manual
