Specifications

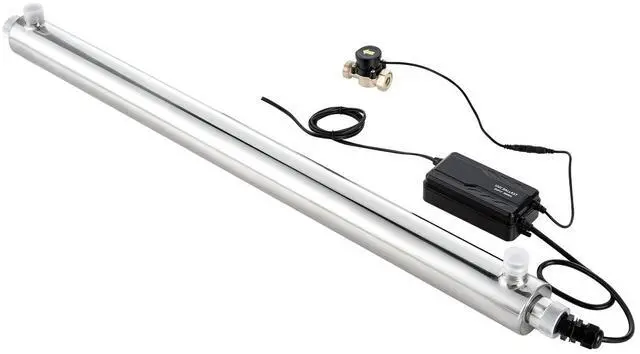

Item Model Number: SDE-055YS
Lamp Power: 50W ±10%
Total Power: 56W ±10%
Wavelength: 253.7 nm

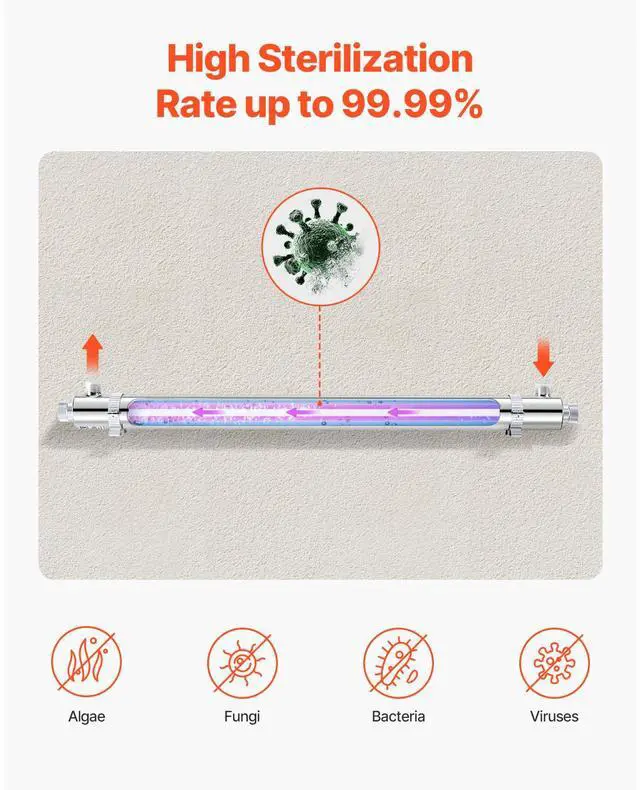

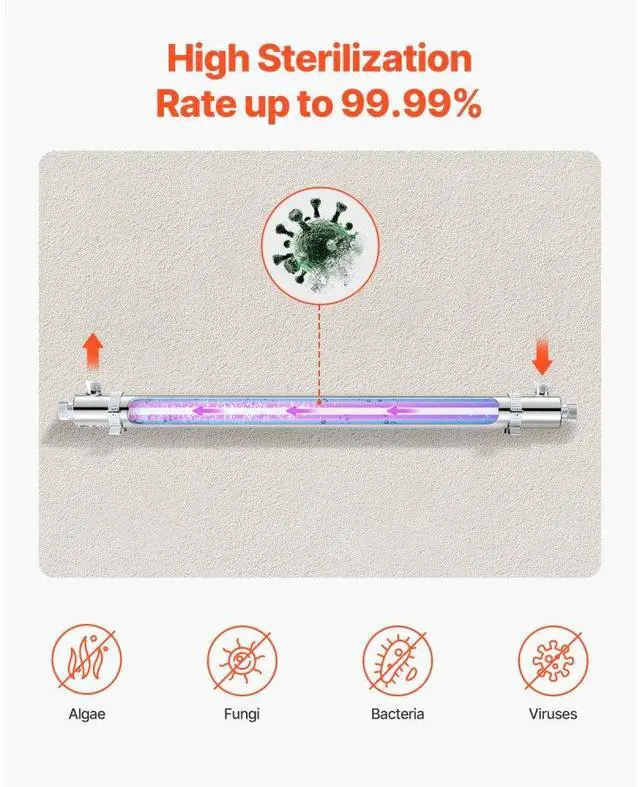

Sterilization Rate: Over 99.99 % (under maximum flow rate)

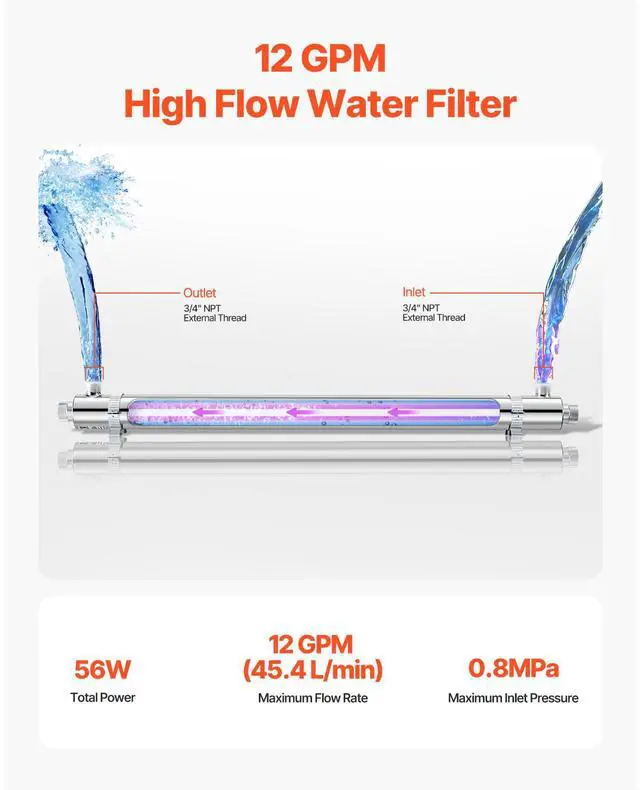

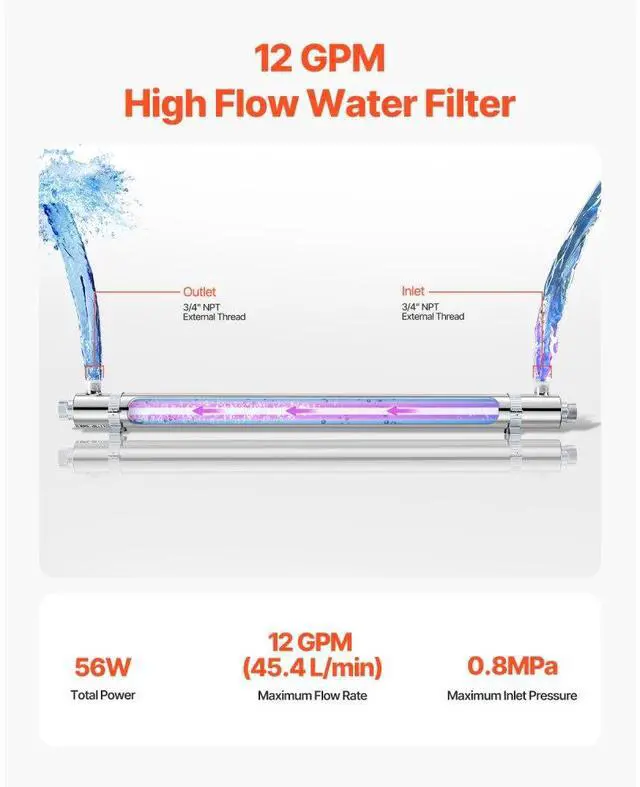

Maximum Water Treatment Capacity: 12 GPM ( 45.4 L/min)
Max Inlet Pressure: 0.8MP a
Inlet/Outlet Interface Specification: 3/4" NPT External Thread
Main Material:
Housing: 304 Stainless Steel; UV Lamp: Quartz

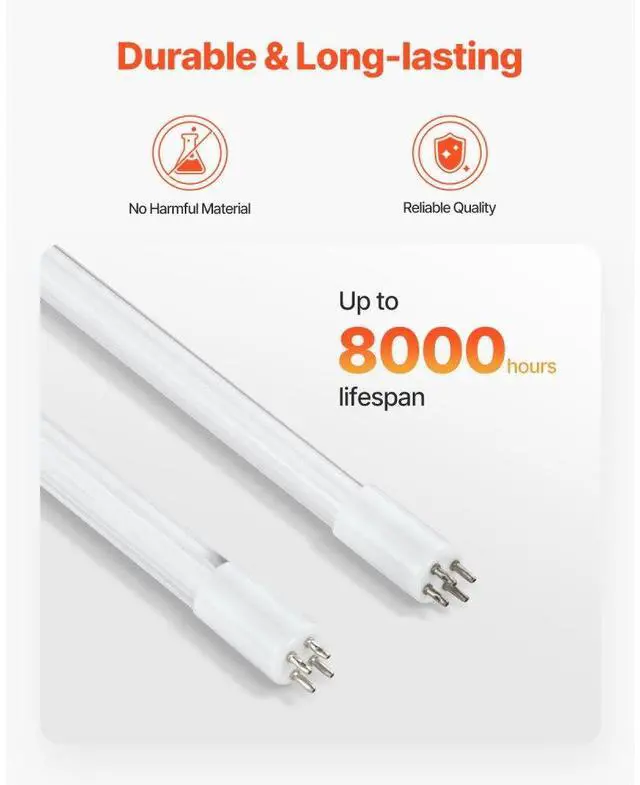

Lamp Lifespan: 8000 hours
Net weight: 6.39 lbs/ 2.9 kg (including all accessories)

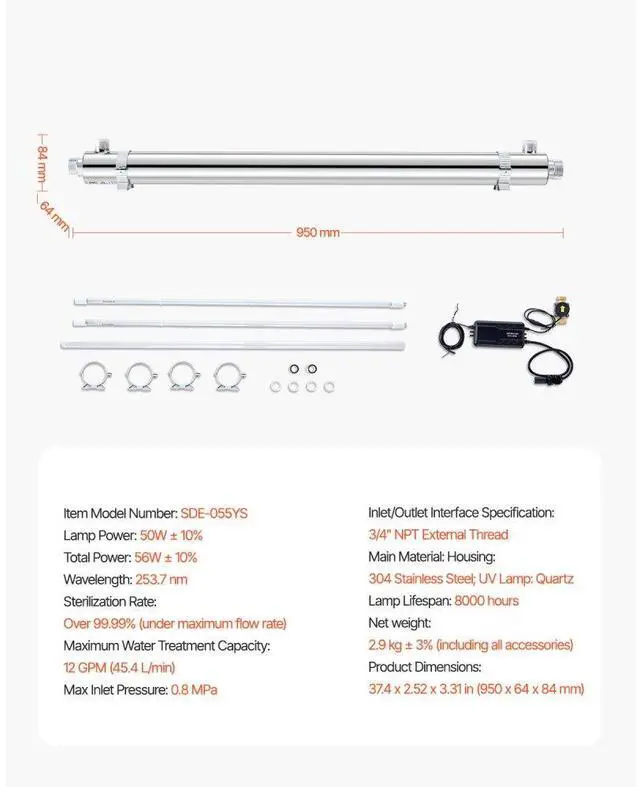

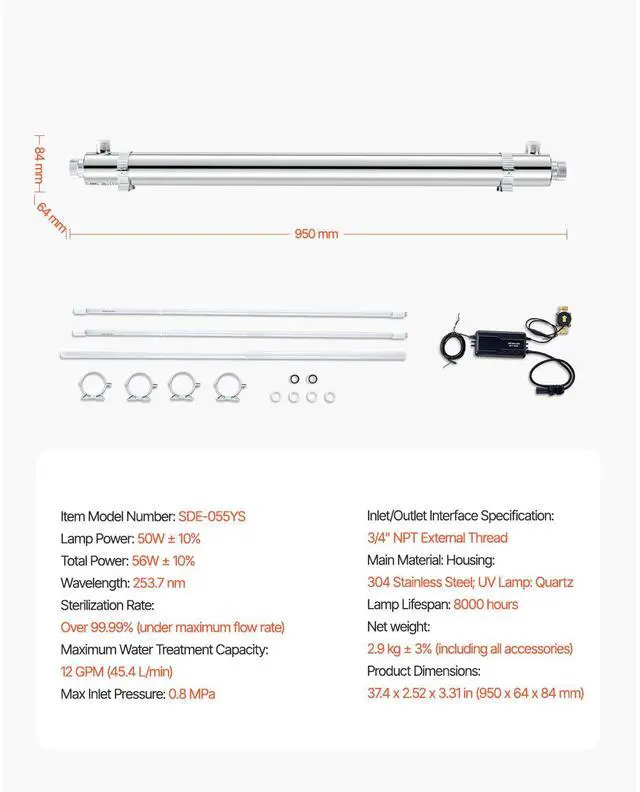

Product Dimensions: 37.4 x 2.52 x 3.31 in/950 x 64 x 84 mm

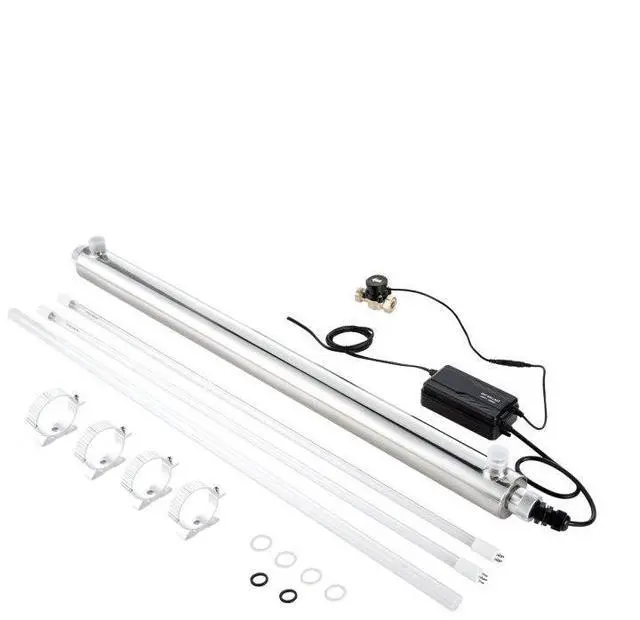

Package Content
1 x Stainless Steel Tube
2 x Light Tubes
1 x Quartz Glass Sleeve
1 x Power Ballast (Include Copper Switch Valve)
4 x Aluminum Mounting Brackets
4 x Sealing Rings
3 x Black O-Rubber Sealing Rings
1 x User Manual
