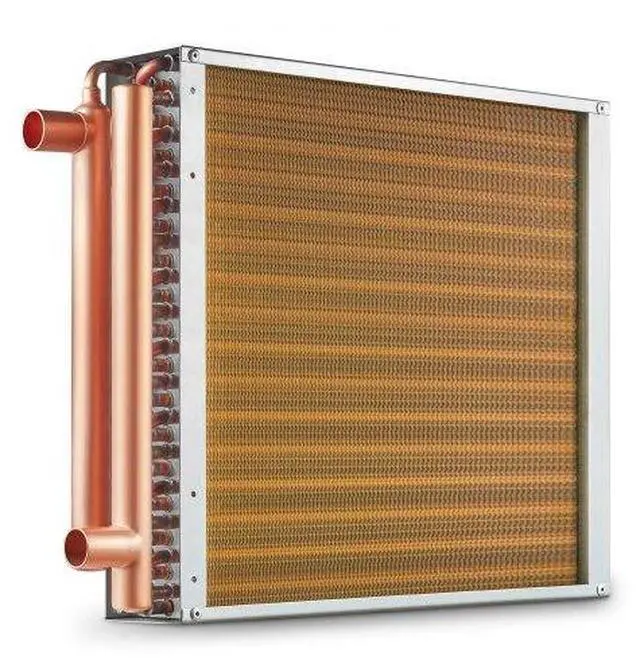

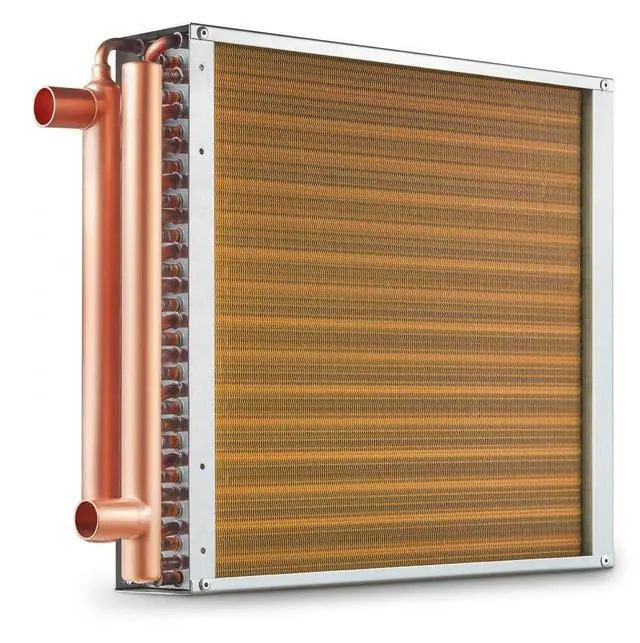

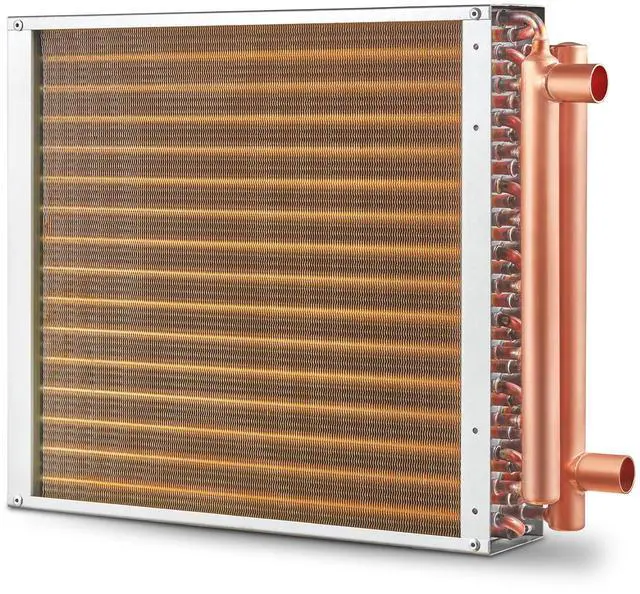

Heat Exchanger Water to Air, 16"x 16" with 3-Row 3/8" Copper Ports, 193 Aluminum Fins Heat Exchanger for Outdoor Wood Furnaces, Residential Heating and Cooling, and Forced Air Heating

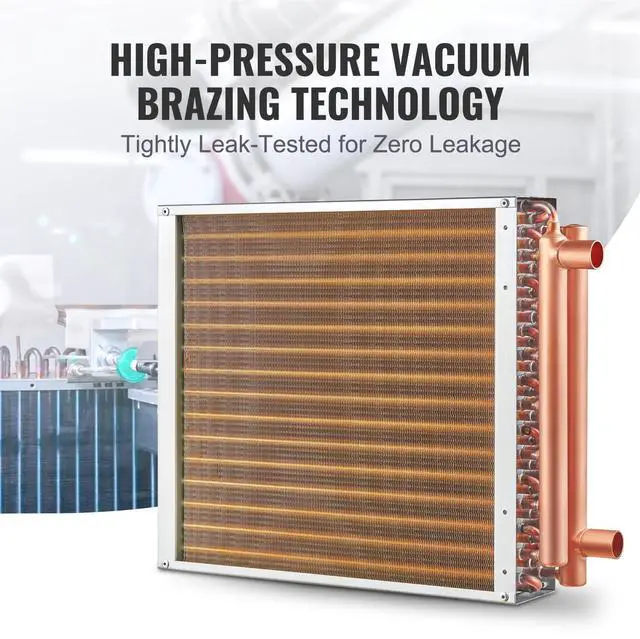

- High-Quality Materials: The entire unit is copper brazed at edges and contact points, forming a durable and leak-resistant piece that withstands high pressure and temperature.

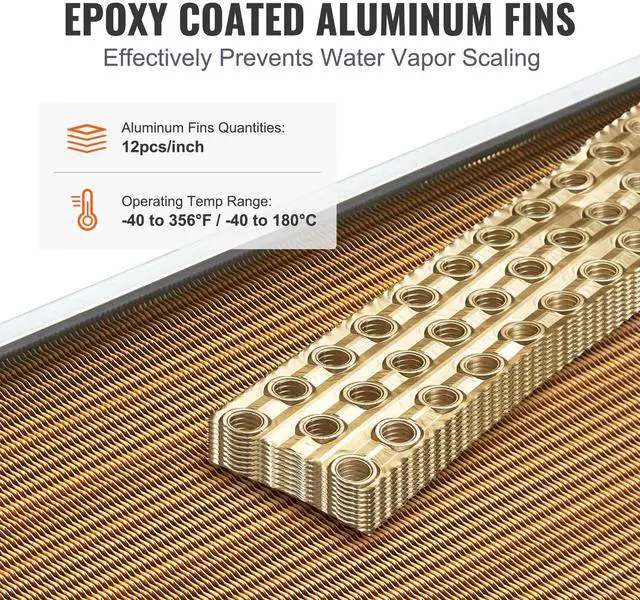

- Durable and Corrosion-Resistant: Features epoxy-coated fins, providing high hardness, wear resistance, and corrosion protection. This reduces internal water vapor scaling, promoting maximum heat exchange between air and fins. Suitable for operating temperatures of -40-356 / -40-180°C.

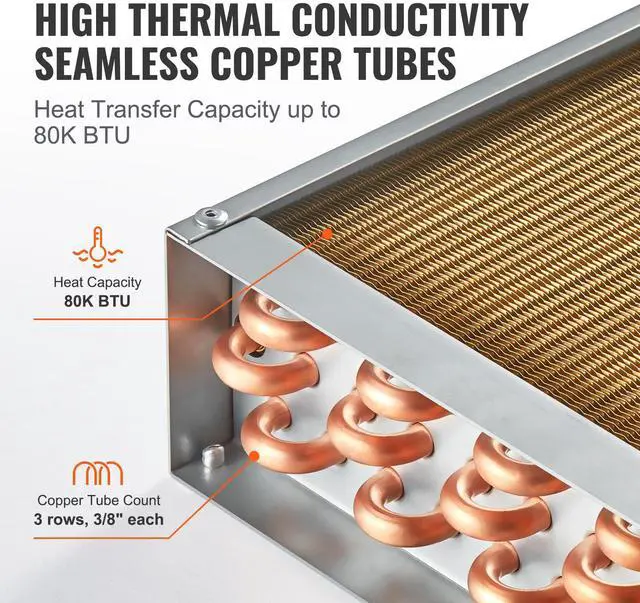

- Efficient Heat Transfer: The heat exchanger generates up to 160kBtu per hour, with 12 aluminum fins per inch and 3 rows of 3/8" seamless copper tubes. The threaded copper tubes increase the contact area and capacity of the fluid medium, significantly enhancing the heat exchanger's performance.
- Large Heat Exchange Area: With an effective heat exchange area of 16x16 and 193 fins, this heat exchanger provides excellent heat transfer performance to meet various needs
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

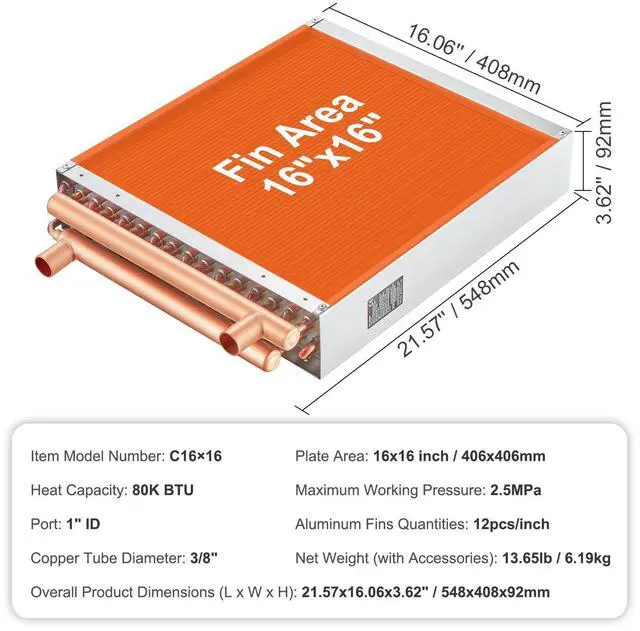

Specifications
Model: C16×16
Heat Capacity: 80K BTU

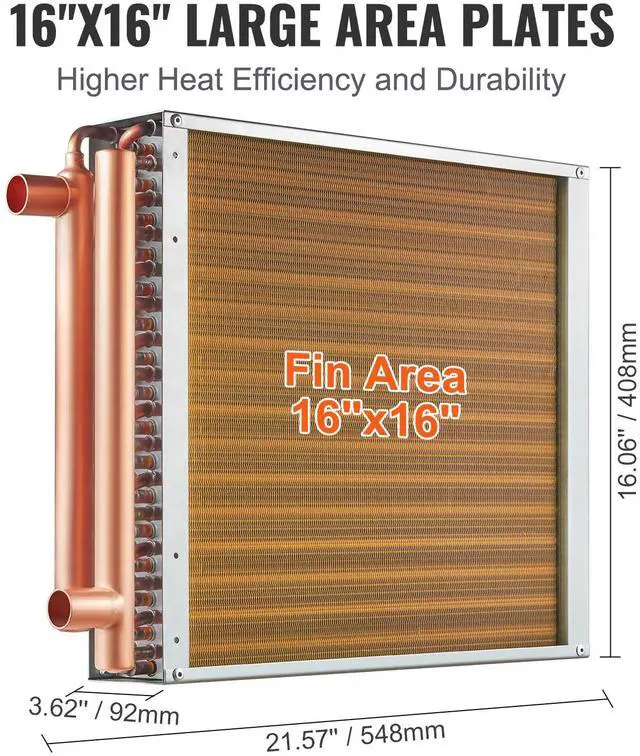

Plate Area: 16 x 16 in / 40.64 x 40.64 cm
Number of Copper Tubes: 3-Row 3/8"
Number of Aluminum Fins: 193 Pcs
Maximum Working Pressure: 2.5MP a
Operating Temperature: -40°C-180°C / -40°F -356°F
Color: Gold
Main Materials: Copper
Net Weight (with Accessories): 13.65 lb / 6.19 kg
Product Dimensions (L x W x H): 21.57 x 16.06 x 3.62" / 548x408x92 mm
Package Content
Heat Exchanger x 1
