$80.90
Meet Your Seller

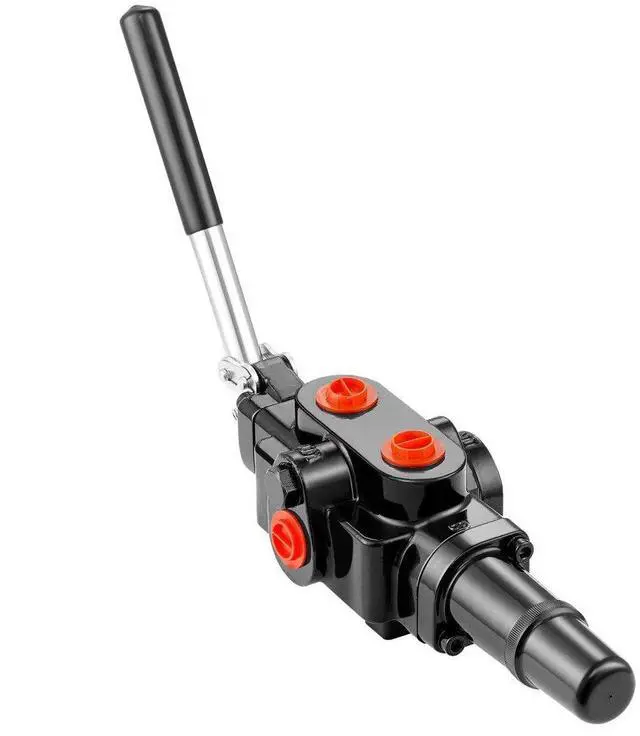

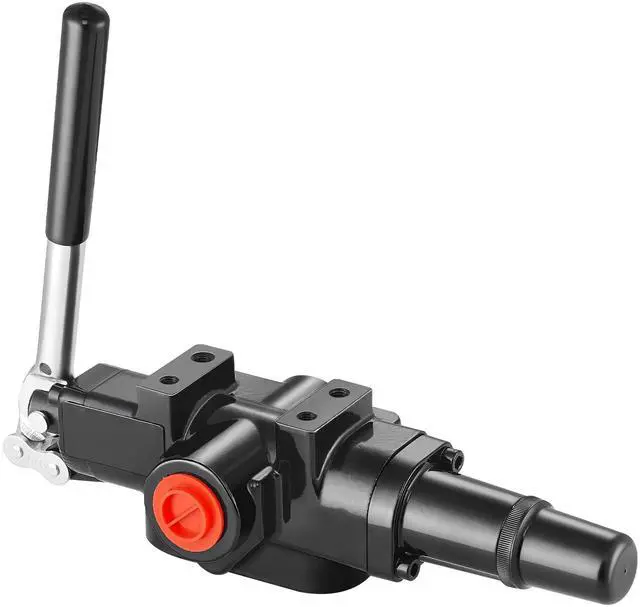

Hydraulic Log Splitter Valve 1 Spool, 25 GPM Hydraulic Directional Control Valve, 3626PSI Hydraulic Loader Valve, Hydraulic Joystick Control Valve for Small Tractors, Loaders, Log Splitter

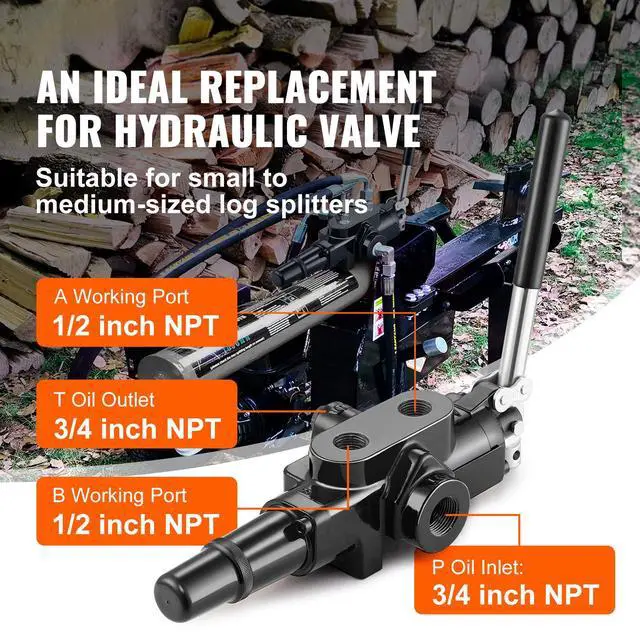

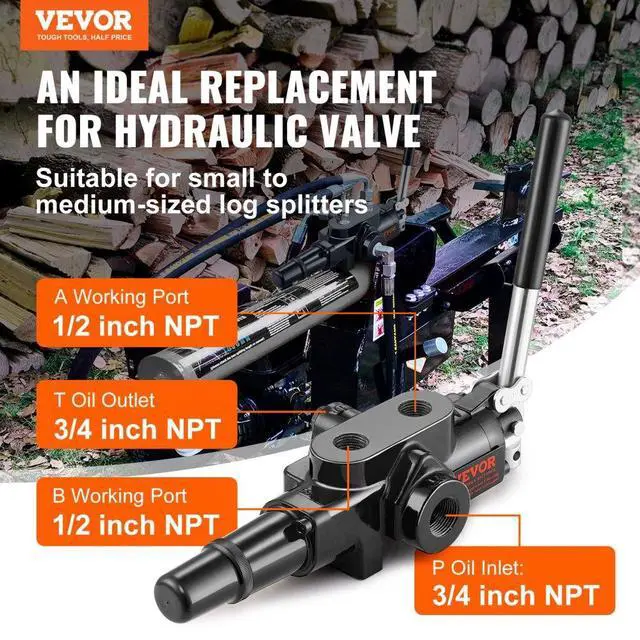

- For Small to Medium-Sized Hydraulic Log Splitters: VEVOR's 1-spool log splitter valve is an ideal replacement for leaking or malfunctioning hydraulic valves, widely used in hydraulic systems across agriculture, forestry, construction, and industry. It features a 1/2'' NPT working port and 3/4'' NPT inlet/outlet ports.

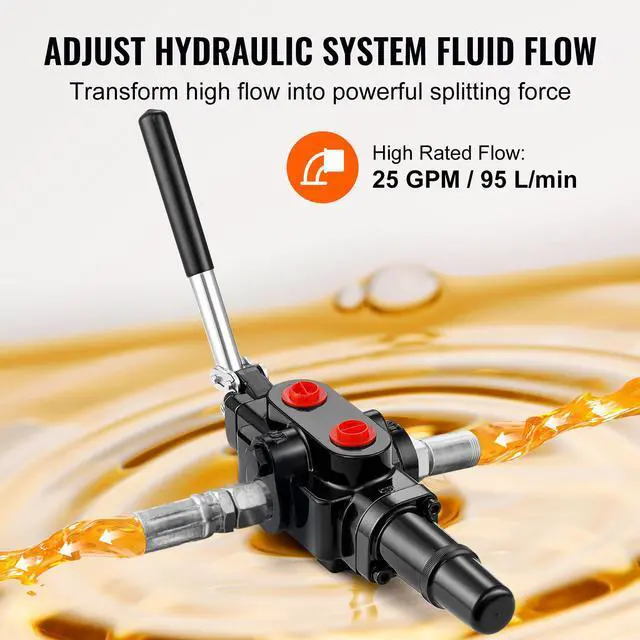

- High Flow, High Efficiency: With a high flow rate of 25 GPM (95 L / Min), this hydraulic directional control valve efficiently splits heavy and thick logs, providing ample power for various log types and sizes, ensuring precise and effective splitting.

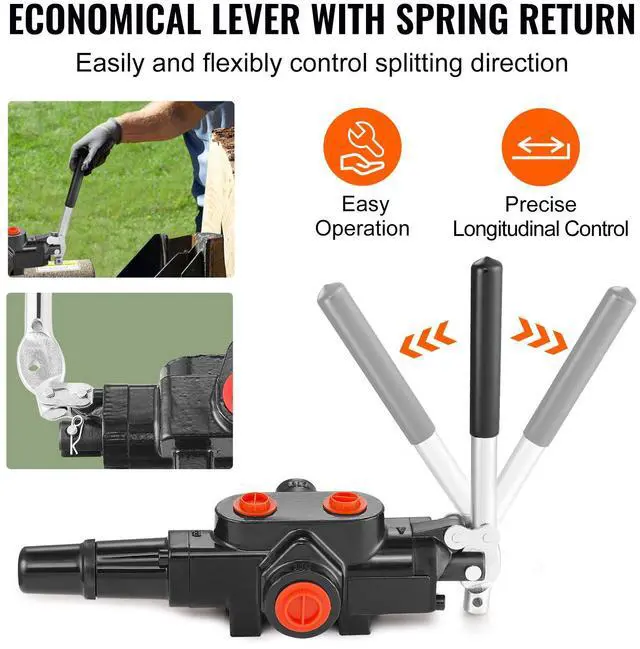

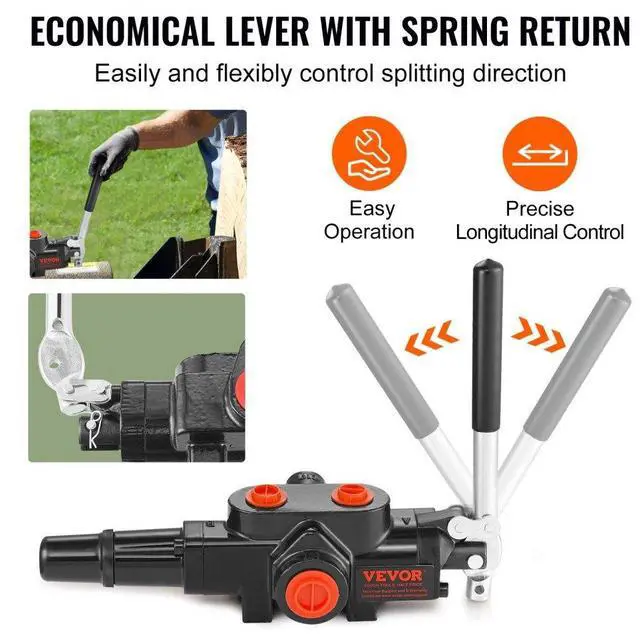

- Built-in Spring Return: The standard spool features a spring return mechanism, automatically resetting to the neutral position. Additionally, there is a spring at the base of the handle, making joystick control smoother and easier.

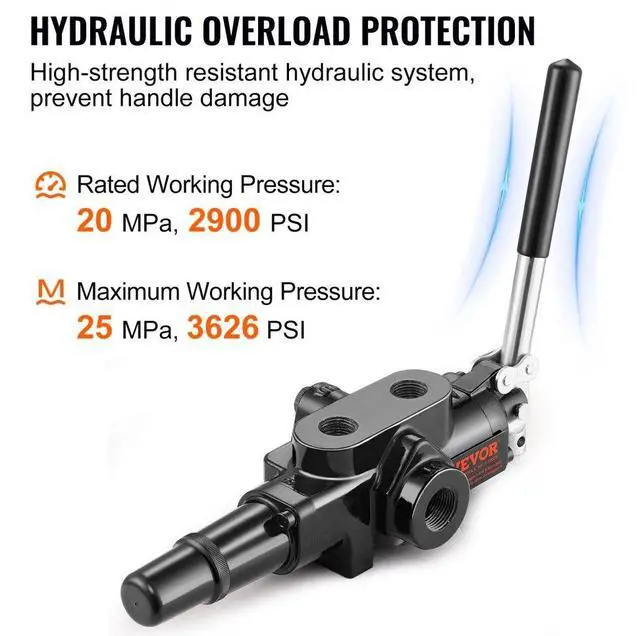

- Durable and Secure: Equipped with a hydraulic safety valve, 1-spool hydraulic loader valve can withstand up to 25 MPa / 3626 PSI maximum pressure, ensuring durability and preventing damage
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

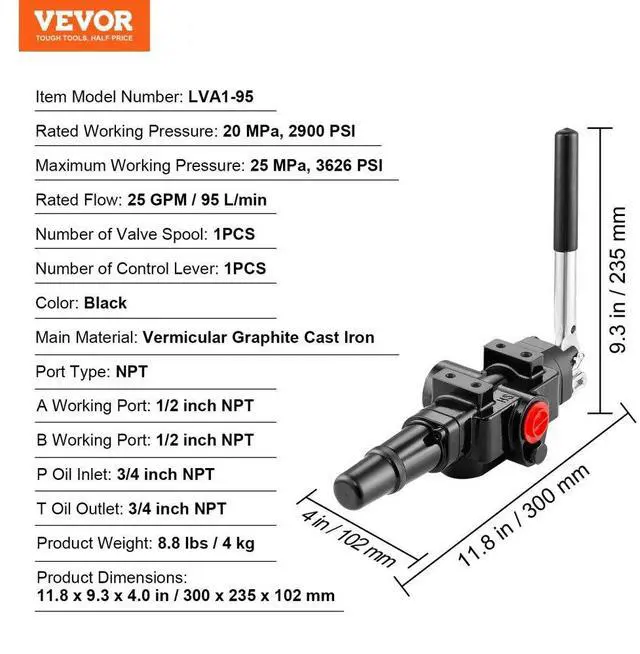

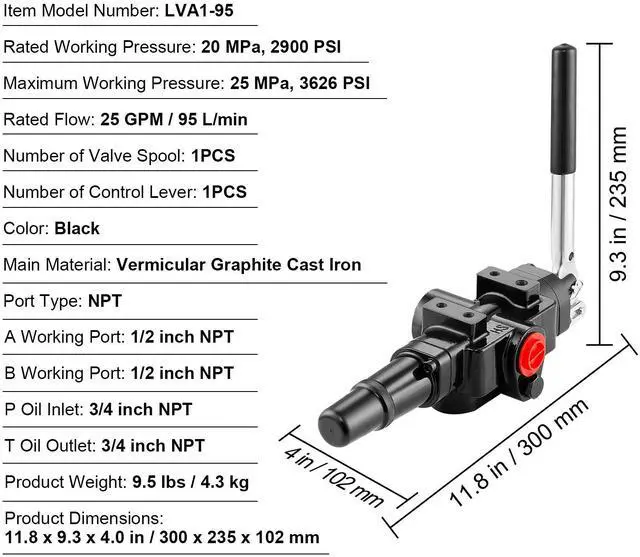

Specifications
Item Model Number: LVA1-95
Rated Working Pressure: 20 MPa, 2900 PSI
Maximum Working Pressure: 25 MPa, 3626 PSI
Rated Flow: 25 GPM / 95 L/min
Number of Valve Spool: 1PCS
Number of Control Lever: 1PCS
Port Type: NPT
A Working Port: 1/2 inch NPT
B Working Port: 1/2 inch NPT
P Oil Inlet: 3/4 inch NPT
T Oil Outlet: 3/4 inch NPT
Color: Black
Main Material: Vermicular Graphite Cast Iron
Product Weight: 8.8 lbs / 4 kg
Product Dimensions: 11.8 x 9.3 x 4.0 in / 300 x 235 x 102 mm
Package Content
1 x Hydraulic Valve
1 x Instruction Manual
