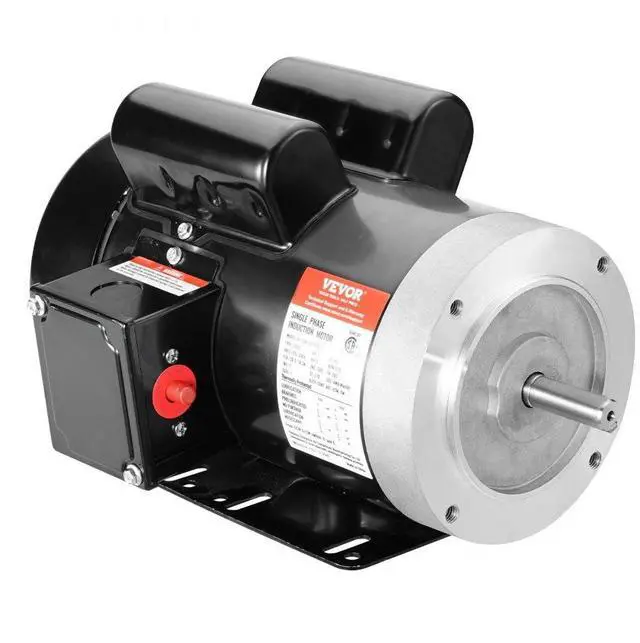

2HP Electric Motor 1725 rpm, AC 115V/230V, 56C Frame, Air Compressor Motor Single Phase, 5/8" Keyed Shaft, CW/CCW Rotation for Agricultural Machinery and General Equipment

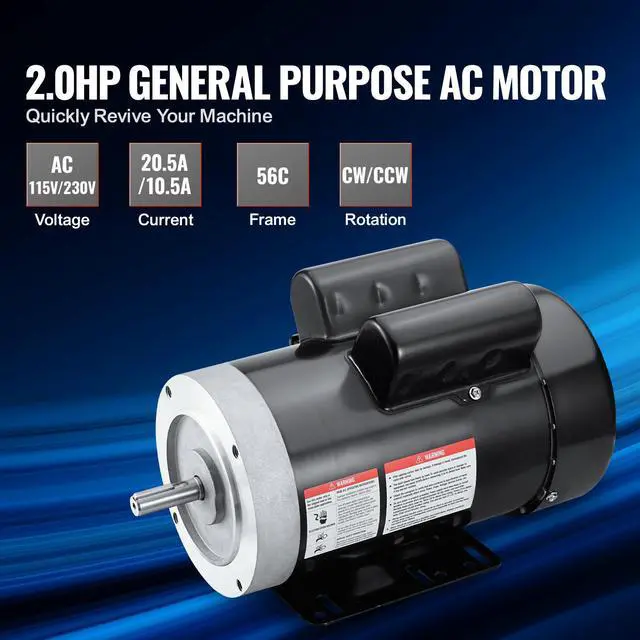

- Powerful Performance: 2HP, Single Phase, Full Load Current: 20.5/10.5A, AC 115V/230V 60Hz, 1725 RPM High Speed, SF: 1.15.

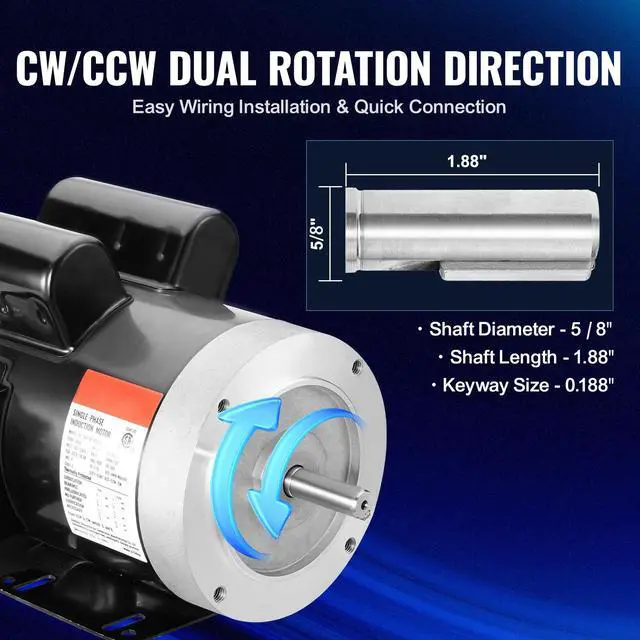

- Sturdy Frame Type: 56C Frame, 5/8" Keyed shaft, Shaft length: 1.88", Keyway size: 0.188".
- Dual Rotation Direction: Our electric motor offers reversible CW/CCW rotation, simplifying wiring installation and providing quick, versatile connections for various applications.

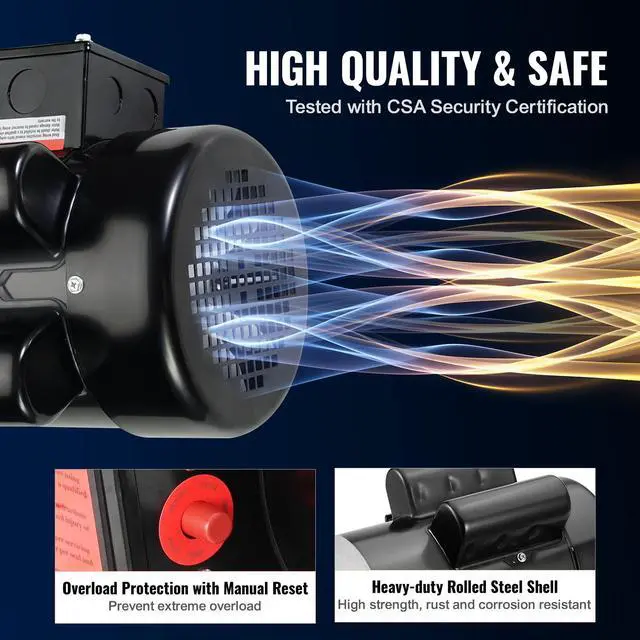

- Durable and Safe: Tested to CSA standards, this air compressor motor boasts a heavy-duty rolled steel shell for enhanced durability. It also includes overload protection with manual reset, ensuring longer service life and dependable performance.
- Wide Range of Applications: 2HP general purpose motor is universally applicable, ideal for water pumps, agricultural machinery, and general equipment. It's perfect for DIY projects and repair replacements, providing versatile and powerful functionality for various needs.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Specifications
Item Model Number: SY-2HP-4P-B34-C
Voltage: AC 115V/230V
Frequency: 60Hz
Horsepower: 2.0HP
Current: 20.5 / 10.5A
Frame Size: 56C
Rotation Speed: 1725 RPM
Net Weight: 44.1 lbs / 20.0 kg

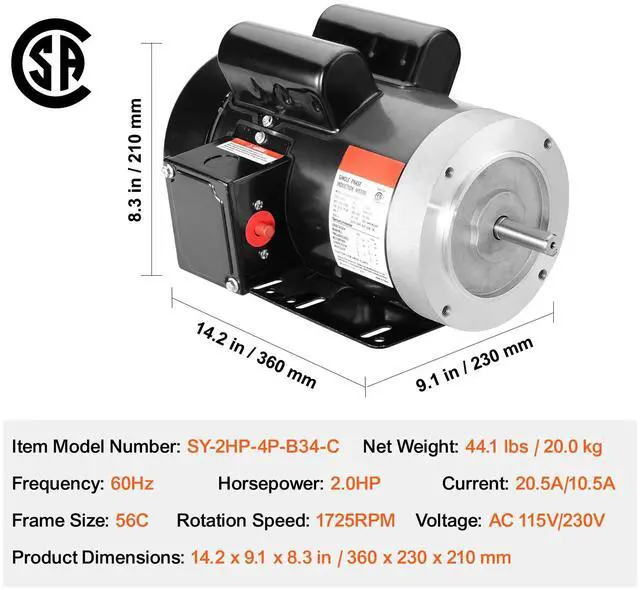

Product Dimensions: 14.2 x 9.1 x 8.3 in / 360 x 230 x 210 mm
Package Content
1 x User Manual
